pyvista.examples.downloads.download_kitchen

download_kitchen(split=False, load=True)

Download structured grid of kitchen with velocity field.

Use the split argument to extract all of the furniture in the kitchen.

Parameters:

splitbool, default: False

Optionally split the furniture and return a pyvista.MultiBlock.

loadbool, default: True

Load the dataset after downloading it when True. Set this to False and only the filename will be returned.

Returns:

pyvista.StructuredGrid | str

DataSet or filename depending on load.

Examples

>>> import pyvista as pv
>>> from pyvista import examples
>>> dataset = examples.download_kitchen()
>>> point_a = (0.08, 2.50, 0.71)
>>> point_b = (0.08, 4.50, 0.71)
>>> line = pv.Line(point_a, point_b, resolution=39)

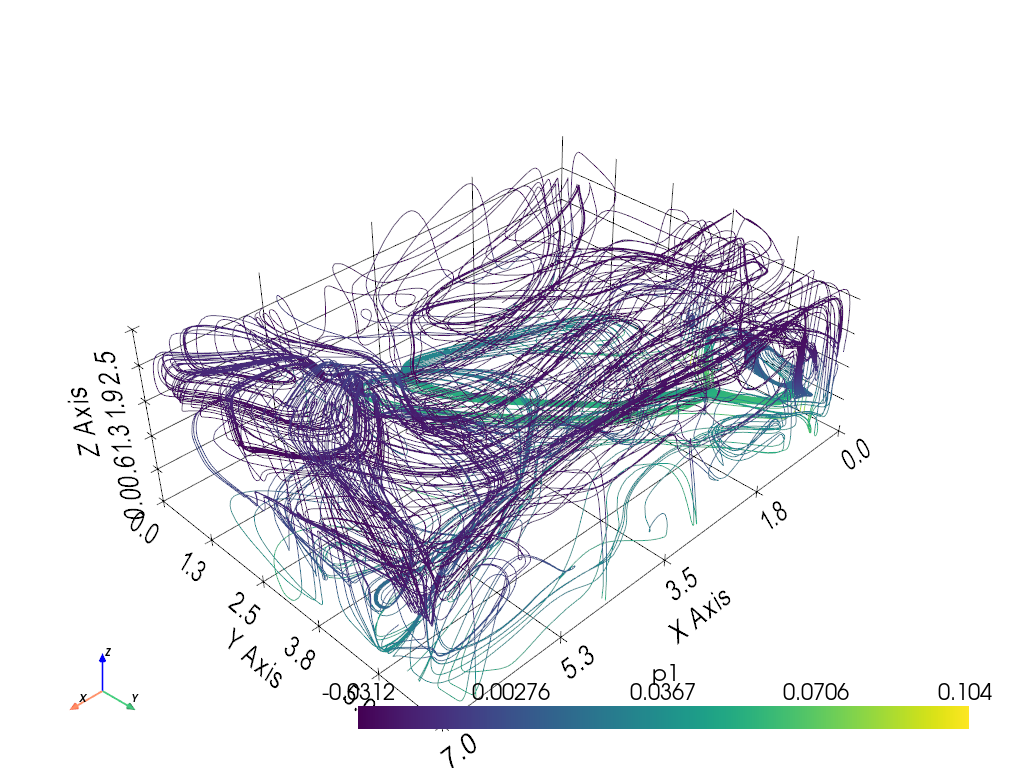

>>> dataset.streamlines_from_source(line).plot(show_grid=True)

Static Scene

Interactive Scene

See also

Kitchen Dataset

See this dataset in the Dataset Gallery for more info.

This dataset is used in the following examples:

• Plot Over Line

• Line Widget
