Crop Labeled ImageData#
Use crop()
to crop labeled data such as segmented medical images.
from __future__ import annotations
import pyvista as pv
from pyvista import examples
Load a dataset with a CT image and corresponding segmentation labels. Here we load
download_whole_body_ct_male()
.
dataset = examples.download_whole_body_ct_male()
Get the ImageData
for the CT data and one of the segmentation masks.
For this example we choose a mask of the skull.
Crop the CT image using the segmentation mask. Use padding
to include additional data
points around the masked region.
cropped_ct = ct.crop(mask=skull, padding=10)

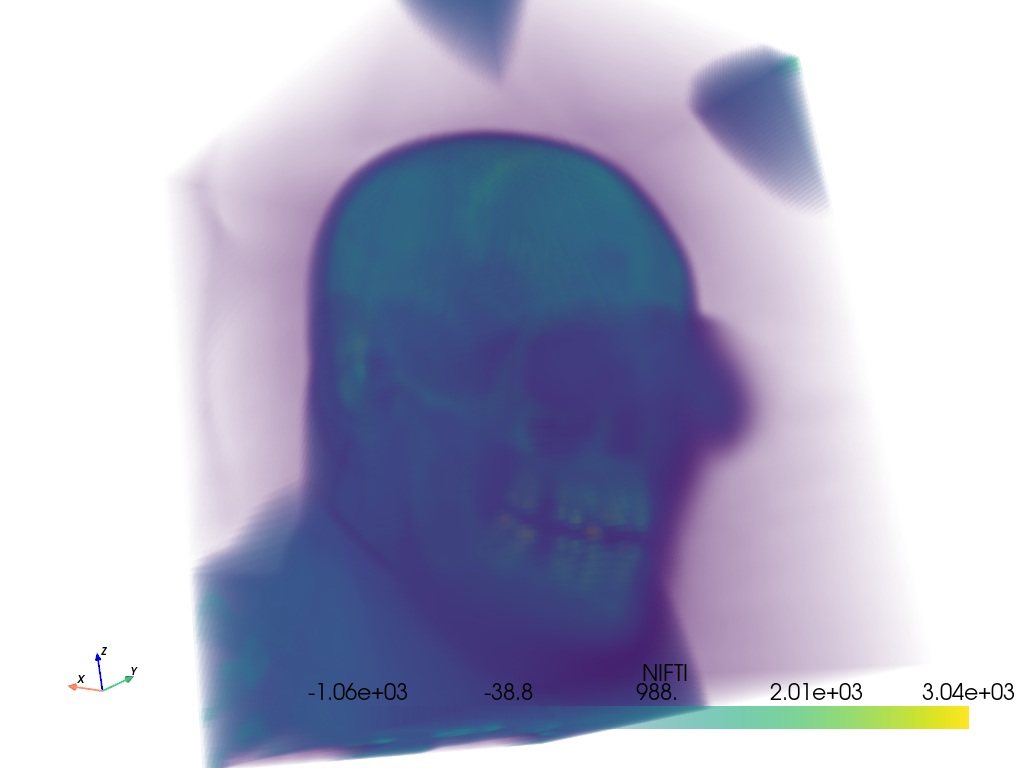

Use points_to_cells()
to plot the cropped image
as VOXEL
cells.
cpos = [(687.5, 763.6, 471.3), (231.8, 296.3, 677.0), (0.107, 0.311, 0.944)]
cropped_ct_voxels = cropped_ct.points_to_cells()
cropped_ct_voxels.plot(volume=True, cpos=cpos)

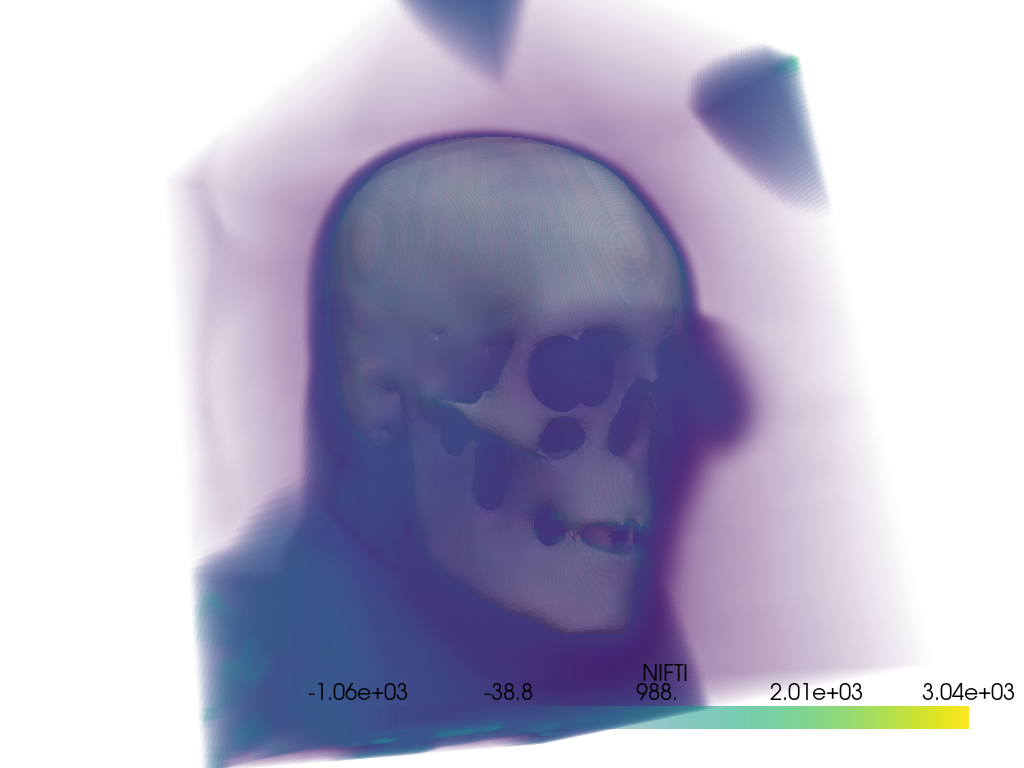

Include a surface contour of the mask with the plot.
skull_surface = skull.contour_labels()
pl = pv.Plotter()
pl.add_mesh(skull_surface, color='white')
pl.add_volume(cropped_ct_voxels)
pl.camera_position = cpos
pl.show()

After cropping, the CT image’s dimensions are smaller than the mask’s.
False
To keep dimension the same, either
crop the mask itself; the meshes will have smaller dimensions relative to the input
pad the CT image as part of the initial crop; the meshes will have the same dimensions as the input
To crop the mask itself, you can perform a similar crop as before using mask=True
.
cropped_skull = skull.crop(mask=True, padding=10)
cropped_skull.dimensions
(71, 84, 100)
However, computationally it is more efficient to crop using extent
directly.
(71, 84, 100)
Alternatively, use keep_dimensions
and fill_value
when initially cropping the image so
that the output dimensions match the input. A value of -1000
is used, which may represent
air in the scan.
cropped_ct = ct.crop(mask=skull, keep_dimensions=True, fill_value=-1000)
cropped_ct.dimensions
(160, 160, 273)
Total running time of the script: (0 minutes 5.498 seconds)
