pyvista.EnSightReader#

class EnSightReader(*args, **kwargs)[source]#

EnSight Reader for .case files.

Examples

>>> import pyvista as pv
>>> from pyvista import examples
>>> filename = examples.download_cylinder_crossflow(load=False)
>>> filename.split("/")[-1]  # omit the path
'cylinder_Re35.case'
>>> reader = pv.get_reader(filename)
>>> mesh = reader.read()

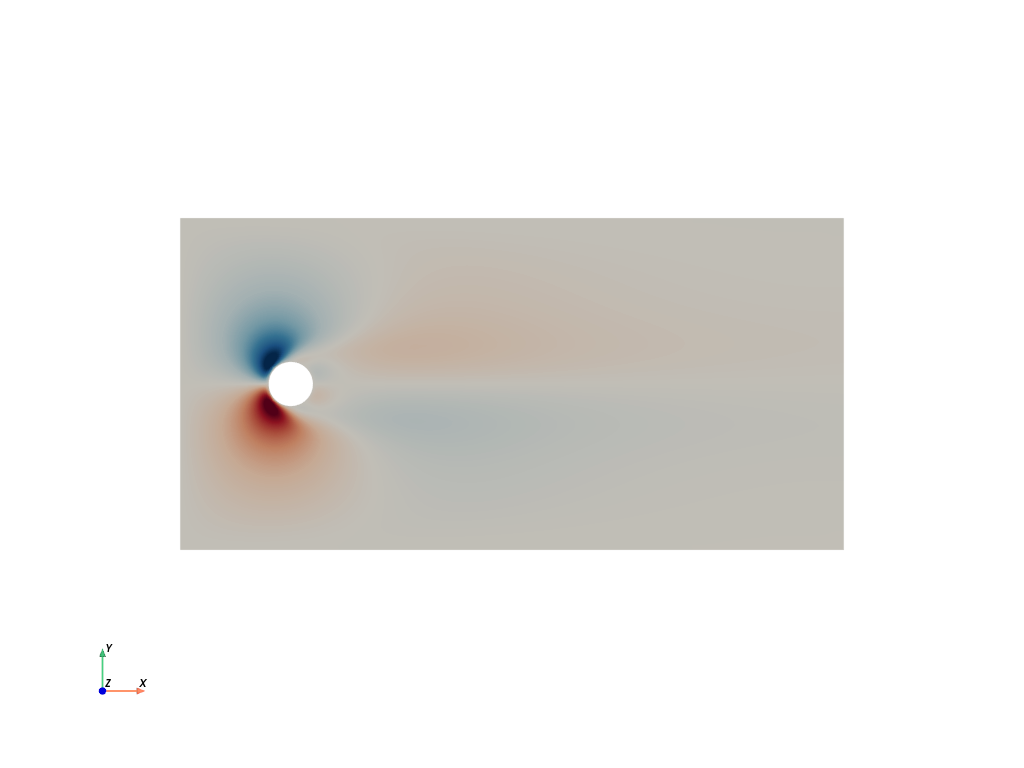

>>> mesh.plot(
...     scalars="velocity",
...     component=1,
...     clim=[-20, 20],
...     cpos='xy',
...     cmap='RdBu',
...     show_scalar_bar=False,
... )
../../../_images/pyvista-EnSightReader-1_00_00.png

Methods

EnSightReader.set_active_time_point(time_point)

Set active time or iteration by index.

EnSightReader.set_active_time_set(time_set)

Set the active time set by index.

EnSightReader.set_active_time_value(time_value)

Set active time or iteration value.

EnSightReader.time_point_value(time_point)

Value of time point or iteration by index.

Attributes

EnSightReader.active_time_set

Return the index of the active time set of the reader.

EnSightReader.active_time_value

Active time or iteration value.

EnSightReader.number_time_points

Return number of time points or iterations available to read.
