pyvista.examples.examples

Built-in examples that ship with PyVista and do not need to be downloaded.

Examples

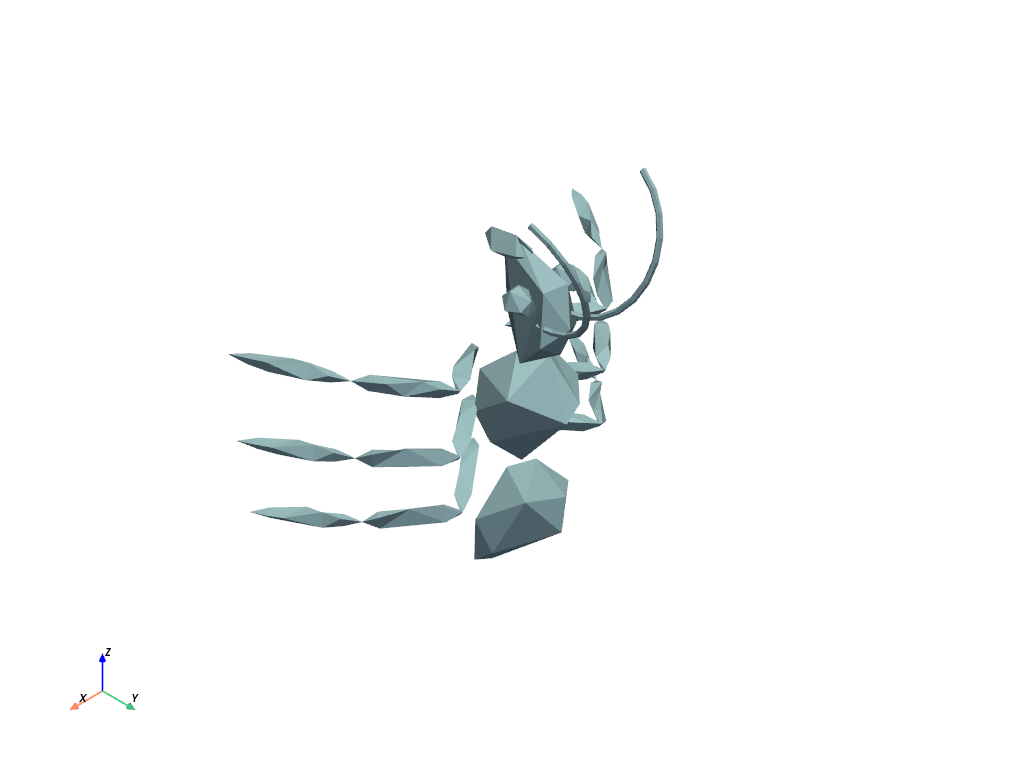

>>> from pyvista import examples
>>> mesh = examples.load_ant()
>>> mesh.plot()

Functions

load_airplane()	Load ply airplane mesh.
load_ant()	Load ply ant mesh.
load_channels()	Load a uniform grid of fluvial channels in the subsurface.
load_explicit_structured([dimensions, spacing])	Load a simple explicit structured grid.
load_frog_tissues()	Load frog tissues dataset.
load_globe()	Load a globe source.
load_globe_texture()	Load a pyvista.Texture that can be applied to the globe source.
load_hexbeam()	Load a sample UnstructuredGrid.
load_hydrogen_orbital([n, l, m, zoom_fac])	Load the hydrogen wave function for a pyvista.ImageData.
load_logo()	Load the PyVista logo as a pyvista.ImageData.
load_nut()	Load an example nut mesh.
load_random_hills()	Create random hills toy example.
load_rectilinear()	Load a sample uniform grid.
load_sphere()	Load sphere ply mesh.
load_sphere_vectors()	Create example sphere with a swirly vector field defined on nodes.
load_spline()	Load an example spline mesh.
load_structured()	Load a simple StructuredGrid.
load_tetbeam()	Load a sample UnstructuredGrid containing only tetrahedral cells.
load_uniform()	Load a sample uniform grid.
