pyvista.Renderer.set_background

Renderer.set_background(color, top=None, right=None, side=None, corner=None)

Set the background color of this renderer.

Parameters:

colorColorLike, optional

Either a string, rgb list, or hex color string. Defaults to theme default. For example:

• color='white'

• color='w'

• color=[1.0, 1.0, 1.0]

• color='#FFFFFF'

topColorLike, optional

If given, this will enable a gradient background where the color argument is at the bottom and the color given in top will be the color at the top of the renderer.

rightColorLike, optional

If given, this will enable a gradient background where the color argument is at the left and the color given in right will be the color at the right of the renderer.

sideColorLike, optional

If given, this will enable a gradient background where the color argument is at the center and the color given in side will be the color at the side of the renderer.

cornerColorLike, optional

If given, this will enable a gradient background where the color argument is at the center and the color given in corner will be the color at the corner of the renderer.

Examples

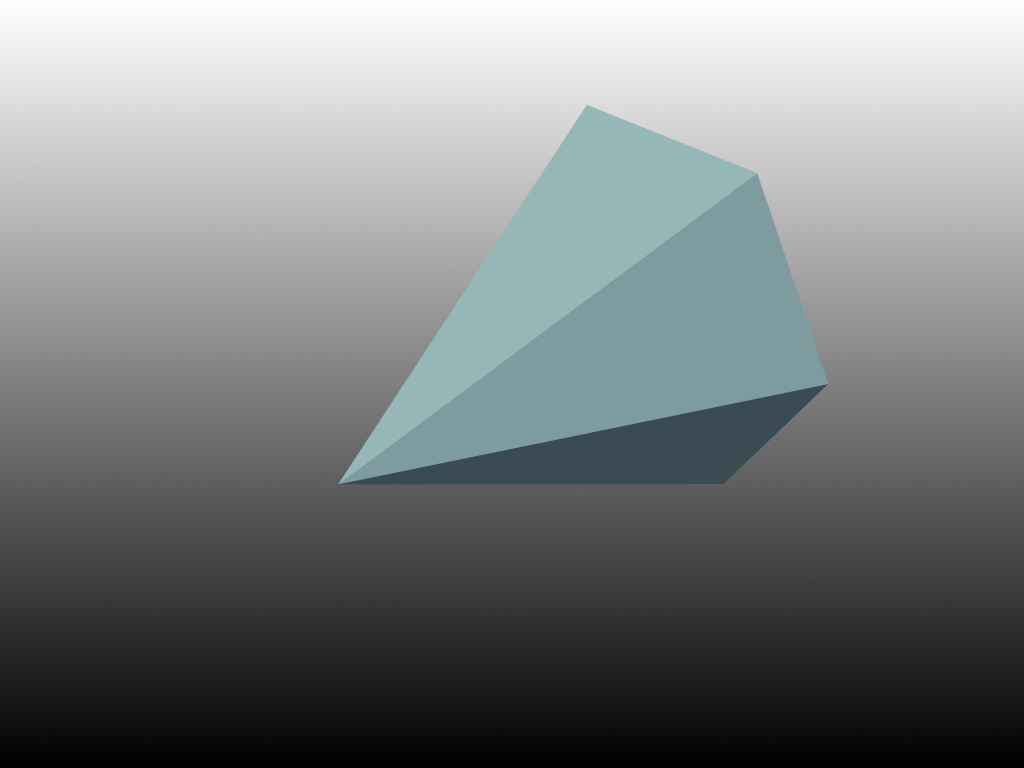

Set the background color to black with a gradient to white at the top of the plot.

>>> import pyvista as pv
>>> pl = pv.Plotter()
>>> actor = pl.add_mesh(pv.Cone())
>>> pl.set_background('black', top='white')
>>> pl.show()

Static Scene

Interactive Scene
