Icosphere(radius=1.0, center=(0.0, 0.0, 0.0), nsub=3)[source]#

Create an icosphere.

An icosphere is a geodesic polyhedron, which is a convex polyhedron made from triangles.

Geodesic polyhedra are constructed by subdividing faces of simpler polyhedra, and then projecting the new vertices onto the surface of a sphere. A geodesic polyhedron has straight edges and flat faces that approximate a sphere,

radiusfloat, default: 1.0

Radius of the icosphere.

centersequence[float], default: (0.0, 0.0, 0.0)

Center of the icosphere.

nsubint, default: 3

This is the number of times each triangle of the original pyvista.Icosahedron() is subdivided.


Mesh of the icosphere.

See also

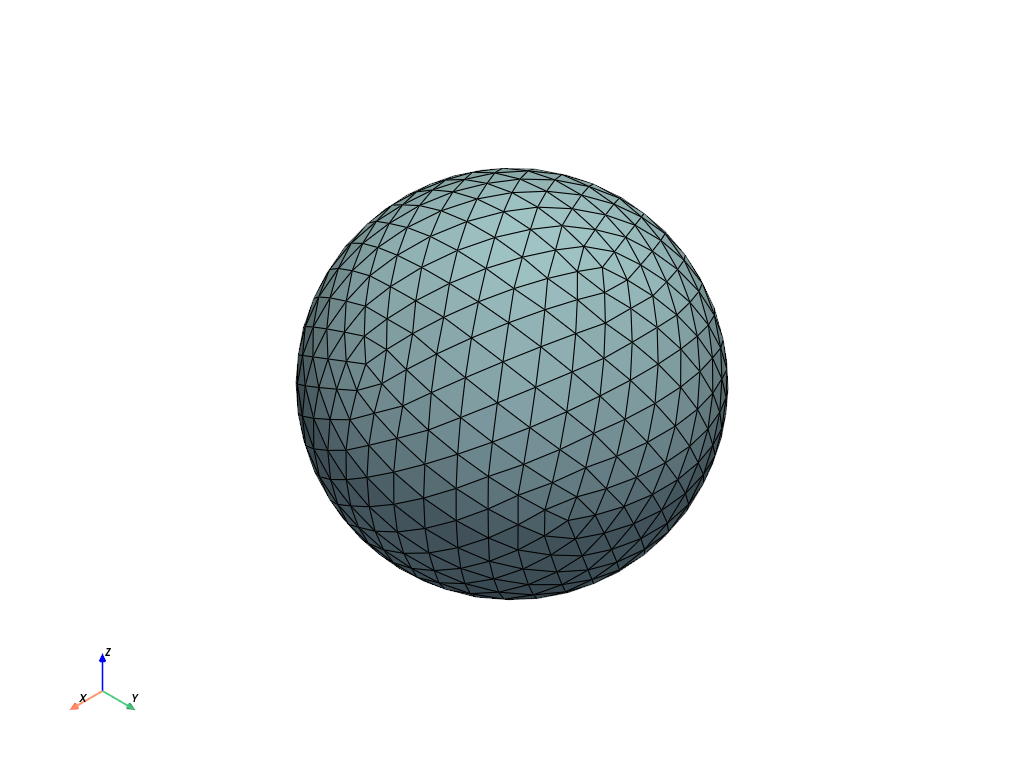

Create the icosphere and plot it with edges.

>>> import pyvista as pv
>>> icosphere = pv.Icosphere()
>>> icosphere.plot(show_edges=True)

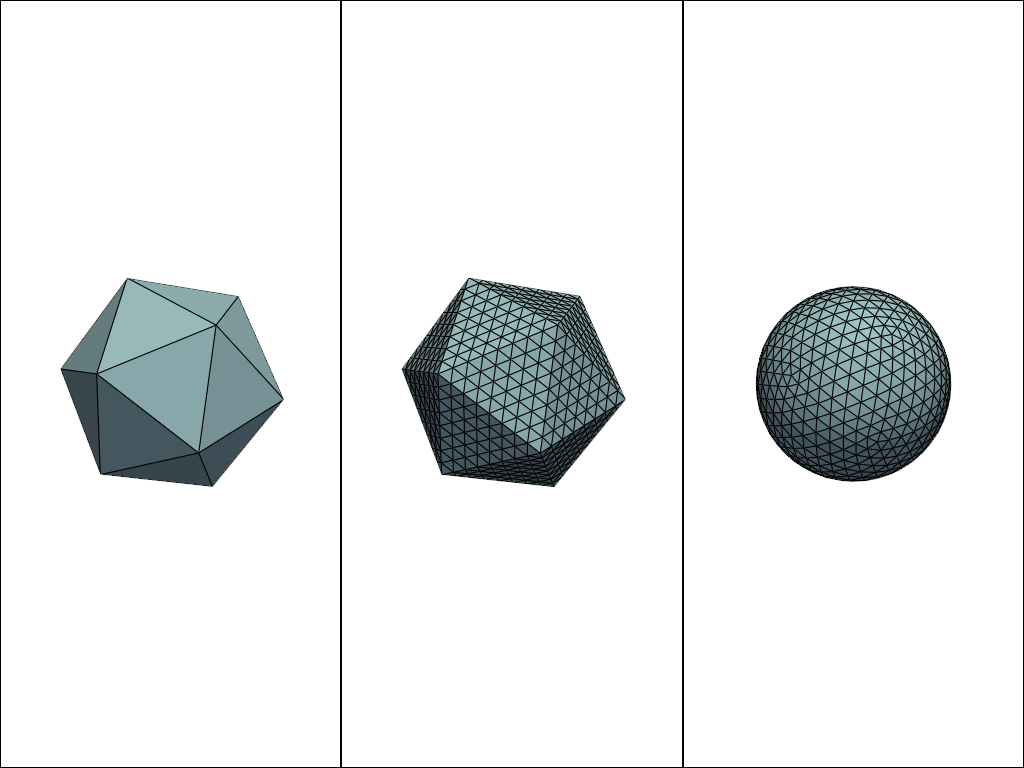

Show how this icosphere was created.

>>> import numpy as np
>>> icosahedron = pv.Icosahedron()
>>> icosahedron.clear_data()  # remove extra scalars
>>> icosahedron_sub = icosahedron.subdivide(nsub=3)
>>> pl = pv.Plotter(shape=(1, 3))
>>> _ = pl.add_mesh(icosahedron, show_edges=True)
>>> pl.subplot(0, 1)
>>> _ = pl.add_mesh(icosahedron_sub, show_edges=True)
>>> pl.subplot(0, 2)
>>> _ = pl.add_mesh(icosphere, show_edges=True)

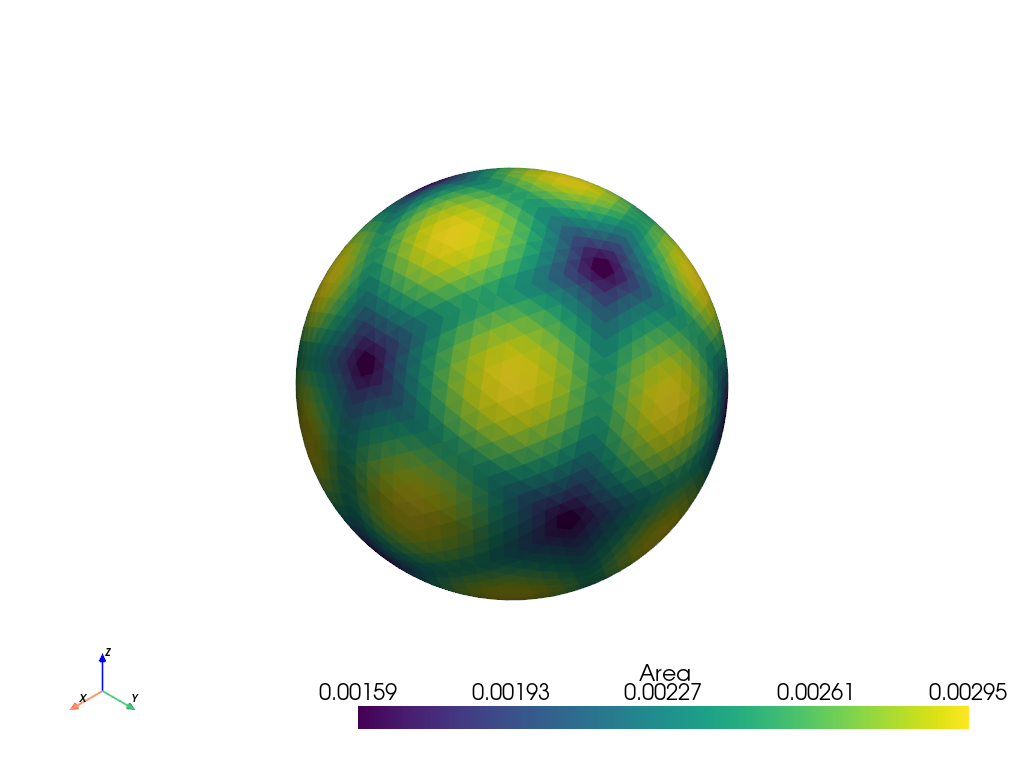

Show how the triangles are not uniform in area. This is because the ones farther from the edges from the original triangles have farther to travel to the sphere.

>>> icosphere = pv.Icosphere(nsub=4)
>>> icosphere.compute_cell_sizes().plot(scalars='Area')
