pyvista.Tube

Tube(

pointa: VectorLike[float] = (-0.5, 0.0, 0.0),

pointb: VectorLike[float] = (0.5, 0.0, 0.0),

resolution: int = 1,

radius: float = 1.0,

n_sides: int = 15,

capping: bool = False,

) → PolyData

Create a tube.

Parameters:

pointasequence[float], default: (-0.5, 0.0, 0.0)

Location in [x, y, z].

pointbsequence[float], default: (0.5, 0.0, 0.0)

Location in [x, y, z].

resolutionint, default: 1

Number of pieces to divide tube into.

radiusfloat, default: 1.0

Minimum tube radius (minimum because the tube radius may vary).

n_sidesint, default: 15

Number of sides for the tube.

cappingbool, default: False

Turn on/off whether to cap the ends with polygons.

Added in version 0.45.

Returns:

pyvista.PolyData

Tube mesh.

Examples

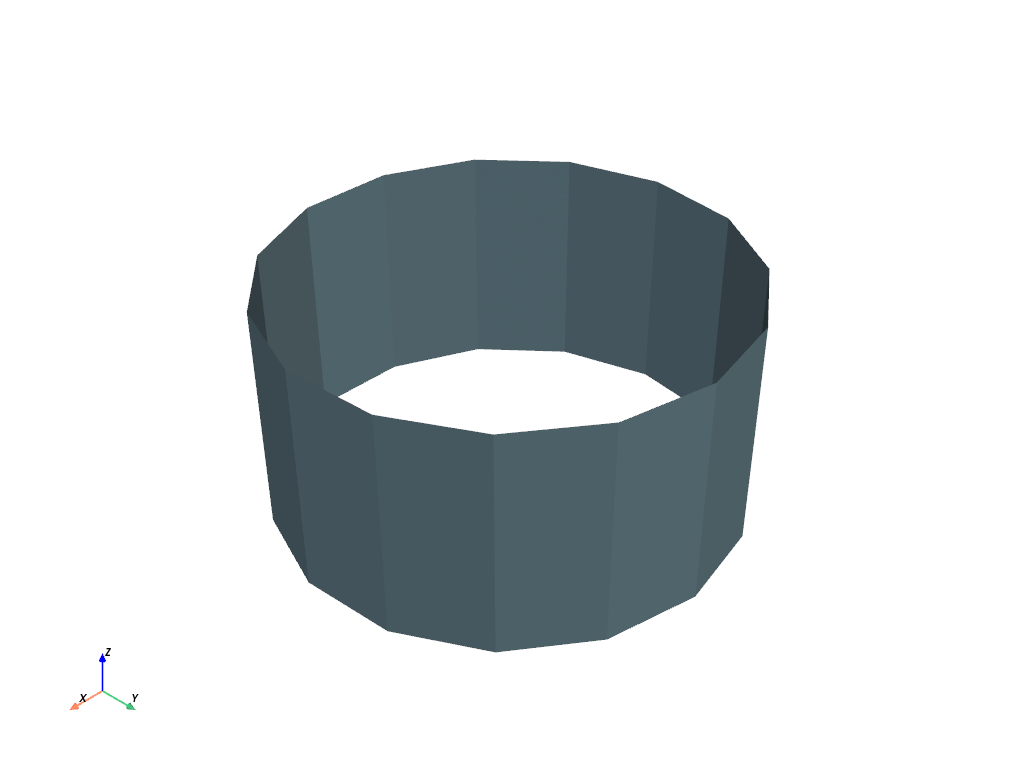

Create a tube between (0, 0, 0) and (0, 0, 1).

>>> import pyvista as pv
>>> mesh = pv.Tube(pointa=(0, 0, 0), pointb=(0, 0, 1))
>>> mesh.plot()

Static Scene

Interactive Scene
