pyvista.DataSetFilters.voxelize

DataSetFilters.voxelize(

*,

reference_volume: ImageData | None = None,

dimensions: VectorLike[int] | None = None,

spacing: float | VectorLike[float] | None = None,

rounding_func: Callable[[VectorLike[float]], VectorLike[int]] | None = None,

cell_length_percentile: float | None = None,

cell_length_sample_size: int | None = None,

progress_bar: bool = False,

) → UnstructuredGrid

Voxelize mesh to UnstructuredGrid.

The voxelization can be controlled in several ways:

1. Specify the output geometry using a reference_volume.

2. Specify the spacing explicitly.

3. Specify the dimensions explicitly.

4. Specify the cell_length_percentile. The spacing is estimated from the surface’s cells using the specified percentile.

Use reference_volume for full control of the output geometry. For all other options, the geometry is implicitly defined such that the generated mesh fits the bounds of the input mesh.

If no inputs are provided, cell_length_percentile=0.1 (10th percentile) is used by default to estimate the spacing. On systems with VTK < 9.2, the default spacing is set to 1/100 of the input mesh’s length.

Added in version 0.46.

Note

This method is a wrapper around voxelize_binary_mask(). See that method for additional information.

Parameters:

reference_volumeImageData, optional

Volume to use as a reference. The output will have the same dimensions, and spacing as the reference.

dimensionsVectorLike[int], optional

Dimensions of the voxelized mesh. Set this value to control the dimensions explicitly. If unset, the dimensions are defined implicitly through other parameter. See summary and examples for details.

Note

Dimensions is the number of points along each axis, not cells. Set dimensions to N+1 instead for N cells along each axis.

spacingfloat | VectorLike[float], optional

Approximate spacing to use for the generated mesh. Set this value to control the spacing explicitly. If unset, the spacing is defined implicitly through other parameters. See summary and examples for details.

rounding_funcCallable[VectorLike[float], VectorLike[int]], optional

Control how the dimensions are rounded to integers based on the provided or calculated spacing. Should accept a length-3 vector containing the dimension values along the three directions and return a length-3 vector. numpy.round() is used by default.

Rounding the dimensions implies rounding the actual spacing.

Has no effect if dimensions is specified.

cell_length_percentilefloat, optional

Cell length percentage p to use for computing the default spacing. Default is 0.1 (10th percentile) and must be between 0 and 1. The p-th percentile is computed from the cumulative distribution function (CDF) of lengths which are representative of the cell length scales present in the input. The CDF is computed by:

1. Triangulating the input cells.

2. Sampling a subset of up to cell_length_sample_size cells.

3. Computing the distance between two random points in each cell.

4. Inserting the distance into an ordered set to create the CDF.

Has no effect if dimensions is specified.

Note

This option is only available for VTK 9.2 or greater.

cell_length_sample_sizeint, optional

Number of samples to use for the cumulative distribution function (CDF) when using the cell_length_percentile option. 100 000 samples are used by default.

progress_barbool, default: False

Display a progress bar to indicate progress.

Returns:

UnstructuredGrid

Voxelized unstructured grid of the original mesh.

See also

voxelize_rectilinear

Similar function that returns a RectilinearGrid with cell data.

voxelize_binary_mask

Similar function that returns a ImageData with point data.

Examples

Create a voxelized mesh with uniform spacing.

>>> import numpy as np
>>> import pyvista as pv
>>> from pyvista import examples
>>> mesh = examples.download_bunny_coarse()
>>> vox = mesh.voxelize(spacing=0.01)
>>> vox.plot(show_edges=True)

Static Scene

Interactive Scene

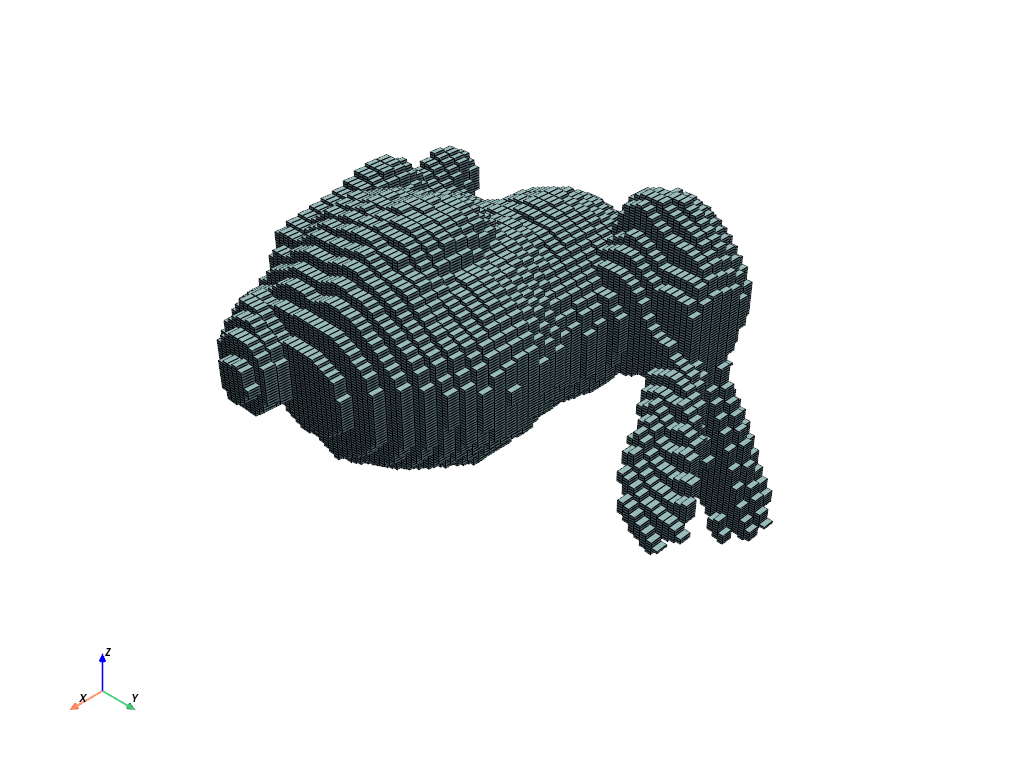

Create a voxelized mesh using non-uniform spacing.

>>> vox = mesh.voxelize(spacing=(0.01, 0.005, 0.002))
>>> vox.plot(show_edges=True)

Static Scene

Interactive Scene

The bounds of the voxelized mesh always match the bounds of the input.

>>> mesh.bounds
BoundsTuple(x_min = -0.13155962526798248,
            x_max =  0.18016336858272552,
            y_min = -0.12048563361167908,
            y_max =  0.18769524991512299,
            z_min = -0.14300920069217682,
            z_max =  0.09850578755140305)

>>> vox.bounds
BoundsTuple(x_min = -0.13155962526798248,
            x_max =  0.18016336858272552,
            y_min = -0.12048563361167908,
            y_max =  0.18769524991512299,
            z_min = -0.14300920069217682,
            z_max =  0.09650979936122894)

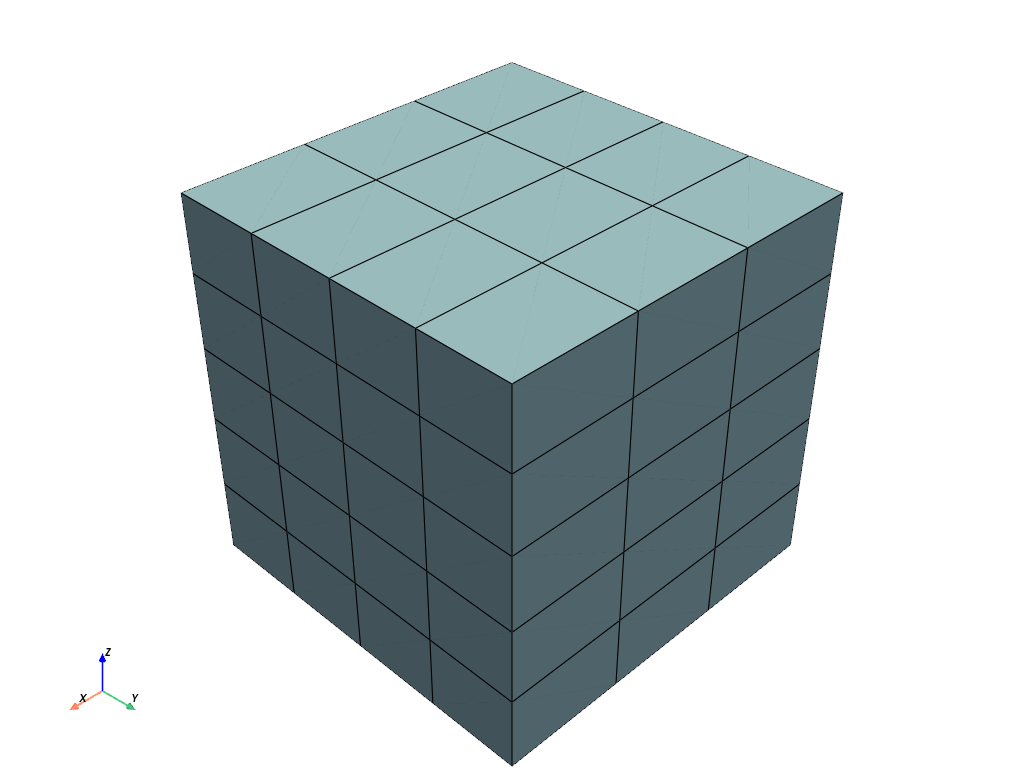

Create a voxelized mesh with 3 x 4 x 5 cells. Since dimensions is the number of points, not cells, we need to add 1 to get the number of desired cells.

>>> mesh = pv.Box()
>>> cell_dimensions = np.array((3, 4, 5))
>>> vox = mesh.voxelize(dimensions=cell_dimensions + 1)
>>> vox.plot(show_edges=True)

Static Scene

Interactive Scene
