pyvista.DataSetFilters.warp_by_scalar#

DataSetFilters.warp_by_scalar(

scalars=None,

factor=1.0,

normal=None,

inplace=False,

progress_bar=False,

**kwargs,

)[source]#

Warp the dataset’s points by a point data scalars array’s values.

This modifies point coordinates by moving points along point normals by the scalar amount times the scale factor.

Parameters:

scalarsstr, optional: Name of scalars to warp by. Defaults to currently active scalars.
factorfloat, default: 1.0: A scaling factor to increase the scaling effect. Alias scale_factor also accepted - if present, overrides factor.
normalsequence, optional: User specified normal. If given, data normals will be ignored and the given normal will be used to project the warp.
inplacebool, default: False: If True, the points of the given dataset will be updated.
progress_barbool, default: False: Display a progress bar to indicate progress.
**kwargsdict, optional: Accepts scale_factor instead of factor.

Returns:

Examples

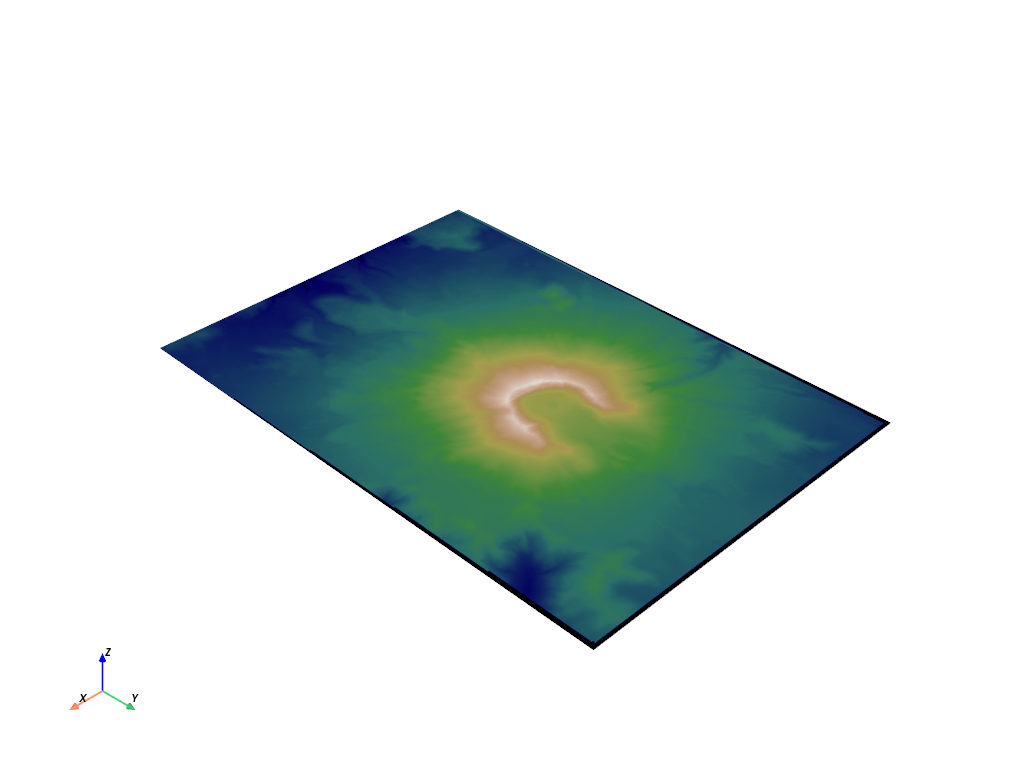

First, plot the unwarped mesh.

>>> from pyvista import examples
>>> mesh = examples.download_st_helens()
>>> mesh.plot(cmap='gist_earth', show_scalar_bar=False)

Static Scene

Interactive Scene

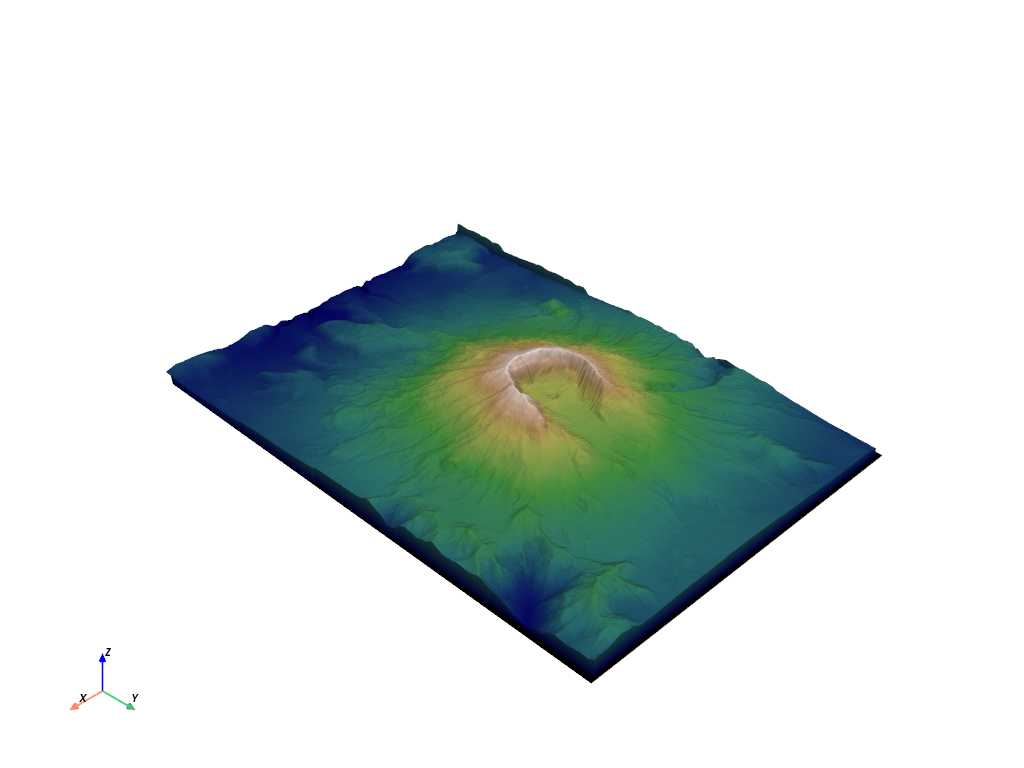

Now, warp the mesh by the 'Elevation' scalars.

>>> warped = mesh.warp_by_scalar('Elevation')
>>> warped.plot(cmap='gist_earth', show_scalar_bar=False)

Static Scene

Interactive Scene

See Computing Surface Normals for more examples using this filter.
