PolyDataFilters.extrude_trim

PolyDataFilters.extrude_trim#

PolyDataFilters.extrude_trim(
direction,
trim_surface,
extrusion='boundary_edges',
capping='intersection',
inplace: bool = False,
progress_bar: bool = False,
)[source]#

Extrude polygonal data trimmed by a surface.

The input dataset is swept along a specified direction forming a “skirt” from the boundary edges 2D primitives (that is, edges used by only one polygon); and/or from vertices and lines. The extent of the sweeping is defined where the sweep intersects a user-specified surface.

Parameters:
directionnumpy.ndarray or sequence

Direction vector to extrude.

trim_surfacepyvista.PolyData

Surface which trims the surface.

extrusionstr, default: “boundary_edges”

Control the strategy of extrusion. One of the following:

  • "boundary_edges"

  • "all_edges"

The default only generates faces on the boundary of the original input surface. When using "all_edges", faces are created along interior points as well.

cappingstr, default: “intersection”

Control the strategy of capping. One of the following:

  • "intersection"

  • "minimum_distance"

  • "maximum_distance"

  • "average_distance"

inplacebool, default: False

Overwrites the original mesh in-place.

progress_barbool, default: False

Display a progress bar to indicate progress.

Returns:
pyvista.PolyData

Extruded mesh trimmed by a surface.

Examples#

Download Python source code | Download Jupyter notebook

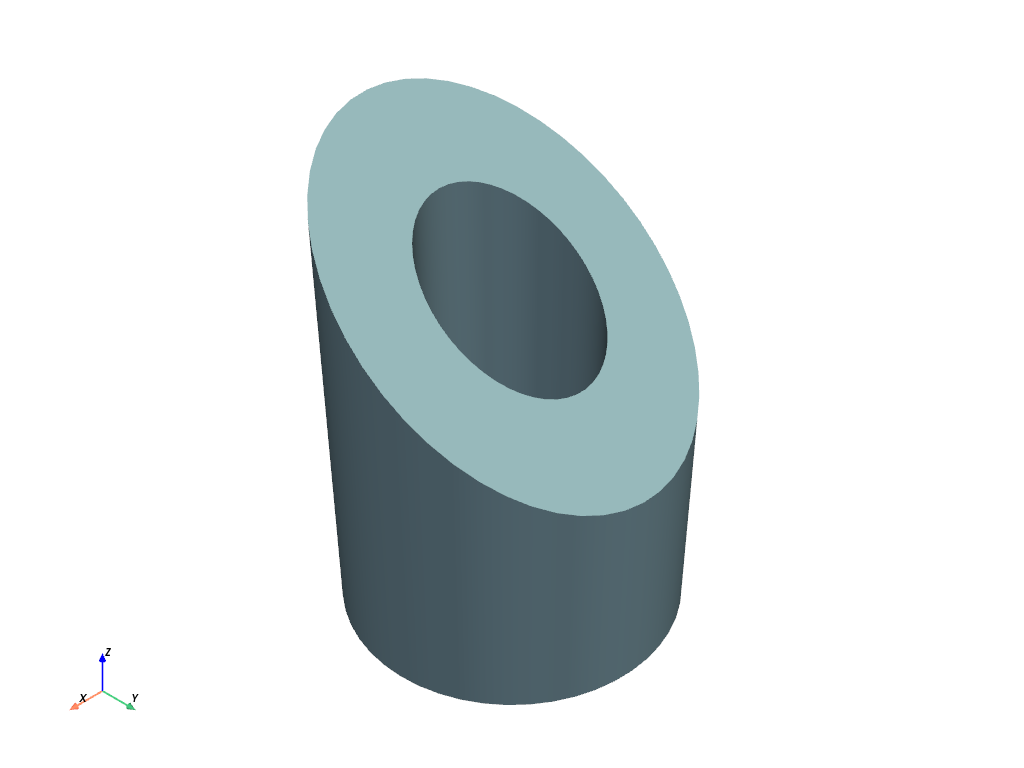

Extrude a disc.

>>> import pyvista as pv
>>> import numpy as np
>>> plane = pv.Plane(i_size=2, j_size=2, direction=[0, 0.8, 1])
>>> disc = pv.Disc(center=(0, 0, -1), c_res=50)
>>> direction = [0, 0, 1]
>>> extruded_disc = disc.extrude_trim(direction, plane)
>>> extruded_disc.plot(smooth_shading=True, split_sharp_edges=True)
../../../_images/pyvista-PolyDataFilters-extrude_trim-6a5d4482a66e42d8_00_00.png
