pyvista.PolyDataFilters.smooth_taubin

PolyDataFilters.smooth_taubin(

n_iter=20,

pass_band=0.1,

edge_angle=15.0,

feature_angle=45.0,

boundary_smoothing: bool = True,

feature_smoothing: bool = False,

non_manifold_smoothing: bool = False,

normalize_coordinates: bool = False,

inplace: bool = False,

progress_bar: bool = False,

)

Smooth a PolyData DataSet with Taubin smoothing.

This filter allows you to smooth the mesh as in the Laplacian smoothing implementation in smooth(). However, unlike Laplacian smoothing the surface does not “shrink” since this filter relies on an alternative approach to smoothing. This filter is more akin to a low pass filter where undesirable high frequency features are removed.

This PyVista filter uses the VTK vtkWindowedSincPolyDataFilter filter.

Parameters:

n_iterint, default: 20

This is the degree of the polynomial used to approximate the windowed sync function. This is generally much less than the number needed by smooth().

pass_bandfloat, default: 0.1

The passband value for the windowed sinc filter. This should be between 0 and 2, where lower values cause more smoothing.

edge_anglefloat, default: 15.0

Edge angle to control smoothing along edges (either interior or boundary).

feature_anglefloat, default: 45.0

Feature angle for sharp edge identification.

boundary_smoothingbool, default: True

Flag to control smoothing of boundary edges. When True, boundary edges remain fixed.

feature_smoothingbool, default: False

Flag to control smoothing of feature edges. When True, boundary edges remain fixed as defined by feature_angle and edge_angle.

non_manifold_smoothingbool, default: False

Smooth non-manifold points.

normalize_coordinatesbool, default: False

Flag to control coordinate normalization. To improve the numerical stability of the solution and minimize the scaling of the translation effects, the algorithm can translate and scale the position coordinates to within the unit cube [-1, 1], perform the smoothing, and translate and scale the position coordinates back to the original coordinate frame.

inplacebool, default: False

Updates mesh in-place.

progress_barbool, default: False

Display a progress bar to indicate progress.

Returns:

pyvista.PolyData

Smoothed mesh.

Notes

For maximum performance, do not enable feature_smoothing or boundary_smoothing. feature_smoothing is especially expensive.

References

See Optimal Surface Smoothing as Filter Design for details regarding the implementation of Taubin smoothing.

Examples

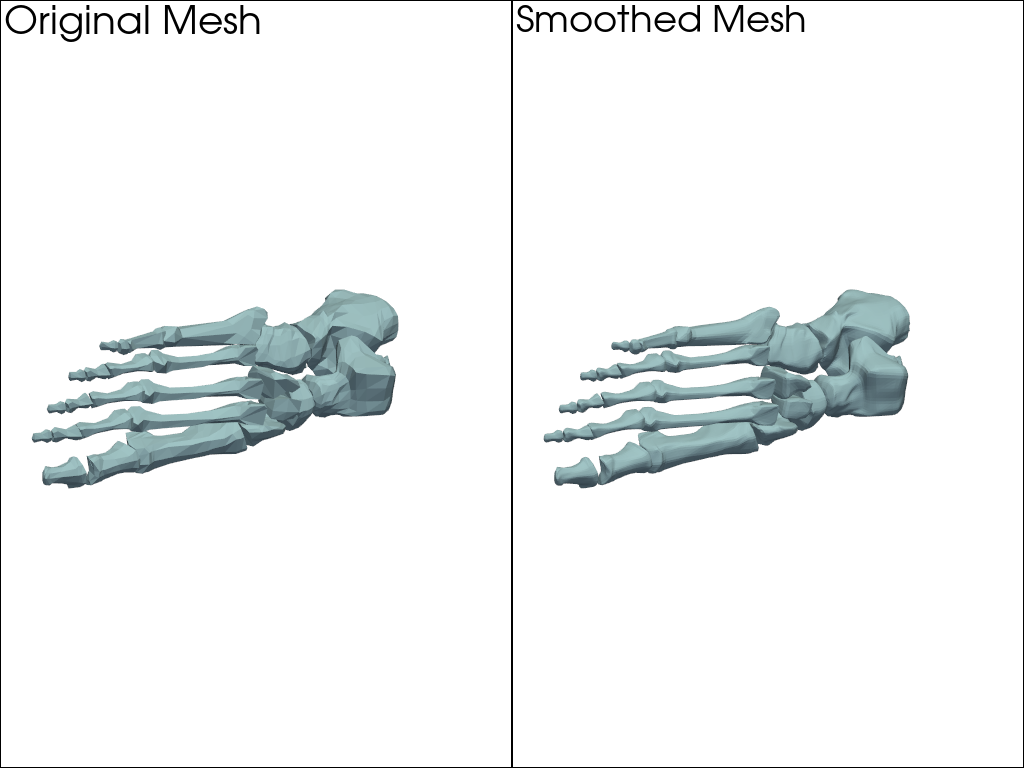

Smooth the example bone mesh. Here, it’s necessary to subdivide the mesh to increase the number of faces as the original mesh is so coarse.

>>> import pyvista as pv
>>> from pyvista import examples
>>> mesh = examples.download_foot_bones().subdivide(2)
>>> smoothed_mesh = mesh.smooth_taubin()
>>> pl = pv.Plotter(shape=(1, 2))
>>> _ = pl.add_mesh(mesh)
>>> _ = pl.add_text('Original Mesh')
>>> pl.subplot(0, 1)
>>> _ = pl.add_mesh(smoothed_mesh)
>>> _ = pl.add_text('Smoothed Mesh')
>>> pl.show()

Static Scene

Interactive Scene

See Surface Smoothing for more examples using this filter.
