pyvista.Plotter.add_north_arrow_widget#

Plotter.add_north_arrow_widget( interactive=None, color='#4169E1', opacity=1.0, line_width=2, edge_color=None, lighting=False, viewport=(0, 0, 0.1, 0.1), )[source]#

Add a geographic north arrow to the scene.

Added in version 0.44.0.

Parameters:

interactivebool, optional: Control if the orientation widget is interactive. By default uses the value from pyvista.global_theme.interactive.
colorColorLike, optional: Color of the north arrow.
opacityfloat, optional: Opacity of the north arrow.
line_widthfloat, optional: Width of the north edge arrow lines.
edge_colorColorLike, optional: Color of the edges.
lightingbool, optional: Enable or disable lighting on north arrow.
viewportsequence[float], default: (0, 0, 0.1, 0.1): Viewport (xstart, ystart, xend, yend) of the widget.

Returns:

vtk.vtkOrientationMarkerWidget: Orientation marker widget.

Examples

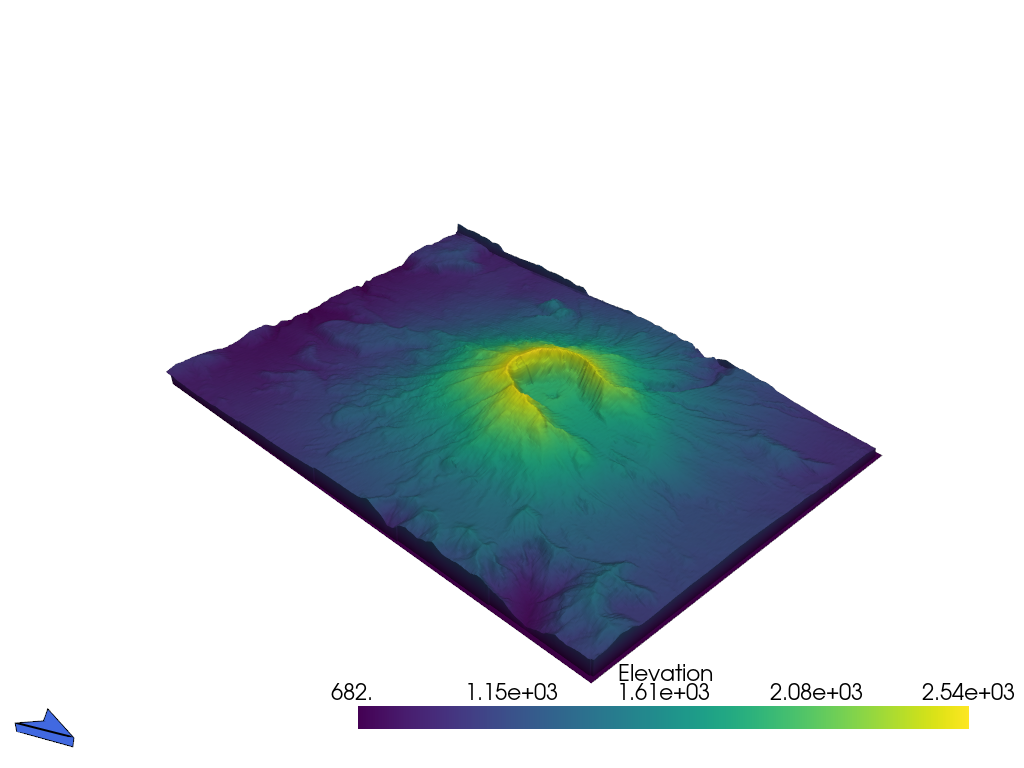

Use an north arrow as the orientation widget.

>>> import pyvista as pv
>>> from pyvista import examples
>>> terrain = examples.download_st_helens().warp_by_scalar()
>>> pl = pv.Plotter()
>>> actor = pl.add_mesh(terrain)
>>> widget = pl.add_north_arrow_widget()
>>> pl.enable_terrain_style(True)
>>> pl.show()

Static Scene

Interactive Scene
