pyvista.DiscSource#

class DiscSource(center=None, inner=0.25, outer=0.5, r_res=1, c_res=6)[source]#

Disc source algorithm class.

Added in version 0.44.0.

Parameters:

centersequence[float], default: (0.0, 0.0, 0.0): Center in [x, y, z]. Middle of the axis of the disc.
innerfloat, default: 0.25: The inner radius.
outerfloat, default: 0.5: The outer radius.
r_resint, default: 1: Number of points in radial direction.
c_resint, default: 6: Number of points in circumferential direction.

Examples

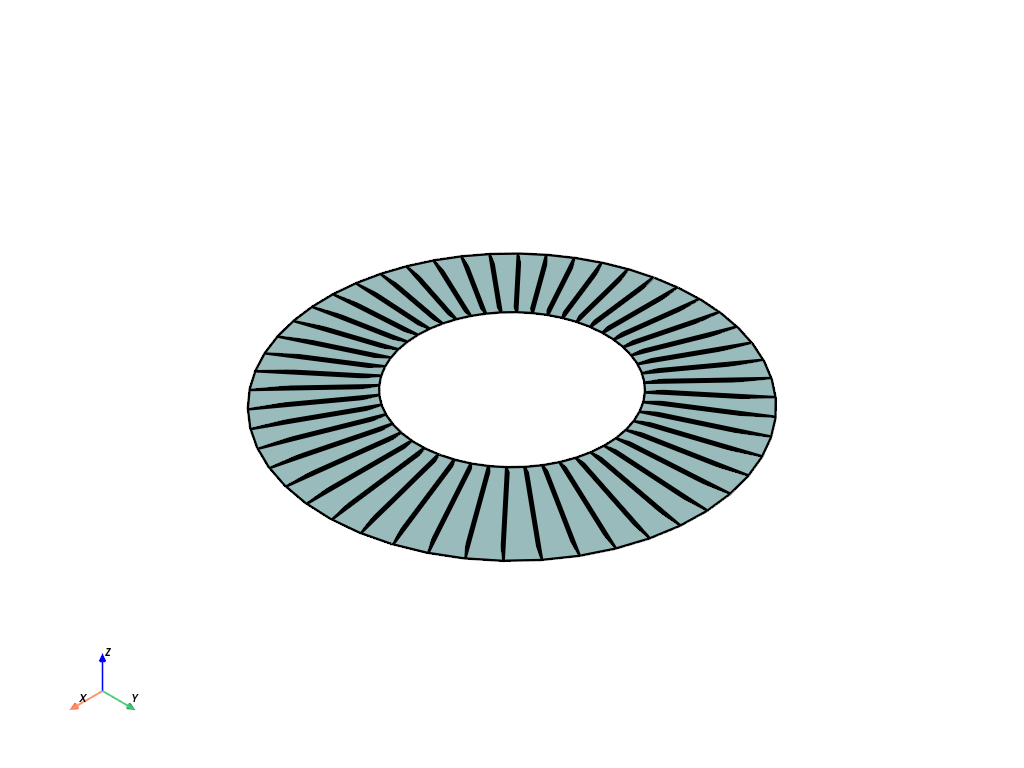

Create a disc with 50 points in the circumferential direction.

>>> import pyvista as pv
>>> source = pv.DiscSource(c_res=50)
>>> source.output.plot(show_edges=True, line_width=5)

Static Scene

Interactive Scene

Methods

Attributes

`DiscSource.c_res`	Get number of points in circumferential direction.
`DiscSource.center`	Get the center in `[x, y, z]`.
`DiscSource.inner`	Get the inner radius.
`DiscSource.outer`	Get the outer radius.
`DiscSource.output`	Get the output data object for a port on this algorithm.
`DiscSource.r_res`	Get number of points in radial direction.
