Volume Rendering

Volume render uniform mesh types like pyvista.UniformGrid or 3D NumPy arrays.

This also explores how to extract a volume of interest (VOI) from a pyvista.UniformGrid using the pyvista.UniformGridFilters.extract_subset() filter.

# sphinx_gallery_thumbnail_number = 3
import pyvista as pv
from pyvista import examples

# Volume rendering is not supported with Panel yet
pv.rcParams["use_panel"] = False

# Download a volumetric dataset
vol = examples.download_knee_full()
vol
HeaderData Arrays
UniformGridInformation
N Cells10225800
N Points10368384
X Bounds0.000e+00, 1.497e+02
Y Bounds0.000e+00, 1.786e+02
Z Bounds0.000e+00, 2.000e+02
Dimensions208, 248, 201
Spacing7.230e-01, 7.230e-01, 1.000e+00
N Arrays1
NameFieldTypeN CompMinMax
SLCImagePointsuint810.000e+001.740e+02


Simple Volume Render

# A nice camera position
cpos = [(-381.74, -46.02, 216.54), (74.8305, 89.2905, 100.0), (0.23, 0.072, 0.97)]

vol.plot(volume=True, cmap="bone", cpos=cpos)
../../_images/sphx_glr_volume_001.png

Out:

[(-381.74, -46.02, 216.54),
 (74.8305, 89.2905, 100.0),
 (0.23011692910752757, 0.07203660389453036, 0.9704931358013119)]

Opacity Mappings

Or use the pyvista.BasePlotter.add_volume() method like below. Note that here we use a non-default opacity mapping to a sigmoid:

p = pv.Plotter()
p.add_volume(vol, cmap="bone", opacity="sigmoid")
p.camera_position = cpos
p.show()
../../_images/sphx_glr_volume_002.png

Out:

[(-381.74, -46.02, 216.54),
 (74.8305, 89.2905, 100.0),
 (0.23011692910752757, 0.07203660389453036, 0.9704931358013119)]

You can also use a custom opacity mapping

opacity = [0, 0, 0, 0.1, 0.3, 0.6, 1]

p = pv.Plotter()
p.add_volume(vol, cmap="viridis", opacity=opacity)
p.camera_position = cpos
p.show()
../../_images/sphx_glr_volume_003.png

Out:

[(-381.74, -46.02, 216.54),
 (74.8305, 89.2905, 100.0),
 (0.23011692910752757, 0.07203660389453036, 0.9704931358013119)]

We can also use a shading technique when volume rendering with the shade option

p = pv.Plotter(shape=(1,2))
p.add_volume(vol, cmap="viridis", opacity=opacity, shade=False)
p.add_text("No shading")
p.subplot(0,1)
p.add_volume(vol, cmap="viridis", opacity=opacity, shade=True)
p.add_text("Shading")
p.link_views()
p.camera_position = cpos
p.show()
../../_images/sphx_glr_volume_004.png

Out:

[(-381.74, -46.02, 216.54),
 (74.8305, 89.2905, 100.0),
 (0.23011692910752757, 0.07203660389453036, 0.9704931358013119)]

Cool Volume Examples

Here are a few more cool volume rendering examples

head = examples.download_head()

p = pv.Plotter()
p.add_volume(head, cmap="cool", opacity="sigmoid_6")
p.camera_position = [(-228.0, -418.0, -158.0), (94.0, 122.0, 82.0), (-0.2, -0.3, 0.9)]
p.show()
../../_images/sphx_glr_volume_005.png

Out:

[(-228.0, -418.0, -158.0),
 (94.0, 122.0, 82.0),
 (-0.20628424925175867, -0.309426373877638, 0.928279121632914)]
bolt_nut = examples.download_bolt_nut()

p = pv.Plotter()
p.add_volume(bolt_nut, cmap="coolwarm", opacity="sigmoid_5")
p.show()
../../_images/sphx_glr_volume_006.png

Out:

[(206.821456176791, 233.321456176791, 204.821456176791),
 (34.5, 61.0, 32.5),
 (0.0, 0.0, 1.0)]
frog = examples.download_frog()

p = pv.Plotter()
p.add_volume(frog, cmap="viridis", opacity="sigmoid_6")
p.camera_position = [(929., 1067., -278.9),
                     (249.5, 234.5, 101.25),
                     (-0.2048, -0.2632, -0.9427)]
p.show()
../../_images/sphx_glr_volume_007.png

Out:

[(929.0, 1067.0, -278.9),
 (249.5, 234.5, 101.25),
 (-0.20481018239133267, -0.2632130859638611, -0.942746869825729)]

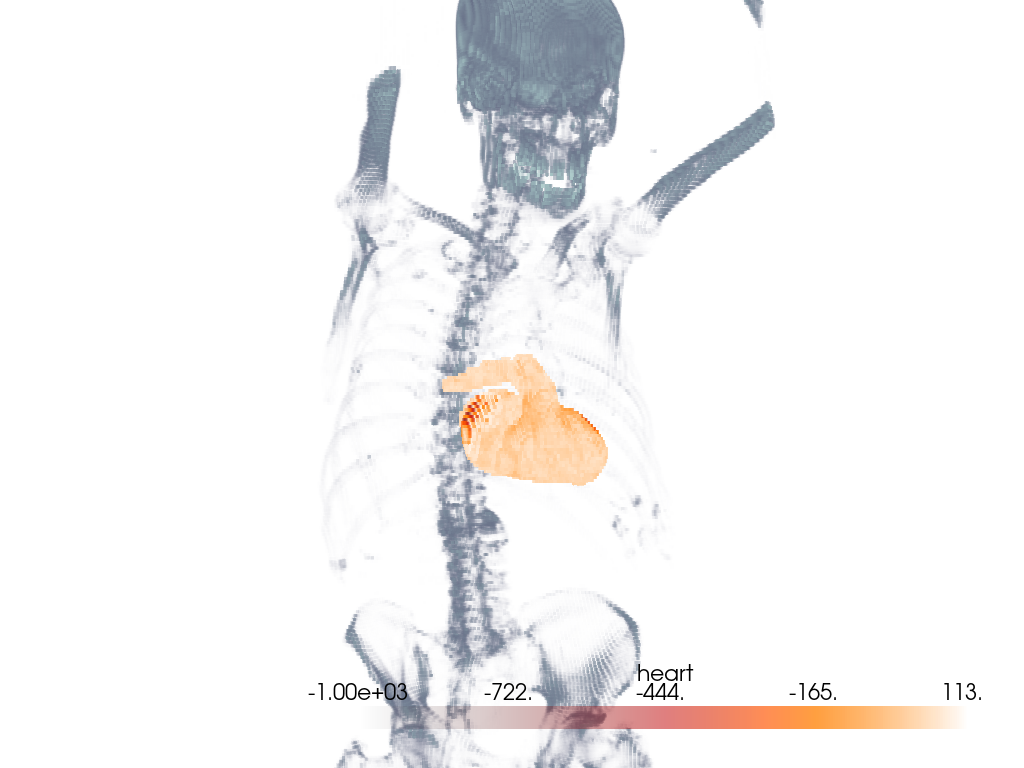

Extracting a VOI

Use the pyvista.UniformGridFilters.extract_subset() filter to extract a volume of interest/subset volume to volume render. This is ideal when dealing with particularly large volumes and you want to volume render only a specific region.

# Load a particularly large volume
large_vol = examples.download_damavand_volcano()
large_vol
HeaderData Arrays
UniformGridInformation
N Cells11003760
N Points11156040
X Bounds4.130e+05, 6.920e+05
Y Bounds3.864e+06, 4.096e+06
Z Bounds-5.479e+04, 5.302e+03
Dimensions280, 233, 171
Spacing1.000e+03, 1.000e+03, 3.535e+02
N Arrays1
NameFieldTypeN CompMinMax
dataPointsfloat3219.782e-151.000e+02


opacity = [0, 0.75, 0, 0.75, 1.0]
clim = [0, 100]

p = pv.Plotter()
p.add_volume(large_vol, cmap="magma", clim=clim,
             opacity=opacity, opacity_unit_distance=6000,)
p.show()
../../_images/sphx_glr_volume_008.png

Out:

[(962759.682893736, 4390399.944685736, 385481.9418857361),
 (552532.741008, 3980173.0028, -24745.0),
 (0.0, 0.0, 1.0)]

Woah, that’s a big volume! We probably don’t want to volume render the whole thing. So let’s extract a region of interest under the volcano.

The region we will extract will be between nodes 175 and 200 on the x-axis, between nodes 105 and 132 on the y-axis, and between nodes 98 and 170 on the z-axis.

voi = large_vol.extract_subset([175, 200, 105, 132, 98, 170])

p = pv.Plotter()
p.add_mesh(large_vol.outline(), color="k")
p.add_mesh(voi, cmap="magma")
p.show()
../../_images/sphx_glr_volume_009.png

Out:

[(962759.6918857361, 4390399.941885736, 385481.9418857361),
 (552532.75, 3980173.0, -24745.0),
 (0.0, 0.0, 1.0)]

Ah, much better. Let’s now volume render that region of interest!

p = pv.Plotter()
p.add_volume(voi, cmap="magma", clim=clim, opacity=opacity,
             opacity_unit_distance=2000)
p.camera_position = [(531554.5542909054, 3944331.800171338, 26563.04809259223),
 (599088.1433822059, 3982089.287834022, -11965.14728669936),
 (0.3738545892415734, 0.244312810377319, 0.8947312427698892)]
p.show()
../../_images/sphx_glr_volume_010.png

Out:

[(531554.5542909054, 3944331.800171338, 26563.04809259223),
 (599088.1433822059, 3982089.287834022, -11965.14728669936),
 (0.37385458924157344, 0.24431281037731903, 0.8947312427698894)]

Total running time of the script: ( 1 minutes 51.967 seconds)
