Plotting Bounds

This example demonstrates to show bounds within a pyvista.Plotter using show_grid()

from __future__ import annotations

import pyvista as pv
from pyvista import examples

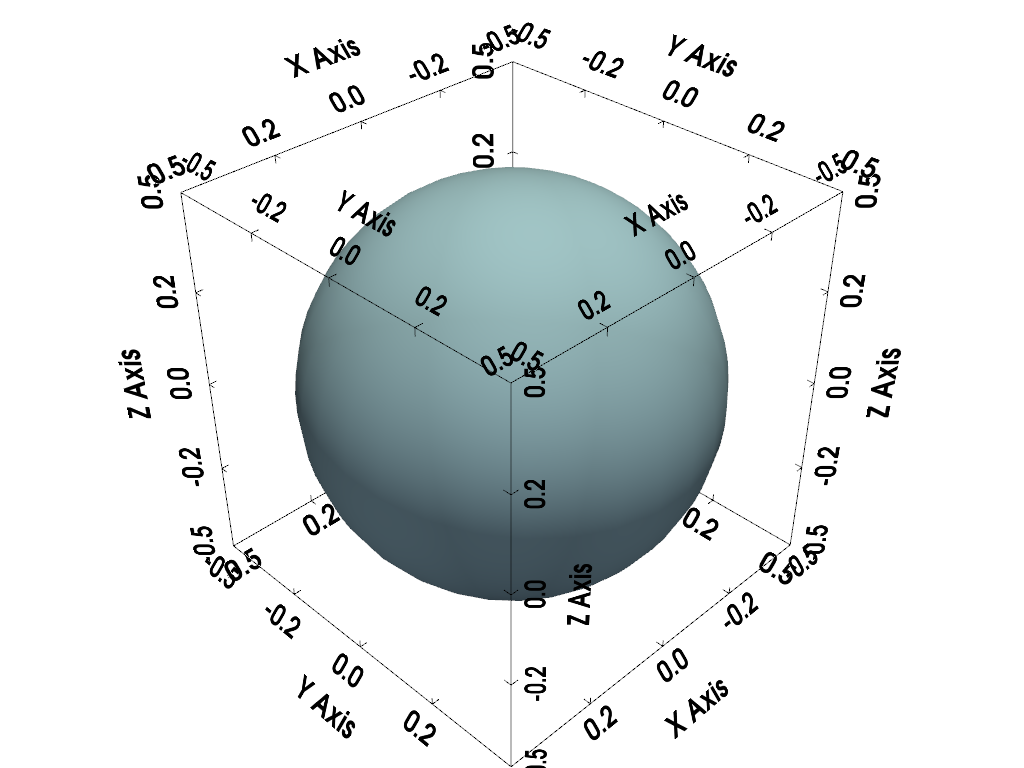

Show All Bounds

In this plot we show the bounds for all axes by setting location='all'.

plotter = pv.Plotter()
plotter.add_mesh(pv.Sphere(), smooth_shading=True)
plotter.show_bounds(location='all')
plotter.show()

Static Scene

Interactive Scene

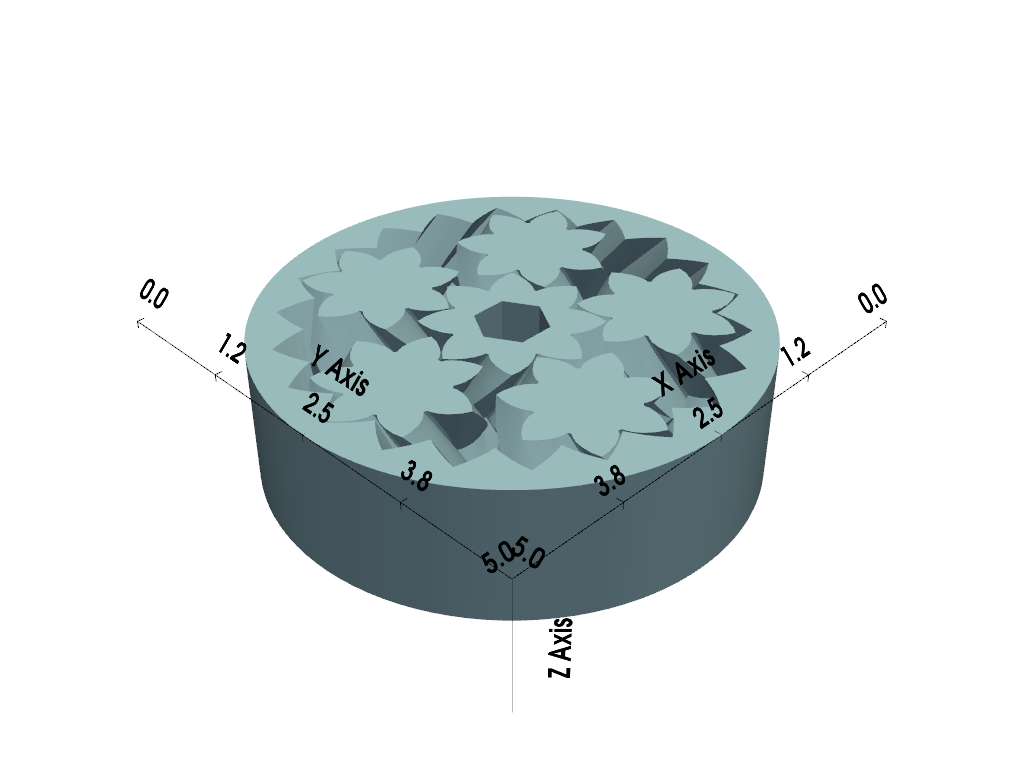

Override Shown Values Limits

In this example, we override the values shown along the X and Y axes with our own custom values. This can be useful when you wish to display different values along the axes without having to scale the dataset. Also, note how we hide the Z labels by setting show_zlabels=False.

gears = examples.download_gears()

plotter = pv.Plotter()
plotter.add_mesh(gears, smooth_shading=True, split_sharp_edges=True)
plotter.show_bounds(axes_ranges=[0, 5, 0, 5, 0, 2], show_zlabels=False)
plotter.show()

print(f'Actual dataset bounds: {gears.bounds}')

Static Scene

Interactive Scene

Actual dataset bounds: (-25.850000381469727, 25.850000381469727, -25.850000381469727, 25.850000381469727, 0.0, 15.0)

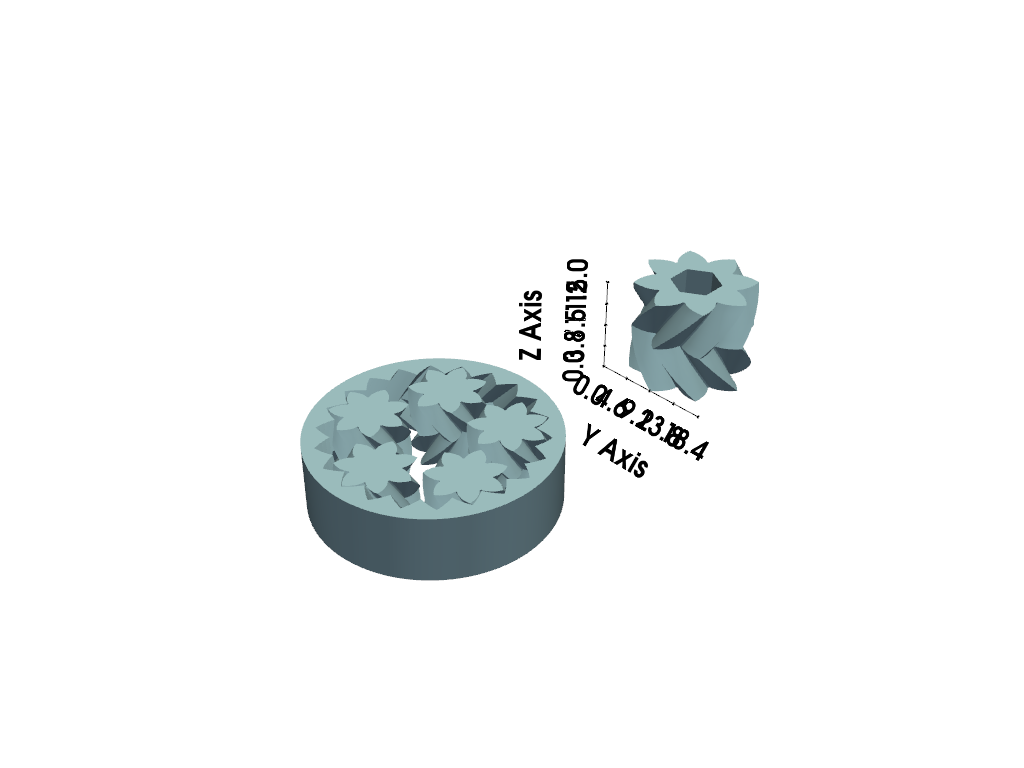

Show Bounds for Only One Dataset

This example shows only the bounds for a single dataset. Again we use axes_ranges here since in this example we want to show the size of the single central gear.

# separate and shift the central gear
split_gears = gears.split_bodies()
central_gear = split_gears.pop(1)
central_gear.translate([0, 60, 60], inplace=True)

# also, grab the size of the central gear
x_size = central_gear.bounds[1] - central_gear.bounds[0]
y_size = central_gear.bounds[3] - central_gear.bounds[2]
z_size = central_gear.bounds[5] - central_gear.bounds[4]

plotter = pv.Plotter()
plotter.add_mesh(split_gears, smooth_shading=True, split_sharp_edges=True)
plotter.add_mesh(central_gear, smooth_shading=True, split_sharp_edges=True)
plotter.show_grid(
    mesh=central_gear,
    axes_ranges=[0, x_size, 0, y_size, 0, z_size],
    show_xaxis=False,
    bold=True,
    grid=False,
)
plotter.show()

Static Scene

Interactive Scene
