Merge duplicate points and remove unused points in an UnstructuredGrid.

This filter, merging coincident points as defined by a merging tolerance and optionally removes unused points. The filter does not modify the topology of the input dataset, nor change the types of cells. It may however, renumber the cell connectivity ids.

This filter implements vtkStaticCleanUnstructuredGrid

tolerancefloat, default: 0.0

The absolute point merging tolerance.

remove_unused_pointsbool, default: True

Indicate whether points unused by any cell are removed from the output. Note that when this is off, the filter can successfully process datasets with no cells (and just points). If on in this case, and there are no cells, the output will be empty.

produce_merge_mapbool, default: False

Indicate whether a merge map should be produced on output. The merge map, if requested, maps each input point to its output point id, or provides a value of -1 if the input point is not used in the output. The merge map is associated with the filter’s output field data and is named "PointMergeMap".

average_point_databool, default: True

Indicate whether point coordinates and point data of merged points are averaged. When True, the data coordinates and attribute values of all merged points are averaged. When False, the point coordinate and data of the single remaining merged point is retained.

merging_array_namestr, optional

If a merging_array_name is specified and exists in the point_data, then point merging will switch into a mode where merged points must be both geometrically coincident and have matching point data. When set, tolerance has no effect.

progress_barbool, default: False

Display a progress bar to indicate progress.


Cleaned unstructured grid.


Demonstrate cleaning an UnstructuredGrid and show how it can be used to average the point data across merged points.

>>> import pyvista as pv
>>> from pyvista import examples
>>> hexbeam = examples.load_hexbeam()
>>> hexbeam_shifted = hexbeam.translate([1, 0, 0])
>>> hexbeam.point_data['data'] = [0] * hexbeam.n_points
>>> hexbeam_shifted.point_data['data'] = [1] * hexbeam.n_points
>>> merged = hexbeam.merge(hexbeam_shifted, merge_points=False)
>>> cleaned = merged.clean(average_point_data=True)
>>> cleaned.n_points < merged.n_points

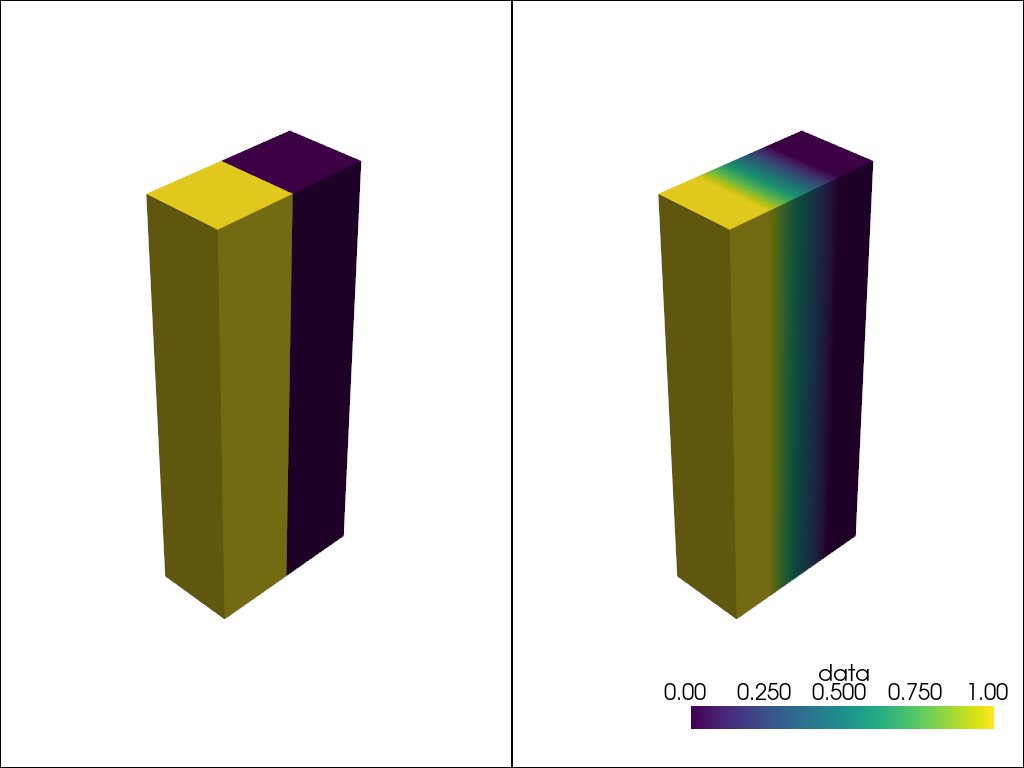

Show how point averaging using the clean method with average_point_data=True results in averaged point data for merged points.

>>> pl = pv.Plotter(shape=(1, 2))
>>> _ = pl.add_mesh(merged, scalars='data', show_scalar_bar=False)
>>> pl.subplot(0, 1)
>>> _ = pl.add_mesh(cleaned, scalars='data')
