pyvista.SphereSource

pyvista.SphereSource#

class SphereSource(*args, **kwargs)[source]#

Sphere source algorithm class.

Added in version 0.44.0.

Parameters:

radiusfloat, default: 0.5: Sphere radius.
centersequence[float], default: (0.0, 0.0, 0.0): Center coordinate vector in [x, y, z].
theta_resolutionint, default: 30: Set the number of points in the azimuthal direction (ranging from start_theta to end_theta).
phi_resolutionint, default: 30: Set the number of points in the polar direction (ranging from start_phi to end_phi).
start_thetafloat, default: 0.0: Starting azimuthal angle in degrees [0, 360].
end_thetafloat, default: 360.0: Ending azimuthal angle in degrees [0, 360].
start_phifloat, default: 0.0: Starting polar angle in degrees [0, 180].
end_phifloat, default: 180.0: Ending polar angle in degrees [0, 180].

See also

Examples

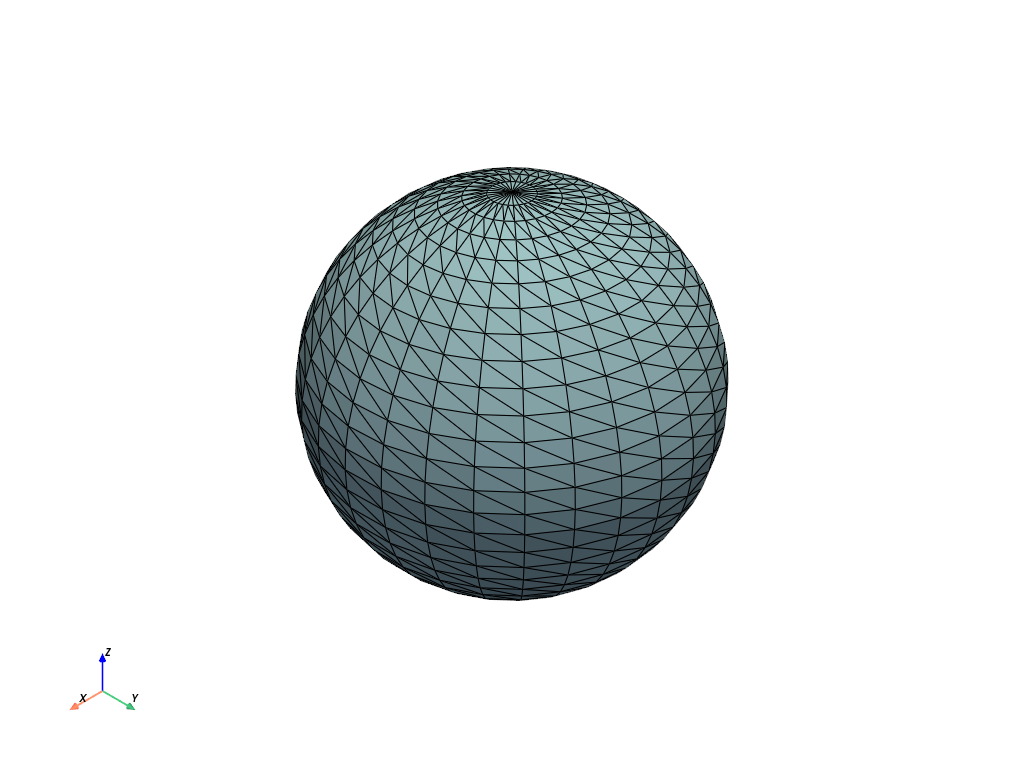

Create a sphere using default parameters.

>>> import pyvista as pv
>>> sphere = pv.SphereSource()
>>> sphere.output.plot(show_edges=True)

Static Scene

Interactive Scene

Create a quarter sphere by setting end_theta.

>>> sphere = pv.SphereSource(end_theta=90)
>>> out = sphere.output.plot(show_edges=True)

Static Scene

Interactive Scene

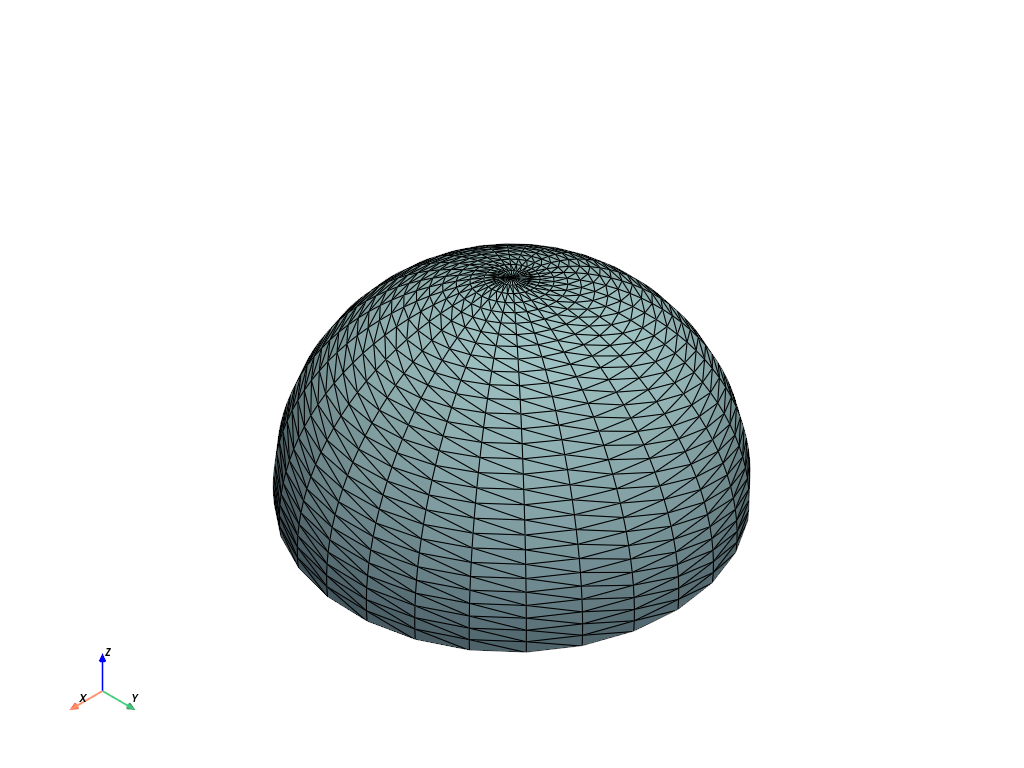

Create a hemisphere by setting end_phi.

>>> sphere = pv.SphereSource(end_phi=90)
>>> out = sphere.output.plot(show_edges=True)

Static Scene

Interactive Scene

Methods

Attributes

`SphereSource.center`	Get the center in `[x, y, z]`.
`SphereSource.end_phi`	Get ending polar angle in degrees `[0, 360]`.
`SphereSource.end_theta`	Get ending azimuthal angle in degrees `[0, 360]`.
`SphereSource.output`	Get the output data object for a port on this algorithm.
`SphereSource.phi_resolution`	Get the number of points in the polar direction.
`SphereSource.radius`	Get sphere radius.
`SphereSource.start_phi`	Get starting polar angle in degrees `[0, 360]`.
`SphereSource.start_theta`	Get starting azimuthal angle in degrees `[0, 360]`.
`SphereSource.theta_resolution`	Get the number of points in the azimuthal direction.
