Sample Function: Perlin Noise in 2D#

Here we use pyvista.core.utilities.features.sample_function() to sample Perlin noise over a region to generate random terrain.

Perlin noise is atype of gradient noise often used by visual effects artists to increase the appearance of realism in computer graphics. Source: Perlin Noise Wikipedia

The development of Perlin Noise has allowed computer graphics artists to better represent the complexity of natural phenomena in visual effects for the motion picture industry.

from __future__ import annotations

import pyvista as pv

Generate Perlin Noise over a StructuredGrid#

Feel free to change the values of freq to change the shape of the “mountains”. For example, lowering the frequency will make the terrain seem more like hills rather than mountains.

freq = [0.689, 0.562, 0.683]
noise = pv.perlin_noise(1, freq, (0, 0, 0))
sampled = pv.sample_function(noise, bounds=(-10, 10, -10, 10, -10, 10), dim=(500, 500, 1))

Warp by scalar#

Here we warp by scalar to give the terrain some height based on the value of the Perlin noise. This is necessary to the terrain its shape.

mesh = sampled.warp_by_scalar('scalars')
mesh = mesh.extract_surface()

# clean and smooth a little to reduce Perlin noise artifacts
mesh = mesh.smooth(n_iter=100, inplace=False, relaxation_factor=1)

# This makes the "water" level look flat.
z = mesh.points[:, 2]
diff = z.max() - z.min()

# water level at 70%  (change this to change the water level)
water_percent = 0.7
water_level = z.max() - water_percent * diff
mesh.points[z < water_level, 2] = water_level

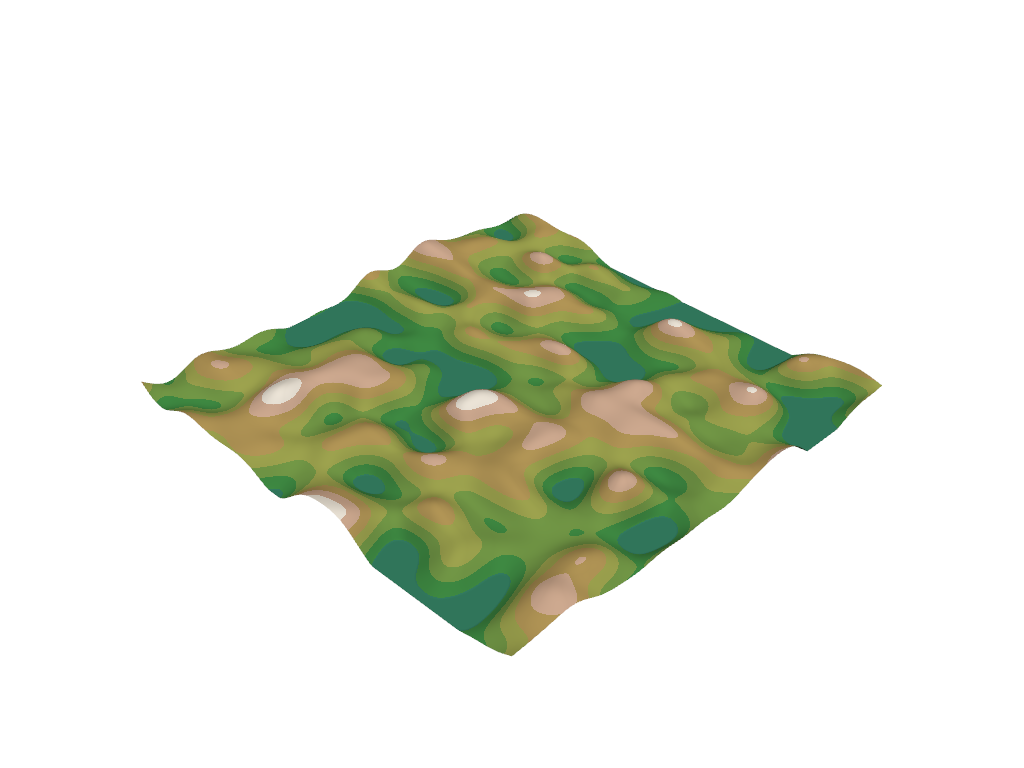

Show the terrain as a contour plot

# make the water blue
rng = z.max() - z.min()
clim = (z.max() - rng * 1.65, z.max())

pl = pv.Plotter()
sampling functions 2d

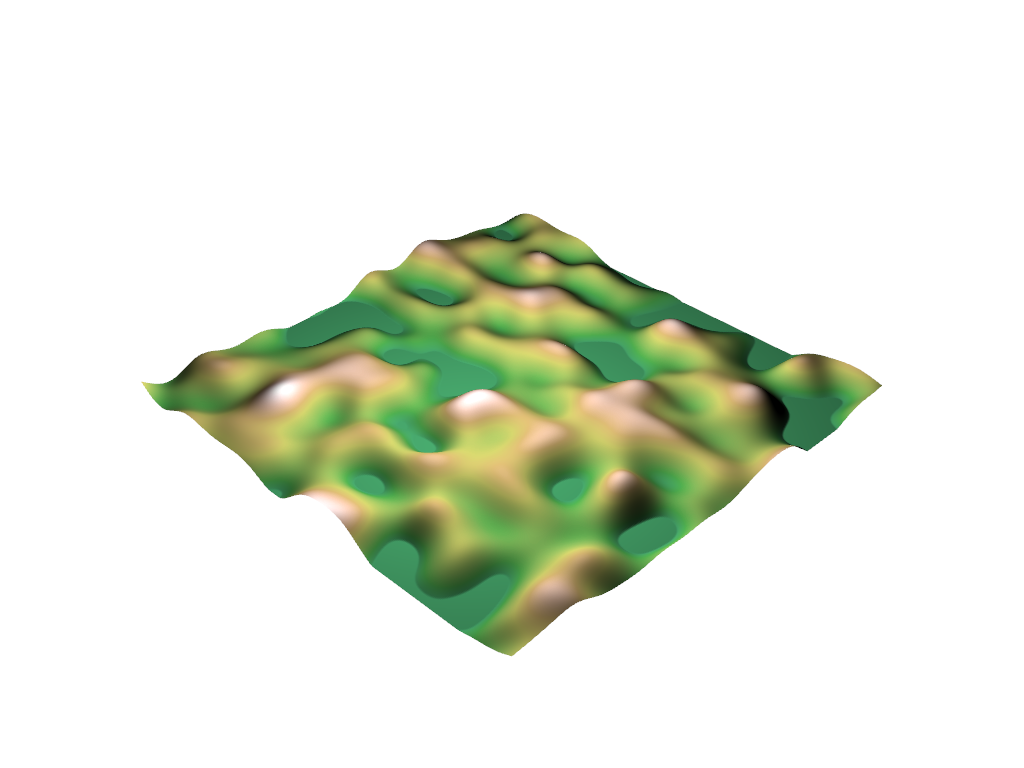

Show the terrain with custom lighting and shadows

pl = pv.Plotter(lighting=None)
pl.add_light(pv.Light((3, 1, 0.5), show_actor=True, positional=True, cone_angle=90, intensity=1.2))
pl.add_mesh(mesh, cmap='gist_earth', show_scalar_bar=False, smooth_shading=True, clim=clim)
pl.enable_shadows = True
sampling functions 2d

Total running time of the script: (0 minutes 6.129 seconds)
