Label Points#

Use string arrays in a point set to label points

from __future__ import annotations

import numpy as np

import pyvista as pv


from pyvista import examples

Label String Array#

This example will label the nodes of a mesh with a given array of string labels for each of the nodes.

# Make some random points. Seed the rng for reproducibility.
rng = np.random.default_rng(seed=0)
poly = pv.PolyData(rng.random((10, 3)))

Add string labels to the point data - this associates a label with every node:

poly["My Labels"] = [f"Label {i}" for i in range(poly.n_points)]
poly
HeaderData Arrays
PolyDataInformation
N Cells10
N Points10
N Strips0
X Bounds1.653e-02, 9.808e-01
Y Bounds3.359e-02, 8.632e-01
Z Bounds2.739e-03, 9.972e-01
N Arrays1
NameFieldTypeN CompMinMax
My LabelsPoints1nannan

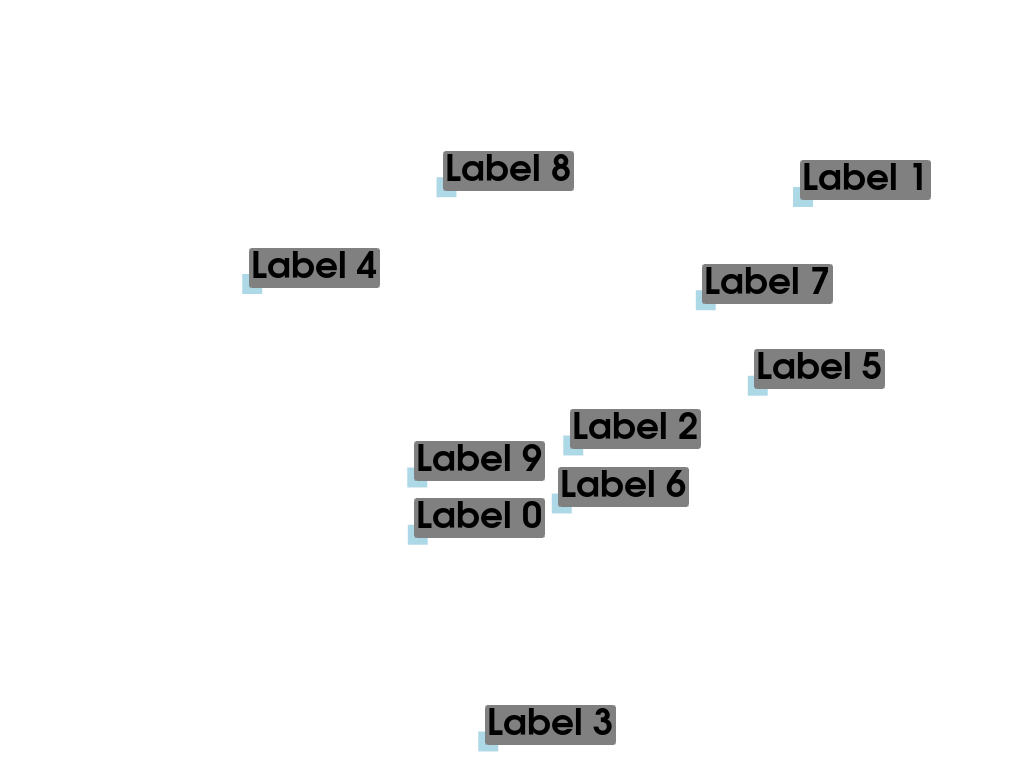

Now plot the points with labels:

plotter = pv.Plotter()
plotter.add_point_labels(poly, "My Labels", point_size=20, font_size=36)
plotter.show()
labels

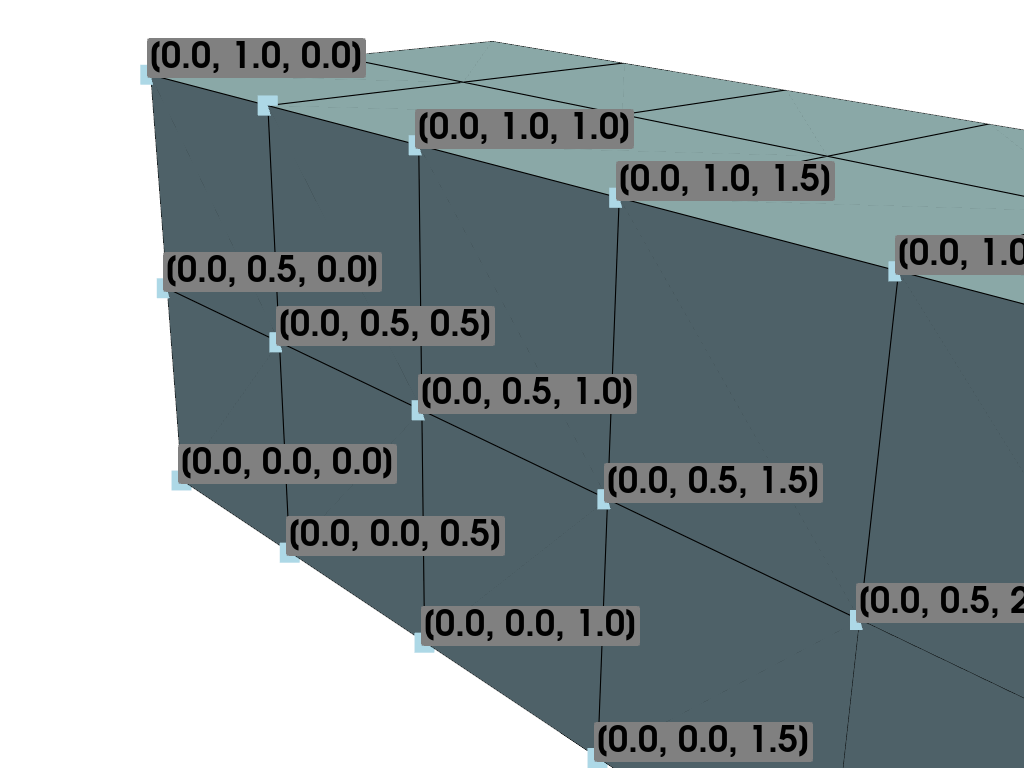

Label Node Locations#

This example will label the nodes of a mesh with their coordinate locations

# Load example beam file
grid = pv.UnstructuredGrid(examples.hexbeamfile)

Create plotting class and add the unstructured grid

plotter = pv.Plotter()
plotter.add_mesh(grid, show_edges=True, color='lightblue')

# Add labels to points on the yz plane (where x == 0)
points = grid.points
mask = points[:, 0] == 0
plotter.add_point_labels(points[mask], points[mask].tolist(), point_size=20, font_size=36)

plotter.camera_position = [(-1.5, 1.5, 3.0), (0.05, 0.6, 1.2), (0.2, 0.9, -0.25)]

plotter.show()
labels

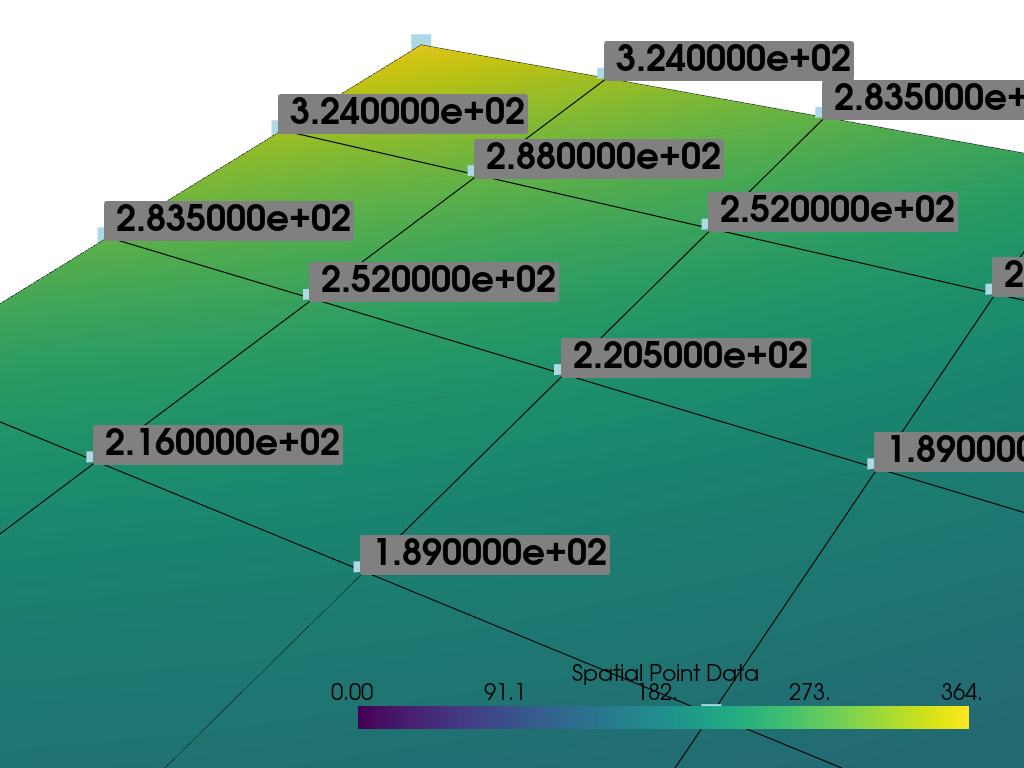

Label Scalar Values#

This example will label each point with their scalar values

mesh = examples.load_uniform().slice()
p = pv.Plotter()

# Add the mesh:
p.add_mesh(mesh, scalars="Spatial Point Data", show_edges=True)
# Add the points with scalar labels:
p.add_point_scalar_labels(mesh, "Spatial Point Data", point_size=20, font_size=36)

# Use a nice camera position:
p.camera_position = [(7, 4, 5), (4.4, 7.0, 7.2), (0.8, 0.5, 0.25)]

p.show()
labels

Total running time of the script: (0 minutes 0.787 seconds)
