Plot with Opacity#
Plot a mesh’s scalar array with an opacity transfer function or opacity mapping based on a scalar array.
import pyvista as pv
from pyvista import examples
# Load St Helens DEM and warp the topography
image = examples.download_st_helens()
mesh = image.warp_by_scalar()
Global Value#

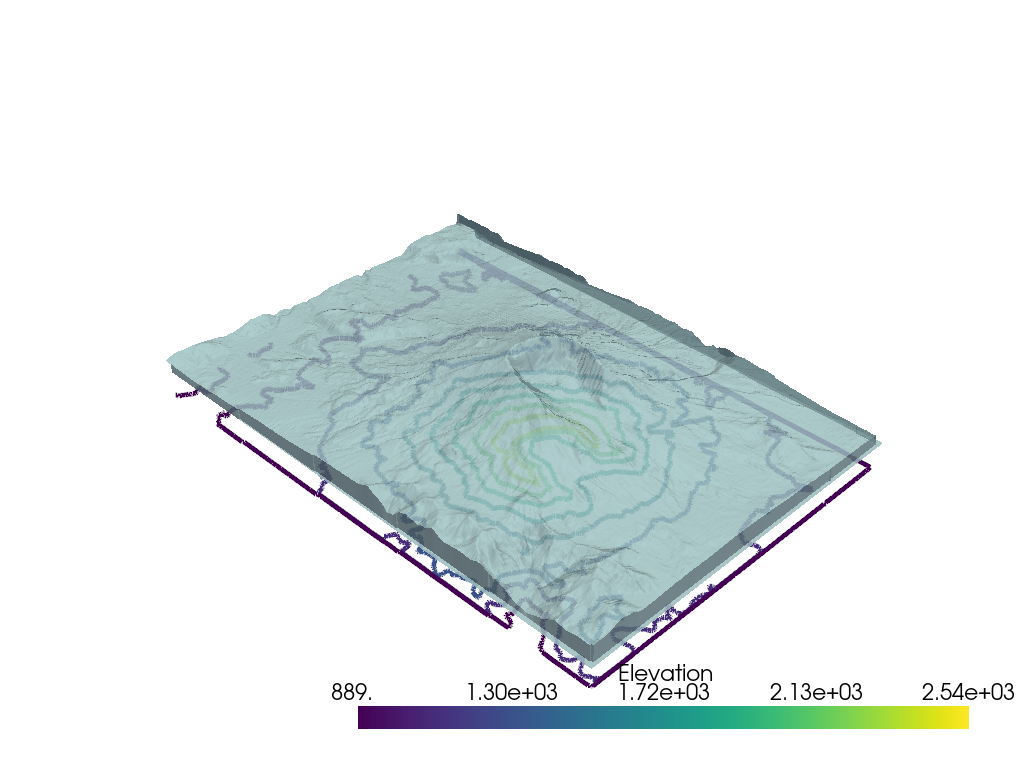

You can also apply a global opacity value to the mesh by passing a single float between 0 and 1 which would enable you to see objects behind the mesh:
p = pv.Plotter()
p.add_mesh(
image.contour(),
line_width=5,
)
p.add_mesh(mesh, opacity=0.85, color=True)
p.show()
![opacity](https://d33wubrfki0l68.cloudfront.net/232e486cdfd857871921d4f39804d309fb74e24d/a3e40/_images/sphx_glr_opacity_001.png)
Note that you can specify use_transparency=True
to convert opacities to
transparencies in any of the following examples.
Transfer Functions#
It’s possible to apply an opacity mapping to any scalar array plotted. You can specify either a single static value to make the mesh transparent on all cells, or use a transfer function where the scalar array plotted is mapped to the opacity. We have several predefined transfer functions.
Opacity transfer functions are:
'linear'
: linearly vary (increase) opacity across the plotted scalar range from low to high'linear_r'
: linearly vary (increase) opacity across the plotted scalar range from high to low'geom'
: on a log scale, vary (increase) opacity across the plotted scalar range from low to high'geom_r'
: on a log scale, vary (increase) opacity across the plotted scalar range from high to low'sigmoid'
: vary (increase) opacity on a sigmoidal s-curve across the plotted scalar range from low to high'sigmoid_r'
: vary (increase) opacity on a sigmoidal s-curve across the plotted scalar range from high to low
# Show the linear opacity transfer function
mesh.plot(opacity="linear")
![opacity](https://d33wubrfki0l68.cloudfront.net/3a82879c27c2abf867423d532036cc9b46dbd543/7bb24/_images/sphx_glr_opacity_002.png)

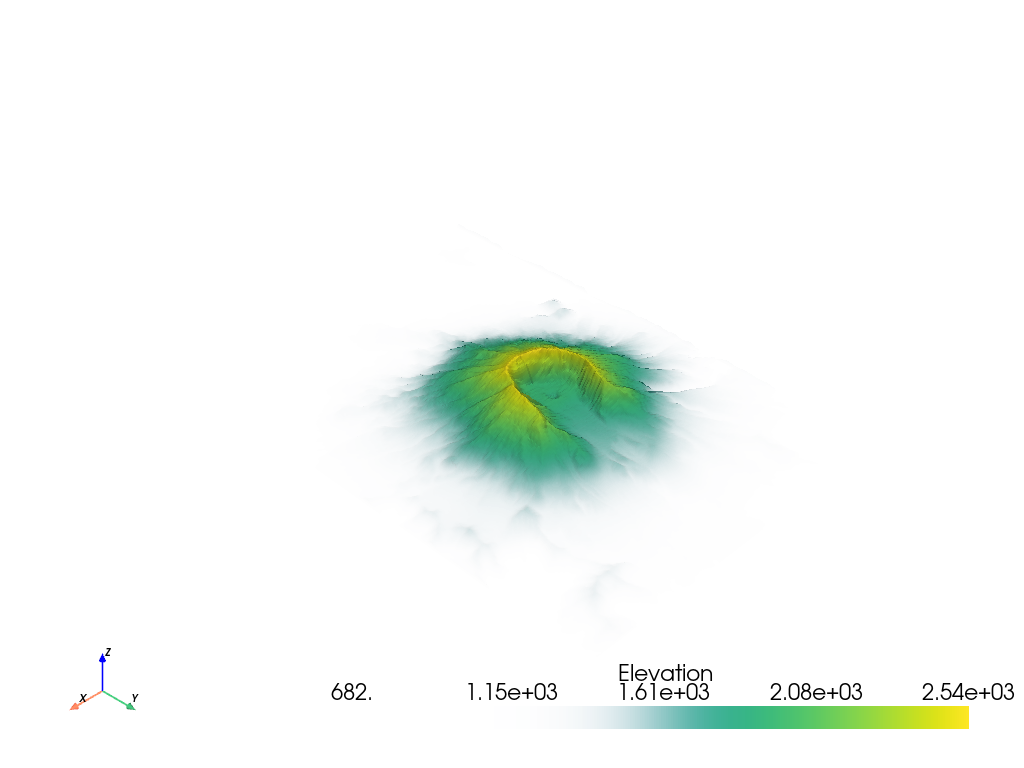

# Show the sigmoid opacity transfer function
mesh.plot(opacity="sigmoid")
![opacity](https://d33wubrfki0l68.cloudfront.net/f2b7955b901792c92ad8b7886964d4cd185555f0/d3c73/_images/sphx_glr_opacity_003.png)
It’s also possible to use your own transfer function that will be linearly mapped to the scalar array plotted. For example, we can create an opacity mapping as:
opacity = [0, 0.2, 0.9, 0.6, 0.3]
When given a minimized opacity mapping like that above, PyVista interpolates
it across a range of how many colors are shown when mapping the scalars.
If scipy
is available, then a quadratic interpolation is used -
otherwise, a simple linear interpolation is used.

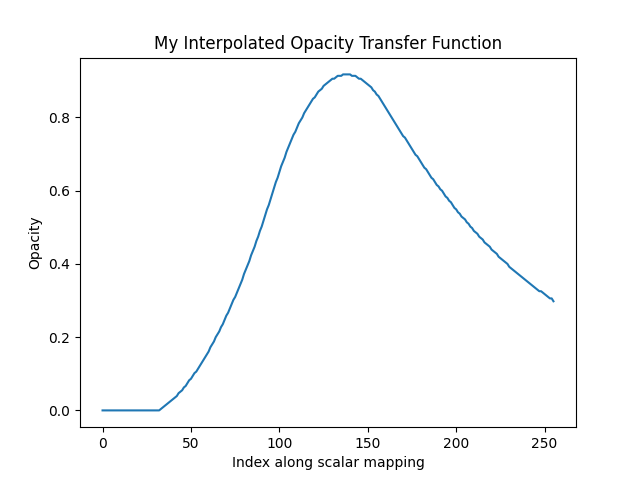

Curious what that opacity transfer function looks like? You can fetch it:
# Have PyVista interpolate the transfer function
tf = pv.opacity_transfer_function(opacity, 256).astype(float) / 255.0
import matplotlib.pyplot as plt
plt.plot(tf)
plt.title('My Interpolated Opacity Transfer Function')
plt.ylabel('Opacity')
plt.xlabel('Index along scalar mapping')
plt.show()
![My Interpolated Opacity Transfer Function](https://d33wubrfki0l68.cloudfront.net/f3f5ed95d7e7ab652b446b61a21b6fe34a467904/8e427/_images/sphx_glr_opacity_004.png)

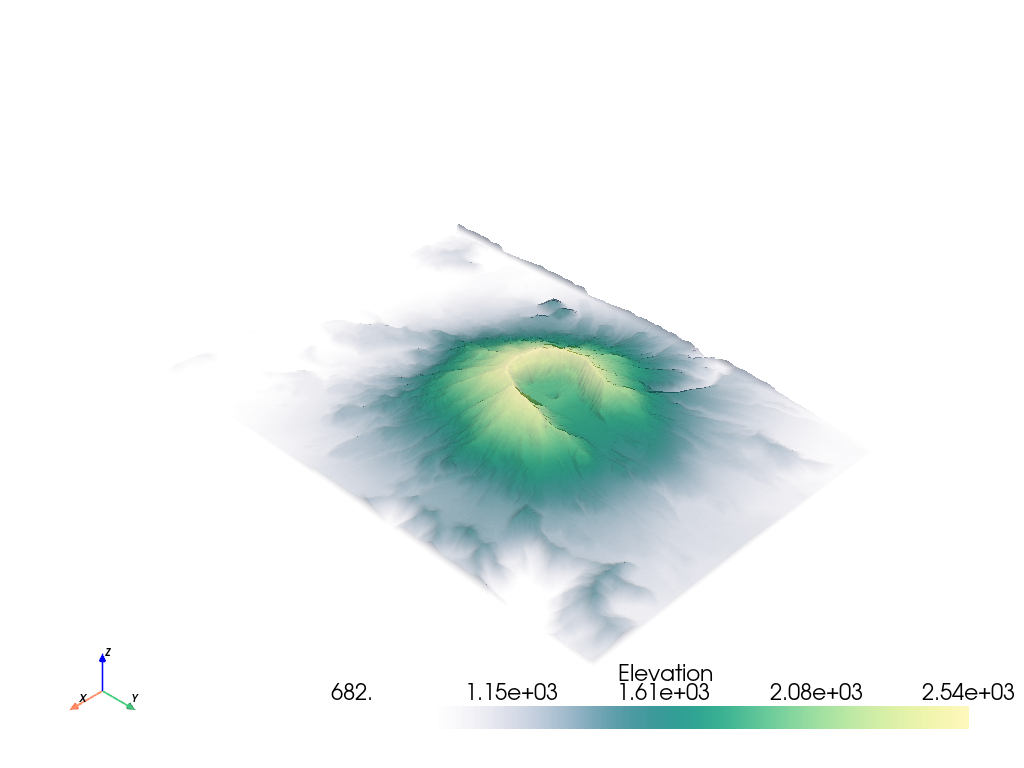

That opacity mapping will have an opacity of 0.0 at the minimum scalar range, a value or 0.9 at the middle of the scalar range, and a value of 0.3 at the maximum of the scalar range:
![opacity](https://d33wubrfki0l68.cloudfront.net/a77a3edbb9e24e2f6befa9773e93f585b97d109f/f7757/_images/sphx_glr_opacity_005.png)
Opacity mapping is often useful when plotting DICOM images. For example, download the sample knee DICOM image:
knee = examples.download_knee()

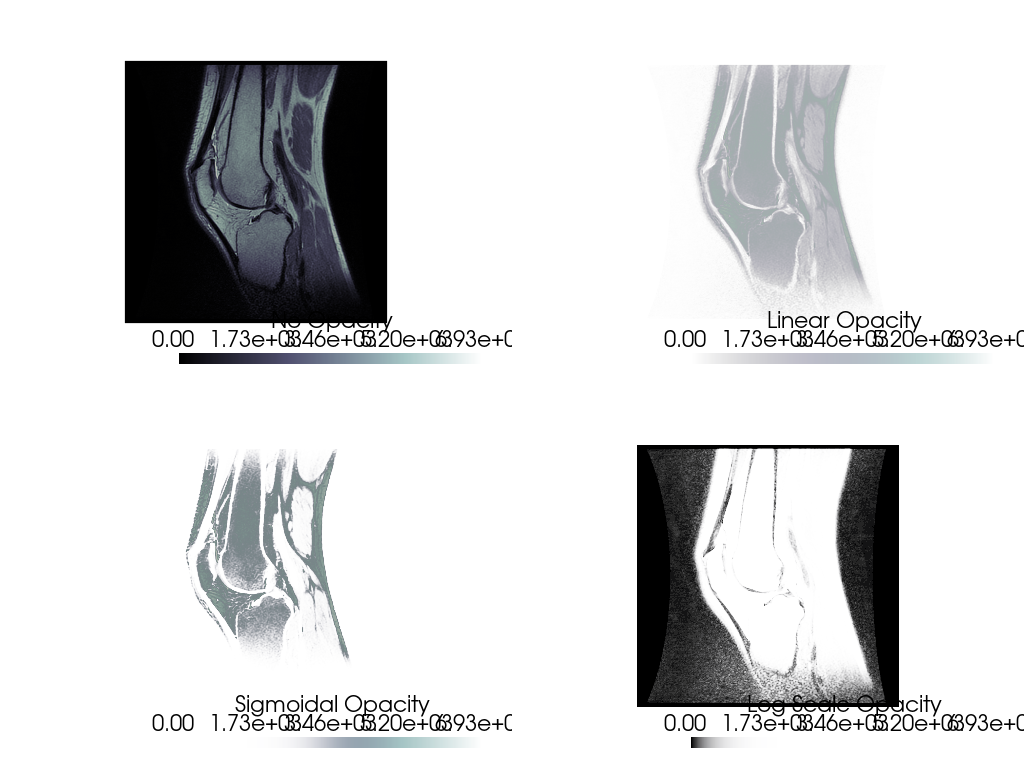

And here we inspect the DICOM image with a few different opacity mappings:
p = pv.Plotter(shape=(2, 2), border=False)
p.add_mesh(knee, cmap="bone", scalar_bar_args={'title': "No Opacity"})
p.view_xy()
p.subplot(0, 1)
p.add_mesh(knee, cmap="bone", opacity="linear", scalar_bar_args={'title': "Linear Opacity"})
p.view_xy()
p.subplot(1, 0)
p.add_mesh(knee, cmap="bone", opacity="sigmoid", scalar_bar_args={'title': "Sigmoidal Opacity"})
p.view_xy()
p.subplot(1, 1)
p.add_mesh(knee, cmap="bone", opacity="geom_r", scalar_bar_args={'title': "Log Scale Opacity"})
p.view_xy()
p.show()
![opacity](https://d33wubrfki0l68.cloudfront.net/d641e7a997621c4b561ec700b8809c0c24cd2825/80fe9/_images/sphx_glr_opacity_006.png)
Opacity by Array#
You can also use a scalar array associated with the mesh to give each cell its own opacity/transparency value derived from a scalar field. For example, an uncertainty array from a modelling result could be used to hide regions of a mesh that are uncertain and highlight regions that are well resolved.

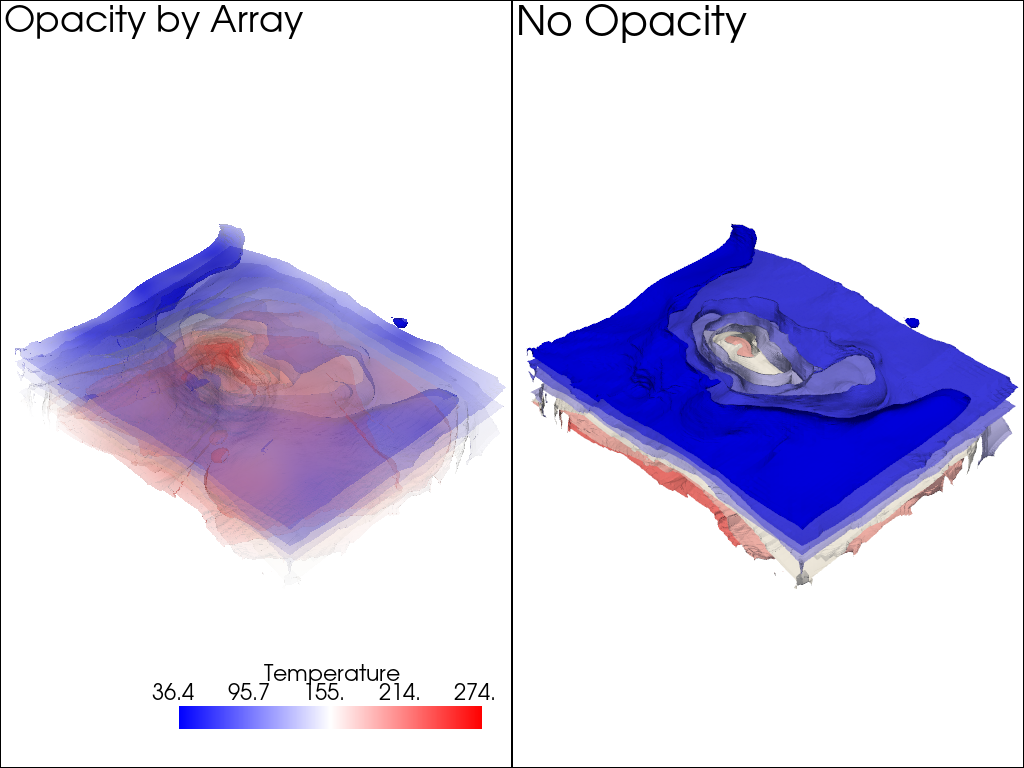

The following is a demonstration of plotting a mesh with colored values and using a second array to control the transparency of the mesh
model = examples.download_model_with_variance()
contours = model.contour(10, scalars='Temperature')
contours.array_names
['Temperature', 'Temperature_var']
Make sure to flag use_transparency=True
since we want areas of high
variance to have high transparency.
Also, since the opacity array must be between 0 and 1, we normalize the temperature variance array by the maximum value. That way high variance will be completely transparent.
contours['Temperature_var'] /= contours['Temperature_var'].max()
p = pv.Plotter(shape=(1, 2))
p.subplot(0, 0)
p.add_text('Opacity by Array')
p.add_mesh(
contours.copy(),
scalars='Temperature',
opacity='Temperature_var',
use_transparency=True,
cmap='bwr',
)
p.subplot(0, 1)
p.add_text('No Opacity')
p.add_mesh(contours, scalars='Temperature', cmap='bwr')
p.show()
![opacity](https://d33wubrfki0l68.cloudfront.net/e80f5885b2c6edb261f0b32f0432aa3221b8d744/b3097/_images/sphx_glr_opacity_007.png)
