pyvista.Label

class Label(*args, **kwargs)

2D label actor with a 3D position coordinate.

Unlike Text, which uses 2D viewport coordinates to position text in a plot, this class instead uses a 3D position coordinate. This class may be positioned, oriented, and transformed in a manner similar to a 3D Actor.

In addition, this class supports an additional relative_position attribute. In general, it is recommended to simply use position when positioning a Label by itself. However, if the position of the label depends on the positioning of another actor, both position and relative_position may be used together. In these cases, the position of the label and actor should be kept in-sync. See the examples below.

パラメータ:

textstr, optional

表示される文字列．

positionVectorLike[float]

Position of the text in XYZ coordinates.

relative_positionVectorLike[float]

Position of the text in XYZ coordinates relative to its position.

sizeint

Size of the text label.

proppyvista.TextProperty, optional

このアクターのプロパティ．

namestr, optional

プロッターでトラッキングする際に使用するアクターの名前です．

Added in version 0.45.

参考

pyvista.Plotter.add_point_labels

例

Create a label for a point of interest. Here we add a label to the tip of a cone.

>>> import pyvista as pv
>>> cone_dataset = pv.Cone()
>>> tip = (0.5, 0, 0)
>>> label = pv.Label('tip', position=tip)

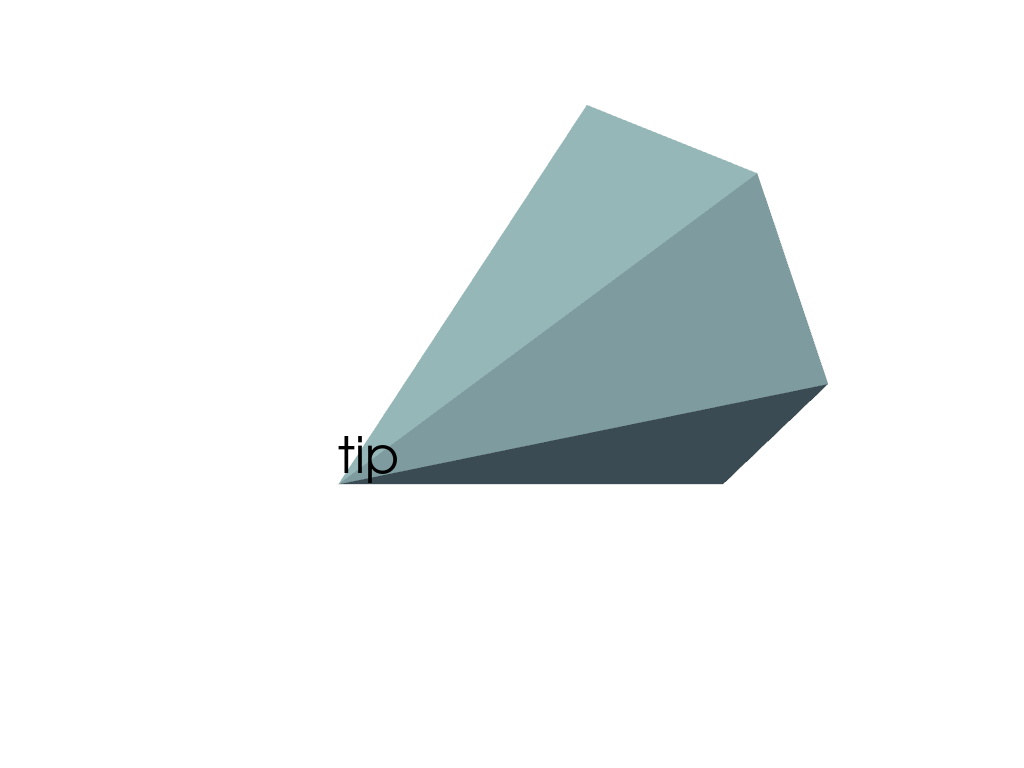

Plot the mesh and label.

>>> pl = pv.Plotter()
>>> cone_actor = pl.add_mesh(cone_dataset)
>>> _ = pl.add_actor(label)
>>> pl.show()

スタティックシーン

インタラクティブなシーン

The previous example set the label's position as the cone's tip explicitly. However, this means that the two actors now have different positions.

>>> cone_actor.position
(0.0, 0.0, 0.0)
>>> label.position
(0.5, 0.0, 0.0)

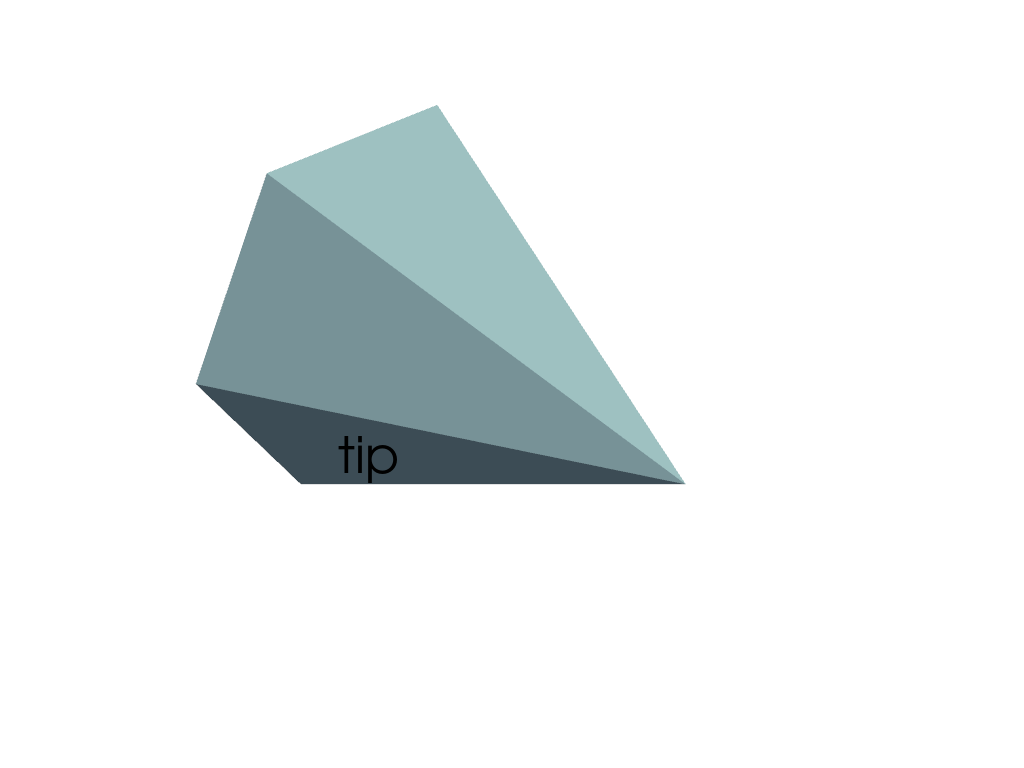

And if we change the 3D orientation of the cone and label, the label is no longer positioned at the tip.

>>> cone_actor.orientation = 0, 0, 90
>>> label.orientation = 0, 0, 90
>>>
>>> pl = pv.Plotter()
>>> _ = pl.add_actor(cone_actor)
>>> _ = pl.add_actor(label)
>>> pl.show()

スタティックシーン

インタラクティブなシーン

This is because rotations by pyvista.Prop3D are applied before the actor is moved to its final position, and therefore the label's position is not considered in the rotation. Hence, the final position of the label remains at (0.5, 0.0, 0.0) as it did earlier, despite changing its orientation.

If we want the position of the label to have the same positioning relative to the cone, we can instead set its relative_position.

First, reset the label's position to match the cone's position.

>>> label.position = cone_actor.position
>>> label.position
(0.0, 0.0, 0.0)

Now set its relative_position to the tip of the cone.

>>> label.relative_position = tip
>>> label.relative_position
(0.5, 0.0, 0.0)

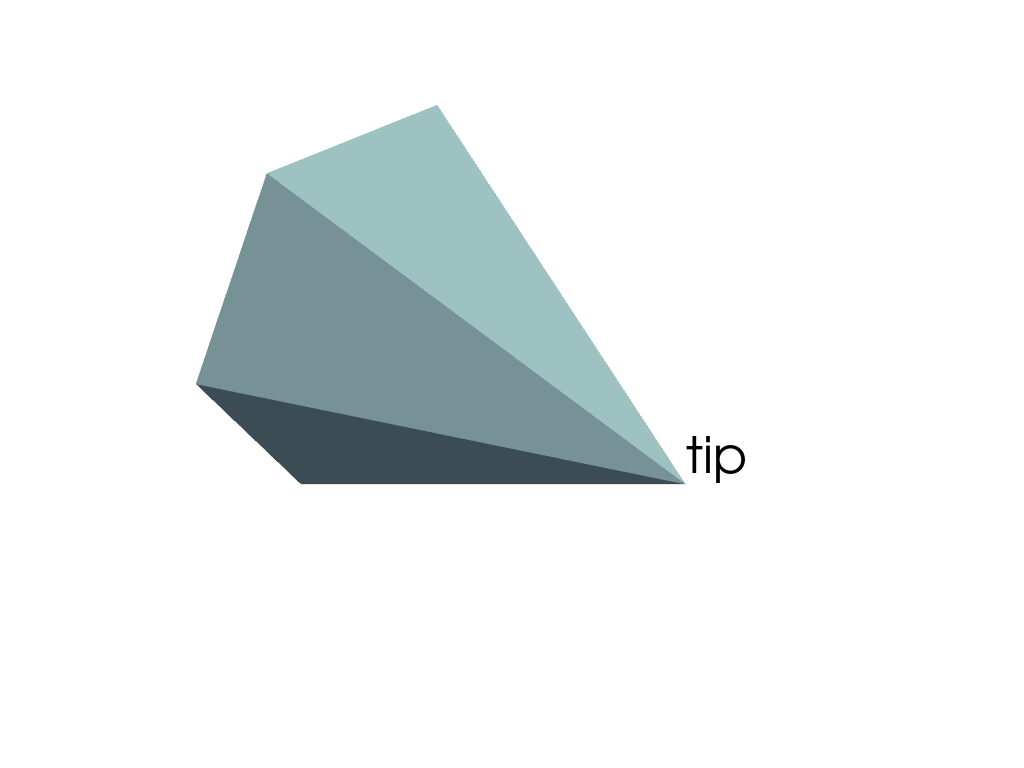

Plot the results. The label is now correctly positioned at the tip of the cone. This is because the relative_position is considered as part of the rotation.

>>> pl = pv.Plotter()
>>> _ = pl.add_actor(cone_actor)
>>> _ = pl.add_actor(label)
>>> pl.show()

スタティックシーン

インタラクティブなシーン

As long as the label and cone's pyvista.Prop3D attributes are modified together and synchronized, the label will remain at the tip of the cone.

Modify the position of the label and tip.

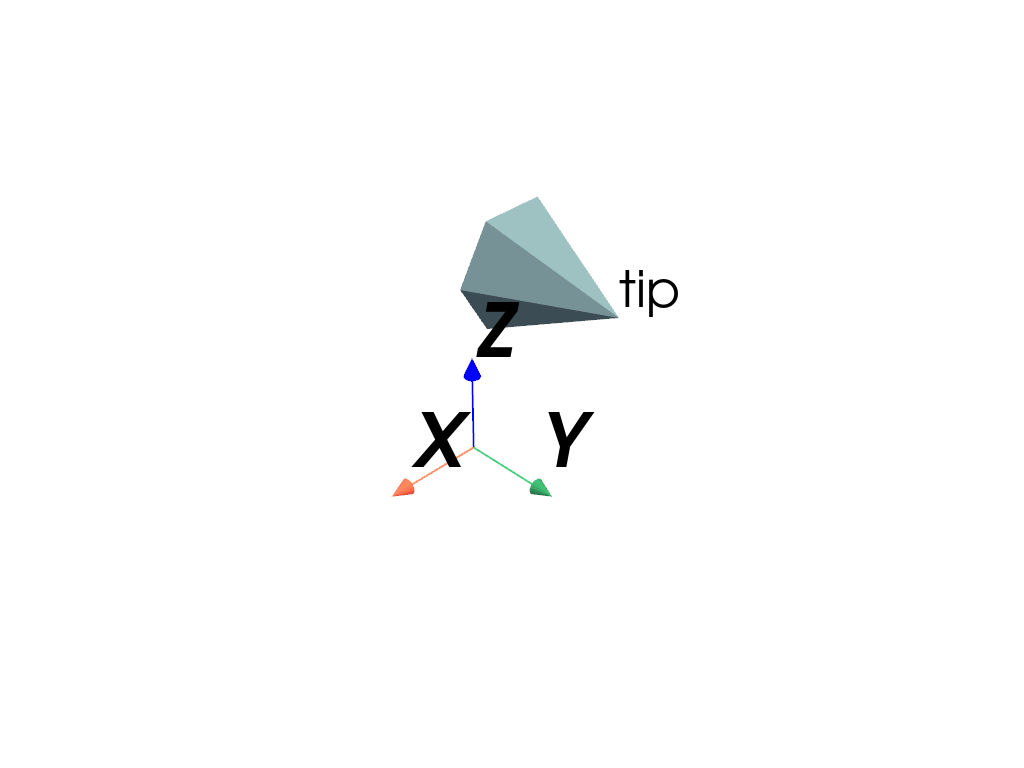

>>> cone_actor.position = (1.0, 2.0, 3.0)
>>> label.position = (1.0, 2.0, 3.0)
>>> pl = pv.Plotter()
>>> _ = pl.add_actor(cone_actor)
>>> _ = pl.add_actor(label)
>>> _ = pl.add_axes_at_origin()
>>> pl.show()

スタティックシーン

インタラクティブなシーン

メソッド

アトリビュート

Label.relative_position	Position of the label relative to its position.
Label.size	Size of the text label.
