データセットギャラリー

PyVista のデータセットとそのメタデータをブラウズします。.

すべてのデータセットをブラウズする

#

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

Y

Dataset Count:

208

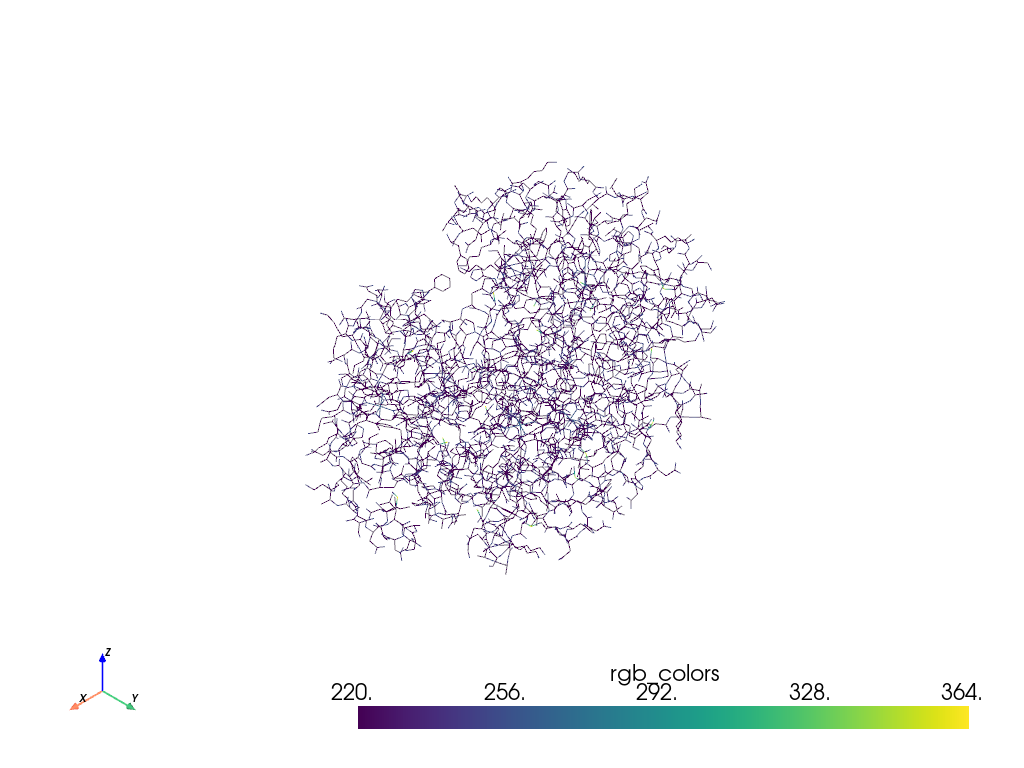

3gqp Dataset

Downloads PolyData

download_3gqp()

Download a 3GQP dataset.

Dataset Info

Data Type

PolyData

Cell Type

LINE

N Cells

4 722

N Points

4 793

Length

1.14e+02

N Arrays

11

File Info

File Size

446.6 KB

Num Files

1

File Ext

.pdb

Reader

PDBReader

Data Source

3GQP.pdb

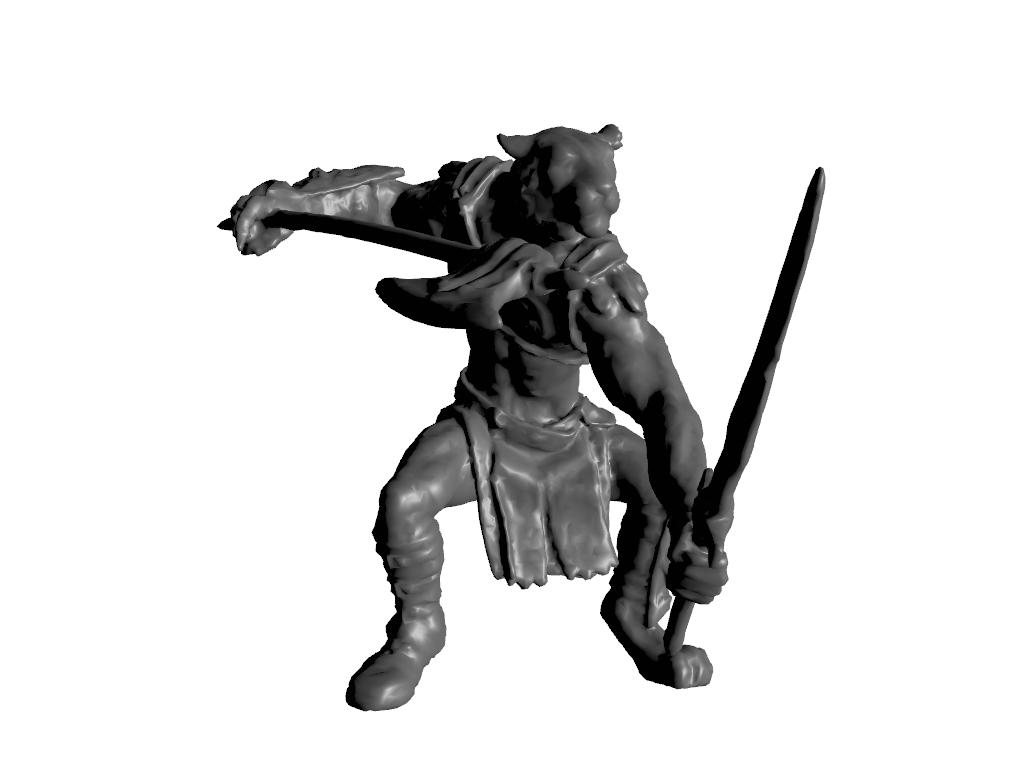

Action Figure Dataset

Downloads PolyData Surface Mesh

download_action_figure()

アクションフィギュアのダウンロードスキャン．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

31 421

N Points

15 713

Length

1.67e+02

N Arrays

1

File Info

File Size

1.5 MB

Num Files

1

File Ext

.obj

Reader

OBJReader

Data Source

tigerfighter_decimated.obj

Aero Bracket Dataset

Downloads UnstructuredGrid

download_aero_bracket()

エアロブラケットの有限要素法解をダウンロードできます．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

QUADRATIC_TETRA

N Cells

117 292

N Points

187 037

Length

1.46e-01

N Arrays

3

File Info

File Size

14.7 MB

Num Files

1

File Ext

.vtu

Reader

XMLUnstructuredGridReader

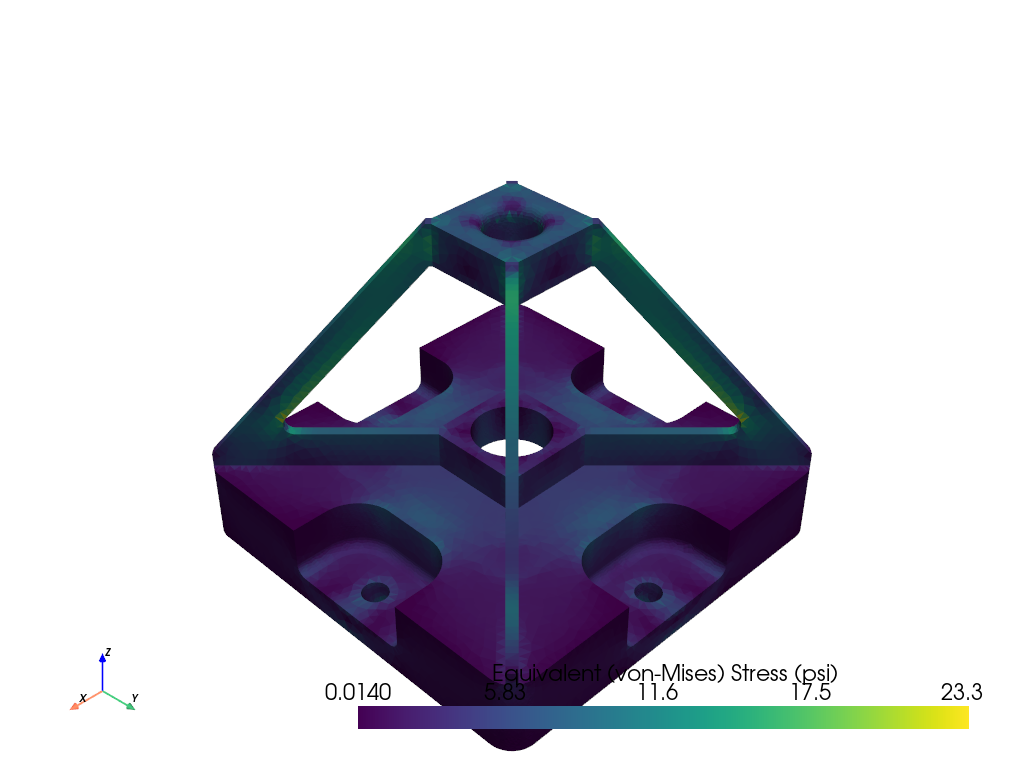

See also Notch Stress Dataset, Notch Displacement Dataset, Fea Bracket Dataset, Fea Hertzian Contact Cylinder Dataset

Data Source

fea/aero_bracket/aero_bracket.vtu

Airplane Dataset

Built-in PolyData Surface Mesh

load_airplane()

ply飛行機メッシュをロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

2 452

N Points

1 335

Length

2.01e+03

N Arrays

0

File Info

File Size

74.5 KB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

airplane.ply

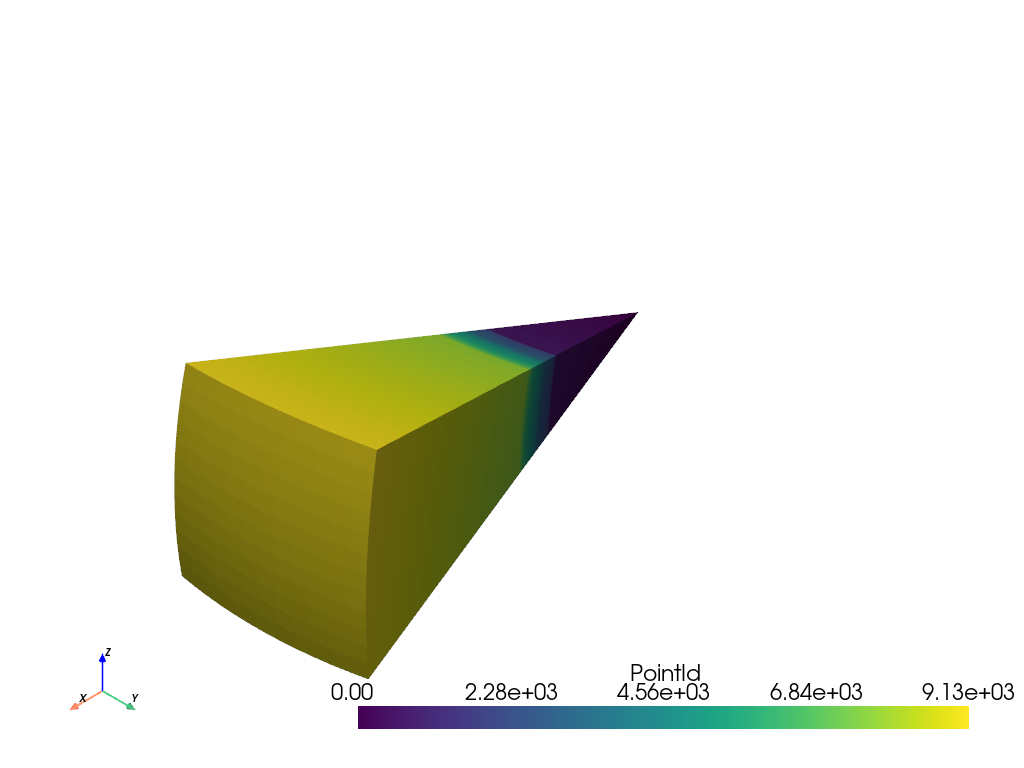

Angular Sector Dataset

Downloads UnstructuredGrid

download_angular_sector()

角度セクターのデータセットをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

HEXAHEDRON

PYRAMID

N Cells

7 776

N Points

10 141

Length

2.56e-01

N Arrays

2

File Info

File Size

728.6 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

AngularSector.vtk

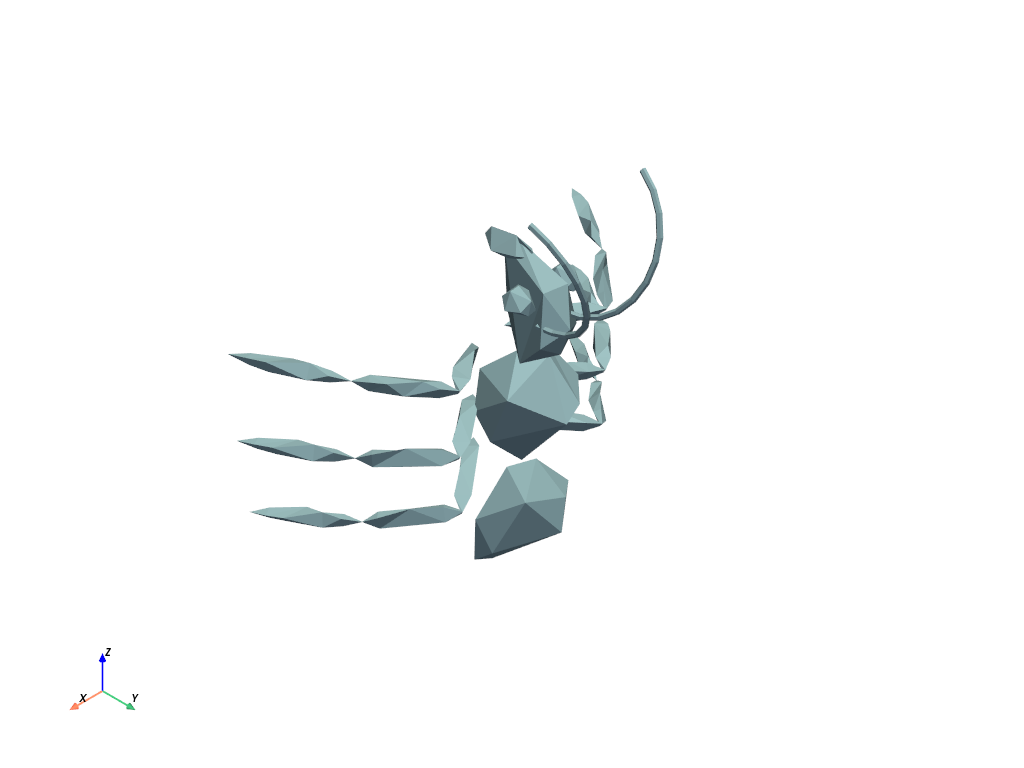

Ant Dataset

Built-in PolyData Surface Mesh

load_ant()

ply蟻メッシュをロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

912

N Points

486

Length

5.00e+01

N Arrays

0

File Info

File Size

17.9 KB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

ant.ply

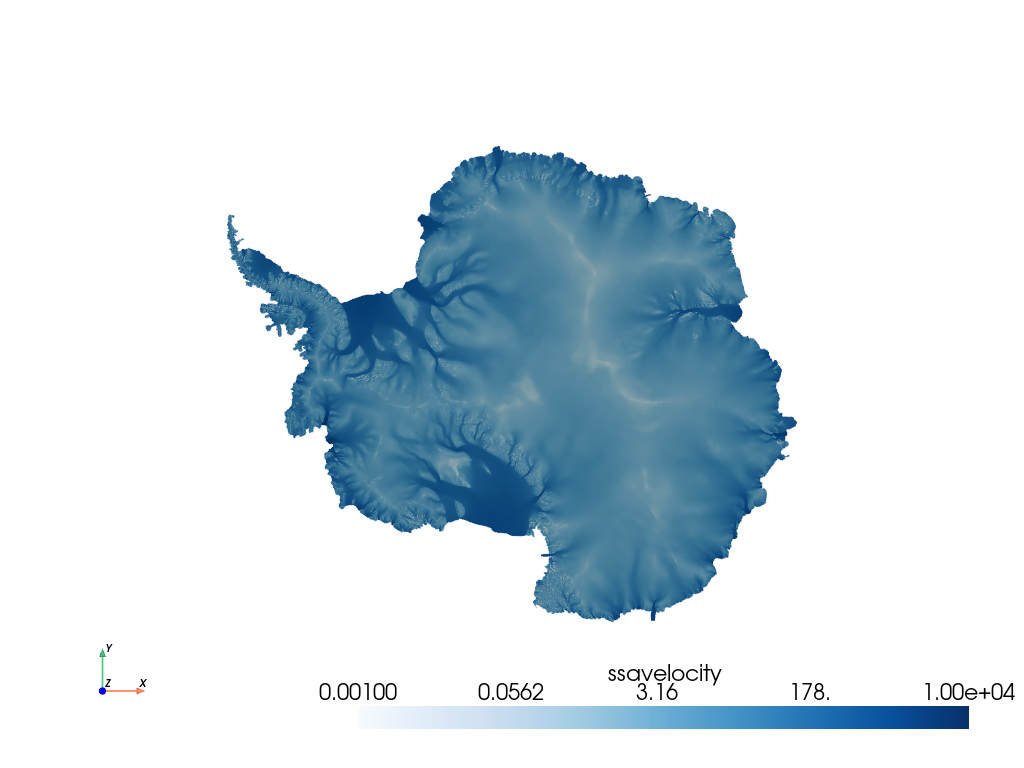

Antarctica Velocity Dataset

Downloads PolyData Surface Mesh

download_antarctica_velocity()

Antarcticaの速度シミュレーション結果をダウンロードできます．

Dataset Info

Data Type

PolyData

Cell Type

LINE

TRIANGLE

N Cells

1 106 948

N Points

557 470

Length

6.84e+06

N Arrays

2

File Info

File Size

33.4 MB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

See also メッシュ領域間でフィールドを比較

Data Source

antarctica_velocity.vtp

Armadillo Dataset

Downloads PolyData Surface Mesh

download_armadillo()

armadilloデータセットのダウンロード

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

345 944

N Points

172 974

Length

2.29e+02

N Arrays

0

File Info

File Size

6.6 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

Armadillo.ply

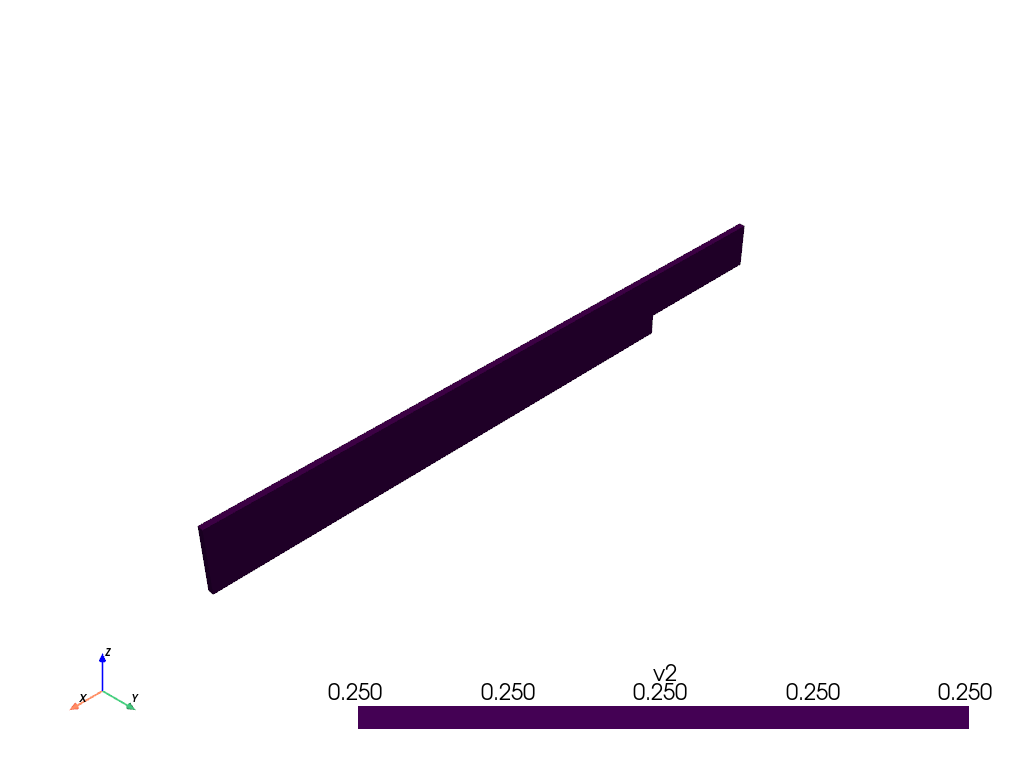

Backward Facing Step Dataset

Downloads UnstructuredGrid MultiBlock Homogeneous

download_backward_facing_step()

流体シミュレーションのアンサイトゴールドケースをダウンロードできます．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

QUAD

HEXAHEDRON

Length

1.01e+02

File Info

File Size

998 B

Num Files

1

File Ext

.case

Reader

EnSightReader

Data Source

EnSight.zip

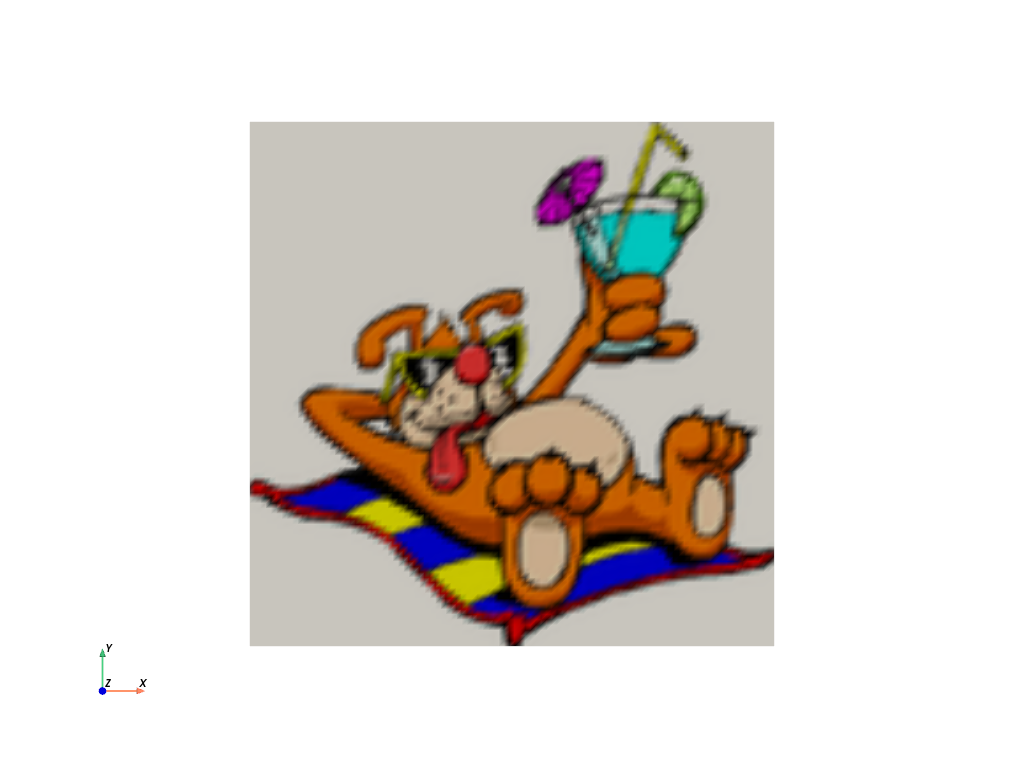

Beach Dataset

Downloads ImageData 2D Image

download_beach()

ビーチのNRRD画像をダウンロード

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

9 801

N Points

10 000

Length

1.40e+02

Dimensions

100, 100, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

30.2 KB

Num Files

1

File Ext

.nrrd

Reader

NRRDReader

Data Source

beach.nrrd

Biplane Dataset

Downloads UnstructuredGrid MultiBlock Homogeneous

download_biplane()

Download biplane dataset.

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

LINE

TRIANGLE

QUAD

TETRA

HEXAHEDRON

QUADRATIC_TRIANGLE

QUADRATIC_QUAD

QUADRATIC_TETRA

QUADRATIC_HEXAHEDRON

Length

1.18e+01

File Info

File Size

348.8 KB

Num Files

1

File Ext

.exo

Reader

ExodusIIReader

Data Source

biplane_rms_pressure_bs.exo

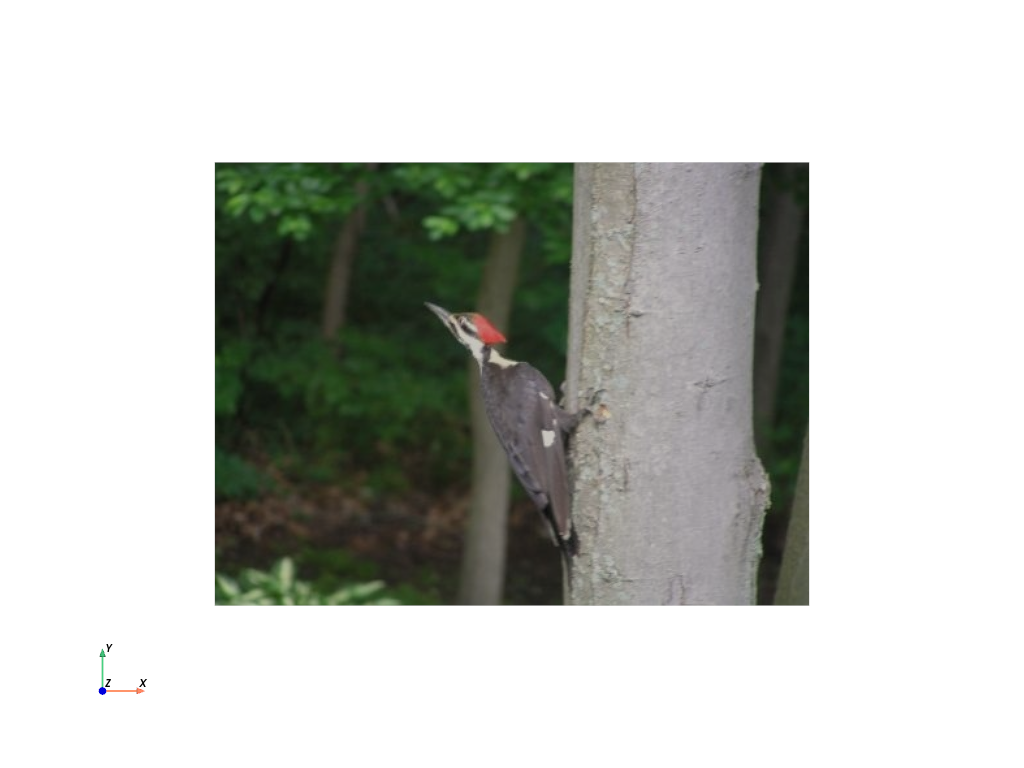

Bird Dataset

Downloads ImageData 2D Image

download_bird()

鳥のデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

155 837

N Points

156 636

Length

5.70e+02

Dimensions

458, 342, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

31.9 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Bird Texture Dataset

Data Source


Bird Bath Dataset

Downloads PolyData Surface Mesh

download_bird_bath()

Ivan Nikolovが作成したバードバスのスキャンをダウンロードすることができます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

35 079

N Points

18 796

Length

4.57e+02

N Arrays

0

File Info

File Size

699.8 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

ivan-nikolov/birdBath_decimated.vtp

Bird Texture Dataset

Downloads Texture

download_bird_texture()

鳥のテクスチャをダウンロード

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

458, 342

File Info

File Size

31.9 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Bird Dataset

Data Source

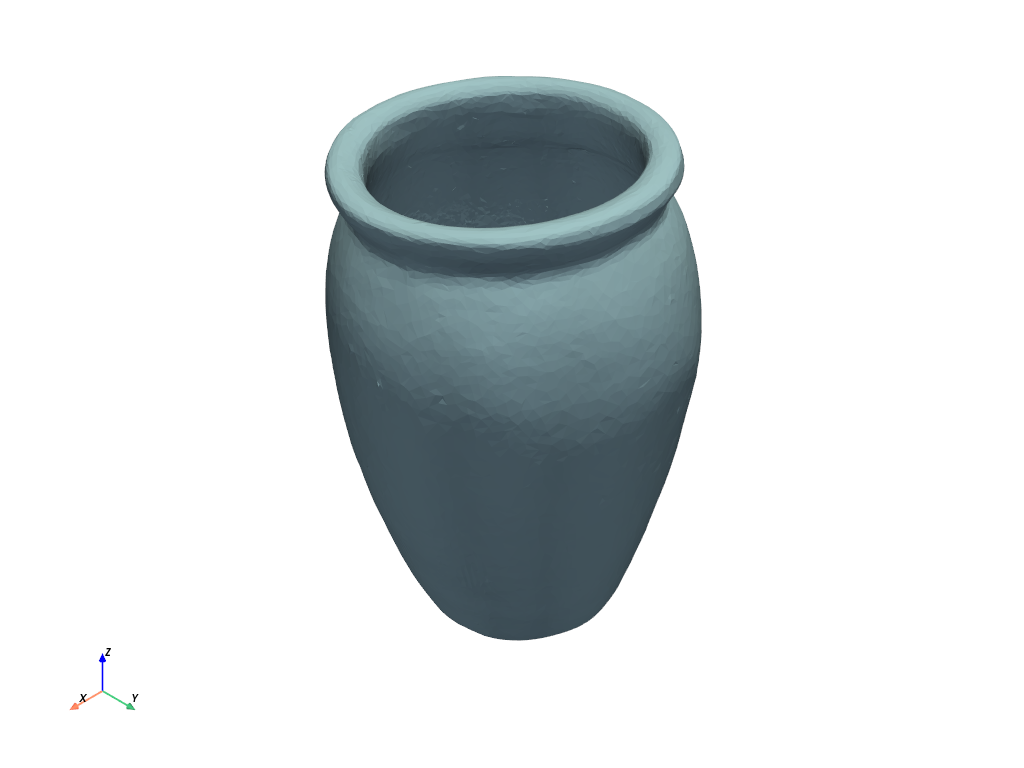

Black Vase Dataset

Downloads PolyData Surface Mesh

download_black_vase()

Ivan Nikolovが作成した黒い花瓶スキャンをダウンロードすることができます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

31 366

N Points

17 337

Length

5.39e+02

N Arrays

0

File Info

File Size

624.1 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

ivan-nikolov/blackVase_decimated.vtp

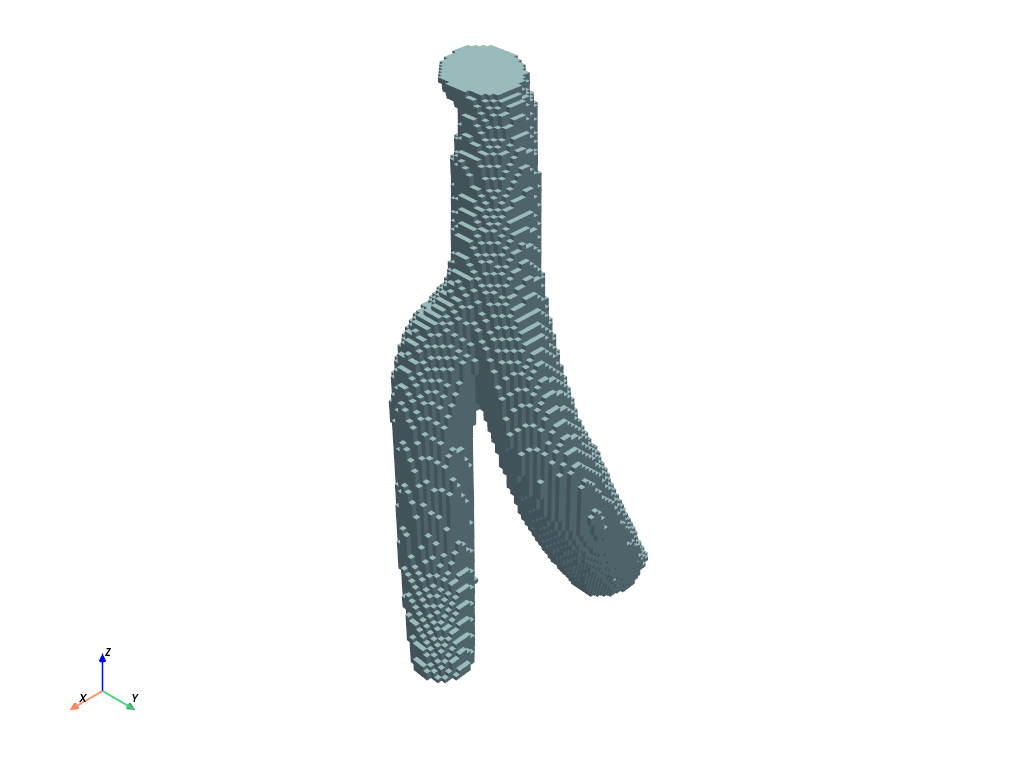

Blood Vessels Dataset

Downloads UnstructuredGrid

download_blood_vessels()

血管の分岐を表すデータをダウンロードできます．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

VOXEL

N Cells

39 353

N Points

48 823

Length

1.44e+02

N Arrays

5

File Info

File Size

786 B

Num Files

1

File Ext

.pvtu

Reader

XMLPUnstructuredGridReader

Data Source

pvtu_blood_vessels/blood_vessels.zip

Blow Dataset

Downloads UnstructuredGrid

download_blow()

blowデータセットをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

TRIANGLE

QUAD

N Cells

1 057

N Points

687

Length

5.41e+01

N Arrays

20

File Info

File Size

307.2 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

blow.vtk

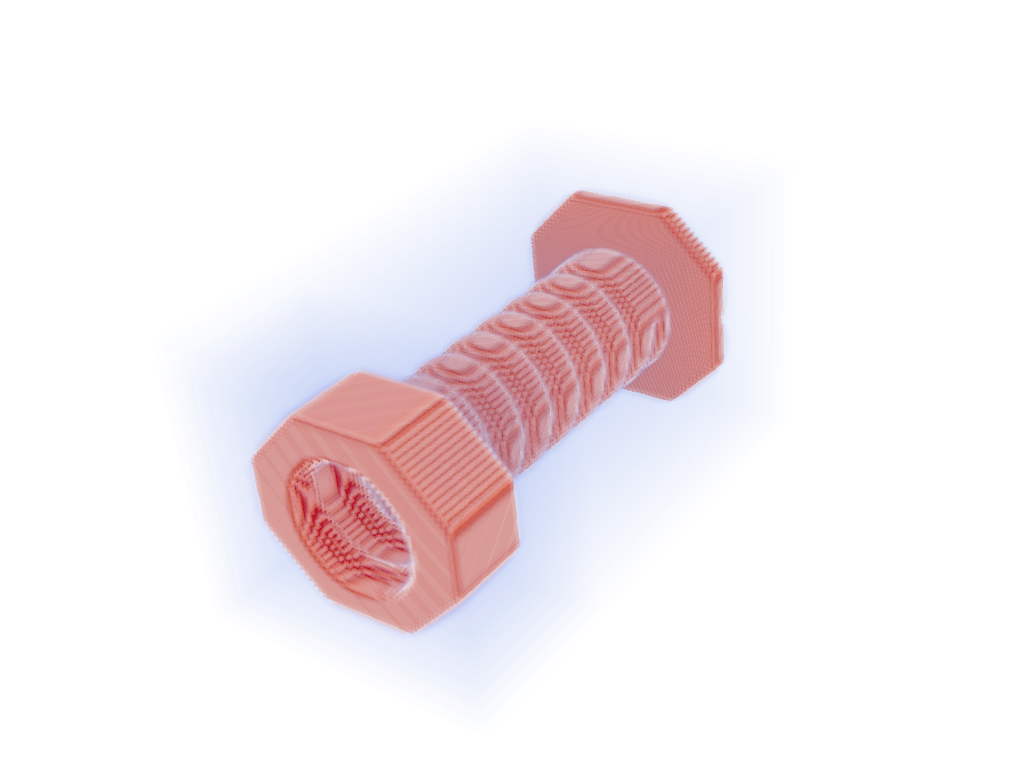

Bolt Nut Dataset

Downloads ImageData MultiBlock 3D Volume Homogeneous

download_bolt_nut()

ボルトナットのデータセットをダウンロードします．

Dataset Info

Data Type

MultiBlock

ImageData

Cell Type

VOXEL

Length

1.54e+02

File Info

File Size

132.8 KB

Num Files

2

File Ext

.slc

Reader

SLCReader

See also ボリュームレンダリング

Data Source

bolt.slc nut.slc

Brain Dataset

Downloads ImageData 3D Volume Medical

download_brain()

脳のデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

6 998 400

N Points

7 109 137

Length

3.34e+02

Dimensions

181, 217, 181

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

7.1 MB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

See also Brain Atlas With Sides Dataset

Data Source

brain.vtk

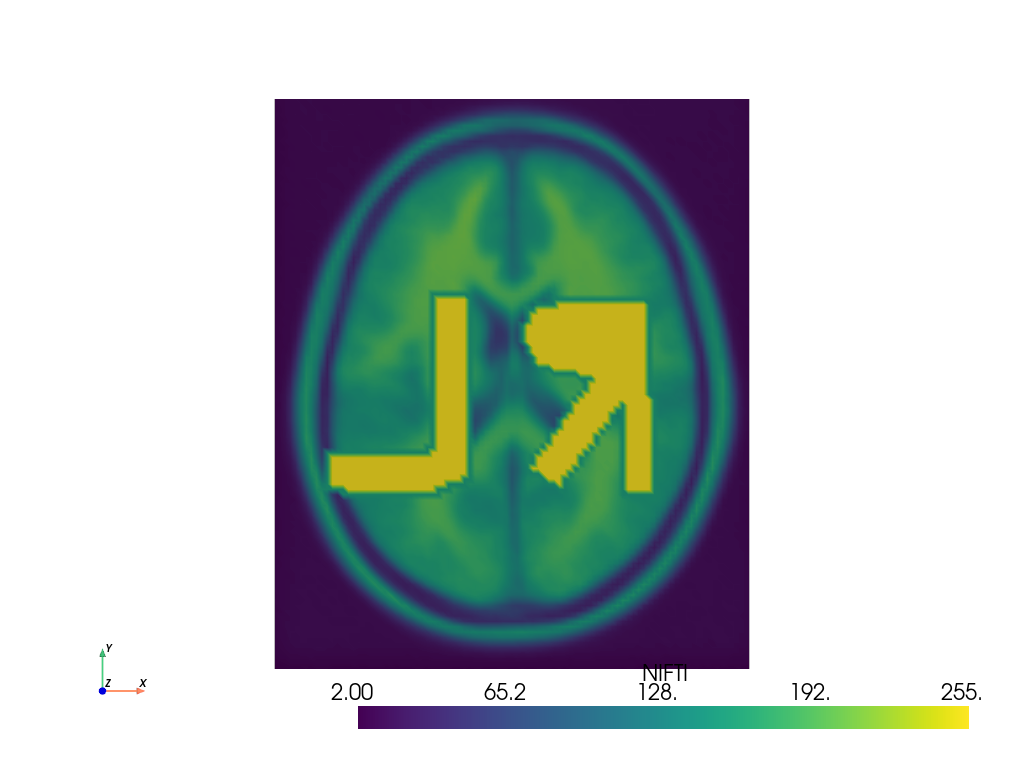

Brain Atlas With Sides Dataset

Downloads ImageData 3D Volume Medical

download_brain_atlas_with_sides()

右左のラベルが付いた平均化された脳の画像をダウンロードすることができます．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

874 800

N Points

902 629

Length

3.34e+02

Dimensions

91, 109, 91

Spacing

2.0, 2.0, 2.0

N Arrays

1

File Info

File Size

531.1 KB

Num Files

1

File Ext

.nii.gz

Reader

NIFTIReader

See also Brain Dataset

Data Source

avg152T1_RL_nifti.nii.gz

Bunny Dataset

Downloads PolyData Surface Mesh

download_bunny()

ウサギのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

69 451

N Points

35 947

Length

2.50e-01

N Arrays

0

File Info

File Size

3.0 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

See also Bunny Coarse Dataset

Data Source

bunny.ply

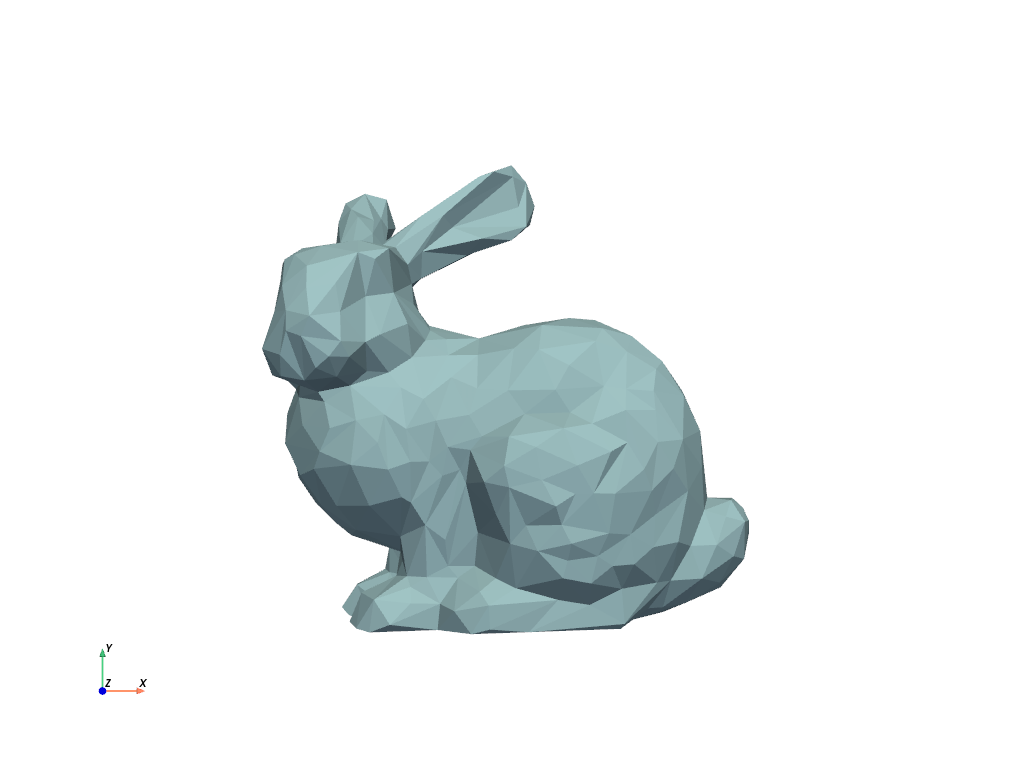

Bunny Coarse Dataset

Downloads PolyData Surface Mesh

download_bunny_coarse()

粗いウサギのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

1 000

N Points

872

Length

5.00e-01

N Arrays

1

File Info

File Size

33.4 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

See also Bunny Dataset

Data Source

Bunny.vtp

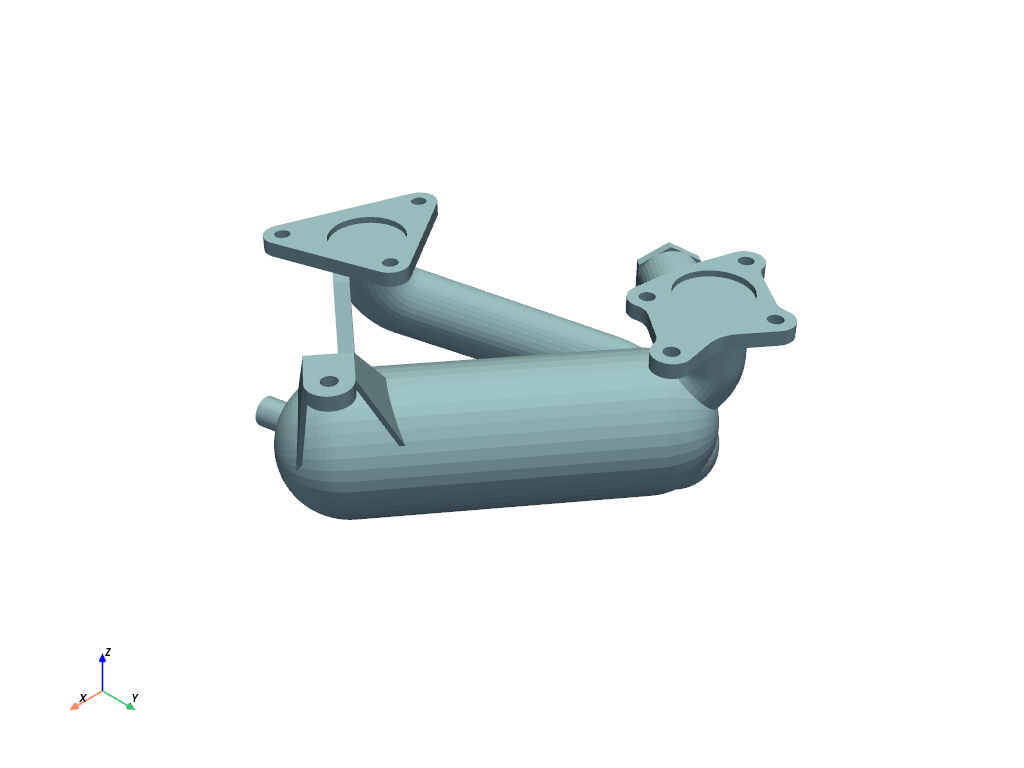

Cad Model Dataset

Downloads PolyData Surface Mesh

download_cad_model()

cadのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

11 036

N Points

5 500

Length

1.76e+01

N Arrays

0

File Info

File Size

551.9 KB

Num Files

1

File Ext

.stl

Reader

STLReader

See also ファイルからロードおよびプロットする

Data Source

42400-IDGH.stl

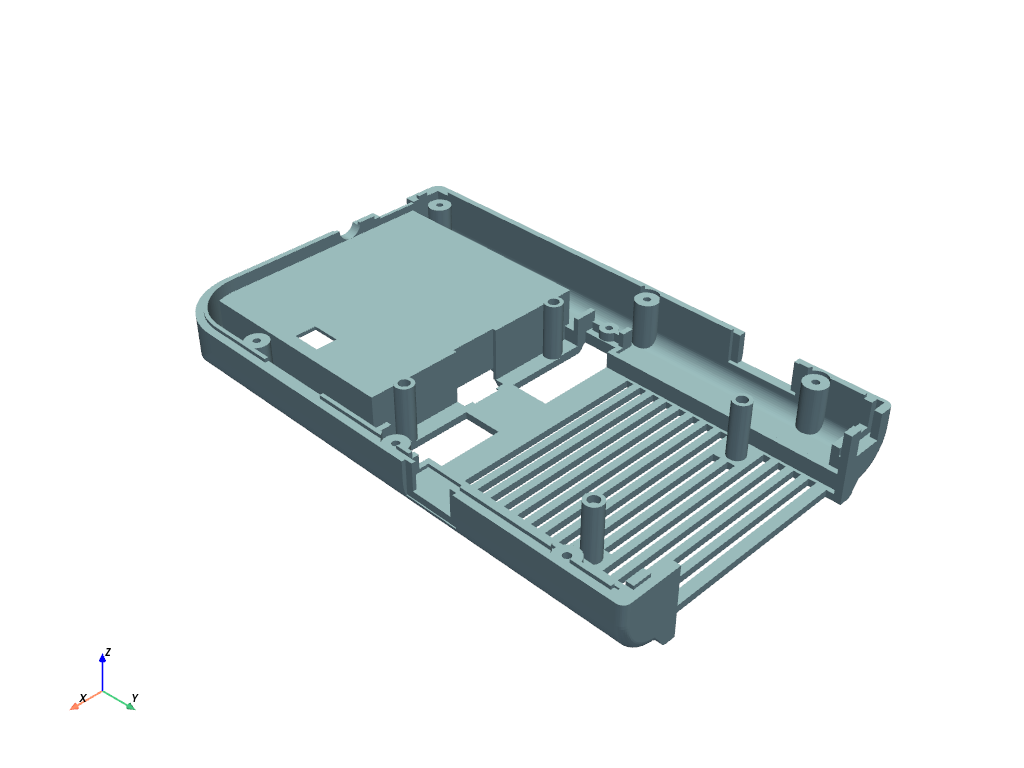

Cad Model Case Dataset

Downloads PolyData Surface Mesh

download_cad_model_case()

Raspberry PI 4の筐体CADモデルをダウンロードできます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

15 446

N Points

7 677

Length

1.74e+02

N Arrays

2

File Info

File Size

374.9 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

cad/4947746/Vented_Rear_Case_With_Pi_Supports.vtp

Caffeine Dataset

Downloads PolyData

download_caffeine()

Download the caffeine molecule.

Dataset Info

Data Type

PolyData

Cell Type

LINE

N Cells

25

N Points

24

Length

1.09e+01

N Arrays

11

File Info

File Size

2.0 KB

Num Files

1

File Ext

.pdb

Reader

PDBReader

Data Source

caffeine.pdb

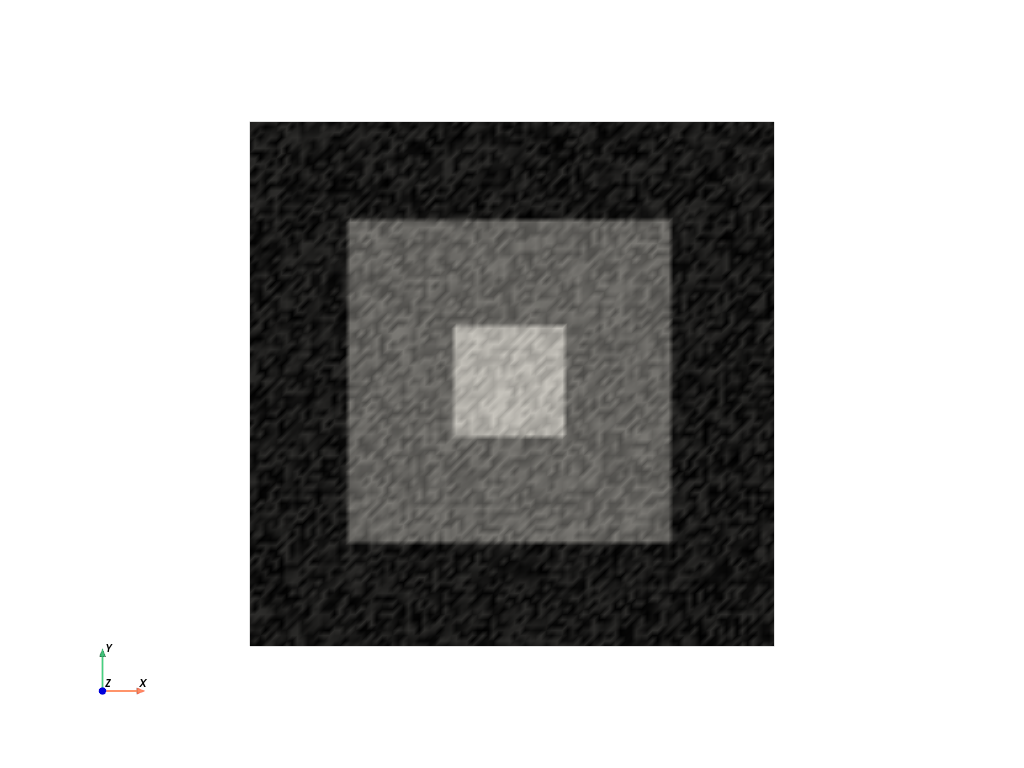

Cake Easy Dataset

Downloads ImageData 2D Image

download_cake_easy()

ケーキのデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

9 801

N Points

10 000

Length

1.40e+02

Dimensions

100, 100, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

9.1 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Cake Easy Texture Dataset

Data Source

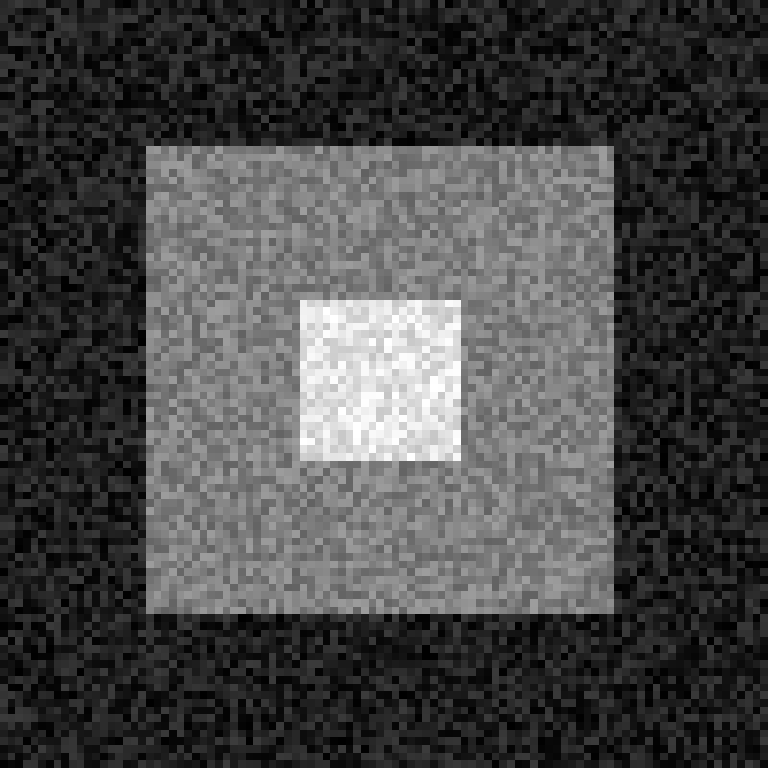

Cake Easy Texture Dataset

Downloads Texture

download_cake_easy_texture()

ケーキテクスチャをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

100, 100

File Info

File Size

9.1 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Cake Easy Dataset

Data Source


Can Crushed Hdf Dataset

Downloads UnstructuredGrid

download_can_crushed_hdf()

粉砕缶のデータセットをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

HEXAHEDRON

N Cells

4 800

N Points

6 724

Length

2.09e+01

N Arrays

16

File Info

File Size

1.1 MB

Num Files

1

File Ext

.hdf

Reader

HDFReader

See also Can Crushed Vtu Dataset

Data Source

hdf/can-vtu.hdf

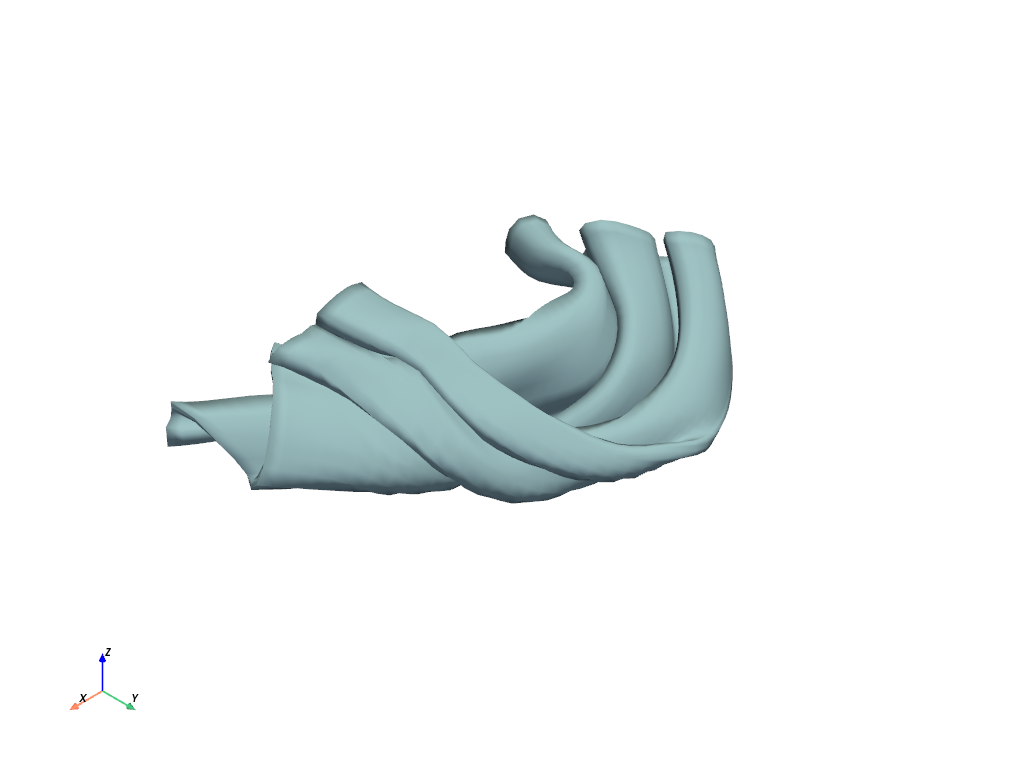

Can Crushed Vtu Dataset

Downloads UnstructuredGrid

download_can_crushed_vtu()

粉砕缶のデータセットをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

HEXAHEDRON

N Cells

4 800

N Points

6 724

Length

2.09e+01

N Arrays

16

File Info

File Size

1.1 MB

Num Files

1

File Ext

.vtu

Reader

XMLUnstructuredGridReader

See also Can Crushed Hdf Dataset

Data Source

can.vtu

Carburetor Dataset

Downloads PolyData Surface Mesh

download_carburetor()

キャブレターのスキャンデータをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

500 000

N Points

251 320

Length

3.27e+02

N Arrays

0

File Info

File Size

9.5 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

carburetor.ply

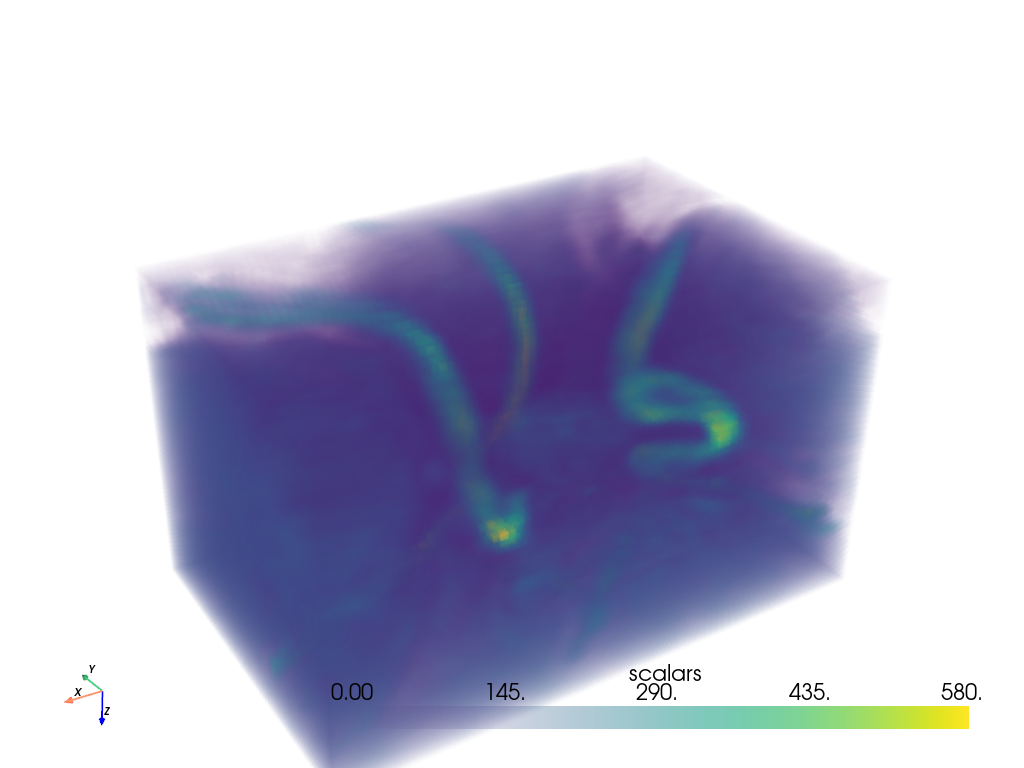

Carotid Dataset

Downloads ImageData 3D Volume Medical

download_carotid()

頚動脈のデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

158 400

N Points

167 580

Length

9.93e+01

Dimensions

76, 49, 45

Spacing

1.0, 1.0, 1.0

N Arrays

2

File Info

File Size

2.7 MB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

carotid.vtk

Cavity Dataset

Downloads PolyData UnstructuredGrid MultiBlock Surface Mesh Heterogeneous

download_cavity()

キャビティのOpenFOAMの例をダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

PolyData

Cell Type

QUAD

HEXAHEDRON

Length

1.42e-01

File Info

File Size

0 B

Num Files

1

File Ext

.foam

Reader

POpenFOAMReader

See also OpenFOAMデータのプロット

Data Source

OpenFOAM.zip

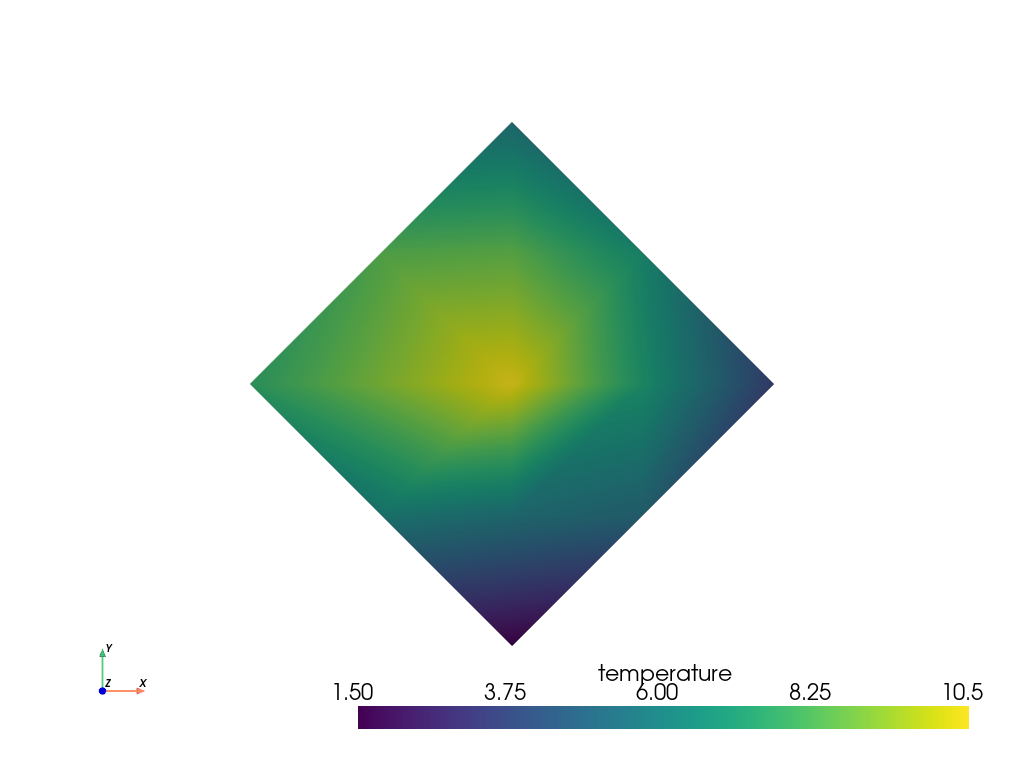

Cells Nd Dataset

Downloads UnstructuredGrid

download_cells_nd()

AVS UCDのデータセットの例をダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

TRIANGLE

QUAD

N Cells

12

N Points

13

Length

5.66e+00

N Arrays

4

File Info

File Size

1.2 KB

Num Files

1

File Ext

.inp

Reader

AVSucdReader

Data Source

cellsnd.ascii.inp

Cgns Multi Dataset

Downloads StructuredGrid MultiBlock Homogeneous

download_cgns_multi()

セルセンター解法によるマルチエレメントエアフォイルをダウンロードできます．

Dataset Info

Data Type

MultiBlock

StructuredGrid

Cell Type

HEXAHEDRON

Length

2.83e+01

File Info

File Size

4.1 MB

Num Files

1

File Ext

.cgns

Reader

CGNSReader

See also Cgns Structured Dataset

Data Source

cgns/multi.cgns

Cgns Structured Dataset

Downloads StructuredGrid MultiBlock Homogeneous

download_cgns_structured()

構造CGNSのデータセットメッシュをダウンロード．

Dataset Info

Data Type

MultiBlock

StructuredGrid

Cell Type

QUAD

HEXAHEDRON

Length

2.62e+00

File Info

File Size

1.0 MB

Num Files

1

File Ext

.cgns

Reader

CGNSReader

See also Cgns Multi Dataset

Data Source

cgns/sqnz_s.adf.cgns

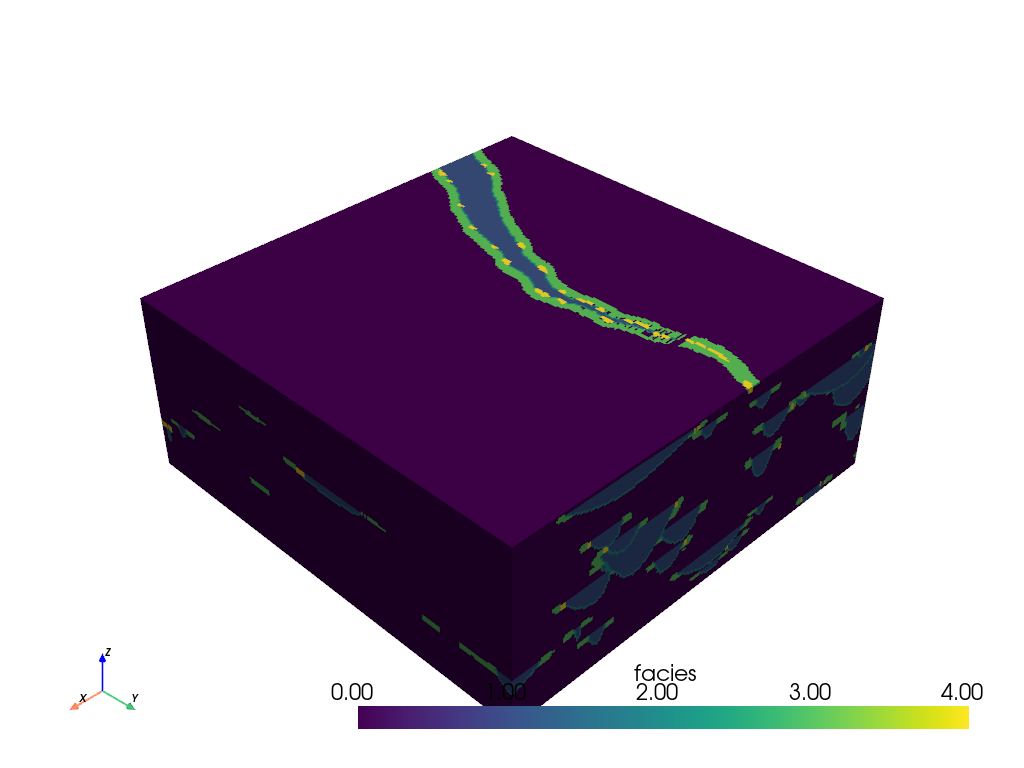

Channels Dataset

Built-in ImageData 3D Volume

load_channels()

地下に一様な格子状の河道を読み込みます．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

6 250 000

N Points

6 363 101

Length

3.67e+02

Dimensions

251, 251, 101

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

522.3 KB

Num Files

1

File Ext

.vti

Reader

XMLImageDataReader

Data Source

channels.vti

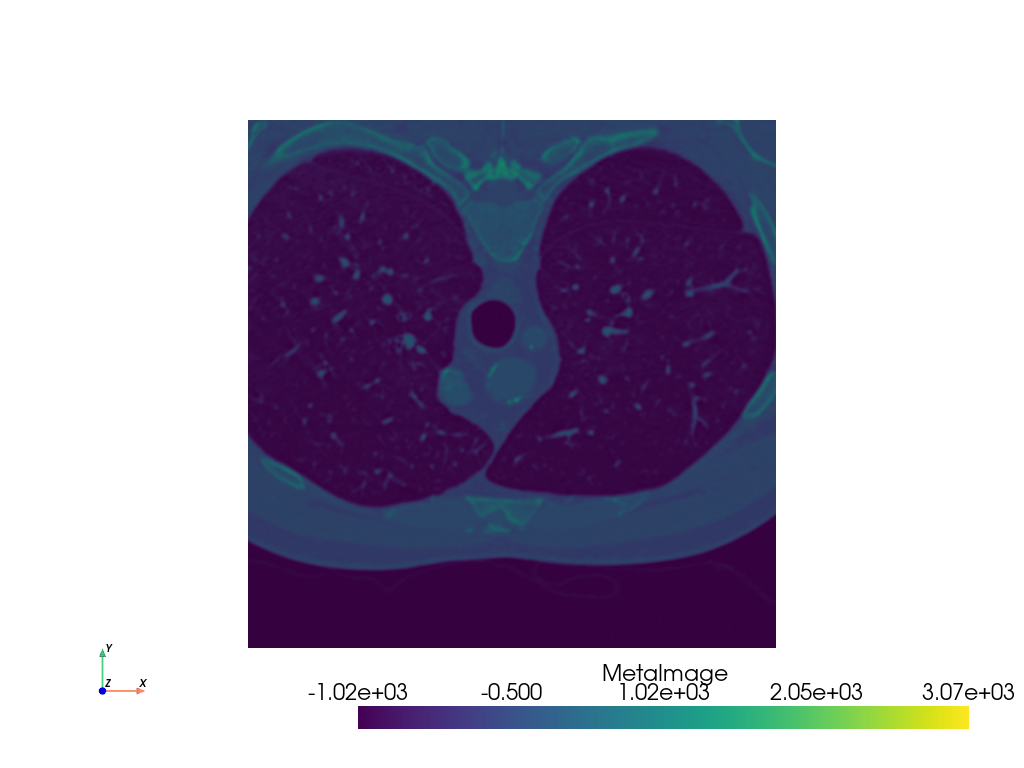

Chest Dataset

Downloads ImageData 3D Volume Medical

download_chest()

胸部のデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

4 700 178

N Points

4 980 736

Length

3.39e+02

Dimensions

512, 512, 19

Spacing

4.69e-01, 4.69e-01, 5.00e-01

N Arrays

1

File Info

File Size

6.1 MB

Num Files

1

File Ext

.mha

Reader

MetaImageReader

See also ボリュームレンダリング

Data Source

MetaIO/ChestCT-SHORT.mha

Cloud Dark Matter Dataset

Downloads PointSet Point Cloud

download_cloud_dark_matter()

ダークマターハローのシミュレーションから粒子をダウンロードします．

Dataset Info

Data Type

PointSet

Cell Type

None

N Cells

0

N Points

32 314

Length

8.97e+00

N Arrays

0

File Info

File Size

387.9 KB

Num Files

1

File Ext

.npy

Reader

None

See also Cloud Dark Matter Dense Dataset, 点群のプロット

Data Source

point-clouds/findus23/halo_low_res.npy

Cloud Dark Matter Dense Dataset

Downloads PointSet Point Cloud

download_cloud_dark_matter_dense()

ダークマターハローのシミュレーションから粒子をダウンロードします．

Dataset Info

Data Type

PointSet

Cell Type

None

N Cells

0

N Points

2 062 256

Length

8.77e+00

N Arrays

0

File Info

File Size

24.7 MB

Num Files

1

File Ext

.npy

Reader

None

See also Cloud Dark Matter Dataset, 点群のプロット

Data Source

point-clouds/findus23/halo_high_res.npy

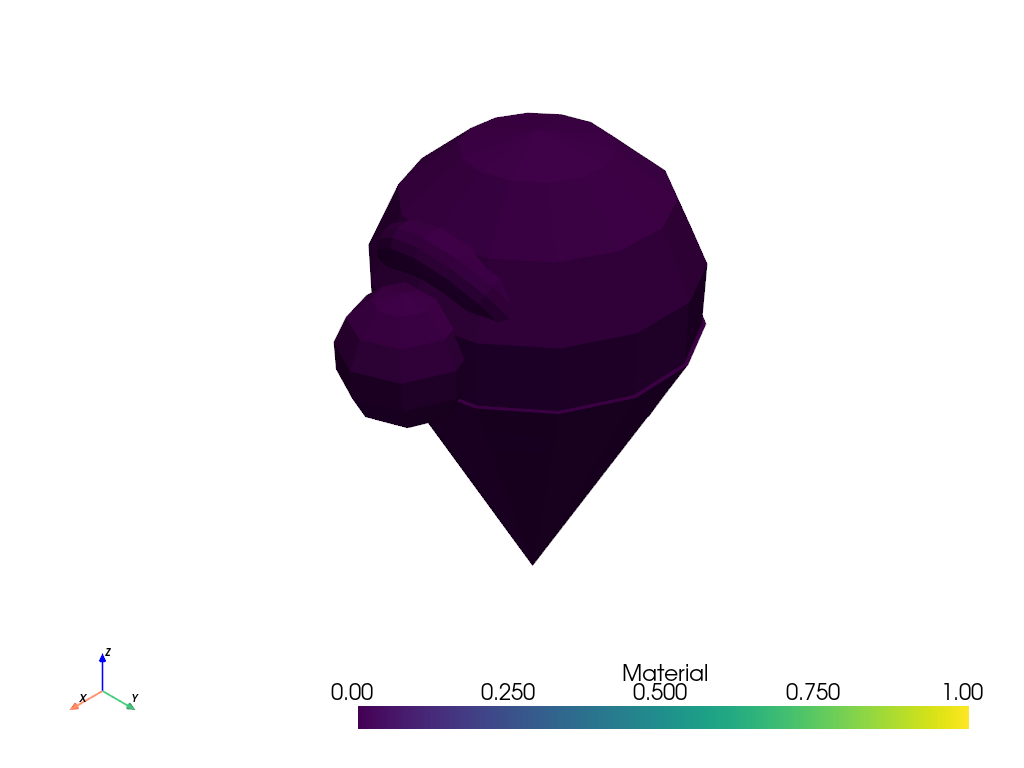

Clown Dataset

Downloads PolyData Surface Mesh

download_clown()

ピエロのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

802

N Points

631

Length

2.22e+00

N Arrays

3

File Info

File Size

29.4 KB

Num Files

1

File Ext

.facet

Reader

FacetReader

Data Source

clown.facet

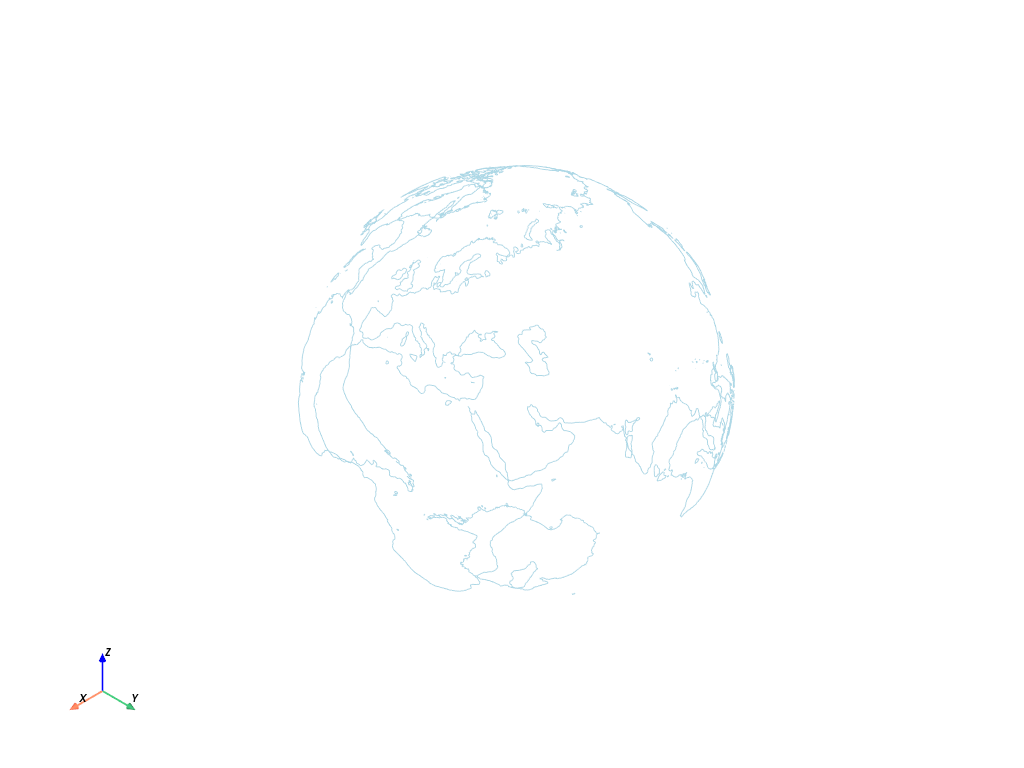

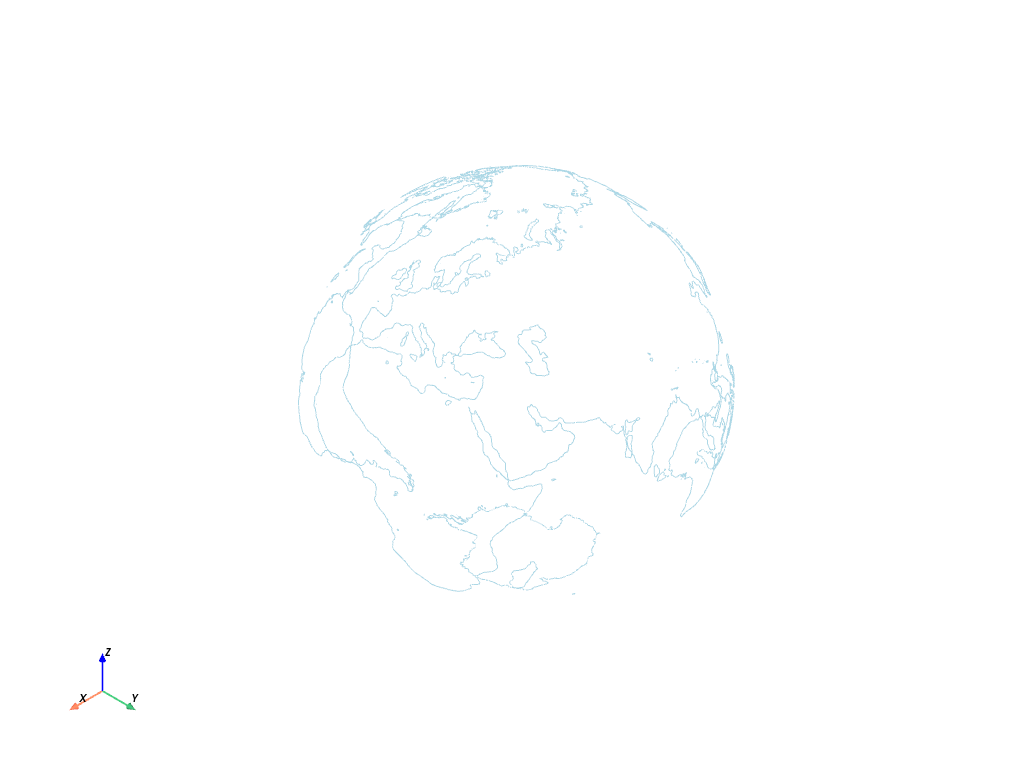

Coastlines Dataset

Downloads PolyData

download_coastlines()

海岸線データセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

LINE

N Cells

11 443

N Points

11 459

Length

3.42e+00

N Arrays

0

File Info

File Size

221.1 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

EarthModels/Coastlines_Los_Alamos.vtp

Coil Magnetic Field Dataset

Downloads ImageData 3D Volume

download_coil_magnetic_field()

コイルの磁界をダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

512 000

N Points

531 441

Length

1.39e+02

Dimensions

81, 81, 81

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

9.0 MB

Num Files

1

File Ext

.vti

Reader

XMLImageDataReader

See also 磁場をプロットする

Data Source

magpylib/coil_field.vti

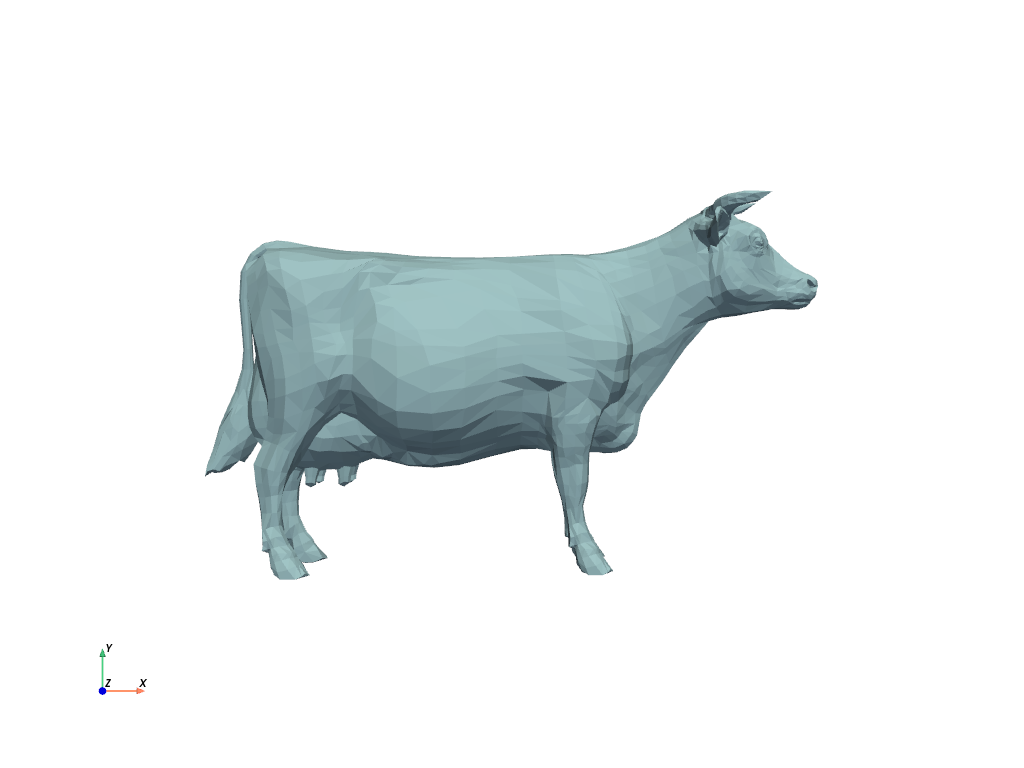

Cow Dataset

Downloads PolyData Surface Mesh

download_cow()

牛のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

POLYGON

QUAD

N Cells

3 263

N Points

2 903

Length

1.27e+01

N Arrays

0

File Info

File Size

60.4 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

See also Cow Head Dataset

Data Source

cow.vtp

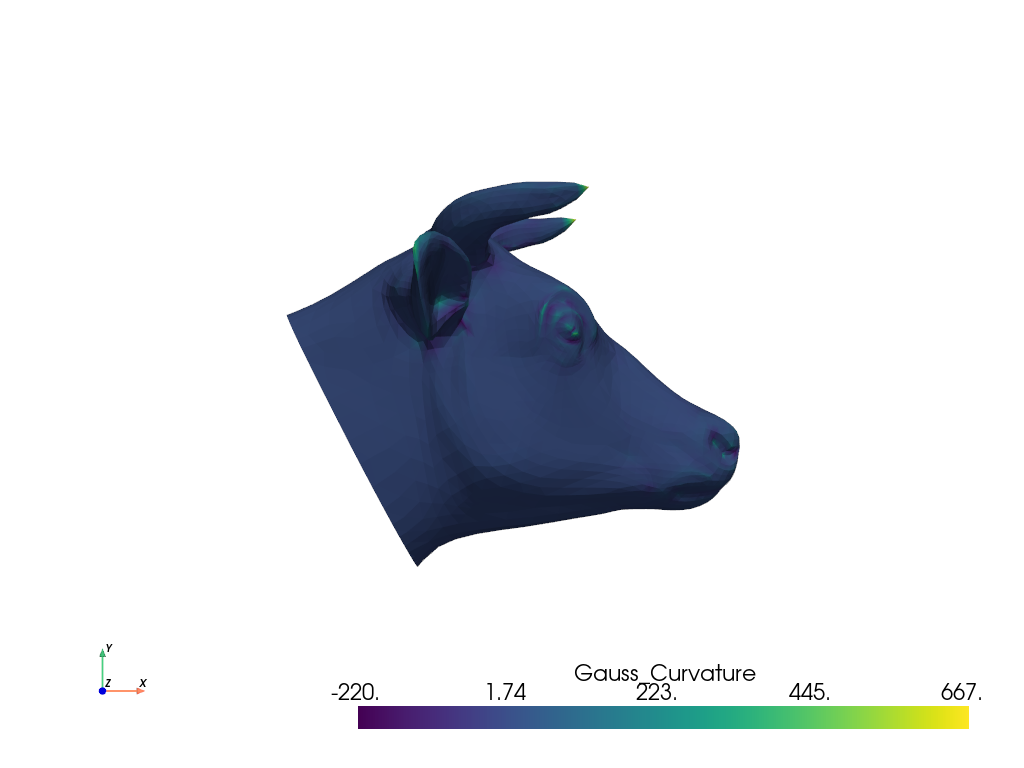

Cow Head Dataset

Downloads PolyData Surface Mesh

download_cow_head()

牛頭のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

QUAD

N Cells

7 994

N Points

4 074

Length

4.61e+00

N Arrays

1

File Info

File Size

281.4 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

See also Cow Dataset

Data Source

cowHead.vtp

Crater Imagery Dataset

Downloads Texture

download_crater_imagery()

クレーターテクスチャをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

1535, 1772

File Info

File Size

8.2 MB

Num Files

1

File Ext

.tif

Reader

TIFFReader

See also 地形図

Data Source

BJ34_GeoTifv1-04_crater_clip.tif

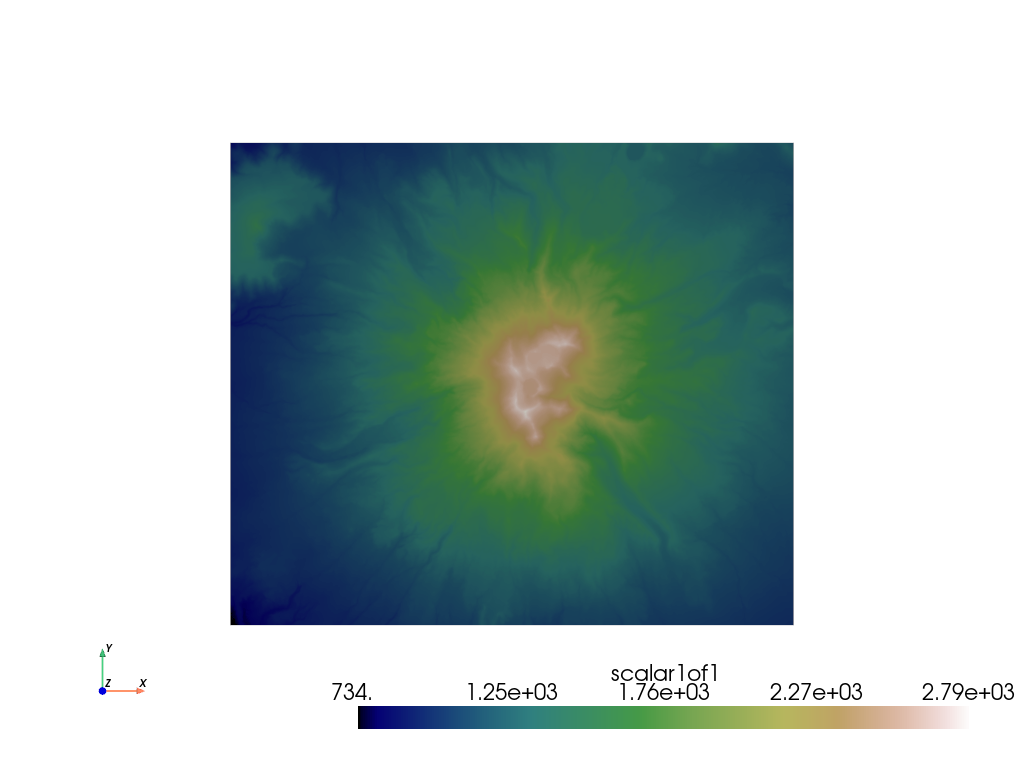

Crater Topo Dataset

Downloads ImageData 2D Image

download_crater_topo()

クレーターのデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

1 677 401

N Points

1 680 000

Length

2.76e+04

Dimensions

1400, 1200, 1

Spacing

15.0, 15.0, 0.0

N Arrays

1

File Info

File Size

13.4 MB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

Ruapehu_mag_dem_15m_NZTM.vtk

Cubemap Park Dataset

Downloads Texture Cubemap

download_cubemap_park()

公園のキューブマップをダウンロードできます．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

512, 512

File Info

File Size

606.1 KB

Num Files

6

File Ext

.jpg

Reader

None

See also Cubemap Space 4k Dataset, Cubemap Space 16k Dataset, Sky Box Cube Map Dataset

Data Source

cubemap_park/cubemap_park.zip

Cubemap Space 16k Dataset

Downloads Texture Cubemap

download_cubemap_space_16k()

16k宇宙キューブマップをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

4096, 4096

File Info

File Size

39.5 MB

Num Files

6

File Ext

.jpg

Reader

None

See also Cubemap Space 4k Dataset, Cubemap Park Dataset, Sky Box Cube Map Dataset

Data Source

cubemap_space/16k.zip

Cubemap Space 4k Dataset

Downloads Texture Cubemap

download_cubemap_space_4k()

4k宇宙キューブマップをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

1024, 1024

File Info

File Size

1.5 MB

Num Files

6

File Ext

.jpg

Reader

None

See also Cubemap Space 16k Dataset, Cubemap Park Dataset, Sky Box Cube Map Dataset

Data Source

cubemap_space/4k.zip

Cylinder Crossflow Dataset

Downloads UnstructuredGrid MultiBlock Homogeneous

download_cylinder_crossflow()

Re=35のクロスフローにおけるシリンダーのCFD結果をダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

LINE

TRIANGLE

QUAD

Length

1.68e+01

File Info

File Size

734.6 KB

Num Files

5

File Ext

.case,

.geo,

.scl1,

.scl2,

.vel

Reader

EnSightReader

See also 2D流線

Data Source

EnSight/CylinderCrossflow/cylinder_Re35.case EnSight/CylinderCrossflow/cylinder_Re35.geo EnSight/CylinderCrossflow/cylinder_Re35.scl1 EnSight/CylinderCrossflow/cylinder_Re35.scl2 EnSight/CylinderCrossflow/cylinder_Re35.vel

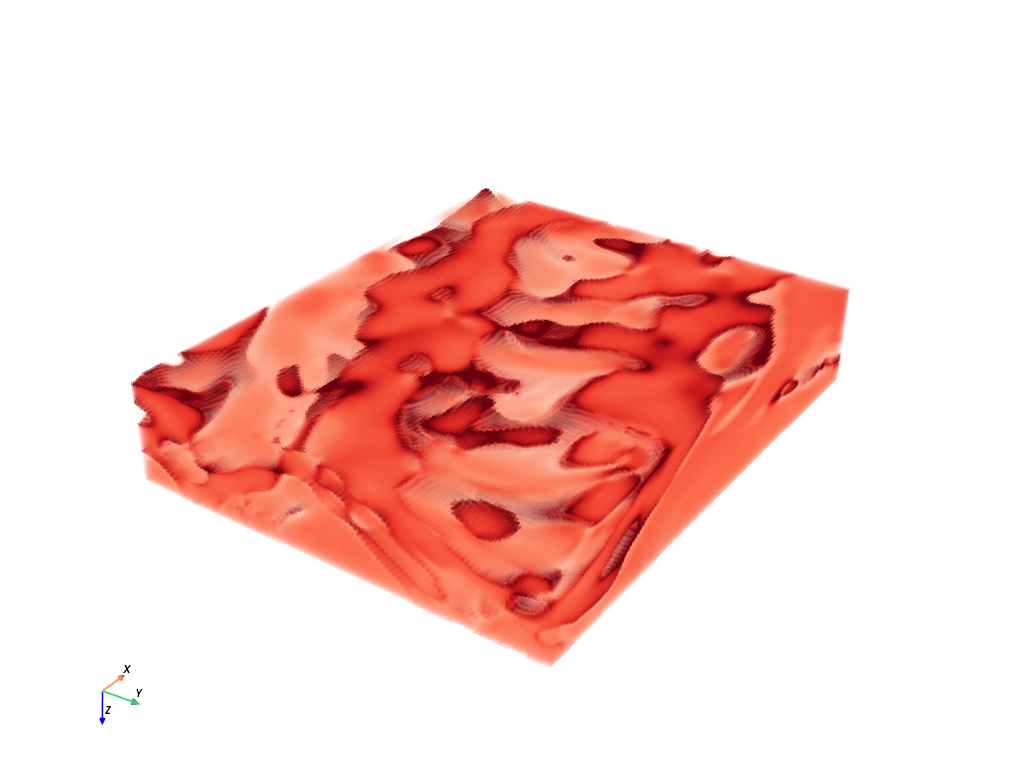

Damavand Volcano Dataset

Downloads ImageData 3D Volume

download_damavand_volcano()

Damavand火山のモデルをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

11 003 760

N Points

11 156 040

Length

3.68e+05

Dimensions

280, 233, 171

Spacing

1.00e+03, 1.00e+03, 3.54e+02

N Arrays

1

File Info

File Size

44.6 MB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

See also ボリュームレンダリング

Data Source

damavand-volcano.vtk

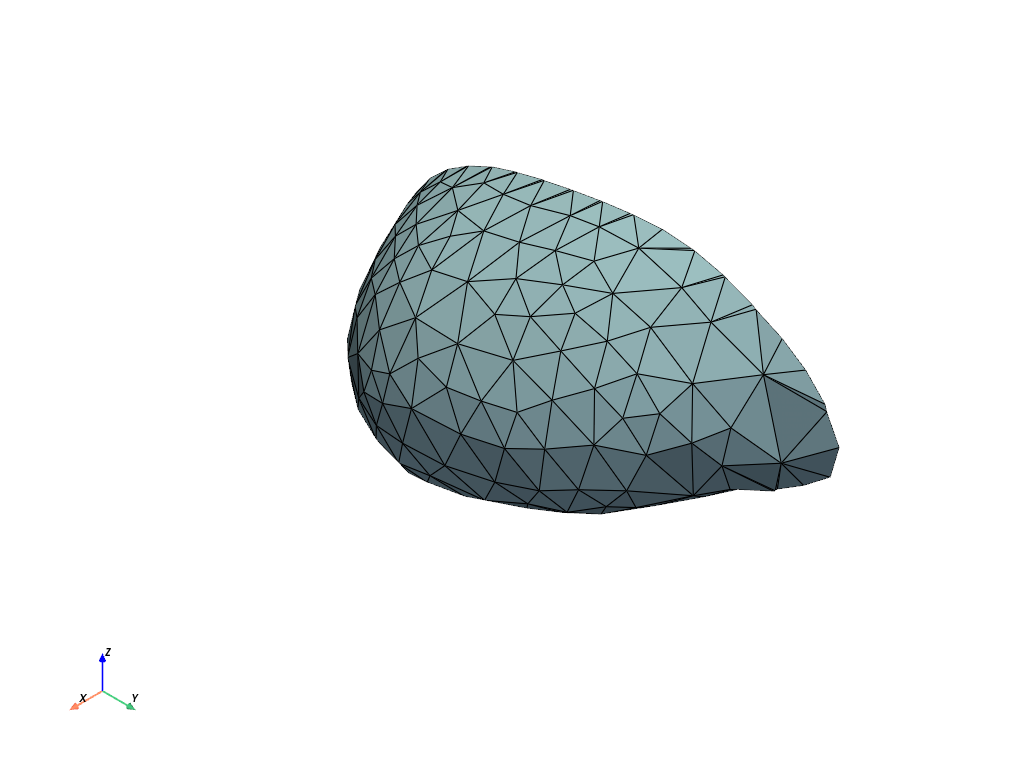

Delaunay Example Dataset

Downloads PolyData Surface Mesh

download_delaunay_example()

Delaunayの例のためのポイントセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

374

N Points

226

Length

9.42e+02

N Arrays

0

File Info

File Size

10.8 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

250.vtk

Dicom Stack Dataset

Downloads ImageData 3D Volume Medical

download_dicom_stack()

TCIADICOMスタックボリュームをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

522 242

N Points

786 432

Length

7.06e+02

Dimensions

512, 512, 3

Spacing

9.77e-01, 9.77e-01, 1.20e+01

N Arrays

1

File Info

File Size

1.6 MB

Num Files

3

File Ext

.dcm

Reader

DICOMReader

Data Source

DICOM_Stack/data.zip

Dikhololo Night Dataset

Downloads Texture

download_dikhololo_night()

dikholo night hdr texture example をダウンロードして読み込みます．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

4096, 2048

File Info

File Size

28.4 MB

Num Files

1

File Ext

.hdr

Reader

HDRReader

See also Parched Canal 4k Dataset, glTFファイルの取り扱いについて

Data Source

dikhololo_night_4k.hdr

Disc Quads Dataset

Downloads UnstructuredGrid

download_disc_quads()

disc quadsのデータセットをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

BIQUADRATIC_QUAD

N Cells

376

N Points

1 569

Length

1.41e-01

N Arrays

3

File Info

File Size

60.2 KB

Num Files

1

File Ext

.vtu

Reader

XMLUnstructuredGridReader

Data Source

Disc_BiQuadraticQuads_0_0.vtu

Dolfin Dataset

Downloads UnstructuredGrid

download_dolfin()

ドルフィンメッシュをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

TRIANGLE

N Cells

5 400

N Points

2 868

Length

1.41e+00

N Arrays

0

File Info

File Size

478.3 KB

Num Files

1

File Ext

.xml

Reader

None

See also FEniCS/Dolfinメッシュを確認．

Data Source

dolfin_fine.xml

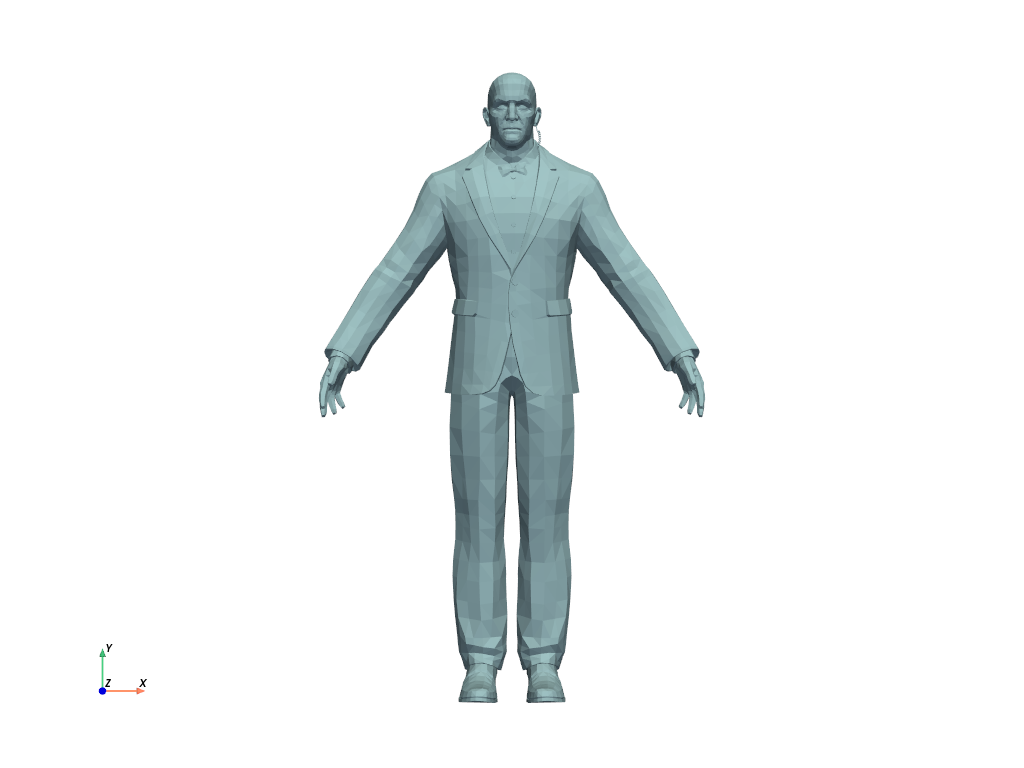

Doorman Dataset

Downloads PolyData Surface Mesh

download_doorman()

ドアマンデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

9 783

N Points

29 349

Length

7.25e+00

N Arrays

8

File Info

File Size

2.6 MB

Num Files

9

File Ext

.mtl,

.obj,

.png

Reader

OBJReader

See also ファイルからロードおよびプロットする

Data Source

doorman/doorman.obj doorman/doorman.mtl doorman/t_doorMan_d.png doorman/t_doorMan_n.png doorman/t_doorMan_s.png doorman/t_doorMan_teeth_d.png doorman/t_doorMan_teeth_n.png doorman/t_eye_d.png doorman/t_eye_n.png

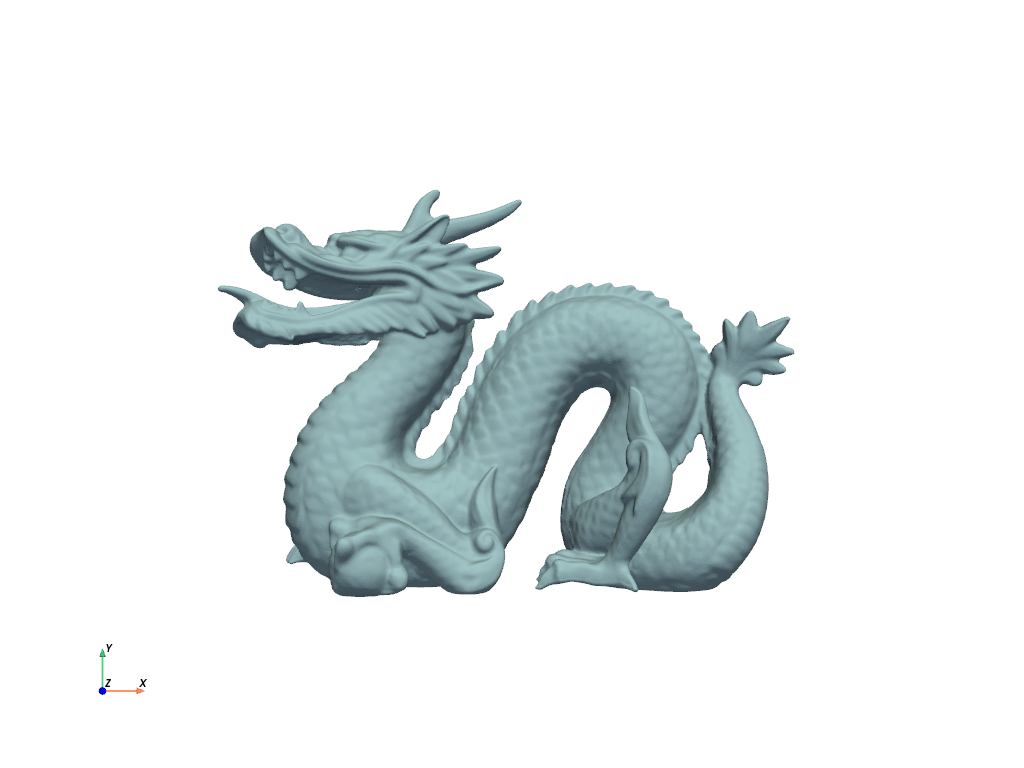

Dragon Dataset

Downloads PolyData Surface Mesh

download_dragon()

ドラゴンのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

871 414

N Points

437 645

Length

2.67e-01

N Arrays

0

File Info

File Size

33.8 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

dragon.ply

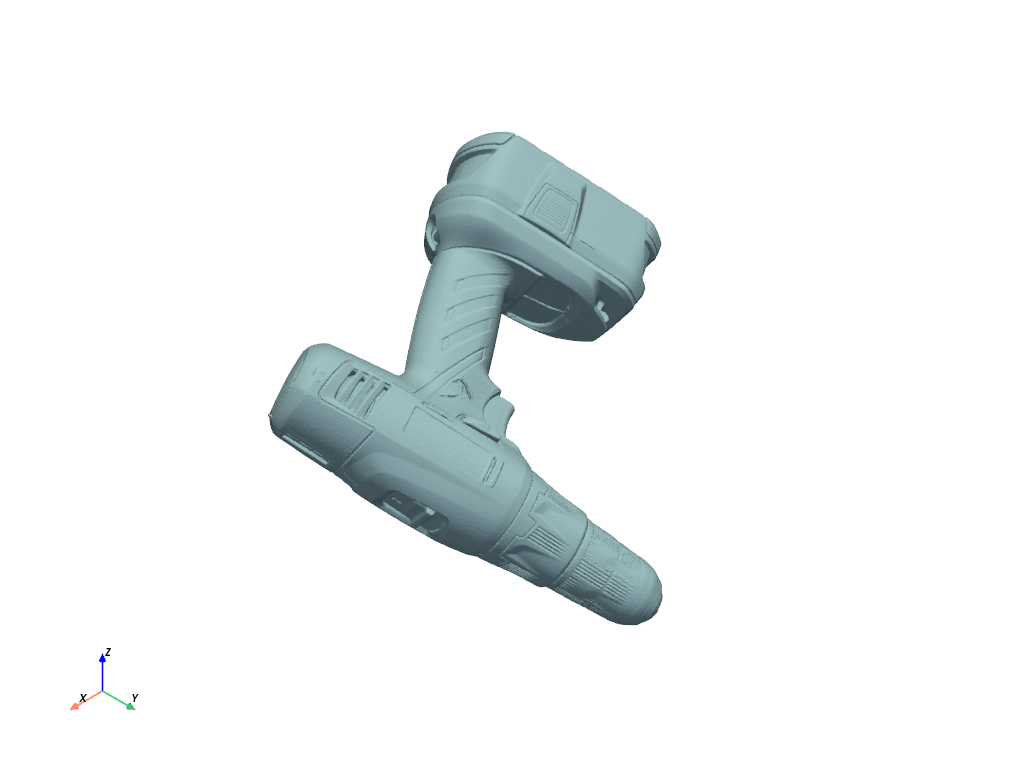

Drill Dataset

Downloads PolyData Surface Mesh

download_drill()

電動ドリルのスキャンデータをダウンロードできます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

250 000

N Points

750 000

Length

4.26e+02

N Arrays

6

File Info

File Size

23.2 MB

Num Files

1

File Ext

.obj

Reader

OBJReader

Data Source

drill.obj

Dual Sphere Animation Dataset

Downloads PolyData MultiBlock Surface Mesh Homogeneous

download_dual_sphere_animation()

球体2個分のPVDファイルをダウンロードします．

Dataset Info

Data Type

MultiBlock

PolyData

Cell Type

TRIANGLE

Length

1.96e+00

File Info

File Size

2.5 KB

Num Files

1

File Ext

.pvd

Reader

PVDReader

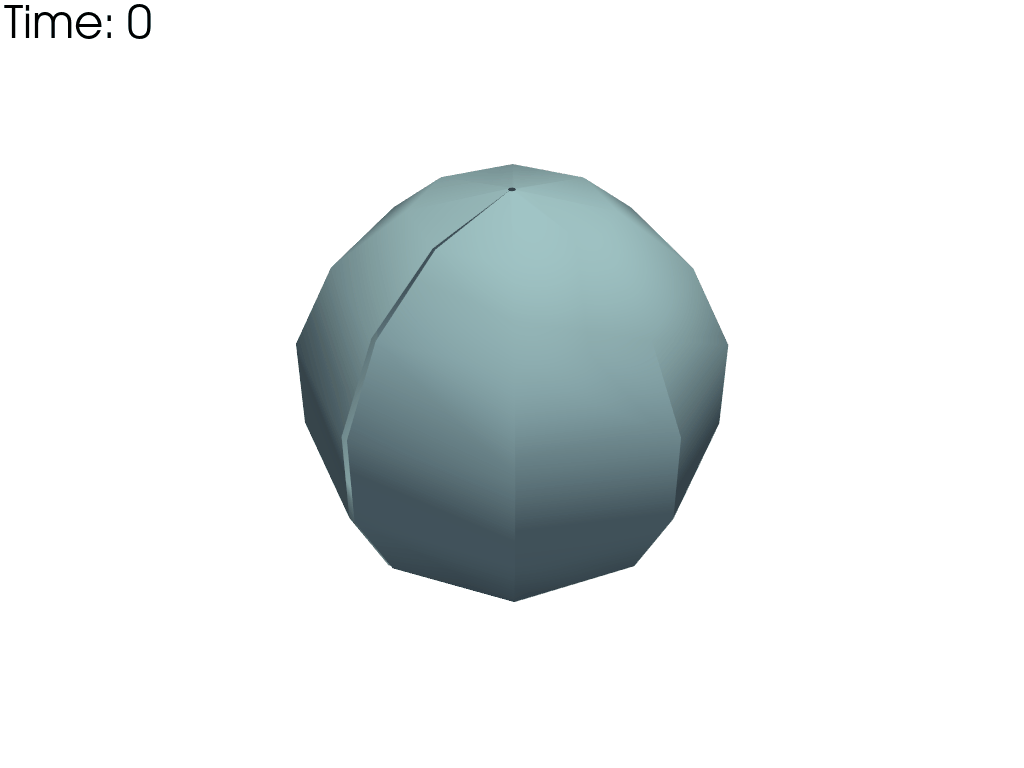

See also Single Sphere Animation Dataset

Data Source

PVD/paraview/dualSphereAnimation.zip

E07733s002i009 Dataset

Downloads ImageData 2D Image

download_e07733s002i009()

Download a e07733s002i009 image.

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

65 025

N Points

65 536

Length

3.38e+02

Dimensions

256, 256, 1

Spacing

9.38e-01, 9.38e-01, 3.50e+00

N Arrays

1

File Info

File Size

83.2 KB

Num Files

1

File Ext

.mr

Reader

GESignaReader

Data Source

E07733S002I009.MR

Electronics Cooling Dataset

Downloads PolyData UnstructuredGrid MultiBlock Surface Mesh Heterogeneous

download_electronics_cooling()

電子機器冷却のサンプルデータセットをダウンロードします．

Dataset Info

Data Type

MultiBlock

PolyData

UnstructuredGrid

Cell Type

TRIANGLE

QUAD

TETRA

HEXAHEDRON

WEDGE

PYRAMID

Length

2.64e-01

File Info

File Size

67.9 MB

Num Files

2

File Ext

.vtp,

.vtu

Reader

XMLPolyDataReader

XMLUnstructuredGridReader

See also 電子機器の冷却CFD

Data Source

fvm/cooling_electronics/datasets.zip

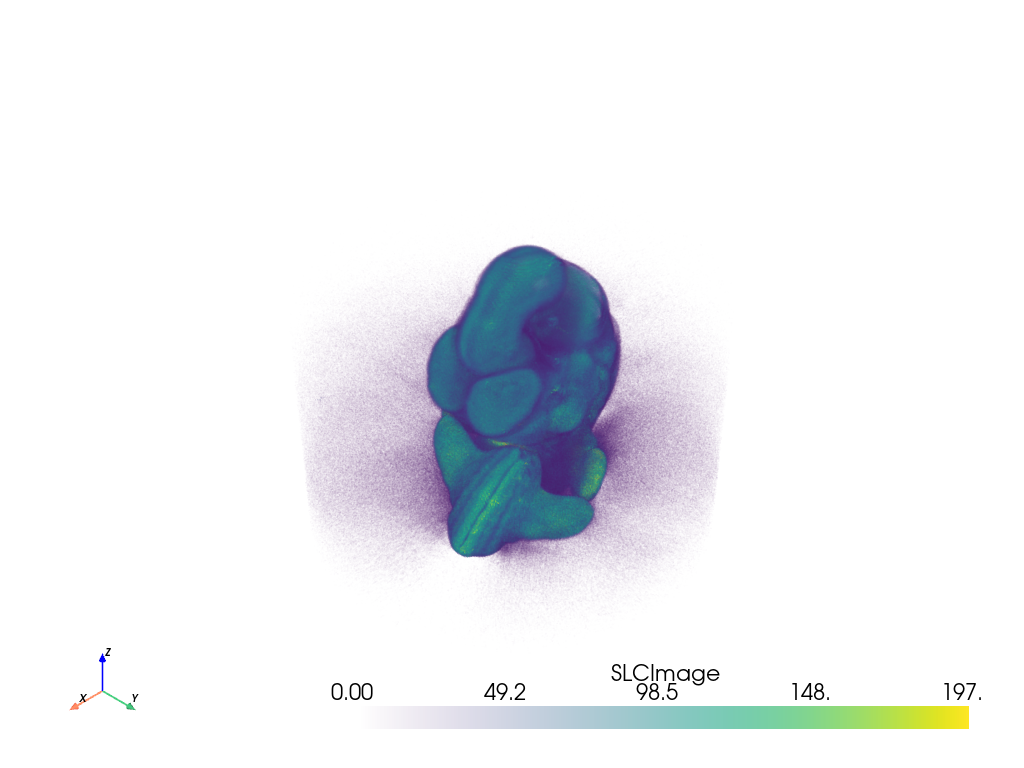

Embryo Dataset

Downloads ImageData 3D Volume Medical

download_embryo()

胎児のボリュームをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

16 581 375

N Points

16 777 216

Length

4.42e+02

Dimensions

256, 256, 256

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

3.9 MB

Num Files

1

File Ext

.slc

Reader

SLCReader

Data Source

embryo.slc

Emoji Dataset

Downloads ImageData 2D Image

download_emoji()

絵文字のデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

14 605

N Points

14 848

Length

1.71e+02

Dimensions

128, 116, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

9.5 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Emoji Texture Dataset

Data Source


Emoji Texture Dataset

Downloads Texture

download_emoji_texture()

emojiテクスチャをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

128, 116

File Info

File Size

9.5 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Emoji Dataset

Data Source

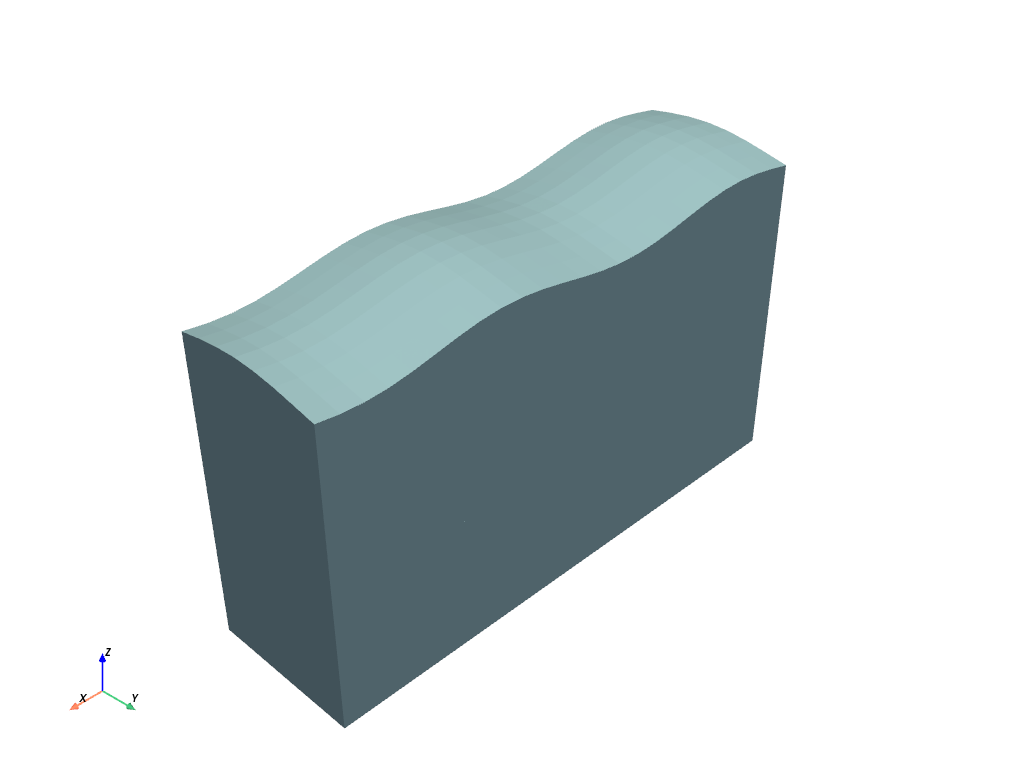

Exodus Dataset

Downloads UnstructuredGrid MultiBlock Homogeneous

download_exodus()

ExodusIIのデータファイルの例です．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

TRIANGLE

QUAD

WEDGE

Length

1.45e+01

File Info

File Size

69.7 KB

Num Files

1

File Ext

.exo

Reader

ExodusIIReader

Data Source

mesh_fs8.exo

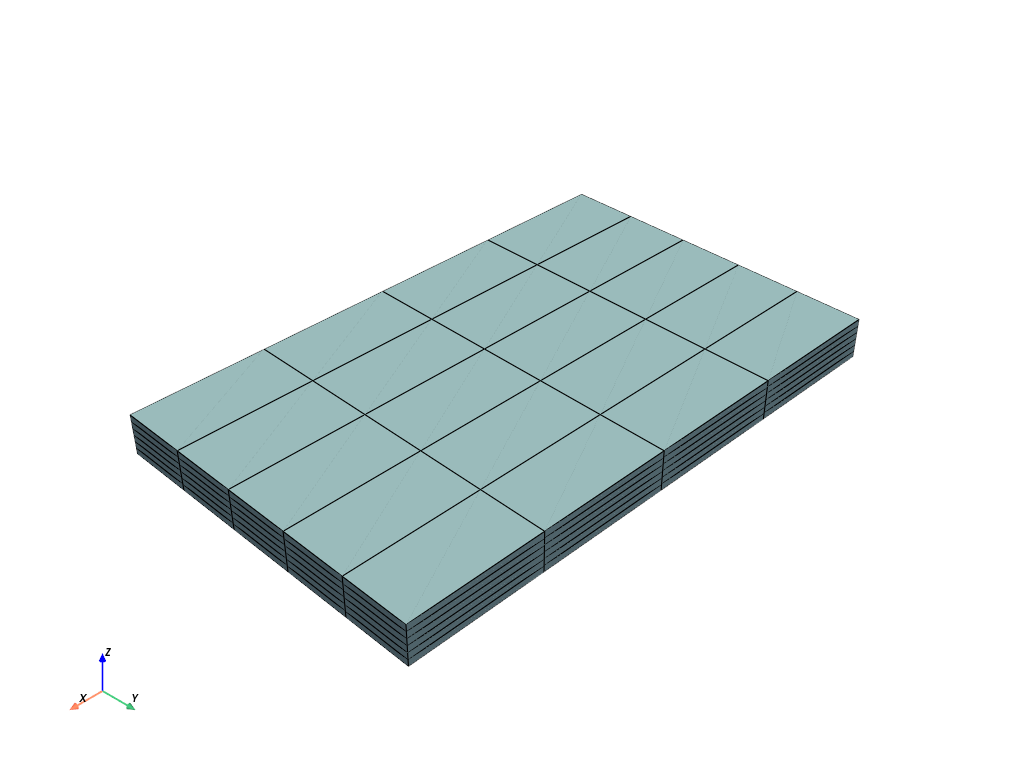

Explicit Structured Dataset

Built-in ExplicitStructuredGrid

load_explicit_structured()

単純な明示的構造のグリッドを読み込みます．

Dataset Info

Data Type

ExplicitStructuredGrid

Cell Type

HEXAHEDRON

N Cells

120

N Points

210

Length

9.45e+01

Dimensions

5, 6, 7

N Arrays

0

File Info

Reader

None

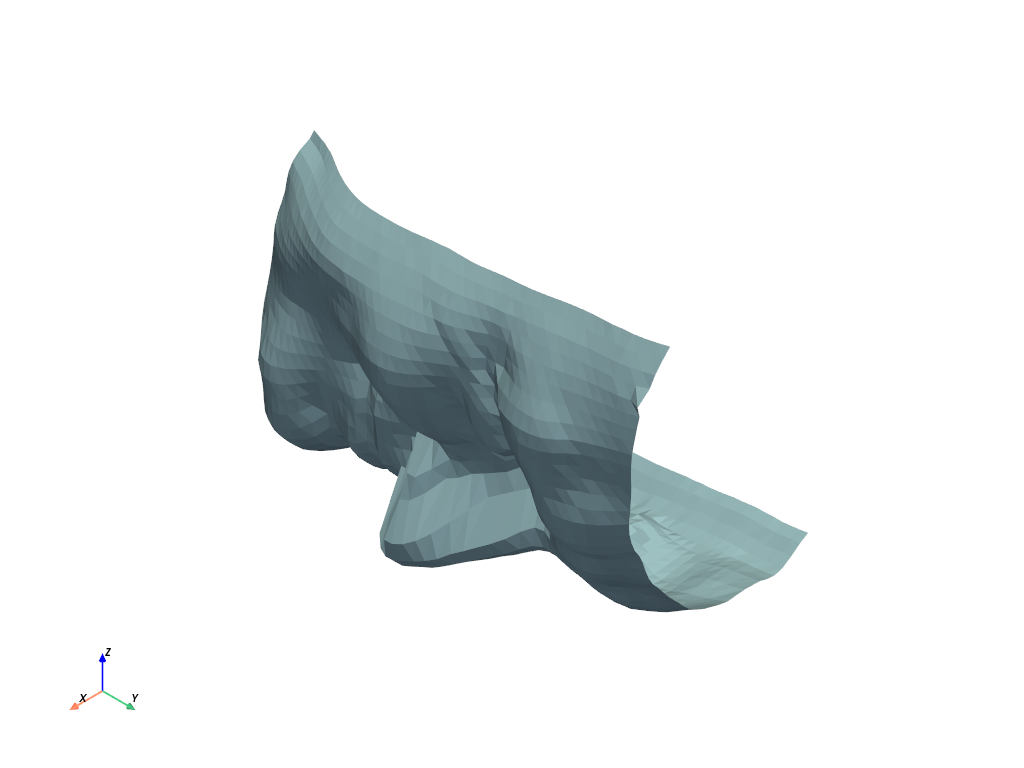

Face Dataset

Downloads PolyData Surface Mesh

download_face()

顔データセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

4 224

N Points

2 205

Length

2.23e-01

N Arrays

1

File Info

File Size

174.9 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

See also Face2 Dataset, 間引き

Data Source

fran_cut.vtk

Face2 Dataset

Downloads PolyData Surface Mesh

download_face2()

男性の顔のスキャンしたものをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

223 987

N Points

112 862

Length

9.12e+00

N Arrays

0

File Info

File Size

11.2 MB

Num Files

1

File Ext

.stl

Reader

STLReader

See also Face Dataset

Data Source

man_face.stl

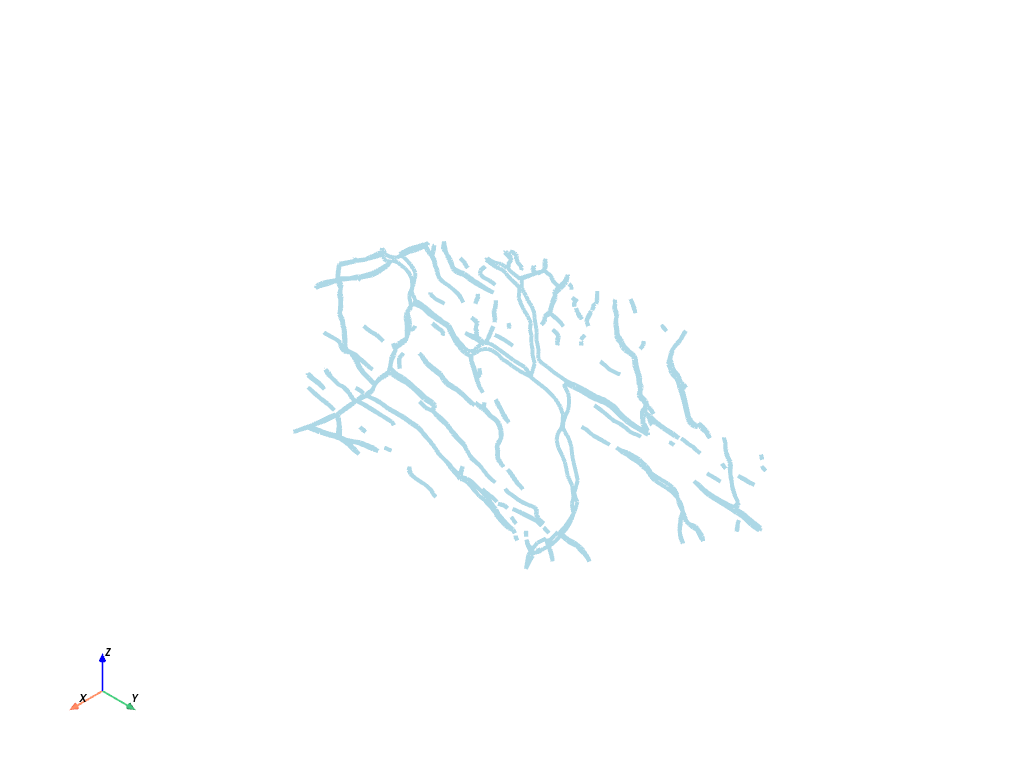

Faults Dataset

Downloads PolyData

download_faults()

faultsデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

POLY_LINE

N Cells

78

N Points

1 933

Length

1.64e+04

N Arrays

0

File Info

File Size

31.9 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

faults.vtk

Fea Bracket Dataset

Downloads UnstructuredGrid

download_fea_bracket()

ブラケットの有限要素法による解をダウンロードできます．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

QUADRATIC_TETRA

N Cells

56 786

N Points

102 578

Length

6.52e+00

N Arrays

1

File Info

File Size

3.0 MB

Num Files

1

File Ext

.vtu

Reader

XMLUnstructuredGridReader

See also Fea Hertzian Contact Cylinder Dataset, Aero Bracket Dataset, Notch Stress Dataset, Notch Displacement Dataset

Data Source

fea/kiefer/dataset.vtu

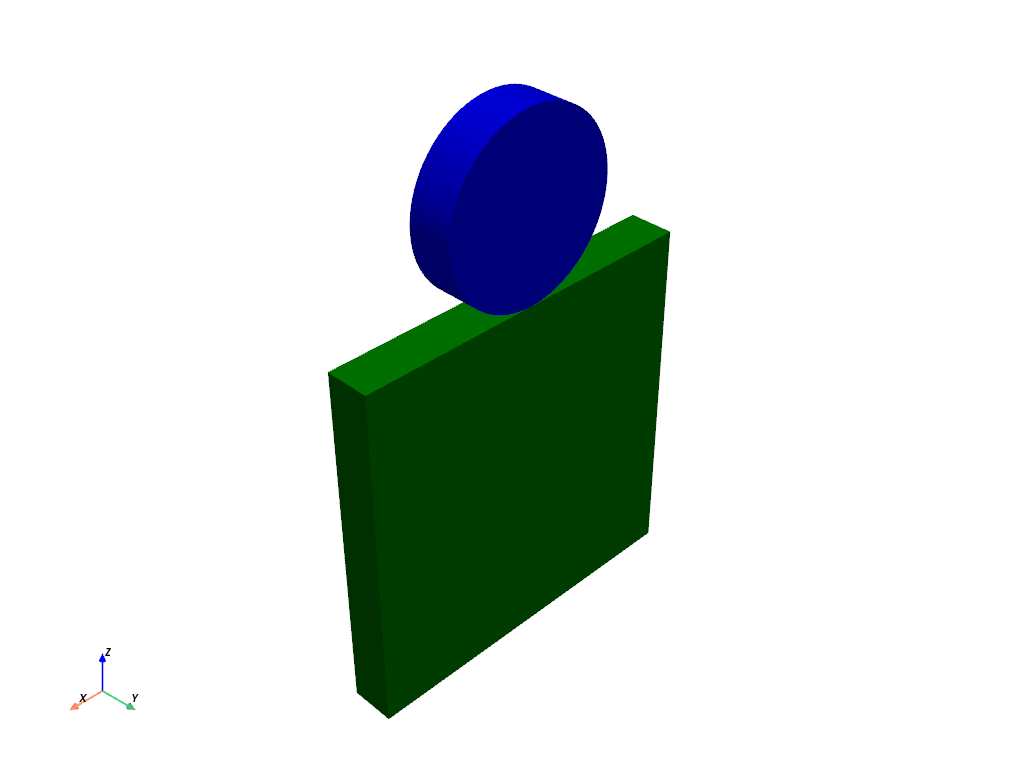

Fea Hertzian Contact Cylinder Dataset

Downloads UnstructuredGrid

download_fea_hertzian_contact_cylinder()

Hertzの接触有限要素法の解をダウンロードする．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

TETRA

N Cells

132 258

N Points

34 185

Length

3.61e-01

N Arrays

16

File Info

File Size

2.5 KB

Num Files

1

File Ext

.pvtu

Reader

XMLPUnstructuredGridReader

See also Hertの接触応力を可視化する, Fea Bracket Dataset, Aero Bracket Dataset, Notch Stress Dataset, Notch Displacement Dataset

Data Source

fea/hertzian_contact_cylinder/Hertzian_cylinder_on_plate.zip

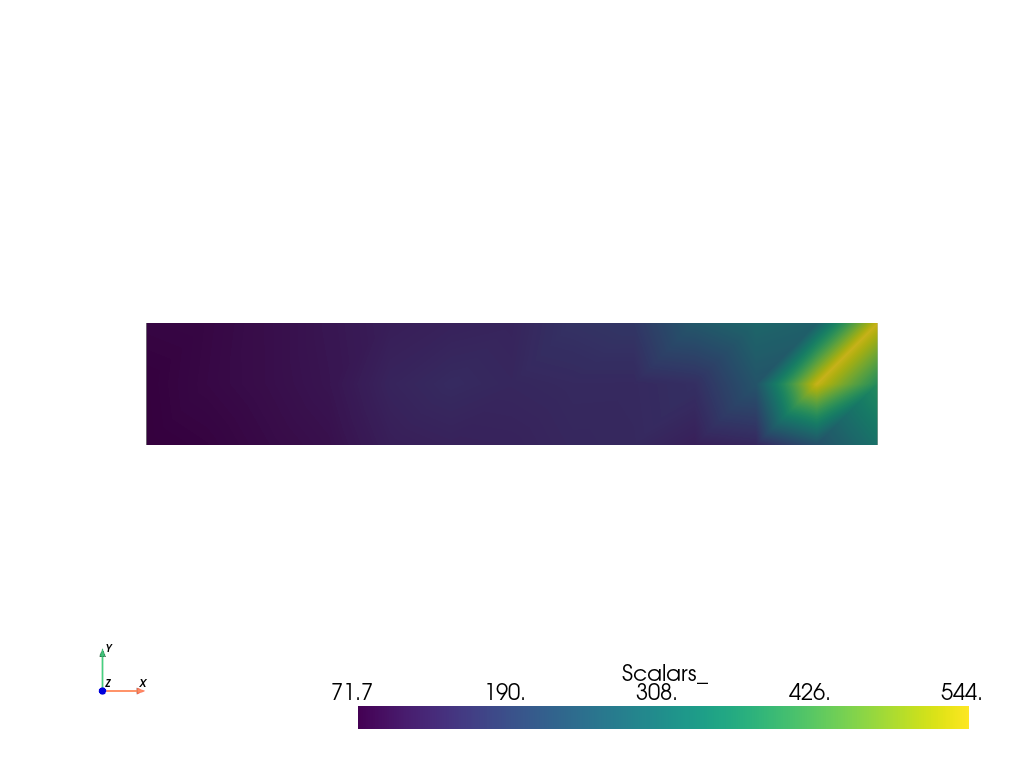

Filled Contours Dataset

Downloads PolyData Surface Mesh

download_filled_contours()

塗りつぶした輪郭のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

QUAD

N Cells

24

N Points

39

Length

1.22e+01

N Arrays

1

File Info

File Size

3.1 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

filledContours.vtp

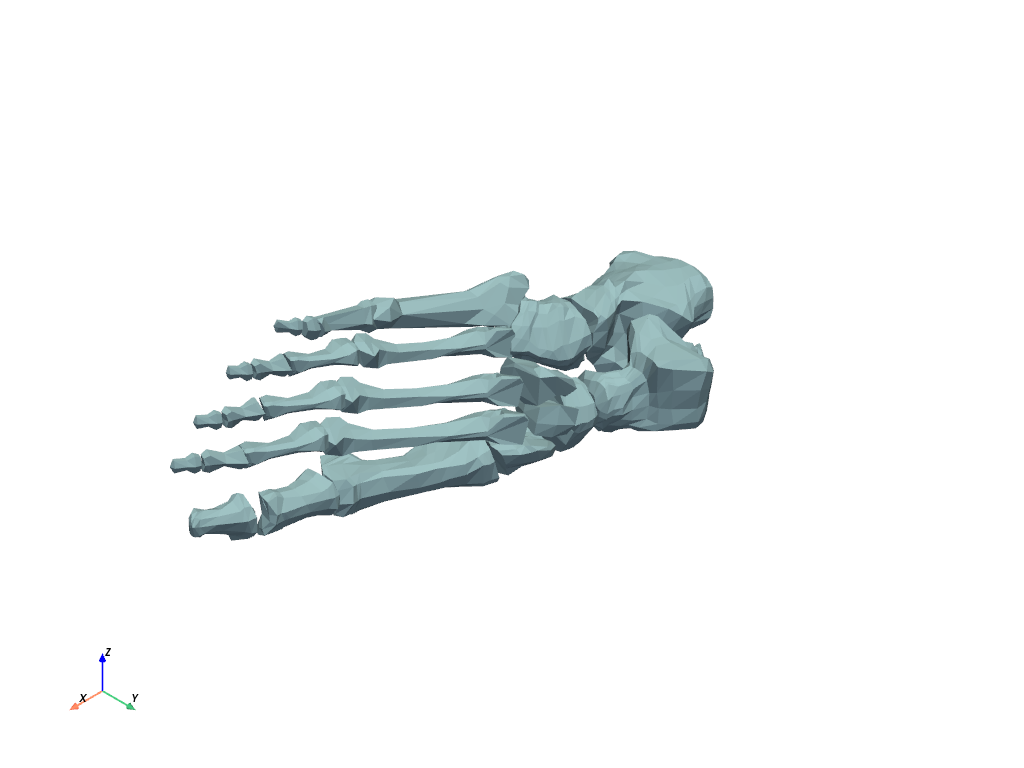

Foot Bones Dataset

Downloads PolyData Surface Mesh Medical

download_foot_bones()

足の骨のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

4 204

N Points

2 154

Length

1.26e+01

N Arrays

0

File Info

File Size

135.9 KB

Num Files

1

File Ext

.ply

Reader

PLYReader

See also サーフェスメッシュをボクセル化する, Compare threshold filters

Data Source

fsu/footbones.ply

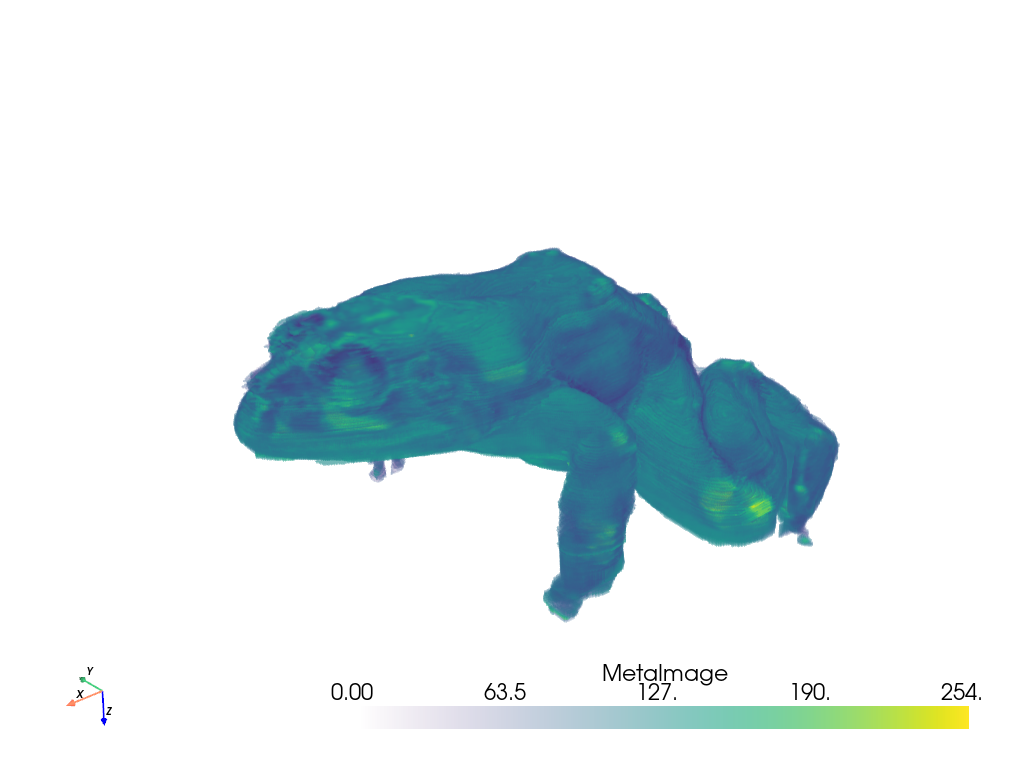

Frog Dataset

Downloads ImageData 3D Volume Medical

download_frog()

カエルのデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

31 594 185

N Points

31 960 000

Length

7.14e+02

Dimensions

500, 470, 136

Spacing

1.0, 1.0, 1.5

N Arrays

1

File Info

File Size

5.2 MB

Num Files

2

File Ext

.mhd,

.zraw

Reader

MetaImageReader

See also Frog Tissues Dataset, ボリュームレンダリング

Data Source

froggy/frog.mhd froggy/frog.zraw

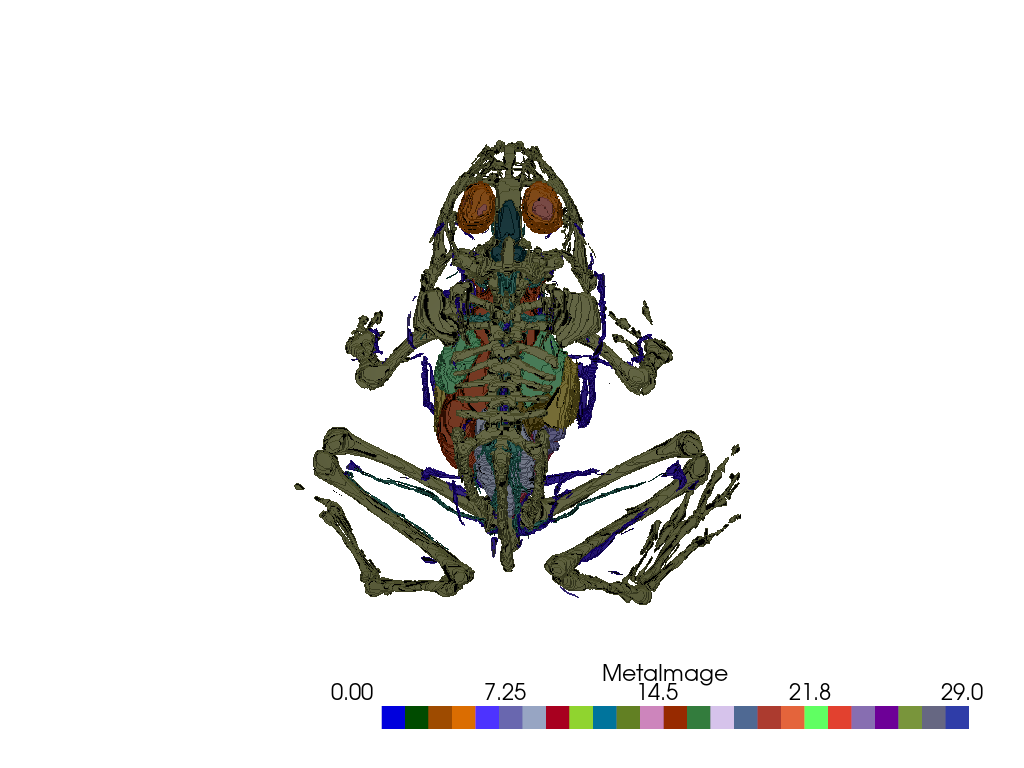

Frog Tissues Dataset

Built-in ImageData 3D Volume Medical

load_frog_tissues()

Load frog tissues dataset.

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

31 594 185

N Points

31 960 000

Length

7.14e+02

Dimensions

500, 470, 136

Spacing

1.0, 1.0, 1.5

N Arrays

1

File Info

File Size

380.4 KB

Num Files

1

File Ext

.vti

Reader

XMLImageDataReader

See also Frog Dataset

Data Source

frog_tissues.vti

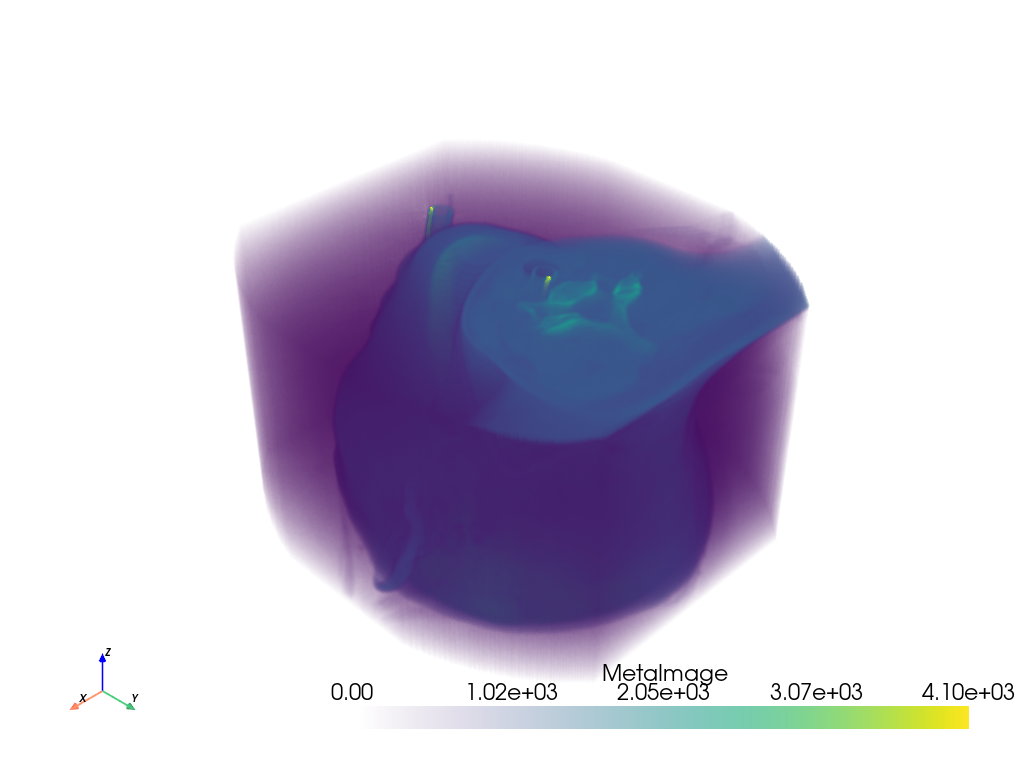

Full Head Dataset

Downloads ImageData 3D Volume

download_full_head()

Download the full head image.

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

6 047 325

N Points

6 160 384

Length

3.66e+02

Dimensions

256, 256, 94

Spacing

9.38e-01, 9.38e-01, 1.50e+00

N Arrays

1

File Info

File Size

6.6 MB

Num Files

2

File Ext

.mhd,

.raw.gz

Reader

MetaImageReader

Data Source

FullHead.mhd FullHead.raw.gz

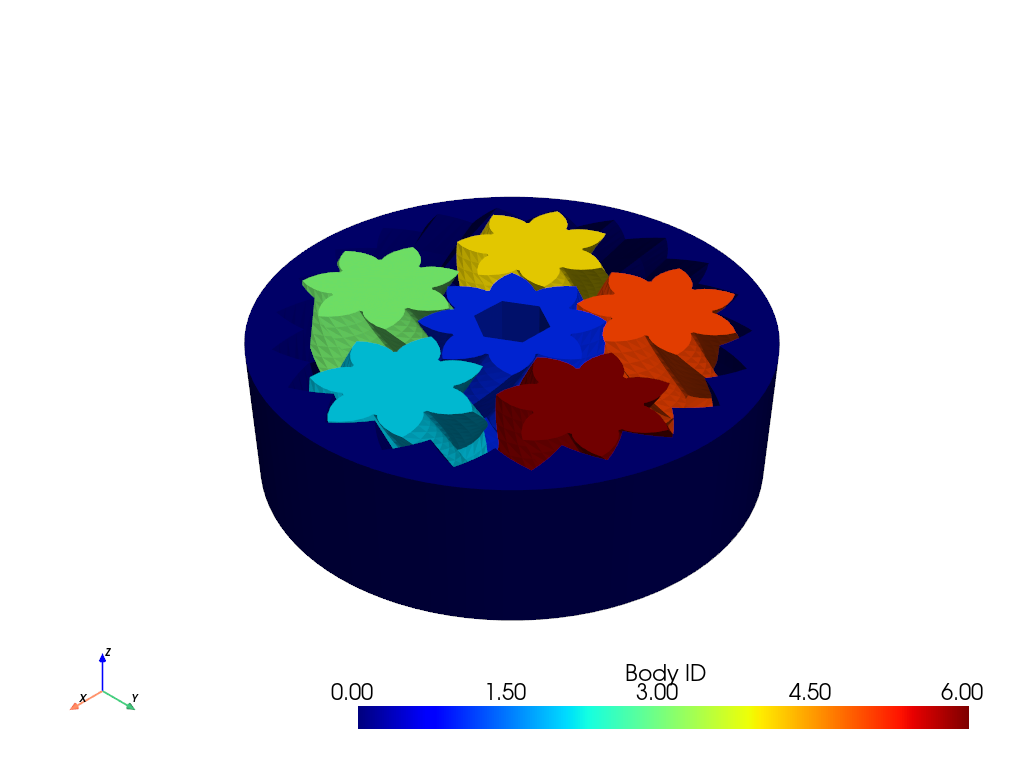

Gears Dataset

Downloads PolyData Surface Mesh

download_gears()

歯車データセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

19 426

N Points

9 723

Length

7.46e+01

N Arrays

0

File Info

File Size

3.7 MB

Num Files

1

File Ext

.stl

Reader

STLReader

Data Source

gears.stl

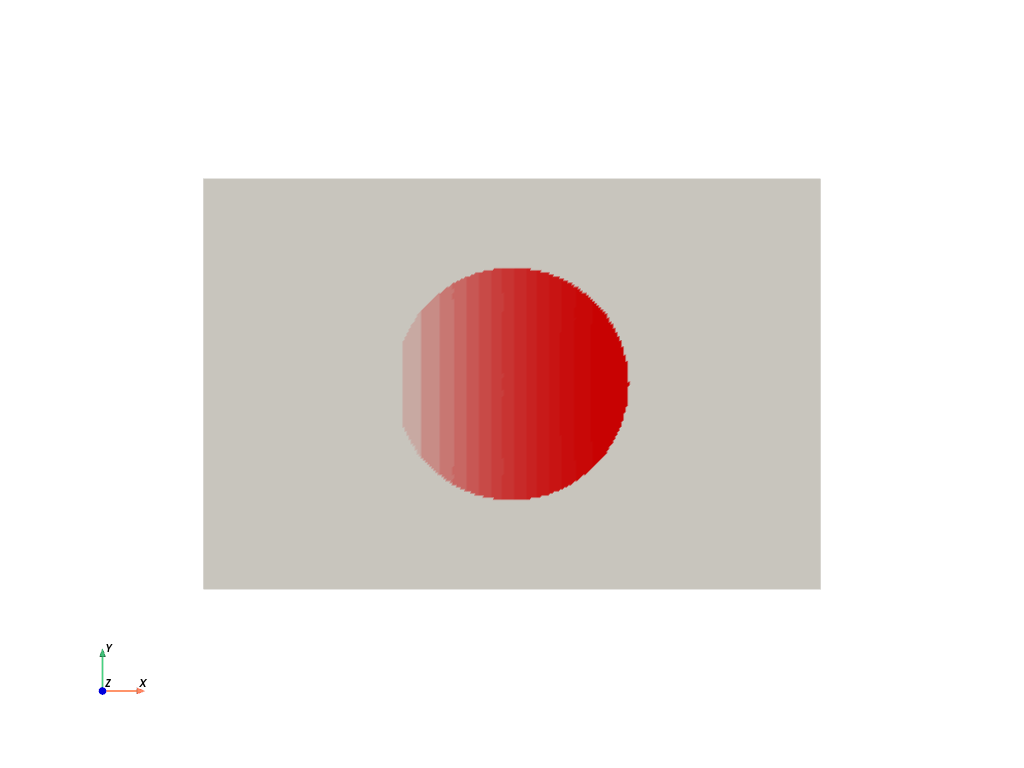

Gif Simple Dataset

Downloads ImageData 2D Image

download_gif_simple()

シンプルな3フレームGIFをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

59 501

N Points

60 000

Length

3.59e+02

Dimensions

300, 200, 1

Spacing

1.0, 1.0, 1.0

N Arrays

3

File Info

File Size

8.6 KB

Num Files

1

File Ext

.gif

Reader

GIFReader

Data Source

gifs/sample.gif

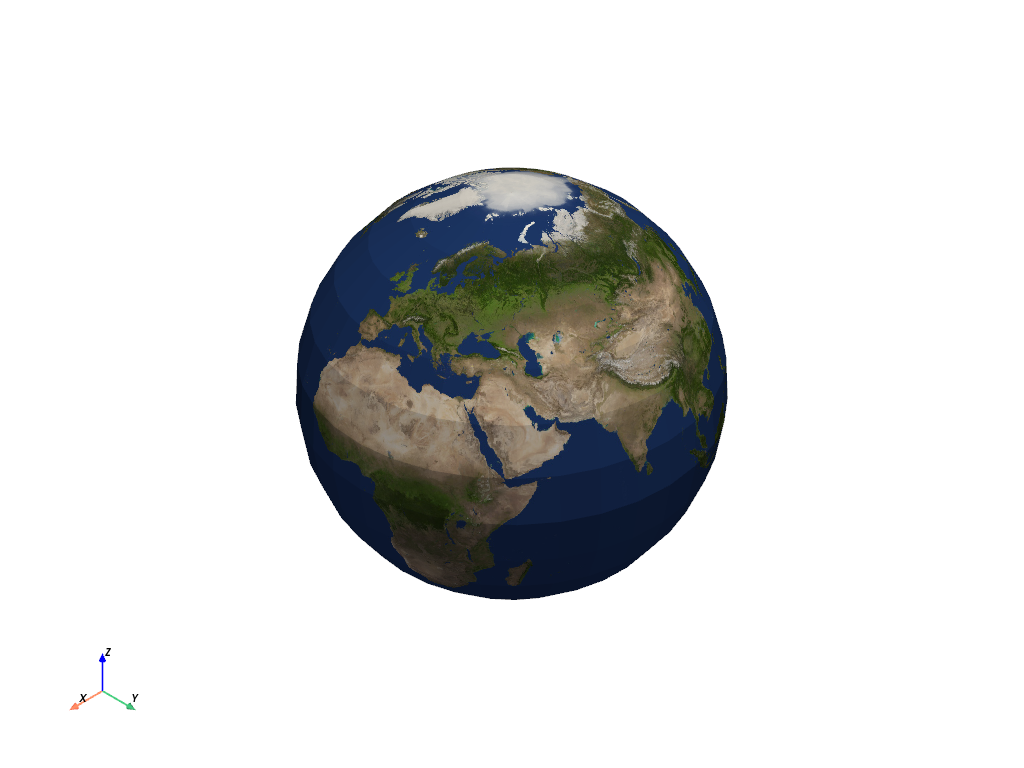

Globe Dataset

Built-in PolyData Surface Mesh

load_globe()

地球儀のソースを読み込みます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

980

N Points

540

Length

2.20e+10

N Arrays

1

File Info

File Size

37.4 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

globe.vtk

Globe Texture Dataset

Built-in Texture

load_globe_texture()

地球儀ソースに適用可能なpyvista.Textureを読み込みます．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

2048, 1024

File Info

File Size

463.1 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

Data Source


Gourds Dataset

Downloads ImageData 2D Image

download_gourds()

gourdsデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

306 081

N Points

307 200

Length

7.99e+02

Dimensions

640, 480, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

525.5 KB

Num Files

1

File Ext

.png

Reader

PNGReader

See also Gourds Pnm Dataset, Gourds Texture Dataset, Gaussianスムージング

Data Source


Gourds Pnm Dataset

Downloads ImageData 2D Image

download_gourds_pnm()

pnmファイルからgourdsデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

306 081

N Points

307 200

Length

7.99e+02

Dimensions

640, 480, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

921.6 KB

Num Files

1

File Ext

.pnm

Reader

PNMReader

See also Gourds Dataset, Gourds Texture Dataset

Data Source

Gourds.pnm

Gourds Texture Dataset

Downloads Texture

download_gourds_texture()

ゴードのテクスチャをダウンロード

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

640, 480

File Info

File Size

525.5 KB

Num Files

1

File Ext

.png

Reader

PNGReader

See also Gourds Dataset, Gourds Pnm Dataset

Data Source


Gpr Data Array Dataset

Downloads Misc

download_gpr_data_array()

GPRのサンプルデータ配列をダウンロードできます．

Dataset Info

Data Type

ndarray

Cell Type

None

File Info

File Size

34.4 MB

Num Files

1

File Ext

.npy

Reader

None

See also Gpr Path Dataset, 線分から2 Dサーフェスをまとう

Data Source

gpr-example/data.npy

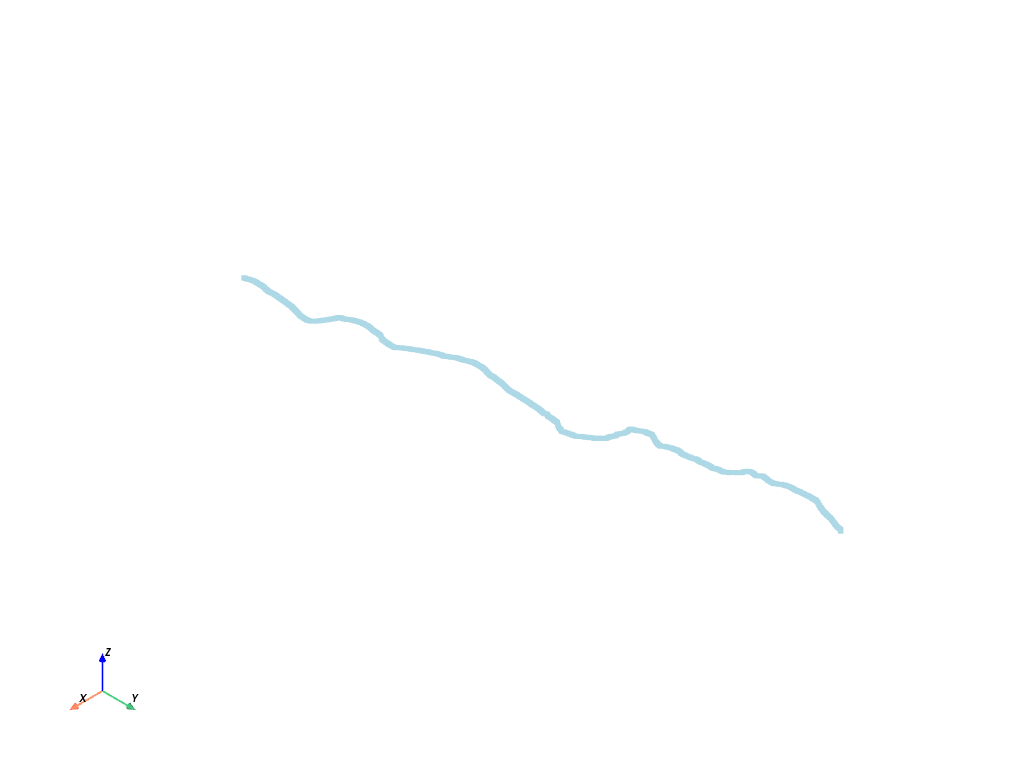

Gpr Path Dataset

Downloads PolyData Point Cloud

download_gpr_path()

GPRのサンプルパスをダウンロードできます．

Dataset Info

Data Type

PolyData

Cell Type

VERTEX

N Cells

1 835

N Points

1 835

Length

3.07e+03

N Arrays

0

File Info

File Size

137.6 KB

Num Files

1

File Ext

.txt

Reader

None

See also Gpr Data Array Dataset, 線分から2 Dサーフェスをまとう

Data Source

gpr-example/path.txt

Great White Shark Dataset

Downloads PolyData Surface Mesh

download_great_white_shark()

Download great white shark dataset.

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

6 264

N Points

3 155

Length

2.76e+01

N Arrays

0

File Info

File Size

313.3 KB

Num Files

1

File Ext

.stl

Reader

STLReader

See also Shark Dataset, Grey Nurse Shark Dataset

Data Source

great_white_shark/greatWhite.stl

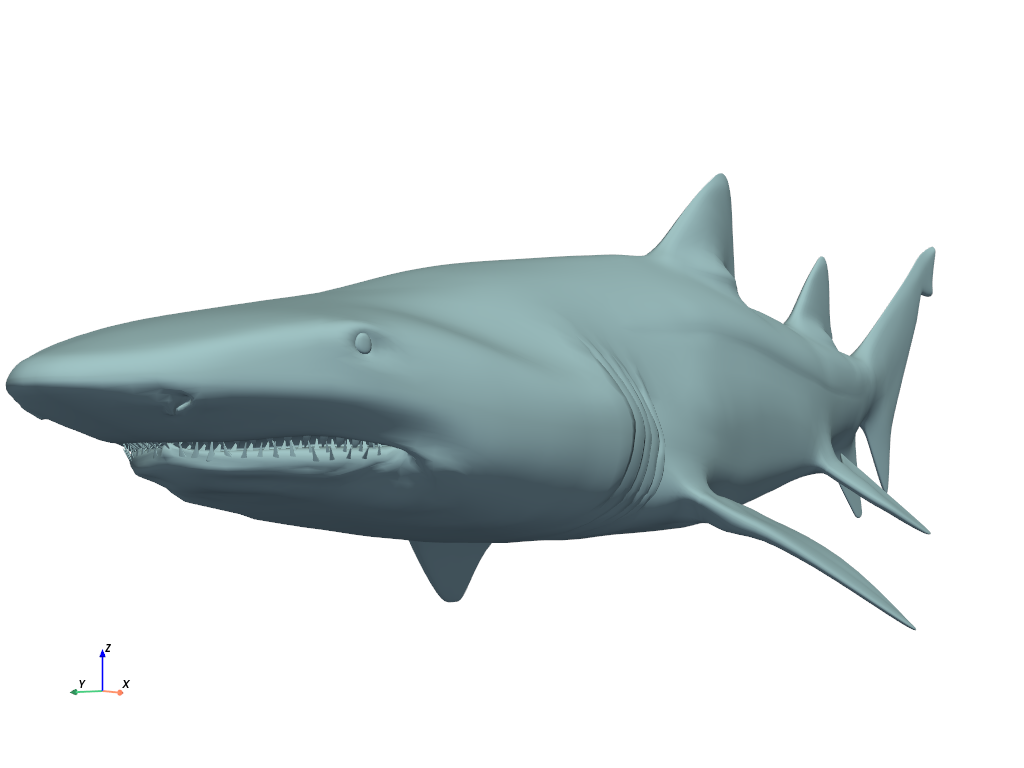

Grey Nurse Shark Dataset

Downloads PolyData Surface Mesh

download_grey_nurse_shark()

Download grey nurse shark dataset.

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

49 702

N Points

25 057

Length

2.69e+02

N Arrays

0

File Info

File Size

2.5 MB

Num Files

1

File Ext

.stl

Reader

STLReader

See also Shark Dataset, Great White Shark Dataset

Data Source

grey_nurse_shark/Grey_Nurse_Shark.stl

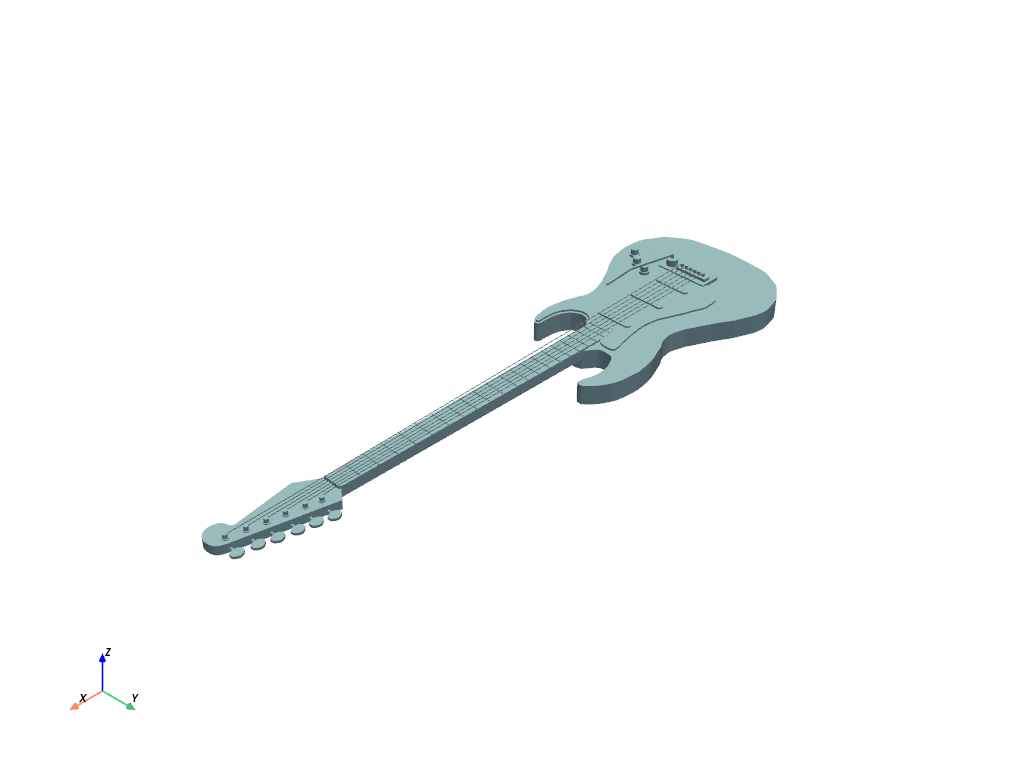

Guitar Dataset

Downloads PolyData Surface Mesh

download_guitar()

ギターのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

8 660

N Points

4 500

Length

5.25e+02

N Arrays

0

File Info

File Size

282.1 KB

Num Files

1

File Ext

.ply

Reader

PLYReader

See also Trumpet Dataset

Data Source

fsu/stratocaster.ply

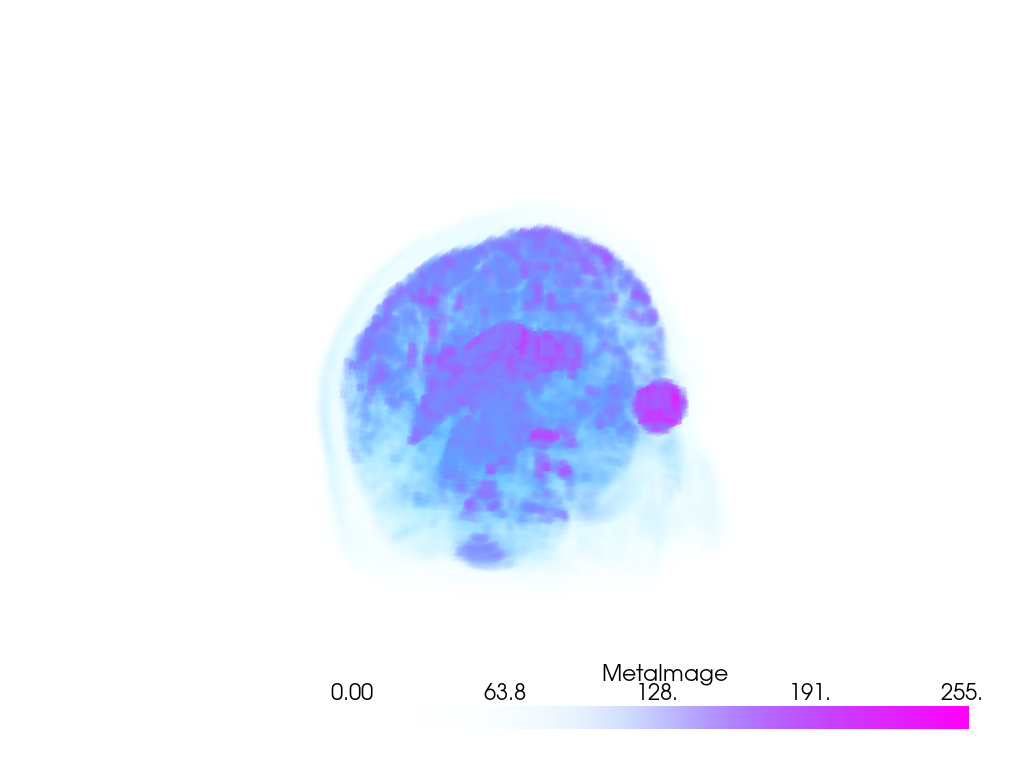

Head Dataset

Downloads ImageData 3D Volume Medical

download_head()

頭のデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

117 547

N Points

124 992

Length

3.49e+02

Dimensions

48, 62, 42

Spacing

4.0, 4.0, 4.0

N Arrays

1

File Info

File Size

125.2 KB

Num Files

2

File Ext

.mhd,

.raw

Reader

MetaImageReader

See also Head 2 Dataset, ボリュームレンダリング

Data Source

HeadMRVolume.mhd HeadMRVolume.raw

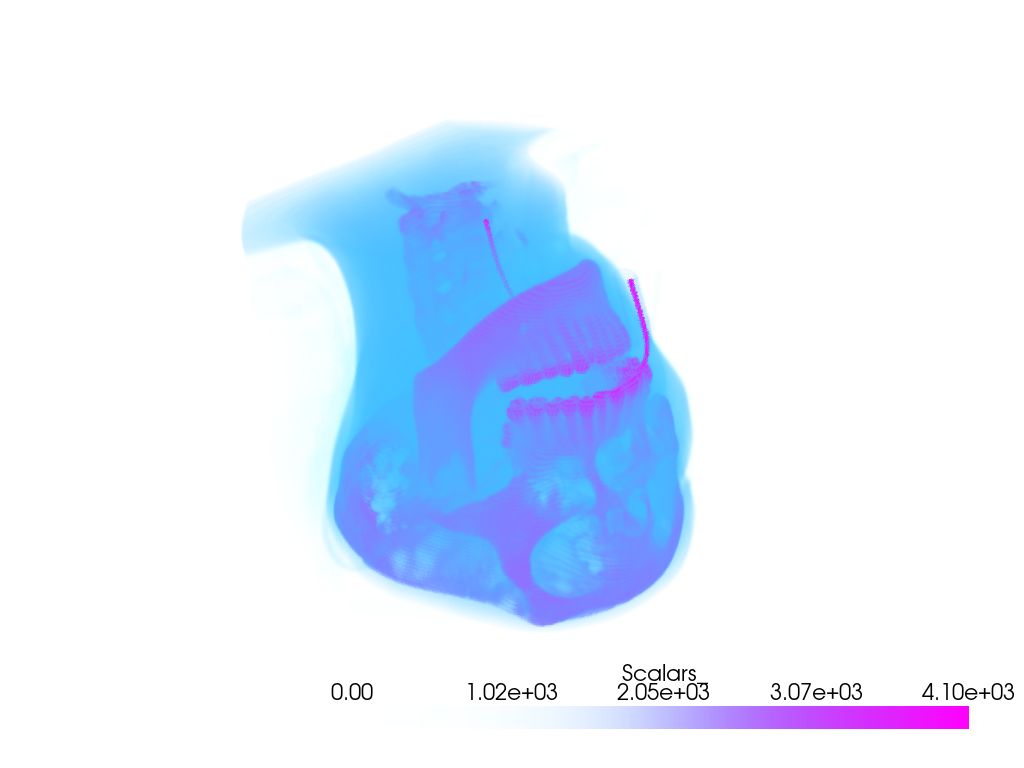

Head 2 Dataset

Downloads ImageData 3D Volume Medical

download_head_2()

頭のデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

6 047 325

N Points

6 160 384

Length

4.06e+02

Dimensions

256, 256, 94

Spacing

1.0, 1.0, 2.0

N Arrays

1

File Info

File Size

8.8 MB

Num Files

1

File Ext

.vti

Reader

XMLImageDataReader

See also Head Dataset

Data Source

head.vti

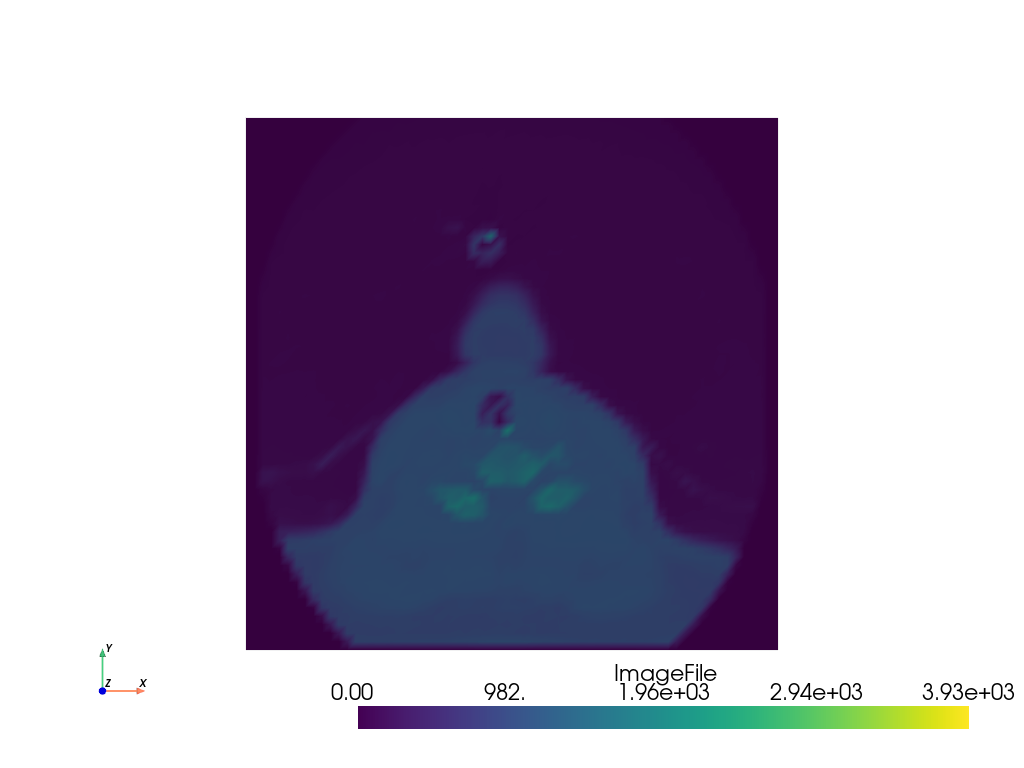

Headsq Dataset

Downloads ImageData 3D Volume

download_headsq()

Download the headsq dataset.

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

365 148

N Points

380 928

Length

3.17e+02

Dimensions

64, 64, 93

Spacing

3.2, 3.2, 1.5

N Arrays

1

File Info

File Size

762.0 KB

Num Files

94

File Ext

.1,

.10,

.11,

...,

.92,

.93,

.nhdr

Reader

NRRDReader

Data Source

headsq/quarter.nhdr headsq/quarter.1 headsq/quarter.2 headsq/quarter.3 headsq/quarter.4 headsq/quarter.5 headsq/quarter.6 headsq/quarter.7 headsq/quarter.8 headsq/quarter.9 headsq/quarter.10 headsq/quarter.11 headsq/quarter.12 headsq/quarter.13 headsq/quarter.14 headsq/quarter.15 headsq/quarter.16 headsq/quarter.17 headsq/quarter.18 headsq/quarter.19 headsq/quarter.20 headsq/quarter.21 headsq/quarter.22 headsq/quarter.23 headsq/quarter.24 headsq/quarter.25 headsq/quarter.26 headsq/quarter.27 headsq/quarter.28 headsq/quarter.29 headsq/quarter.30 headsq/quarter.31 headsq/quarter.32 headsq/quarter.33 headsq/quarter.34 headsq/quarter.35 headsq/quarter.36 headsq/quarter.37 headsq/quarter.38 headsq/quarter.39 headsq/quarter.40 headsq/quarter.41 headsq/quarter.42 headsq/quarter.43 headsq/quarter.44 headsq/quarter.45 headsq/quarter.46 headsq/quarter.47 headsq/quarter.48 headsq/quarter.49 headsq/quarter.50 headsq/quarter.51 headsq/quarter.52 headsq/quarter.53 headsq/quarter.54 headsq/quarter.55 headsq/quarter.56 headsq/quarter.57 headsq/quarter.58 headsq/quarter.59 headsq/quarter.60 headsq/quarter.61 headsq/quarter.62 headsq/quarter.63 headsq/quarter.64 headsq/quarter.65 headsq/quarter.66 headsq/quarter.67 headsq/quarter.68 headsq/quarter.69 headsq/quarter.70 headsq/quarter.71 headsq/quarter.72 headsq/quarter.73 headsq/quarter.74 headsq/quarter.75 headsq/quarter.76 headsq/quarter.77 headsq/quarter.78 headsq/quarter.79 headsq/quarter.80 headsq/quarter.81 headsq/quarter.82 headsq/quarter.83 headsq/quarter.84 headsq/quarter.85 headsq/quarter.86 headsq/quarter.87 headsq/quarter.88 headsq/quarter.89 headsq/quarter.90 headsq/quarter.91 headsq/quarter.92 headsq/quarter.93

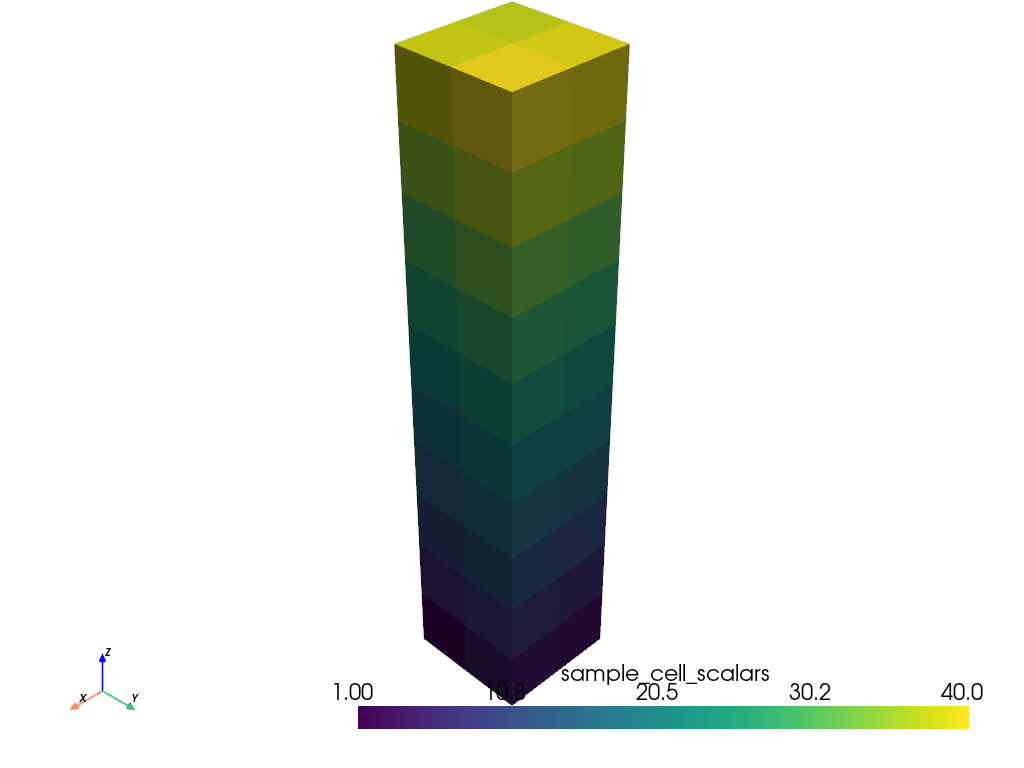

Hexbeam Dataset

Built-in UnstructuredGrid

load_hexbeam()

サンプルのUnstructuredGridを読み込みます．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

HEXAHEDRON

N Cells

40

N Points

99

Length

5.20e+00

N Arrays

3

File Info

File Size

3.1 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

hexbeam.vtk

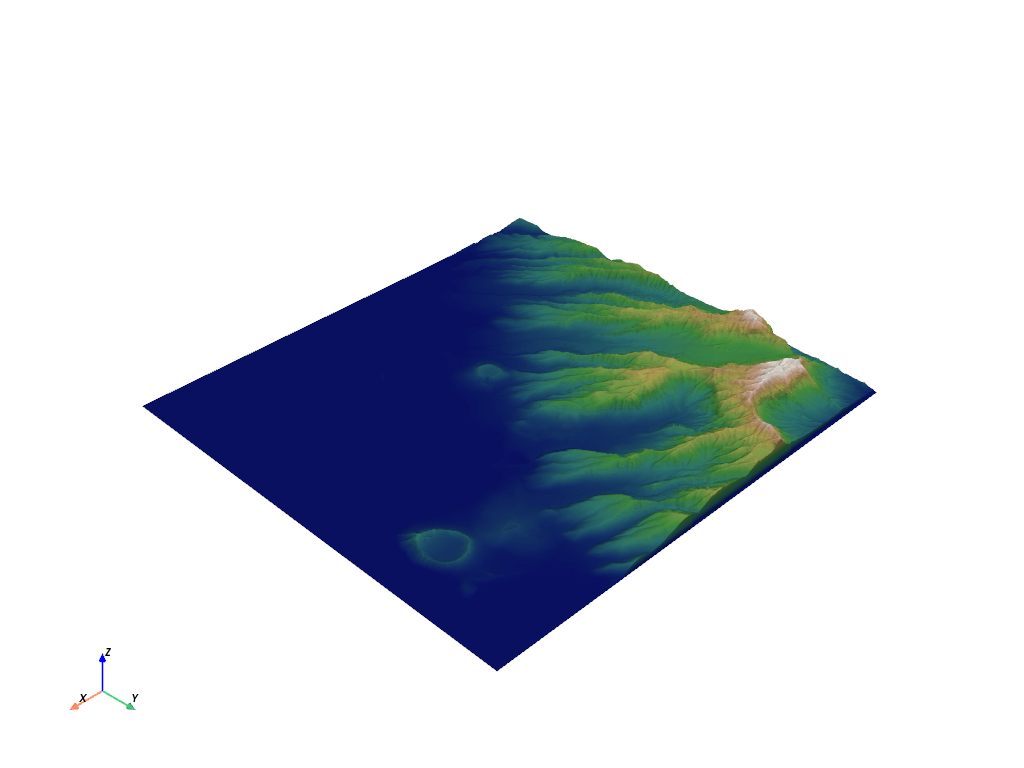

Honolulu Dataset

Downloads PolyData Surface Mesh

download_honolulu()

Honoluluデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

403 680

N Points

202 740

Length

1.91e+04

N Arrays

0

File Info

File Size

16.1 MB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

honolulu.vtk

Horse Dataset

Downloads PolyData Surface Mesh

download_horse()

馬のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

67 868

N Points

33 936

Length

2.52e-01

N Arrays

0

File Info

File Size

736.6 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

See also Horse Points Dataset, メッシュライティングの無効化

Data Source

horse.vtp

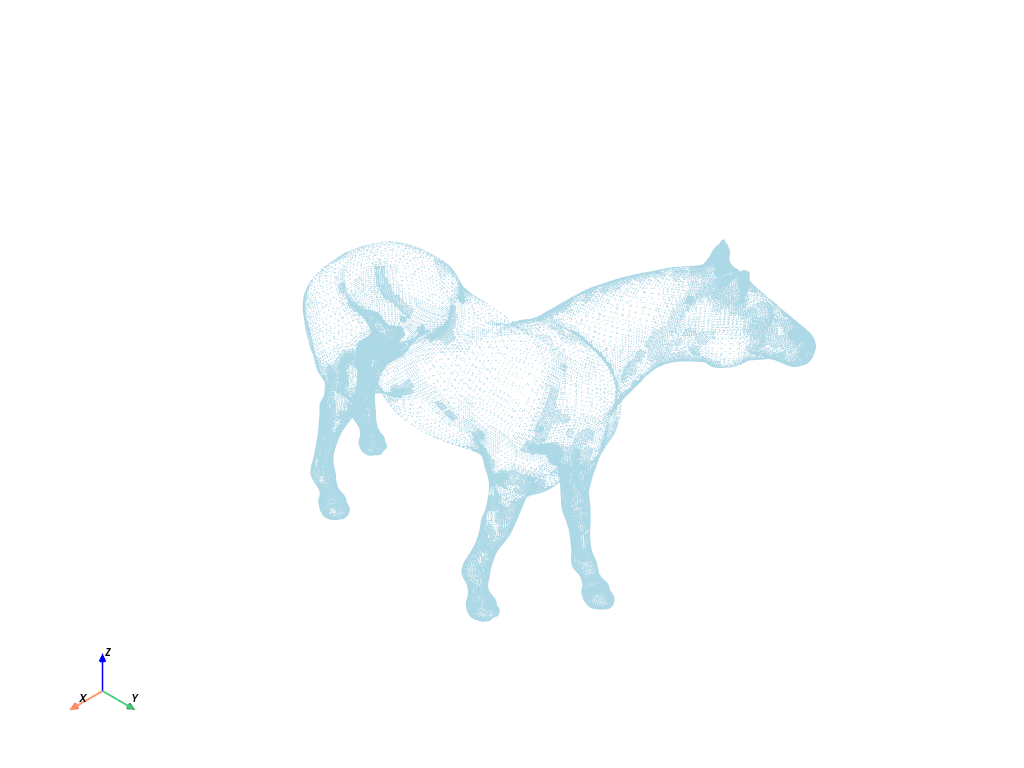

Horse Points Dataset

Downloads PolyData Point Cloud

download_horse_points()

馬のポイントデータセットのダウンロード．

Dataset Info

Data Type

PolyData

Cell Type

VERTEX

N Cells

128 449

N Points

128 449

Length

2.53e-01

N Arrays

2

File Info

File Size

4.6 MB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

See also Horse Dataset

Data Source

horsePoints.vtp

Human Dataset

Downloads PolyData Surface Mesh

download_human()

人間のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

34 660

N Points

17 665

Length

2.03e+02

N Arrays

1

File Info

File Size

1.7 MB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

Human.vtp

Hydrogen Orbital Dataset

Built-in ImageData 3D Volume

load_hydrogen_orbital()

水素の波動関数を pyvista.ImageData にロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

970 299

N Points

1 000 000

Length

8.66e+00

Dimensions

100, 100, 100

Spacing

5.05e-02, 5.05e-02, 5.05e-02

N Arrays

2

File Info

Reader

None

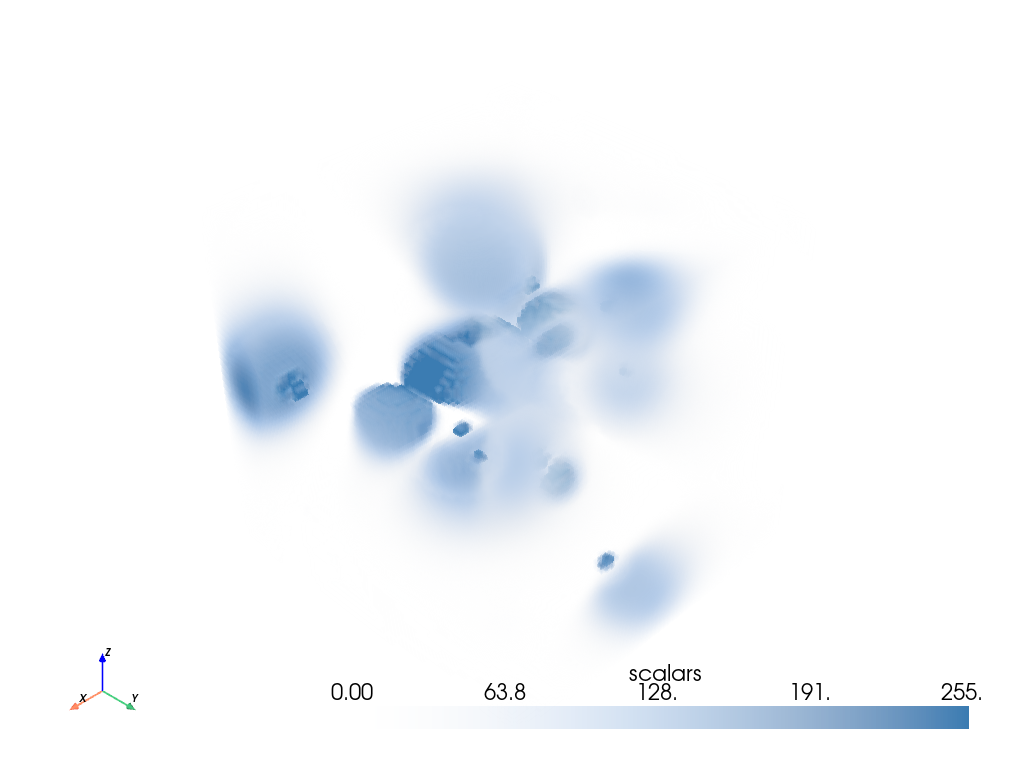

Iron Protein Dataset

Downloads ImageData 3D Volume

download_iron_protein()

鉄タンパク質のデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

300 763

N Points

314 432

Length

1.16e+02

Dimensions

68, 68, 68

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

314.6 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

ironProt.vtk

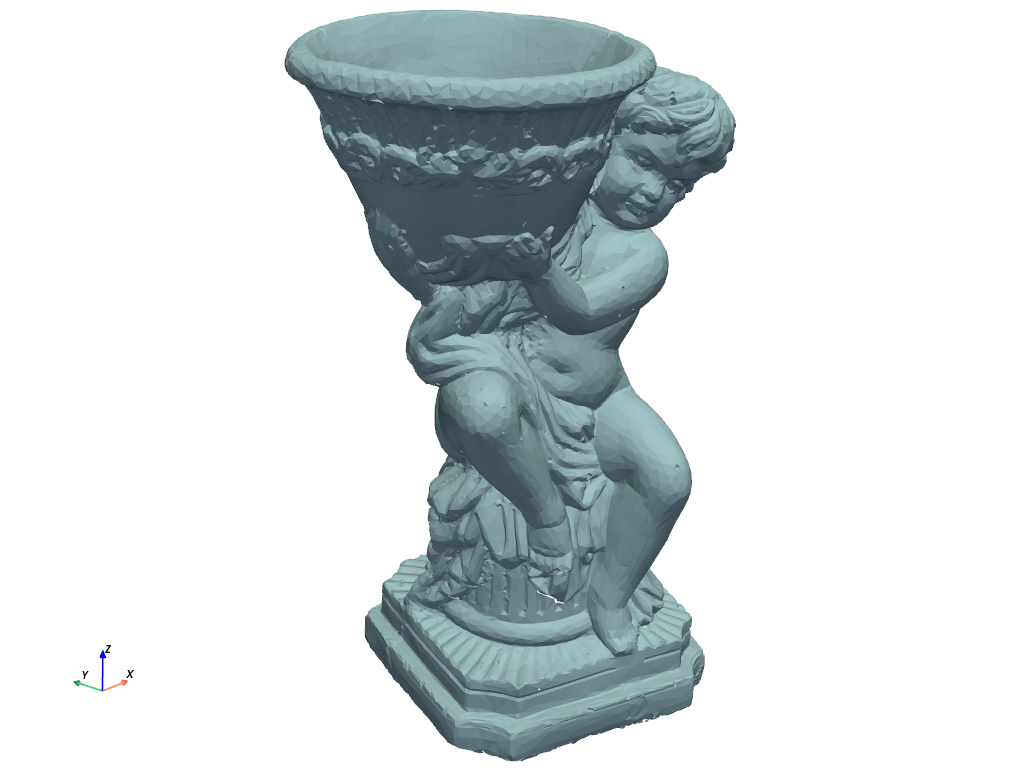

Ivan Angel Dataset

Downloads PolyData Surface Mesh

download_ivan_angel()

Ivan Nikolovが作成した天使像スキャンをダウンロードすることができます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

35 804

N Points

18 412

Length

4.12e+02

N Arrays

0

File Info

File Size

546.6 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

ivan-nikolov/Angel_decimated.vtp

Jupiter Surface Dataset

Planets ImageData 2D Image

download_jupiter_surface()

木星表面の画像をダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

2 094 081

N Points

2 097 152

Length

2.29e+03

Dimensions

2048, 1024, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

499.0 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/jupiter.jpg

Kitchen Dataset

Downloads StructuredGrid

download_kitchen()

速度場を持つキッチンの構造格子をダウンロードします．

Dataset Info

Data Type

StructuredGrid

Cell Type

HEXAHEDRON

N Cells

9 936

N Points

11 424

Length

8.94e+00

Dimensions

28, 24, 17

N Arrays

20

File Info

File Size

3.0 MB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

kitchen.vtk

Knee Dataset

Downloads ImageData 2D Image Medical

download_knee()

kneeのデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

261 121

N Points

262 144

Length

3.11e+02

Dimensions

512, 512, 1

Spacing

4.30e-01, 4.30e-01, 8.00e-01

N Arrays

1

File Info

File Size

526.7 KB

Num Files

1

File Ext

.dcm

Reader

DICOMReader

See also Knee Full Dataset

Data Source

DICOM_KNEE.dcm

Knee Full Dataset

Downloads ImageData 3D Volume Medical

download_knee_full()

膝データセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

10 225 800

N Points

10 368 384

Length

3.07e+02

Dimensions

208, 248, 201

Spacing

7.23e-01, 7.23e-01, 1.00e+00

N Arrays

1

File Info

File Size

9.0 MB

Num Files

1

File Ext

.slc

Reader

SLCReader

See also Knee Dataset

Data Source

vw_knee.slc

Letter A Dataset

Downloads UnstructuredGrid

download_letter_a()

文字aのデータセットをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

TETRA

N Cells

4 802

N Points

1 317

Length

1.15e+00

N Arrays

0

File Info

File Size

147.0 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

See also Letter K Dataset, セルの中心を抽出

Data Source

a_grid.vtk

Letter K Dataset

Downloads PolyData Surface Mesh

download_letter_k()

文字kのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

QUAD

N Cells

245

N Points

166

Length

3.83e+01

N Arrays

0

File Info

File Size

8.3 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

See also Letter A Dataset

Data Source

k.vtk

Lidar Dataset

Downloads PolyData Point Cloud

download_lidar()

ライダーのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

VERTEX

N Cells

3 392 091

N Points

3 392 091

Length

2.64e+02

N Arrays

1

File Info

File Size

37.8 MB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

kafadar-lidar-interp.vtp

Lobster Dataset

Downloads PolyData Surface Mesh

download_lobster()

ロブスターのスキャンデータをダウンロードできます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

249 569

N Points

125 156

Length

4.35e+02

N Arrays

0

File Info

File Size

10.4 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

lobster.ply

Logo Dataset

Built-in ImageData 2D Image

load_logo()

PyVistaのロゴを pyvista.ImageData として読み込みます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

820 308

N Points

822 288

Length

1.51e+03

Dimensions

1389, 592, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

257.1 KB

Num Files

1

File Ext

.png

Reader

PNGReader

Data Source


Louis Louvre Dataset

Downloads PolyData Surface Mesh

download_louis_louvre()

パリのLouvre美術館のLouis XIV de France像をダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

421 965

N Points

210 873

Length

1.61e+01

N Arrays

1

File Info

File Size

9.7 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

See also 物理ベースのレンダリング

Data Source

louis.ply

Lshape Dataset

Downloads UnstructuredGrid MultiBlock Homogeneous

download_lshape()

LShapeデータセットをEnSightフォーマットでダウンロードできます．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

VERTEX

HEXAHEDRON

Length

2.86e+00

File Info

File Size

10.8 KB

Num Files

3

File Ext

.case,

.geo,

.var

Reader

EnSightReader

Data Source

EnSight/LShape.case EnSight/LShape_geometry.geo EnSight/LShape_displacement.var

Lucy Dataset

Downloads PolyData Surface Mesh

download_lucy()

lucy angelのメッシュをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

99 970

N Points

49 987

Length

1.92e+03

N Arrays

0

File Info

File Size

1.9 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

See also Jupyterノートブックプロット

Data Source

lucy.ply

M4 Total Density Dataset

Downloads ImageData 3D Volume

download_m4_total_density()

Download a total density dataset of the chemistry.

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

15 120

N Points

17 050

Length

4.38e+01

Dimensions

25, 22, 31

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

225.7 KB

Num Files

1

File Ext

.cube

Reader

GaussianCubeReader

Data Source

m4_TotalDensity.cube

Mars Surface Dataset

Planets ImageData 2D Image

download_mars_surface()

火星表面の画像をダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

1 997 001

N Points

2 000 000

Length

2.23e+03

Dimensions

2000, 1000, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

620.4 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/mars.jpg

Masonry Texture Dataset

Downloads Texture

download_masonry_texture()

masonryテクスチャをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

256, 256

File Info

File Size

66.6 KB

Num Files

1

File Ext

.bmp

Reader

BMPReader

See also テクスチャを適用する

Data Source


Mercury Surface Dataset

Planets ImageData 2D Image

download_mercury_surface()

水星表面の画像をダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

2 094 081

N Points

2 097 152

Length

2.29e+03

Dimensions

2048, 1024, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

872.6 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/mercury.jpg

Meshio Xdmf Dataset

Downloads UnstructuredGrid MultiBlock Homogeneous

download_meshio_xdmf()

meshioが作成したxdmfファイルをダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

TRIANGLE

Length

1.41e+00

File Info

File Size

12.4 KB

Num Files

2

File Ext

.h5,

.xdmf

Reader

XdmfReader

Data Source

meshio/out.xdmf meshio/out.h5

Milkyway Sky Background Dataset

Planets ImageData 2D Image

download_milkyway_sky_background()

天の川銀河の空のテクスチャをダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

33 542 145

N Points

33 554 432

Length

9.16e+03

Dimensions

8192, 4096, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

1.9 MB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Stars Sky Background Dataset, 3D地球と天体

Data Source

planet3d-matlab/milkyway.jpg

Model With Variance Dataset

Downloads UnstructuredGrid

download_model_with_variance()

分散付きモデルのデータセットをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

TETRA

N Cells

2 841 790

N Points

551 724

Length

2.36e+04

N Arrays

2

File Info

File Size

34.1 MB

Num Files

1

File Ext

.vtu

Reader

XMLUnstructuredGridReader

See also 不透明度を指定してプロット

Data Source

model_with_variance.vtu

Moon Surface Dataset

Planets ImageData 2D Image

download_moon_surface()

地球の月表面の画像をダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

2 094 081

N Points

2 097 152

Length

2.29e+03

Dimensions

2048, 1024, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

1.1 MB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/moon.jpg

Moonlanding Image Dataset

Downloads ImageData 2D Image

download_moonlanding_image()

月面着陸の画像をダウンロード

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

297 517

N Points

298 620

Length

7.87e+02

Dimensions

630, 474, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

216.5 KB

Num Files

1

File Ext

.png

Reader

PNGReader

See also 高速Fourier変換

Data Source


Motor Dataset

Downloads PolyData Surface Mesh

download_motor()

motorデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

POLYGON

QUAD

N Cells

1 572

N Points

1 710

Length

9.37e-01

N Arrays

0

File Info

File Size

95.3 KB

Num Files

1

File Ext

.g

Reader

BYUReader

Data Source

motor.g

Mount Damavand Dataset

Downloads PolyData Surface Mesh

download_mount_damavand()

ダマーヴァンド山のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

QUAD

N Cells

260 400

N Points

261 426

Length

3.64e+05

N Arrays

1

File Info

File Size

5.9 MB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

AOI.Damavand.32639.vtp

Mug Dataset

Downloads UnstructuredGrid MultiBlock Misc Heterogeneous

download_mug()

mugデータセットをダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

NoneType

Cell Type

QUAD

HEXAHEDRON

Length

8.08e+00

File Info

File Size

1.9 MB

Num Files

1

File Ext

.e

Reader

ExodusIIReader

Data Source

mug.e

Naca Dataset

Downloads StructuredGrid MultiBlock Homogeneous

download_naca()

NACAの翼型データセットをEnSight形式でダウンロードできます．

Dataset Info

Data Type

MultiBlock

StructuredGrid

Cell Type

QUAD

Length

1.89e+02

File Info

File Size

505.8 KB

Num Files

4

File Ext

.case,

.dens_1,

.dens_3,

.geo

Reader

EnSightReader

See also リーダーによるデータの読み込み

Data Source

EnSight/naca.bin.case EnSight/naca.gold.bin.DENS_1 EnSight/naca.gold.bin.DENS_3 EnSight/naca.gold.bin.geo

Nefertiti Dataset

Downloads PolyData Surface Mesh

download_nefertiti()

王妃Nefertitiのメッシュをダウンロード

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

2 018 232

N Points

1 009 118

Length

6.58e+02

N Arrays

0

File Info

File Size

38.3 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

nefertiti.ply.zip

Nek5000 Dataset

Downloads UnstructuredGrid

download_nek5000()

Download 2D nek5000 data example.

Dataset Info

Data Type

UnstructuredGrid

Cell Type

QUAD

N Cells

12 544

N Points

16 384

Length

8.89e+00

N Arrays

3

File Info

File Size

3.6 MB

Num Files

12

File Ext

.f00001,

.f00002,

.f00003,

...,

.f00010,

.f00011,

.nek5000

Reader

Nek5000Reader

Data Source

nek5000/eddy_uv.nek5000 nek5000/eddy_uv0.f00001 nek5000/eddy_uv0.f00002 nek5000/eddy_uv0.f00003 nek5000/eddy_uv0.f00004 nek5000/eddy_uv0.f00005 nek5000/eddy_uv0.f00006 nek5000/eddy_uv0.f00007 nek5000/eddy_uv0.f00008 nek5000/eddy_uv0.f00009 nek5000/eddy_uv0.f00010 nek5000/eddy_uv0.f00011

Neptune Surface Dataset

Planets ImageData 2D Image

download_neptune_surface()

惑星海王星の表面のテクスチャをダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

2 094 081

N Points

2 097 152

Length

2.29e+03

Dimensions

2048, 1024, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

241.6 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/neptune.jpg

Notch Displacement Dataset

Downloads UnstructuredGrid

download_notch_displacement()

切り欠きのあるはりのFEA変位結果をダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

QUADRATIC_HEXAHEDRON

QUADRATIC_WEDGE

N Cells

2 192

N Points

12 717

Length

4.12e-01

N Arrays

1

File Info

File Size

697.4 KB

Num Files

1

File Ext

.vtu

Reader

XMLUnstructuredGridReader

See also Notch Stress Dataset, Aero Bracket Dataset, Fea Bracket Dataset, Fea Hertzian Contact Cylinder Dataset

Data Source

notch_disp.vtu

Notch Stress Dataset

Downloads UnstructuredGrid

download_notch_stress()

切り欠きのあるはりのFEA応力結果をダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

HEXAHEDRON

WEDGE

N Cells

2 192

N Points

12 717

Length

4.12e-01

N Arrays

3

File Info

File Size

1.5 MB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

See also Notch Displacement Dataset, Aero Bracket Dataset, Fea Bracket Dataset, Fea Hertzian Contact Cylinder Dataset

Data Source

notch_stress.vtk

Nut Dataset

Built-in PolyData Surface Mesh

load_nut()

サンプルのナットメッシュをロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

1 046

N Points

523

Length

7.12e+01

N Arrays

0

File Info

File Size

20.1 KB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

nut.ply

Oblique Cone Dataset

Downloads PolyData Surface Mesh

download_oblique_cone()

oblique cone データセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

POLYGON

N Cells

25

N Points

25

Length

4.76e+02

N Arrays

0

File Info

File Size

3.7 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

ObliqueCone.vtp

Office Dataset

Downloads StructuredGrid

download_office()

事務所のデータセットをダウンロードします．

Dataset Info

Data Type

StructuredGrid

Cell Type

HEXAHEDRON

N Cells

7 220

N Points

8 400

Length

6.82e+00

Dimensions

21, 20, 20

N Arrays

2

File Info

File Size

235.4 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

See also 平面とボックスでクリップします

Data Source

office.binary.vtk

Openfoam Tubes Dataset

Downloads PolyData UnstructuredGrid MultiBlock Surface Mesh Heterogeneous

download_openfoam_tubes()

チューブのOpenFOAMの例をダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

PolyData

Cell Type

TRIANGLE

QUAD

TETRA

HEXAHEDRON

WEDGE

PYRAMID

Length

3.71e-01

File Info

File Size

0 B

Num Files

1

File Ext

.foam

Reader

POpenFOAMReader

See also CFDデータをプロットする

Data Source

fvm/turbo_incompressible/Turbo-Incompressible_3-Run_1-SOLUTION_FIELDS.zip

Owl Dataset

Downloads PolyData Surface Mesh

download_owl()

Ivan Nikolovが作成したフクロウ像スキャンをダウンロードすることができます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

24 407

N Points

12 442

Length

2.74e+02

N Arrays

0

File Info

File Size

377.0 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

ivan-nikolov/owl_decimated.vtp

Parched Canal 4k Dataset

Downloads Texture

download_parched_canal_4k()

パーチドカナル4kデータセットをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

4096, 2048

File Info

File Size

25.9 MB

Num Files

1

File Ext

.hdr

Reader

HDRReader

See also Dikhololo Night Dataset

Data Source

parched_canal_4k.hdr

Particles Dataset

Downloads PolyData Point Cloud

download_particles()

Download a particle dataset.

Dataset Info

Data Type

PolyData

Cell Type

POLY_VERTEX

N Cells

1

N Points

197

Length

3.63e+38

N Arrays

1

File Info

File Size

3.2 KB

Num Files

1

File Ext

.raw

Reader

ParticleReader

Data Source

Particles.raw

Particles Lethe Dataset

Downloads UnstructuredGrid

download_particles_lethe()

lethe によって生成されたパーティクルデータセットをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

VERTEX

N Cells

107 860

N Points

107 860

Length

4.25e-01

N Arrays

6

File Info

File Size

7.2 MB

Num Files

1

File Ext

.vtu

Reader

XMLUnstructuredGridReader

Data Source

lethe/result_particles.20000.0000.vtu

Pepper Dataset

Downloads PolyData Surface Mesh

download_pepper()

ピーマン（トウガラシ）のスキャンデータをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

29 956

N Points

14 980

Length

1.57e+02

N Arrays

0

File Info

File Size

1.9 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

pepper.ply

Pine Roots Dataset

Downloads PolyData Surface Mesh

download_pine_roots()

松の根のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

351 536

N Points

178 091

Length

1.48e+02

N Arrays

1

File Info

File Size

25.3 MB

Num Files

1

File Ext

.tri

Reader

BinaryMarchingCubesReader

See also 連結度

Data Source

pine_root.tri

Plastic Vase Dataset

Downloads PolyData Surface Mesh

download_plastic_vase()

Ivan Nikolovが作成したプラスチック製の花瓶スキャンをダウンロードすることができます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

35 708

N Points

18 238

Length

5.47e+02

N Arrays

0

File Info

File Size

678.9 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

ivan-nikolov/plasticVase_decimated.vtp

Pluto Surface Dataset

Planets ImageData 2D Image

download_pluto_surface()

準惑星冥王星の表面のテクスチャをダウンロードすることができます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

17 549 850

N Points

17 558 738

Length

6.62e+03

Dimensions

5926, 2963, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

1.4 MB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/pluto.jpg

Poly Line Dataset

Downloads PolyData

download_poly_line()

ポリラインデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

POLY_LINE

N Cells

1

N Points

4

Length

1.92e+02

N Arrays

0

File Info

File Size

135 B

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

polyline.vtk

Prism Dataset

Downloads UnstructuredGrid

download_prism()

Download a prism model.

Dataset Info

Data Type

UnstructuredGrid

Cell Type

WEDGE

N Cells

4

N Points

10

Length

3.00e+00

N Arrays

2

File Info

File Size

1.8 KB

Num Files

1

File Ext

.neu

Reader

GambitReader

Data Source

prism.neu

Prostar Dataset

Downloads UnstructuredGrid

download_prostar()

Download a prostar dataset.

Dataset Info

Data Type

UnstructuredGrid

Cell Type

VERTEX

LINE

TRIANGLE

POLYGON

QUAD

TETRA

HEXAHEDRON

WEDGE

PYRAMID

POLYHEDRON

N Cells

10

N Points

44

Length

8.78e+00

N Arrays

1

File Info

File Size

5.0 KB

Num Files

2

File Ext

.cel,

.vrt

Reader

ProStarReader

Data Source

prostar.vrt prostar.cel

Prostate Dataset

Downloads ImageData 2D Image Medical

download_prostate()

前立腺データセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

261 121

N Points

262 144

Length

6.77e+02

Dimensions

512, 512, 1

Spacing

9.38e-01, 9.38e-01, 5.00e+00

N Arrays

1

File Info

File Size

527.3 KB

Num Files

1

File Ext

.img

Reader

DICOMReader

Data Source

prostate.img

Pump Bracket Dataset

Downloads UnstructuredGrid

download_pump_bracket()

pump bracket 例のデータセットをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

QUADRATIC_TETRA

N Cells

124 806

N Points

250 487

Length

1.08e+00

N Arrays

10

File Info

File Size

44.5 MB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

See also ポンプブラケットのモーダル解析の可視化

Data Source

fea/pump_bracket/pump_bracket.zip

Puppy Dataset

Downloads ImageData 2D Image

download_puppy()

子犬データセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

1 917 201

N Points

1 920 000

Length

2.00e+03

Dimensions

1600, 1200, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

436.6 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Puppy Texture Dataset, イメージファイルの読み込み

Data Source


Puppy Texture Dataset

Downloads Texture

download_puppy_texture()

子犬テクスチャをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

1600, 1200

File Info

File Size

436.6 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Puppy Dataset, テクスチャを適用する

Data Source


Quadratic Pyramid Dataset

Downloads UnstructuredGrid

download_quadratic_pyramid()

2次関数ピラミッドのデータセットをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

QUADRATIC_PYRAMID

N Cells

48

N Points

153

Length

3.46e+00

N Arrays

2

File Info

File Size

10.3 KB

Num Files

1

File Ext

.vtu

Reader

XMLUnstructuredGridReader

Data Source

QuadraticPyramid.vtu

Random Hills Dataset

Built-in PolyData Surface Mesh

load_random_hills()

ランダムな丘のおもちゃの例を作成します．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

19 602

N Points

10 000

Length

2.92e+01

N Arrays

2

File Info

Reader

None

Rectilinear Dataset

Built-in RectilinearGrid

load_rectilinear()

サンプルのユニフォームグリッドを読み込みます．

Dataset Info

Data Type

RectilinearGrid

Cell Type

VOXEL

N Cells

16 146

N Points

18 144

Length

2.58e+03

Dimensions

27, 28, 24

N Arrays

1

File Info

File Size

228.5 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

rectilinear.vtk

Rectilinear Grid Dataset

Downloads RectilinearGrid

download_rectilinear_grid()

直線的な格子のデータセットをダウンロード．

Dataset Info

Data Type

RectilinearGrid

Cell Type

VOXEL

N Cells

524 288

N Points

545 025

Length

1.43e+01

Dimensions

129, 65, 65

N Arrays

9

File Info

File Size

1.1 MB

Num Files

1

File Ext

.vtr

Reader

XMLRectilinearGridReader

Data Source

RectilinearGrid.vtr

Reservoir Dataset

Downloads ExplicitStructuredGrid

download_reservoir()

UNISIM-II-D貯水池モデルをダウンロードします。

Dataset Info

Data Type

ExplicitStructuredGrid

Cell Type

EMPTY_CELL

HEXAHEDRON

N Cells

47 610

N Points

58 433

Length

1.11e+04

Dimensions

47, 70, 16

N Arrays

6

File Info

File Size

2.3 MB

Num Files

1

File Ext

.vtu

Reader

XMLUnstructuredGridReader

Data Source

reservoir/UNISIM-II-D.zip

Rgba Texture Dataset

Downloads Texture

download_rgba_texture()

アルファチャンネル付きのテクスチャをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

420, 300

File Info

File Size

121.5 KB

Num Files

1

File Ext

.png

Reader

PNGReader

See also テクスチャを適用する

Data Source


Room Cff Dataset

Downloads UnstructuredGrid MultiBlock Single Block

download_room_cff()

部屋モデルをCFF形式でダウンロードします。

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

QUAD

Length

5.66e+00

File Info

File Size

893.4 KB

Num Files

2

File Ext

.h5

Reader

FLUENTCFFReader

Data Source

FLUENTCFF/room.cas.h5 FLUENTCFF/room.dat.h5

Room Surface Mesh Dataset

Downloads PolyData Surface Mesh

download_room_surface_mesh()

部屋の表面のメッシュをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

103 332

N Points

80 757

Length

2.86e+01

N Arrays

1

File Info

File Size

6.3 MB

Num Files

1

File Ext

.obj

Reader

OBJReader

See also Depth Peeling

Data Source

room_surface_mesh.obj

Saddle Surface Dataset

Downloads PolyData Surface Mesh

download_saddle_surface()

鞍部サーフェスデータセットのダウンロード

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

5 131

N Points

2 669

Length

5.93e+01

N Arrays

0

File Info

File Size

1.7 MB

Num Files

1

File Ext

.stl

Reader

STLReader

See also 詳細な補間点

Data Source

InterpolatingOnSTL_final.stl

Saturn Rings Dataset

Planets ImageData 2D Image

download_saturn_rings()

土星の輪のテクスチャをダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

253 828

N Points

256 000

Length

2.05e+03

Dimensions

2048, 125, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

12.1 KB

Num Files

1

File Ext

.png

Reader

PNGReader

See also 3D地球と天体

Data Source

solar_textures/saturn_ring_alpha.png

Saturn Surface Dataset

Planets ImageData 2D Image

download_saturn_surface()

土星表面の画像をダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

2 094 081

N Points

2 097 152

Length

2.29e+03

Dimensions

2048, 1024, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

199.9 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/saturn.jpg

Sea Vase Dataset

Downloads PolyData Surface Mesh

download_sea_vase()

Ivan Nikolovが作成したシーベーススキャンをダウンロードすることができます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

35 483

N Points

18 063

Length

6.30e+02

N Arrays

0

File Info

File Size

697.0 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

ivan-nikolov/seaVase_decimated.vtp

Shark Dataset

Downloads PolyData Surface Mesh

download_shark()

サメのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

POLYGON

QUAD

N Cells

2 562

N Points

2 560

Length

1.67e+02

N Arrays

0

File Info

File Size

124.0 KB

Num Files

1

File Ext

.ply

Reader

PLYReader

See also Great White Shark Dataset, Grey Nurse Shark Dataset

Data Source

shark.ply

Single Sphere Animation Dataset

Downloads PolyData MultiBlock Surface Mesh Single Block

download_single_sphere_animation()

球体1個分のPVDファイルをダウンロードします．

Dataset Info

Data Type

MultiBlock

PolyData

Cell Type

TRIANGLE

Length

1.71e+00

File Info

File Size

1.5 KB

Num Files

1

File Ext

.pvd

Reader

PVDReader

See also Dual Sphere Animation Dataset

Data Source

PVD/paraview/singleSphereAnimation.zip

Sky Box Cube Map Dataset

Downloads Texture Cubemap

download_sky_box_cube_map()

スカイボックスキューブマップのテクスチャをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

1024, 1024

File Info

File Size

1.9 MB

Num Files

6

File Ext

.jpg

Reader

None

See also Cubemap Space 4k Dataset, Cubemap Space 16k Dataset, Cubemap Park Dataset, 物理ベースのレンダリング

Data Source

skybox2-posx.jpg skybox2-negx.jpg skybox2-posy.jpg skybox2-negy.jpg skybox2-posz.jpg skybox2-negz.jpg

Sky Box Nz Dataset

Downloads ImageData 2D Image

download_sky_box_nz()

skybox-nzのデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

1 046 529

N Points

1 048 576

Length

1.45e+03

Dimensions

1024, 1024, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

54.6 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Sky Box Nz Texture Dataset, Sky Box Cube Map Dataset

Data Source


Sky Box Nz Texture Dataset

Downloads Texture

download_sky_box_nz_texture()

skybox-nzのテクスチャをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

1024, 1024

File Info

File Size

54.6 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Sky Box Nz Dataset, Sky Box Cube Map Dataset

Data Source


Sparse Points Dataset

Downloads PolyData Point Cloud

download_sparse_points()

スパースポイントデータをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

POLY_VERTEX

N Cells

1

N Points

16

Length

4.33e+01

N Arrays

1

File Info

File Size

375 B

Num Files

1

File Ext

.txt

Reader

None

See also 詳細な補間点

Data Source

sparsePoints.txt

Sphere Dataset

Built-in PolyData Surface Mesh

load_sphere()

球plyメッシュをロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

840

N Points

422

Length

4.38e+02

N Arrays

0

File Info

File Size

16.2 KB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

sphere.ply

Sphere Vectors Dataset

Built-in PolyData Surface Mesh

load_sphere_vectors()

ノードに定義された渦巻き状のベクトルフィールドを持つ球体の例を作成します．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

1 680

N Points

842

Length

1.09e+01

N Arrays

2

File Info

Reader

None

Spider Dataset

Downloads PolyData Surface Mesh

download_spider()

蜘蛛のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

9 286

N Points

4 670

Length

8.40e+00

N Arrays

0

File Info

File Size

275.8 KB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

spider.ply

Spline Dataset

Built-in PolyData

load_spline()

スプラインメッシュの例を読み込みます．

Dataset Info

Data Type

PolyData

Cell Type

POLY_LINE

N Cells

1

N Points

1 000

Length

1.23e+01

N Arrays

1

File Info

Reader

None

St Helens Dataset

Downloads ImageData 2D Image

download_st_helens()

Saint Helensのデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

151 916

N Points

152 709

Length

1.71e+04

Dimensions

327, 467, 1

Spacing

30.0, 30.0, 1.0

N Arrays

1

File Info

File Size

995.3 KB

Num Files

1

File Ext

.dem

Reader

DEMReader

Data Source

SainteHelens.dem

Stars Cloud Hyg Dataset

Downloads PolyData Point Cloud

download_stars_cloud_hyg()

HYGデータベースで計算された星の点群データをダウンロードすることができます．

Dataset Info

Data Type

PolyData

Cell Type

VERTEX

N Cells

107 857

N Points

107 857

Length

3.37e+03

N Arrays

3

File Info

File Size

3.2 MB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

See also 点群のプロット

Data Source

point-clouds/hyg-database/stars.vtp

Stars Sky Background Dataset

Planets ImageData 2D Image

download_stars_sky_background()

夜空の星のテクスチャをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

33 542 145

N Points

33 554 432

Length

9.16e+03

Dimensions

8192, 4096, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

1.8 MB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Milkyway Sky Background Dataset, 3D地球と天体

Data Source

planet3d-matlab/stars.jpg

Structured Dataset

Built-in StructuredGrid

load_structured()

シンプルなStructuredGridを読み込みます．

Dataset Info

Data Type

StructuredGrid

Cell Type

QUAD

N Cells

6 241

N Points

6 400

Length

2.80e+01

Dimensions

80, 80, 1

N Arrays

0

File Info

Reader

None

Structured Grid Dataset

Downloads StructuredGrid

download_structured_grid()

構造格子のデータセットをダウンロード．

Dataset Info

Data Type

StructuredGrid

Cell Type

HEXAHEDRON

N Cells

440

N Points

648

Length

1.54e+01

Dimensions

6, 12, 9

N Arrays

3

File Info

File Size

19.7 KB

Num Files

1

File Ext

.vts

Reader

XMLStructuredGridReader

See also Structured Grid Two Dataset

Data Source

StructuredGrid.vts

Structured Grid Two Dataset

Downloads StructuredGrid

download_structured_grid_two()

構造格子の2つのデータセットをダウンロード．

Dataset Info

Data Type

StructuredGrid

Cell Type

HEXAHEDRON

N Cells

21 489

N Points

24 000

Length

1.32e+00

Dimensions

20, 30, 40

N Arrays

2

File Info

File Size

1.1 MB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

See also Structured Grid Dataset

Data Source

SampleStructGrid.vtk

Sun Surface Dataset

Planets ImageData 2D Image

download_sun_surface()

太陽の表面をダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

2 094 081

N Points

2 097 152

Length

2.29e+03

Dimensions

2048, 1024, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

822.4 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/sun.jpg

T3 Grid 0 Dataset

Downloads ImageData 2D Image

download_t3_grid_0()

Download a T3 grid 0 image.

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

56 865

N Points

57 344

Length

3.39e+02

Dimensions

224, 256, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

346.4 KB

Num Files

1

File Ext

.mnc

Reader

MINCImageReader

Data Source

t3_grid_0.mnc

Teapot Dataset

Downloads PolyData Surface Mesh

download_teapot()

ティーポットのデータセットをダウンロードできます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

3 751

N Points

1 976

Length

8.14e+00

N Arrays

0

File Info

File Size

133.6 KB

Num Files

1

File Ext

.g

Reader

BYUReader

Data Source

teapot.g

Tecplot Ascii Dataset

Downloads UnstructuredGrid MultiBlock Single Block

download_tecplot_ascii()

シングルブロックのASCII Tecplotデータセットをダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

HEXAHEDRON

Length

4.69e+00

File Info

File Size

13.1 KB

Num Files

1

File Ext

.dat

Reader

TecplotReader

Data Source

tecplot_ascii.dat

Tensors Dataset

Downloads UnstructuredGrid

download_tensors()

テンソルのデータセットをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

VOXEL

N Cells

1

N Points

8

Length

1.73e+00

N Arrays

3

File Info

File Size

895 B

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

tensors.vtk

Tetbeam Dataset

Built-in UnstructuredGrid

load_tetbeam()

4面体セルのみを含みますサンプルUnstructuredGridをロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

TETRA

N Cells

200

N Points

99

Length

5.20e+00

N Arrays

1

File Info

Reader

None

Tetra Dc Mesh Dataset

Downloads UnstructuredGrid MultiBlock Homogeneous

download_tetra_dc_mesh()

電気的な逆問題を定義する2つのメッシュをダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

TETRA

Length

1.80e+00

File Info

File Size

60.8 MB

Num Files

2

File Ext

.vtu

Reader

XMLUnstructuredGridReader

Data Source

dc-inversion.zip

Tetrahedron Dataset

Downloads UnstructuredGrid

download_tetrahedron()

4面体のデータセットをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

TETRA

N Cells

96

N Points

35

Length

3.46e+00

N Arrays

2

File Info

File Size

6.4 KB

Num Files

1

File Ext

.vtu

Reader

XMLUnstructuredGridReader

Data Source

Tetrahedron.vtu

Thermal Probes Dataset

Downloads PolyData Point Cloud

download_thermal_probes()

温度プローブのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

VERTEX

N Cells

245

N Points

245

Length

2.27e+04

N Arrays

1

File Info

File Size

6.2 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

See also 詳細な補間点

Data Source

probes.vtp

Topo Global Dataset

Downloads PolyData Surface Mesh

download_topo_global()

topoデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

QUAD

N Cells

2 333 880

N Points

2 336 041

Length

3.46e+00

N Arrays

1

File Info

File Size

45.2 MB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

EarthModels/ETOPO_10min_Ice.vtp

Topo Land Dataset

Downloads PolyData Surface Mesh

download_topo_land()

topo landデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

QUAD

N Cells

767 366

N Points

788 273

Length

3.43e+00

N Arrays

1

File Info

File Size

15.2 MB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

EarthModels/ETOPO_10min_Ice_only-land.vtp

Torso Dataset

Downloads PolyData Surface Mesh

download_torso()

胴体のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

QUAD

N Cells

12 448

N Points

12 015

Length

8.62e+02

N Arrays

0

File Info

File Size

283.2 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

Torso.vtp

Tri Quadratic Hexahedron Dataset

Downloads UnstructuredGrid

download_tri_quadratic_hexahedron()

3次曲面6面体のデータセットをダウンロードできます．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

TRIQUADRATIC_HEXAHEDRON

N Cells

7

N Points

117

Length

3.65e+00

N Arrays

0

File Info

File Size

5.7 KB

Num Files

1

File Ext

.vtu

Reader

XMLUnstructuredGridReader

Data Source

TriQuadraticHexahedron.vtu

Trumpet Dataset

Downloads PolyData Surface Mesh

download_trumpet()

トランペットのデータセットをダウンロードできます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

POLYGON

QUAD

N Cells

11 362

N Points

11 908

Length

7.93e+02

N Arrays

5

File Info

File Size

678.2 KB

Num Files

1

File Ext

.obj

Reader

OBJReader

See also Guitar Dataset

Data Source

trumpet.obj

Turbine Blade Dataset

Downloads PolyData Surface Mesh

download_turbine_blade()

タービンブレードのダウンロードスキャン．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

199 034

N Points

99 519

Length

5.06e+01

N Arrays

0

File Info

File Size

3.8 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

turbineblade.ply

Uniform Dataset

Built-in ImageData 3D Volume

load_uniform()

サンプルのユニフォームグリッドを読み込みます．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

729

N Points

1 000

Length

1.56e+01

Dimensions

10, 10, 10

Spacing

1.0, 1.0, 1.0

N Arrays

2

File Info

File Size

14.1 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

uniform.vtk

Unstructured Grid Dataset

Downloads UnstructuredGrid

download_unstructured_grid()

非構造格子のデータセットをダウンロード．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

VERTEX

LINE

TRIANGLE

TRIANGLE_STRIP

POLYGON

QUAD

TETRA

HEXAHEDRON

N Cells

12

N Points

27

Length

6.40e+00

N Arrays

2

File Info

File Size

1.0 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

uGridEx.vtk

Uranus Surface Dataset

Planets ImageData 2D Image

download_uranus_surface()

惑星天王星の表面のテクスチャをダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

2 094 081

N Points

2 097 152

Length

2.29e+03

Dimensions

2048, 1024, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

77.8 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/uranus.jpg

Urn Dataset

Downloads PolyData Surface Mesh

download_urn()

埋葬用の骨壷のスキャンデータをダウンロードできます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

245 486

N Points

122 706

Length

7.31e+02

N Arrays

0

File Info

File Size

12.3 MB

Num Files

1

File Ext

.stl

Reader

STLReader

Data Source

urn.stl

Usa Dataset

Downloads PolyData Surface Mesh

download_usa()

usaデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

POLYGON

N Cells

51

N Points

3 652

Length

1.14e+02

N Arrays

0

File Info

File Size

80.3 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

See also Usa Texture Dataset

Data Source

usa.vtk

Usa Texture Dataset

Downloads Texture

download_usa_texture()

USAテクスチャをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

512, 222

File Info

File Size

41.4 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Usa Dataset

Data Source


Venus Surface Dataset

Planets ImageData 2D Image

download_venus_surface()

金星の表面や大気をダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

2 094 081

N Points

2 097 152

Length

2.29e+03

Dimensions

2048, 1024, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

229.7 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/venus_atmosphere.jpg

Victorian Goblet Face Illusion Dataset

Downloads PolyData Surface Mesh

download_victorian_goblet_face_illusion()

ビクトリアンゴブレットフェイスイリュージョンをダウンロード

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

10 910

N Points

5 457

Length

1.55e+02

N Arrays

0

File Info

File Size

545.6 KB

Num Files

1

File Ext

.stl

Reader

STLReader

Data Source

Victorian_Goblet_face_illusion/Vase.stl

Vtk Dataset

Downloads PolyData

download_vtk()

vtkデータセットのダウンロード

Dataset Info

Data Type

PolyData

Cell Type

POLY_LINE

N Cells

3

N Points

51

Length

5.27e+00

N Arrays

0

File Info

File Size

3.2 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

See also Vtk Logo Dataset

Data Source

vtk.vtp

Vtk Logo Dataset

Downloads Texture

download_vtk_logo()

VTKロゴのテクスチャをダウンロードできます．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

256, 256

File Info

File Size

26.3 KB

Num Files

1

File Ext

.png

Reader

PNGReader

See also Vtk Dataset

Data Source


Warping Spheres Dataset

Downloads PolyData Surface Mesh

download_warping_spheres()

Download warping spheres dataset.

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

File Info

File Size

3.1 MB

Num Files

1

File Ext

.vtkhdf

Reader

HDFReader

Data Source

warping_spheres/warping_spheres.vtkhdf

Wavy Dataset

Downloads StructuredGrid MultiBlock Single Block

download_wavy()

2D波のPVDファイルをダウンロードできます．

Dataset Info

Data Type

MultiBlock

StructuredGrid

Cell Type

QUAD

Length

2.80e+01

File Info

File Size

1.4 KB

Num Files

1

File Ext

.pvd

Reader

PVDReader

See also リーダーによるデータの読み込み

Data Source

PVD/wavy.zip

Whole Body Ct Female Dataset

Downloads ImageData MultiBlock 3D Volume Homogeneous Medical

download_whole_body_ct_female()

117の解剖学的構造がセグメント化された女性被験者のCT画像をダウンロードします。

Dataset Info

Data Type

MultiBlock

ImageData

Cell Type

VOXEL

Length

1.06e+03

File Info

File Size

17.7 KB

Num Files

2

File Ext

.py,

.vtm

Reader

XMLMultiBlockDataReader

See also 解剖学的グループの可視化, Whole Body Ct Male Dataset, ラベル付き画像データを切り抜く, セグメンテーションマスク付きボリューム

Data Source

whole_body_ct/s1380_resampled.zip whole_body_ct/colors.py

Whole Body Ct Male Dataset

Downloads ImageData MultiBlock 3D Volume Homogeneous Medical

download_whole_body_ct_male()

117の解剖学的構造がセグメント化された男性被験者のCT画像をダウンロードします。

Dataset Info

Data Type

MultiBlock

ImageData

Cell Type

VOXEL

Length

1.06e+03

File Info

File Size

17.7 KB

Num Files

2

File Ext

.py,

.vtm

Reader

XMLMultiBlockDataReader

See also 解剖学的グループの可視化, Whole Body Ct Female Dataset, ラベル付き画像データを切り抜く, セグメンテーションマスク付きボリューム

Data Source

whole_body_ct/s1397_resampled.zip whole_body_ct/colors.py

Woman Dataset

Downloads PolyData Surface Mesh

download_woman()

女性のスキャンデータをダウンロードできます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

300 000

N Points

149 948

Length

1.79e+03

N Arrays

0

File Info

File Size

15.0 MB

Num Files

1

File Ext

.stl

Reader

STLReader

Data Source

woman.stl

Yinyang Dataset

Downloads ImageData 2D Image

download_yinyang()

Download yinyang dataset.

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

174 251

N Points

175 104

Length

6.14e+02

Dimensions

512, 342, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

1.9 KB

Num Files

1

File Ext

.png

Reader

PNGReader

Data Source

yinyang/Yinyang.png

モジュール別にデータセットをブラウズする

このセクションのデータセットは、インポート元のモジュールごとに整理されています。

データセットモジュール

ビルトイン

Built-in datasets that ship with pyvista. Available through examples module.

Section Badge:

Built-in

Dataset Count:

19

Airplane Dataset

Built-in PolyData Surface Mesh

load_airplane()

ply飛行機メッシュをロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

2 452

N Points

1 335

Length

2.01e+03

N Arrays

0

File Info

File Size

74.5 KB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

airplane.ply

Ant Dataset

Built-in PolyData Surface Mesh

load_ant()

ply蟻メッシュをロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

912

N Points

486

Length

5.00e+01

N Arrays

0

File Info

File Size

17.9 KB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

ant.ply

Channels Dataset

Built-in ImageData 3D Volume

load_channels()

地下に一様な格子状の河道を読み込みます．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

6 250 000

N Points

6 363 101

Length

3.67e+02

Dimensions

251, 251, 101

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

522.3 KB

Num Files

1

File Ext

.vti

Reader

XMLImageDataReader

Data Source

channels.vti

Explicit Structured Dataset

Built-in ExplicitStructuredGrid

load_explicit_structured()

単純な明示的構造のグリッドを読み込みます．

Dataset Info

Data Type

ExplicitStructuredGrid

Cell Type

HEXAHEDRON

N Cells

120

N Points

210

Length

9.45e+01

Dimensions

5, 6, 7

N Arrays

0

File Info

Reader

None

Frog Tissues Dataset

Built-in ImageData 3D Volume Medical

load_frog_tissues()

Load frog tissues dataset.

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

31 594 185

N Points

31 960 000

Length

7.14e+02

Dimensions

500, 470, 136

Spacing

1.0, 1.0, 1.5

N Arrays

1

File Info

File Size

380.4 KB

Num Files

1

File Ext

.vti

Reader

XMLImageDataReader

See also Frog Dataset

Data Source

frog_tissues.vti

Globe Dataset

Built-in PolyData Surface Mesh

load_globe()

地球儀のソースを読み込みます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

980

N Points

540

Length

2.20e+10

N Arrays

1

File Info

File Size

37.4 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

globe.vtk

Globe Texture Dataset

Built-in Texture

load_globe_texture()

地球儀ソースに適用可能なpyvista.Textureを読み込みます．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

2048, 1024

File Info

File Size

463.1 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

Data Source


Hexbeam Dataset

Built-in UnstructuredGrid

load_hexbeam()

サンプルのUnstructuredGridを読み込みます．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

HEXAHEDRON

N Cells

40

N Points

99

Length

5.20e+00

N Arrays

3

File Info

File Size

3.1 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

hexbeam.vtk

Hydrogen Orbital Dataset

Built-in ImageData 3D Volume

load_hydrogen_orbital()

水素の波動関数を pyvista.ImageData にロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

970 299

N Points

1 000 000

Length

8.66e+00

Dimensions

100, 100, 100

Spacing

5.05e-02, 5.05e-02, 5.05e-02

N Arrays

2

File Info

Reader

None

Logo Dataset

Built-in ImageData 2D Image

load_logo()

PyVistaのロゴを pyvista.ImageData として読み込みます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

820 308

N Points

822 288

Length

1.51e+03

Dimensions

1389, 592, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

257.1 KB

Num Files

1

File Ext

.png

Reader

PNGReader

Data Source


Nut Dataset

Built-in PolyData Surface Mesh

load_nut()

サンプルのナットメッシュをロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

1 046

N Points

523

Length

7.12e+01

N Arrays

0

File Info

File Size

20.1 KB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

nut.ply

Random Hills Dataset

Built-in PolyData Surface Mesh

load_random_hills()

ランダムな丘のおもちゃの例を作成します．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

19 602

N Points

10 000

Length

2.92e+01

N Arrays

2

File Info

Reader

None

Rectilinear Dataset

Built-in RectilinearGrid

load_rectilinear()

サンプルのユニフォームグリッドを読み込みます．

Dataset Info

Data Type

RectilinearGrid

Cell Type

VOXEL

N Cells

16 146

N Points

18 144

Length

2.58e+03

Dimensions

27, 28, 24

N Arrays

1

File Info

File Size

228.5 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

rectilinear.vtk

Sphere Dataset

Built-in PolyData Surface Mesh

load_sphere()

球plyメッシュをロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

840

N Points

422

Length

4.38e+02

N Arrays

0

File Info

File Size

16.2 KB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

sphere.ply

Sphere Vectors Dataset

Built-in PolyData Surface Mesh

load_sphere_vectors()

ノードに定義された渦巻き状のベクトルフィールドを持つ球体の例を作成します．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

1 680

N Points

842

Length

1.09e+01

N Arrays

2

File Info

Reader

None

Spline Dataset

Built-in PolyData

load_spline()

スプラインメッシュの例を読み込みます．

Dataset Info

Data Type

PolyData

Cell Type

POLY_LINE

N Cells

1

N Points

1 000

Length

1.23e+01

N Arrays

1

File Info

Reader

None

Structured Dataset

Built-in StructuredGrid

load_structured()

シンプルなStructuredGridを読み込みます．

Dataset Info

Data Type

StructuredGrid

Cell Type

QUAD

N Cells

6 241

N Points

6 400

Length

2.80e+01

Dimensions

80, 80, 1

N Arrays

0

File Info

Reader

None

Tetbeam Dataset

Built-in UnstructuredGrid

load_tetbeam()

4面体セルのみを含みますサンプルUnstructuredGridをロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

TETRA

N Cells

200

N Points

99

Length

5.20e+00

N Arrays

1

File Info

Reader

None

Uniform Dataset

Built-in ImageData 3D Volume

load_uniform()

サンプルのユニフォームグリッドを読み込みます．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

729

N Points

1 000

Length

1.56e+01

Dimensions

10, 10, 10

Spacing

1.0, 1.0, 1.0

N Arrays

2

File Info

File Size

14.1 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

uniform.vtk

ダウンロード

Datasets from the downloads module.

Section Badge:

Downloads

Dataset Count:

176

3gqp Dataset

Downloads PolyData

download_3gqp()

Download a 3GQP dataset.

Dataset Info

Data Type

PolyData

Cell Type

LINE

N Cells

4 722

N Points

4 793

Length

1.14e+02

N Arrays

11

File Info

File Size

446.6 KB

Num Files

1

File Ext

.pdb

Reader

PDBReader

Data Source

3GQP.pdb

Action Figure Dataset

Downloads PolyData Surface Mesh

download_action_figure()

アクションフィギュアのダウンロードスキャン．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

31 421

N Points

15 713

Length

1.67e+02

N Arrays

1

File Info

File Size

1.5 MB

Num Files

1

File Ext

.obj

Reader

OBJReader

Data Source

tigerfighter_decimated.obj

Aero Bracket Dataset

Downloads UnstructuredGrid

download_aero_bracket()

エアロブラケットの有限要素法解をダウンロードできます．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

QUADRATIC_TETRA

N Cells

117 292

N Points

187 037

Length

1.46e-01

N Arrays

3

File Info

File Size

14.7 MB

Num Files

1

File Ext

.vtu

Reader

XMLUnstructuredGridReader

See also Notch Stress Dataset, Notch Displacement Dataset, Fea Bracket Dataset, Fea Hertzian Contact Cylinder Dataset

Data Source

fea/aero_bracket/aero_bracket.vtu

Angular Sector Dataset

Downloads UnstructuredGrid

download_angular_sector()

角度セクターのデータセットをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

HEXAHEDRON

PYRAMID

N Cells

7 776

N Points

10 141

Length

2.56e-01

N Arrays

2

File Info

File Size

728.6 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

AngularSector.vtk

Antarctica Velocity Dataset

Downloads PolyData Surface Mesh

download_antarctica_velocity()

Antarcticaの速度シミュレーション結果をダウンロードできます．

Dataset Info

Data Type

PolyData

Cell Type

LINE

TRIANGLE

N Cells

1 106 948

N Points

557 470

Length

6.84e+06

N Arrays

2

File Info

File Size

33.4 MB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

See also メッシュ領域間でフィールドを比較

Data Source

antarctica_velocity.vtp

Armadillo Dataset

Downloads PolyData Surface Mesh

download_armadillo()

armadilloデータセットのダウンロード

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

345 944

N Points

172 974

Length

2.29e+02

N Arrays

0

File Info

File Size

6.6 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

Armadillo.ply

Backward Facing Step Dataset

Downloads UnstructuredGrid MultiBlock Homogeneous

download_backward_facing_step()

流体シミュレーションのアンサイトゴールドケースをダウンロードできます．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

QUAD

HEXAHEDRON

Length

1.01e+02

File Info

File Size

998 B

Num Files

1

File Ext

.case

Reader

EnSightReader

Data Source

EnSight.zip

Beach Dataset

Downloads ImageData 2D Image

download_beach()

ビーチのNRRD画像をダウンロード

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

9 801

N Points

10 000

Length

1.40e+02

Dimensions

100, 100, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

30.2 KB

Num Files

1

File Ext

.nrrd

Reader

NRRDReader

Data Source

beach.nrrd

Biplane Dataset

Downloads UnstructuredGrid MultiBlock Homogeneous

download_biplane()

Download biplane dataset.

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

LINE

TRIANGLE

QUAD

TETRA

HEXAHEDRON

QUADRATIC_TRIANGLE

QUADRATIC_QUAD

QUADRATIC_TETRA

QUADRATIC_HEXAHEDRON

Length

1.18e+01

File Info

File Size

348.8 KB

Num Files

1

File Ext

.exo

Reader

ExodusIIReader

Data Source

biplane_rms_pressure_bs.exo

Bird Dataset

Downloads ImageData 2D Image

download_bird()

鳥のデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

155 837

N Points

156 636

Length

5.70e+02

Dimensions

458, 342, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

31.9 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Bird Texture Dataset

Data Source


Bird Bath Dataset

Downloads PolyData Surface Mesh

download_bird_bath()

Ivan Nikolovが作成したバードバスのスキャンをダウンロードすることができます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

35 079

N Points

18 796

Length

4.57e+02

N Arrays

0

File Info

File Size

699.8 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

ivan-nikolov/birdBath_decimated.vtp

Bird Texture Dataset

Downloads Texture

download_bird_texture()

鳥のテクスチャをダウンロード

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

458, 342

File Info

File Size

31.9 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Bird Dataset

Data Source


Black Vase Dataset

Downloads PolyData Surface Mesh

download_black_vase()

Ivan Nikolovが作成した黒い花瓶スキャンをダウンロードすることができます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

31 366

N Points

17 337

Length

5.39e+02

N Arrays

0

File Info

File Size

624.1 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

ivan-nikolov/blackVase_decimated.vtp

Blood Vessels Dataset

Downloads UnstructuredGrid

download_blood_vessels()

血管の分岐を表すデータをダウンロードできます．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

VOXEL

N Cells

39 353

N Points

48 823

Length

1.44e+02

N Arrays

5

File Info

File Size

786 B

Num Files

1

File Ext

.pvtu

Reader

XMLPUnstructuredGridReader

Data Source

pvtu_blood_vessels/blood_vessels.zip

Blow Dataset

Downloads UnstructuredGrid

download_blow()

blowデータセットをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

TRIANGLE

QUAD

N Cells

1 057

N Points

687

Length

5.41e+01

N Arrays

20

File Info

File Size

307.2 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

blow.vtk

Bolt Nut Dataset

Downloads ImageData MultiBlock 3D Volume Homogeneous

download_bolt_nut()

ボルトナットのデータセットをダウンロードします．

Dataset Info

Data Type

MultiBlock

ImageData

Cell Type

VOXEL

Length

1.54e+02

File Info

File Size

132.8 KB

Num Files

2

File Ext

.slc

Reader

SLCReader

See also ボリュームレンダリング

Data Source

bolt.slc nut.slc

Brain Dataset

Downloads ImageData 3D Volume Medical

download_brain()

脳のデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

6 998 400

N Points

7 109 137

Length

3.34e+02

Dimensions

181, 217, 181

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

7.1 MB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

See also Brain Atlas With Sides Dataset

Data Source

brain.vtk

Brain Atlas With Sides Dataset

Downloads ImageData 3D Volume Medical

download_brain_atlas_with_sides()

右左のラベルが付いた平均化された脳の画像をダウンロードすることができます．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

874 800

N Points

902 629

Length

3.34e+02

Dimensions

91, 109, 91

Spacing

2.0, 2.0, 2.0

N Arrays

1

File Info

File Size

531.1 KB

Num Files

1

File Ext

.nii.gz

Reader

NIFTIReader

See also Brain Dataset

Data Source

avg152T1_RL_nifti.nii.gz

Bunny Dataset

Downloads PolyData Surface Mesh

download_bunny()

ウサギのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

69 451

N Points

35 947

Length

2.50e-01

N Arrays

0

File Info

File Size

3.0 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

See also Bunny Coarse Dataset

Data Source

bunny.ply

Bunny Coarse Dataset

Downloads PolyData Surface Mesh

download_bunny_coarse()

粗いウサギのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

1 000

N Points

872

Length

5.00e-01

N Arrays

1

File Info

File Size

33.4 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

See also Bunny Dataset

Data Source

Bunny.vtp

Cad Model Dataset

Downloads PolyData Surface Mesh

download_cad_model()

cadのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

11 036

N Points

5 500

Length

1.76e+01

N Arrays

0

File Info

File Size

551.9 KB

Num Files

1

File Ext

.stl

Reader

STLReader

See also ファイルからロードおよびプロットする

Data Source

42400-IDGH.stl

Cad Model Case Dataset

Downloads PolyData Surface Mesh

download_cad_model_case()

Raspberry PI 4の筐体CADモデルをダウンロードできます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

15 446

N Points

7 677

Length

1.74e+02

N Arrays

2

File Info

File Size

374.9 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

cad/4947746/Vented_Rear_Case_With_Pi_Supports.vtp

Caffeine Dataset

Downloads PolyData

download_caffeine()

Download the caffeine molecule.

Dataset Info

Data Type

PolyData

Cell Type

LINE

N Cells

25

N Points

24

Length

1.09e+01

N Arrays

11

File Info

File Size

2.0 KB

Num Files

1

File Ext

.pdb

Reader

PDBReader

Data Source

caffeine.pdb

Cake Easy Dataset

Downloads ImageData 2D Image

download_cake_easy()

ケーキのデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

9 801

N Points

10 000

Length

1.40e+02

Dimensions

100, 100, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

9.1 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Cake Easy Texture Dataset

Data Source


Cake Easy Texture Dataset

Downloads Texture

download_cake_easy_texture()

ケーキテクスチャをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

100, 100

File Info

File Size

9.1 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Cake Easy Dataset

Data Source


Can Crushed Hdf Dataset

Downloads UnstructuredGrid

download_can_crushed_hdf()

粉砕缶のデータセットをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

HEXAHEDRON

N Cells

4 800

N Points

6 724

Length

2.09e+01

N Arrays

16

File Info

File Size

1.1 MB

Num Files

1

File Ext

.hdf

Reader

HDFReader

See also Can Crushed Vtu Dataset

Data Source

hdf/can-vtu.hdf

Can Crushed Vtu Dataset

Downloads UnstructuredGrid

download_can_crushed_vtu()

粉砕缶のデータセットをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

HEXAHEDRON

N Cells

4 800

N Points

6 724

Length

2.09e+01

N Arrays

16

File Info

File Size

1.1 MB

Num Files

1

File Ext

.vtu

Reader

XMLUnstructuredGridReader

See also Can Crushed Hdf Dataset

Data Source

can.vtu

Carburetor Dataset

Downloads PolyData Surface Mesh

download_carburetor()

キャブレターのスキャンデータをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

500 000

N Points

251 320

Length

3.27e+02

N Arrays

0

File Info

File Size

9.5 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

carburetor.ply

Carotid Dataset

Downloads ImageData 3D Volume Medical

download_carotid()

頚動脈のデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

158 400

N Points

167 580

Length

9.93e+01

Dimensions

76, 49, 45

Spacing

1.0, 1.0, 1.0

N Arrays

2

File Info

File Size

2.7 MB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

carotid.vtk

Cavity Dataset

Downloads PolyData UnstructuredGrid MultiBlock Surface Mesh Heterogeneous

download_cavity()

キャビティのOpenFOAMの例をダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

PolyData

Cell Type

QUAD

HEXAHEDRON

Length

1.42e-01

File Info

File Size

0 B

Num Files

1

File Ext

.foam

Reader

POpenFOAMReader

See also OpenFOAMデータのプロット

Data Source

OpenFOAM.zip

Cells Nd Dataset

Downloads UnstructuredGrid

download_cells_nd()

AVS UCDのデータセットの例をダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

TRIANGLE

QUAD

N Cells

12

N Points

13

Length

5.66e+00

N Arrays

4

File Info

File Size

1.2 KB

Num Files

1

File Ext

.inp

Reader

AVSucdReader

Data Source

cellsnd.ascii.inp

Cgns Multi Dataset

Downloads StructuredGrid MultiBlock Homogeneous

download_cgns_multi()

セルセンター解法によるマルチエレメントエアフォイルをダウンロードできます．

Dataset Info

Data Type

MultiBlock

StructuredGrid

Cell Type

HEXAHEDRON

Length

2.83e+01

File Info

File Size

4.1 MB

Num Files

1

File Ext

.cgns

Reader

CGNSReader

See also Cgns Structured Dataset

Data Source

cgns/multi.cgns

Cgns Structured Dataset

Downloads StructuredGrid MultiBlock Homogeneous

download_cgns_structured()

構造CGNSのデータセットメッシュをダウンロード．

Dataset Info

Data Type

MultiBlock

StructuredGrid

Cell Type

QUAD

HEXAHEDRON

Length

2.62e+00

File Info

File Size

1.0 MB

Num Files

1

File Ext

.cgns

Reader

CGNSReader

See also Cgns Multi Dataset

Data Source

cgns/sqnz_s.adf.cgns

Chest Dataset

Downloads ImageData 3D Volume Medical

download_chest()

胸部のデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

4 700 178

N Points

4 980 736

Length

3.39e+02

Dimensions

512, 512, 19

Spacing

4.69e-01, 4.69e-01, 5.00e-01

N Arrays

1

File Info

File Size

6.1 MB

Num Files

1

File Ext

.mha

Reader

MetaImageReader

See also ボリュームレンダリング

Data Source

MetaIO/ChestCT-SHORT.mha

Cloud Dark Matter Dataset

Downloads PointSet Point Cloud

download_cloud_dark_matter()

ダークマターハローのシミュレーションから粒子をダウンロードします．

Dataset Info

Data Type

PointSet

Cell Type

None

N Cells

0

N Points

32 314

Length

8.97e+00

N Arrays

0

File Info

File Size

387.9 KB

Num Files

1

File Ext

.npy

Reader

None

See also Cloud Dark Matter Dense Dataset, 点群のプロット

Data Source

point-clouds/findus23/halo_low_res.npy

Cloud Dark Matter Dense Dataset

Downloads PointSet Point Cloud

download_cloud_dark_matter_dense()

ダークマターハローのシミュレーションから粒子をダウンロードします．

Dataset Info

Data Type

PointSet

Cell Type

None

N Cells

0

N Points

2 062 256

Length

8.77e+00

N Arrays

0

File Info

File Size

24.7 MB

Num Files

1

File Ext

.npy

Reader

None

See also Cloud Dark Matter Dataset, 点群のプロット

Data Source

point-clouds/findus23/halo_high_res.npy

Clown Dataset

Downloads PolyData Surface Mesh

download_clown()

ピエロのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

802

N Points

631

Length

2.22e+00

N Arrays

3

File Info

File Size

29.4 KB

Num Files

1

File Ext

.facet

Reader

FacetReader

Data Source

clown.facet

Coastlines Dataset

Downloads PolyData

download_coastlines()

海岸線データセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

LINE

N Cells

11 443

N Points

11 459

Length

3.42e+00

N Arrays

0

File Info

File Size

221.1 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

EarthModels/Coastlines_Los_Alamos.vtp

Coil Magnetic Field Dataset

Downloads ImageData 3D Volume

download_coil_magnetic_field()

コイルの磁界をダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

512 000

N Points

531 441

Length

1.39e+02

Dimensions

81, 81, 81

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

9.0 MB

Num Files

1

File Ext

.vti

Reader

XMLImageDataReader

See also 磁場をプロットする

Data Source

magpylib/coil_field.vti

Cow Dataset

Downloads PolyData Surface Mesh

download_cow()

牛のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

POLYGON

QUAD

N Cells

3 263

N Points

2 903

Length

1.27e+01

N Arrays

0

File Info

File Size

60.4 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

See also Cow Head Dataset

Data Source

cow.vtp

Cow Head Dataset

Downloads PolyData Surface Mesh

download_cow_head()

牛頭のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

QUAD

N Cells

7 994

N Points

4 074

Length

4.61e+00

N Arrays

1

File Info

File Size

281.4 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

See also Cow Dataset

Data Source

cowHead.vtp

Crater Imagery Dataset

Downloads Texture

download_crater_imagery()

クレーターテクスチャをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

1535, 1772

File Info

File Size

8.2 MB

Num Files

1

File Ext

.tif

Reader

TIFFReader

See also 地形図

Data Source

BJ34_GeoTifv1-04_crater_clip.tif

Crater Topo Dataset

Downloads ImageData 2D Image

download_crater_topo()

クレーターのデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

1 677 401

N Points

1 680 000

Length

2.76e+04

Dimensions

1400, 1200, 1

Spacing

15.0, 15.0, 0.0

N Arrays

1

File Info

File Size

13.4 MB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

Ruapehu_mag_dem_15m_NZTM.vtk

Cubemap Park Dataset

Downloads Texture Cubemap

download_cubemap_park()

公園のキューブマップをダウンロードできます．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

512, 512

File Info

File Size

606.1 KB

Num Files

6

File Ext

.jpg

Reader

None

See also Cubemap Space 4k Dataset, Cubemap Space 16k Dataset, Sky Box Cube Map Dataset

Data Source

cubemap_park/cubemap_park.zip

Cubemap Space 16k Dataset

Downloads Texture Cubemap

download_cubemap_space_16k()

16k宇宙キューブマップをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

4096, 4096

File Info

File Size

39.5 MB

Num Files

6

File Ext

.jpg

Reader

None

See also Cubemap Space 4k Dataset, Cubemap Park Dataset, Sky Box Cube Map Dataset

Data Source

cubemap_space/16k.zip

Cubemap Space 4k Dataset

Downloads Texture Cubemap

download_cubemap_space_4k()

4k宇宙キューブマップをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

1024, 1024

File Info

File Size

1.5 MB

Num Files

6

File Ext

.jpg

Reader

None

See also Cubemap Space 16k Dataset, Cubemap Park Dataset, Sky Box Cube Map Dataset

Data Source

cubemap_space/4k.zip

Cylinder Crossflow Dataset

Downloads UnstructuredGrid MultiBlock Homogeneous

download_cylinder_crossflow()

Re=35のクロスフローにおけるシリンダーのCFD結果をダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

LINE

TRIANGLE

QUAD

Length

1.68e+01

File Info

File Size

734.6 KB

Num Files

5

File Ext

.case,

.geo,

.scl1,

.scl2,

.vel

Reader

EnSightReader

See also 2D流線

Data Source

EnSight/CylinderCrossflow/cylinder_Re35.case EnSight/CylinderCrossflow/cylinder_Re35.geo EnSight/CylinderCrossflow/cylinder_Re35.scl1 EnSight/CylinderCrossflow/cylinder_Re35.scl2 EnSight/CylinderCrossflow/cylinder_Re35.vel

Damavand Volcano Dataset

Downloads ImageData 3D Volume

download_damavand_volcano()

Damavand火山のモデルをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

11 003 760

N Points

11 156 040

Length

3.68e+05

Dimensions

280, 233, 171

Spacing

1.00e+03, 1.00e+03, 3.54e+02

N Arrays

1

File Info

File Size

44.6 MB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

See also ボリュームレンダリング

Data Source

damavand-volcano.vtk

Delaunay Example Dataset

Downloads PolyData Surface Mesh

download_delaunay_example()

Delaunayの例のためのポイントセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

374

N Points

226

Length

9.42e+02

N Arrays

0

File Info

File Size

10.8 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

250.vtk

Dicom Stack Dataset

Downloads ImageData 3D Volume Medical

download_dicom_stack()

TCIADICOMスタックボリュームをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

522 242

N Points

786 432

Length

7.06e+02

Dimensions

512, 512, 3

Spacing

9.77e-01, 9.77e-01, 1.20e+01

N Arrays

1

File Info

File Size

1.6 MB

Num Files

3

File Ext

.dcm

Reader

DICOMReader

Data Source

DICOM_Stack/data.zip

Dikhololo Night Dataset

Downloads Texture

download_dikhololo_night()

dikholo night hdr texture example をダウンロードして読み込みます．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

4096, 2048

File Info

File Size

28.4 MB

Num Files

1

File Ext

.hdr

Reader

HDRReader

See also Parched Canal 4k Dataset, glTFファイルの取り扱いについて

Data Source

dikhololo_night_4k.hdr

Disc Quads Dataset

Downloads UnstructuredGrid

download_disc_quads()

disc quadsのデータセットをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

BIQUADRATIC_QUAD

N Cells

376

N Points

1 569

Length

1.41e-01

N Arrays

3

File Info

File Size

60.2 KB

Num Files

1

File Ext

.vtu

Reader

XMLUnstructuredGridReader

Data Source

Disc_BiQuadraticQuads_0_0.vtu

Dolfin Dataset

Downloads UnstructuredGrid

download_dolfin()

ドルフィンメッシュをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

TRIANGLE

N Cells

5 400

N Points

2 868

Length

1.41e+00

N Arrays

0

File Info

File Size

478.3 KB

Num Files

1

File Ext

.xml

Reader

None

See also FEniCS/Dolfinメッシュを確認．

Data Source

dolfin_fine.xml

Doorman Dataset

Downloads PolyData Surface Mesh

download_doorman()

ドアマンデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

9 783

N Points

29 349

Length

7.25e+00

N Arrays

8

File Info

File Size

2.6 MB

Num Files

9

File Ext

.mtl,

.obj,

.png

Reader

OBJReader

See also ファイルからロードおよびプロットする

Data Source

doorman/doorman.obj doorman/doorman.mtl doorman/t_doorMan_d.png doorman/t_doorMan_n.png doorman/t_doorMan_s.png doorman/t_doorMan_teeth_d.png doorman/t_doorMan_teeth_n.png doorman/t_eye_d.png doorman/t_eye_n.png

Dragon Dataset

Downloads PolyData Surface Mesh

download_dragon()

ドラゴンのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

871 414

N Points

437 645

Length

2.67e-01

N Arrays

0

File Info

File Size

33.8 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

dragon.ply

Drill Dataset

Downloads PolyData Surface Mesh

download_drill()

電動ドリルのスキャンデータをダウンロードできます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

250 000

N Points

750 000

Length

4.26e+02

N Arrays

6

File Info

File Size

23.2 MB

Num Files

1

File Ext

.obj

Reader

OBJReader

Data Source

drill.obj

Dual Sphere Animation Dataset

Downloads PolyData MultiBlock Surface Mesh Homogeneous

download_dual_sphere_animation()

球体2個分のPVDファイルをダウンロードします．

Dataset Info

Data Type

MultiBlock

PolyData

Cell Type

TRIANGLE

Length

1.96e+00

File Info

File Size

2.5 KB

Num Files

1

File Ext

.pvd

Reader

PVDReader

See also Single Sphere Animation Dataset

Data Source

PVD/paraview/dualSphereAnimation.zip

E07733s002i009 Dataset

Downloads ImageData 2D Image

download_e07733s002i009()

Download a e07733s002i009 image.

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

65 025

N Points

65 536

Length

3.38e+02

Dimensions

256, 256, 1

Spacing

9.38e-01, 9.38e-01, 3.50e+00

N Arrays

1

File Info

File Size

83.2 KB

Num Files

1

File Ext

.mr

Reader

GESignaReader

Data Source

E07733S002I009.MR

Electronics Cooling Dataset

Downloads PolyData UnstructuredGrid MultiBlock Surface Mesh Heterogeneous

download_electronics_cooling()

電子機器冷却のサンプルデータセットをダウンロードします．

Dataset Info

Data Type

MultiBlock

PolyData

UnstructuredGrid

Cell Type

TRIANGLE

QUAD

TETRA

HEXAHEDRON

WEDGE

PYRAMID

Length

2.64e-01

File Info

File Size

67.9 MB

Num Files

2

File Ext

.vtp,

.vtu

Reader

XMLPolyDataReader

XMLUnstructuredGridReader

See also 電子機器の冷却CFD

Data Source

fvm/cooling_electronics/datasets.zip

Embryo Dataset

Downloads ImageData 3D Volume Medical

download_embryo()

胎児のボリュームをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

16 581 375

N Points

16 777 216

Length

4.42e+02

Dimensions

256, 256, 256

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

3.9 MB

Num Files

1

File Ext

.slc

Reader

SLCReader

Data Source

embryo.slc

Emoji Dataset

Downloads ImageData 2D Image

download_emoji()

絵文字のデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

14 605

N Points

14 848

Length

1.71e+02

Dimensions

128, 116, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

9.5 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Emoji Texture Dataset

Data Source


Emoji Texture Dataset

Downloads Texture

download_emoji_texture()

emojiテクスチャをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

128, 116

File Info

File Size

9.5 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Emoji Dataset

Data Source


Exodus Dataset

Downloads UnstructuredGrid MultiBlock Homogeneous

download_exodus()

ExodusIIのデータファイルの例です．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

TRIANGLE

QUAD

WEDGE

Length

1.45e+01

File Info

File Size

69.7 KB

Num Files

1

File Ext

.exo

Reader

ExodusIIReader

Data Source

mesh_fs8.exo

Face Dataset

Downloads PolyData Surface Mesh

download_face()

顔データセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

4 224

N Points

2 205

Length

2.23e-01

N Arrays

1

File Info

File Size

174.9 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

See also Face2 Dataset, 間引き

Data Source

fran_cut.vtk

Face2 Dataset

Downloads PolyData Surface Mesh

download_face2()

男性の顔のスキャンしたものをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

223 987

N Points

112 862

Length

9.12e+00

N Arrays

0

File Info

File Size

11.2 MB

Num Files

1

File Ext

.stl

Reader

STLReader

See also Face Dataset

Data Source

man_face.stl

Faults Dataset

Downloads PolyData

download_faults()

faultsデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

POLY_LINE

N Cells

78

N Points

1 933

Length

1.64e+04

N Arrays

0

File Info

File Size

31.9 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

faults.vtk

Fea Bracket Dataset

Downloads UnstructuredGrid

download_fea_bracket()

ブラケットの有限要素法による解をダウンロードできます．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

QUADRATIC_TETRA

N Cells

56 786

N Points

102 578

Length

6.52e+00

N Arrays

1

File Info

File Size

3.0 MB

Num Files

1

File Ext

.vtu

Reader

XMLUnstructuredGridReader

See also Fea Hertzian Contact Cylinder Dataset, Aero Bracket Dataset, Notch Stress Dataset, Notch Displacement Dataset

Data Source

fea/kiefer/dataset.vtu

Fea Hertzian Contact Cylinder Dataset

Downloads UnstructuredGrid

download_fea_hertzian_contact_cylinder()

Hertzの接触有限要素法の解をダウンロードする．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

TETRA

N Cells

132 258

N Points

34 185

Length

3.61e-01

N Arrays

16

File Info

File Size

2.5 KB

Num Files

1

File Ext

.pvtu

Reader

XMLPUnstructuredGridReader

See also Hertの接触応力を可視化する, Fea Bracket Dataset, Aero Bracket Dataset, Notch Stress Dataset, Notch Displacement Dataset

Data Source

fea/hertzian_contact_cylinder/Hertzian_cylinder_on_plate.zip

Filled Contours Dataset

Downloads PolyData Surface Mesh

download_filled_contours()

塗りつぶした輪郭のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

QUAD

N Cells

24

N Points

39

Length

1.22e+01

N Arrays

1

File Info

File Size

3.1 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

filledContours.vtp

Foot Bones Dataset

Downloads PolyData Surface Mesh Medical

download_foot_bones()

足の骨のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

4 204

N Points

2 154

Length

1.26e+01

N Arrays

0

File Info

File Size

135.9 KB

Num Files

1

File Ext

.ply

Reader

PLYReader

See also サーフェスメッシュをボクセル化する, Compare threshold filters

Data Source

fsu/footbones.ply

Frog Dataset

Downloads ImageData 3D Volume Medical

download_frog()

カエルのデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

31 594 185

N Points

31 960 000

Length

7.14e+02

Dimensions

500, 470, 136

Spacing

1.0, 1.0, 1.5

N Arrays

1

File Info

File Size

5.2 MB

Num Files

2

File Ext

.mhd,

.zraw

Reader

MetaImageReader

See also Frog Tissues Dataset, ボリュームレンダリング

Data Source

froggy/frog.mhd froggy/frog.zraw

Full Head Dataset

Downloads ImageData 3D Volume

download_full_head()

Download the full head image.

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

6 047 325

N Points

6 160 384

Length

3.66e+02

Dimensions

256, 256, 94

Spacing

9.38e-01, 9.38e-01, 1.50e+00

N Arrays

1

File Info

File Size

6.6 MB

Num Files

2

File Ext

.mhd,

.raw.gz

Reader

MetaImageReader

Data Source

FullHead.mhd FullHead.raw.gz

Gears Dataset

Downloads PolyData Surface Mesh

download_gears()

歯車データセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

19 426

N Points

9 723

Length

7.46e+01

N Arrays

0

File Info

File Size

3.7 MB

Num Files

1

File Ext

.stl

Reader

STLReader

Data Source

gears.stl

Gif Simple Dataset

Downloads ImageData 2D Image

download_gif_simple()

シンプルな3フレームGIFをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

59 501

N Points

60 000

Length

3.59e+02

Dimensions

300, 200, 1

Spacing

1.0, 1.0, 1.0

N Arrays

3

File Info

File Size

8.6 KB

Num Files

1

File Ext

.gif

Reader

GIFReader

Data Source

gifs/sample.gif

Gourds Dataset

Downloads ImageData 2D Image

download_gourds()

gourdsデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

306 081

N Points

307 200

Length

7.99e+02

Dimensions

640, 480, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

525.5 KB

Num Files

1

File Ext

.png

Reader

PNGReader

See also Gourds Pnm Dataset, Gourds Texture Dataset, Gaussianスムージング

Data Source


Gourds Pnm Dataset

Downloads ImageData 2D Image

download_gourds_pnm()

pnmファイルからgourdsデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

306 081

N Points

307 200

Length

7.99e+02

Dimensions

640, 480, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

921.6 KB

Num Files

1

File Ext

.pnm

Reader

PNMReader

See also Gourds Dataset, Gourds Texture Dataset

Data Source

Gourds.pnm

Gourds Texture Dataset

Downloads Texture

download_gourds_texture()

ゴードのテクスチャをダウンロード

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

640, 480

File Info

File Size

525.5 KB

Num Files

1

File Ext

.png

Reader

PNGReader

See also Gourds Dataset, Gourds Pnm Dataset

Data Source


Gpr Data Array Dataset

Downloads Misc

download_gpr_data_array()

GPRのサンプルデータ配列をダウンロードできます．

Dataset Info

Data Type

ndarray

Cell Type

None

File Info

File Size

34.4 MB

Num Files

1

File Ext

.npy

Reader

None

See also Gpr Path Dataset, 線分から2 Dサーフェスをまとう

Data Source

gpr-example/data.npy

Gpr Path Dataset

Downloads PolyData Point Cloud

download_gpr_path()

GPRのサンプルパスをダウンロードできます．

Dataset Info

Data Type

PolyData

Cell Type

VERTEX

N Cells

1 835

N Points

1 835

Length

3.07e+03

N Arrays

0

File Info

File Size

137.6 KB

Num Files

1

File Ext

.txt

Reader

None

See also Gpr Data Array Dataset, 線分から2 Dサーフェスをまとう

Data Source

gpr-example/path.txt

Great White Shark Dataset

Downloads PolyData Surface Mesh

download_great_white_shark()

Download great white shark dataset.

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

6 264

N Points

3 155

Length

2.76e+01

N Arrays

0

File Info

File Size

313.3 KB

Num Files

1

File Ext

.stl

Reader

STLReader

See also Shark Dataset, Grey Nurse Shark Dataset

Data Source

great_white_shark/greatWhite.stl

Grey Nurse Shark Dataset

Downloads PolyData Surface Mesh

download_grey_nurse_shark()

Download grey nurse shark dataset.

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

49 702

N Points

25 057

Length

2.69e+02

N Arrays

0

File Info

File Size

2.5 MB

Num Files

1

File Ext

.stl

Reader

STLReader

See also Shark Dataset, Great White Shark Dataset

Data Source

grey_nurse_shark/Grey_Nurse_Shark.stl

Guitar Dataset

Downloads PolyData Surface Mesh

download_guitar()

ギターのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

8 660

N Points

4 500

Length

5.25e+02

N Arrays

0

File Info

File Size

282.1 KB

Num Files

1

File Ext

.ply

Reader

PLYReader

See also Trumpet Dataset

Data Source

fsu/stratocaster.ply

Head Dataset

Downloads ImageData 3D Volume Medical

download_head()

頭のデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

117 547

N Points

124 992

Length

3.49e+02

Dimensions

48, 62, 42

Spacing

4.0, 4.0, 4.0

N Arrays

1

File Info

File Size

125.2 KB

Num Files

2

File Ext

.mhd,

.raw

Reader

MetaImageReader

See also Head 2 Dataset, ボリュームレンダリング

Data Source

HeadMRVolume.mhd HeadMRVolume.raw

Head 2 Dataset

Downloads ImageData 3D Volume Medical

download_head_2()

頭のデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

6 047 325

N Points

6 160 384

Length

4.06e+02

Dimensions

256, 256, 94

Spacing

1.0, 1.0, 2.0

N Arrays

1

File Info

File Size

8.8 MB

Num Files

1

File Ext

.vti

Reader

XMLImageDataReader

See also Head Dataset

Data Source

head.vti

Headsq Dataset

Downloads ImageData 3D Volume

download_headsq()

Download the headsq dataset.

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

365 148

N Points

380 928

Length

3.17e+02

Dimensions

64, 64, 93

Spacing

3.2, 3.2, 1.5

N Arrays

1

File Info

File Size

762.0 KB

Num Files

94

File Ext

.1,

.10,

.11,

...,

.92,

.93,

.nhdr

Reader

NRRDReader

Data Source

headsq/quarter.nhdr headsq/quarter.1 headsq/quarter.2 headsq/quarter.3 headsq/quarter.4 headsq/quarter.5 headsq/quarter.6 headsq/quarter.7 headsq/quarter.8 headsq/quarter.9 headsq/quarter.10 headsq/quarter.11 headsq/quarter.12 headsq/quarter.13 headsq/quarter.14 headsq/quarter.15 headsq/quarter.16 headsq/quarter.17 headsq/quarter.18 headsq/quarter.19 headsq/quarter.20 headsq/quarter.21 headsq/quarter.22 headsq/quarter.23 headsq/quarter.24 headsq/quarter.25 headsq/quarter.26 headsq/quarter.27 headsq/quarter.28 headsq/quarter.29 headsq/quarter.30 headsq/quarter.31 headsq/quarter.32 headsq/quarter.33 headsq/quarter.34 headsq/quarter.35 headsq/quarter.36 headsq/quarter.37 headsq/quarter.38 headsq/quarter.39 headsq/quarter.40 headsq/quarter.41 headsq/quarter.42 headsq/quarter.43 headsq/quarter.44 headsq/quarter.45 headsq/quarter.46 headsq/quarter.47 headsq/quarter.48 headsq/quarter.49 headsq/quarter.50 headsq/quarter.51 headsq/quarter.52 headsq/quarter.53 headsq/quarter.54 headsq/quarter.55 headsq/quarter.56 headsq/quarter.57 headsq/quarter.58 headsq/quarter.59 headsq/quarter.60 headsq/quarter.61 headsq/quarter.62 headsq/quarter.63 headsq/quarter.64 headsq/quarter.65 headsq/quarter.66 headsq/quarter.67 headsq/quarter.68 headsq/quarter.69 headsq/quarter.70 headsq/quarter.71 headsq/quarter.72 headsq/quarter.73 headsq/quarter.74 headsq/quarter.75 headsq/quarter.76 headsq/quarter.77 headsq/quarter.78 headsq/quarter.79 headsq/quarter.80 headsq/quarter.81 headsq/quarter.82 headsq/quarter.83 headsq/quarter.84 headsq/quarter.85 headsq/quarter.86 headsq/quarter.87 headsq/quarter.88 headsq/quarter.89 headsq/quarter.90 headsq/quarter.91 headsq/quarter.92 headsq/quarter.93

Honolulu Dataset

Downloads PolyData Surface Mesh

download_honolulu()

Honoluluデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

403 680

N Points

202 740

Length

1.91e+04

N Arrays

0

File Info

File Size

16.1 MB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

honolulu.vtk

Horse Dataset

Downloads PolyData Surface Mesh

download_horse()

馬のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

67 868

N Points

33 936

Length

2.52e-01

N Arrays

0

File Info

File Size

736.6 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

See also Horse Points Dataset, メッシュライティングの無効化

Data Source

horse.vtp

Horse Points Dataset

Downloads PolyData Point Cloud

download_horse_points()

馬のポイントデータセットのダウンロード．

Dataset Info

Data Type

PolyData

Cell Type

VERTEX

N Cells

128 449

N Points

128 449

Length

2.53e-01

N Arrays

2

File Info

File Size

4.6 MB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

See also Horse Dataset

Data Source

horsePoints.vtp

Human Dataset

Downloads PolyData Surface Mesh

download_human()

人間のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

34 660

N Points

17 665

Length

2.03e+02

N Arrays

1

File Info

File Size

1.7 MB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

Human.vtp

Iron Protein Dataset

Downloads ImageData 3D Volume

download_iron_protein()

鉄タンパク質のデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

300 763

N Points

314 432

Length

1.16e+02

Dimensions

68, 68, 68

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

314.6 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

ironProt.vtk

Ivan Angel Dataset

Downloads PolyData Surface Mesh

download_ivan_angel()

Ivan Nikolovが作成した天使像スキャンをダウンロードすることができます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

35 804

N Points

18 412

Length

4.12e+02

N Arrays

0

File Info

File Size

546.6 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

ivan-nikolov/Angel_decimated.vtp

Kitchen Dataset

Downloads StructuredGrid

download_kitchen()

速度場を持つキッチンの構造格子をダウンロードします．

Dataset Info

Data Type

StructuredGrid

Cell Type

HEXAHEDRON

N Cells

9 936

N Points

11 424

Length

8.94e+00

Dimensions

28, 24, 17

N Arrays

20

File Info

File Size

3.0 MB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

kitchen.vtk

Knee Dataset

Downloads ImageData 2D Image Medical

download_knee()

kneeのデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

261 121

N Points

262 144

Length

3.11e+02

Dimensions

512, 512, 1

Spacing

4.30e-01, 4.30e-01, 8.00e-01

N Arrays

1

File Info

File Size

526.7 KB

Num Files

1

File Ext

.dcm

Reader

DICOMReader

See also Knee Full Dataset

Data Source

DICOM_KNEE.dcm

Knee Full Dataset

Downloads ImageData 3D Volume Medical

download_knee_full()

膝データセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

10 225 800

N Points

10 368 384

Length

3.07e+02

Dimensions

208, 248, 201

Spacing

7.23e-01, 7.23e-01, 1.00e+00

N Arrays

1

File Info

File Size

9.0 MB

Num Files

1

File Ext

.slc

Reader

SLCReader

See also Knee Dataset

Data Source

vw_knee.slc

Letter A Dataset

Downloads UnstructuredGrid

download_letter_a()

文字aのデータセットをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

TETRA

N Cells

4 802

N Points

1 317

Length

1.15e+00

N Arrays

0

File Info

File Size

147.0 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

See also Letter K Dataset, セルの中心を抽出

Data Source

a_grid.vtk

Letter K Dataset

Downloads PolyData Surface Mesh

download_letter_k()

文字kのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

QUAD

N Cells

245

N Points

166

Length

3.83e+01

N Arrays

0

File Info

File Size

8.3 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

See also Letter A Dataset

Data Source

k.vtk

Lidar Dataset

Downloads PolyData Point Cloud

download_lidar()

ライダーのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

VERTEX

N Cells

3 392 091

N Points

3 392 091

Length

2.64e+02

N Arrays

1

File Info

File Size

37.8 MB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

kafadar-lidar-interp.vtp

Lobster Dataset

Downloads PolyData Surface Mesh

download_lobster()

ロブスターのスキャンデータをダウンロードできます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

249 569

N Points

125 156

Length

4.35e+02

N Arrays

0

File Info

File Size

10.4 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

lobster.ply

Louis Louvre Dataset

Downloads PolyData Surface Mesh

download_louis_louvre()

パリのLouvre美術館のLouis XIV de France像をダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

421 965

N Points

210 873

Length

1.61e+01

N Arrays

1

File Info

File Size

9.7 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

See also 物理ベースのレンダリング

Data Source

louis.ply

Lshape Dataset

Downloads UnstructuredGrid MultiBlock Homogeneous

download_lshape()

LShapeデータセットをEnSightフォーマットでダウンロードできます．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

VERTEX

HEXAHEDRON

Length

2.86e+00

File Info

File Size

10.8 KB

Num Files

3

File Ext

.case,

.geo,

.var

Reader

EnSightReader

Data Source

EnSight/LShape.case EnSight/LShape_geometry.geo EnSight/LShape_displacement.var

Lucy Dataset

Downloads PolyData Surface Mesh

download_lucy()

lucy angelのメッシュをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

99 970

N Points

49 987

Length

1.92e+03

N Arrays

0

File Info

File Size

1.9 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

See also Jupyterノートブックプロット

Data Source

lucy.ply

M4 Total Density Dataset

Downloads ImageData 3D Volume

download_m4_total_density()

Download a total density dataset of the chemistry.

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

15 120

N Points

17 050

Length

4.38e+01

Dimensions

25, 22, 31

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

225.7 KB

Num Files

1

File Ext

.cube

Reader

GaussianCubeReader

Data Source

m4_TotalDensity.cube

Masonry Texture Dataset

Downloads Texture

download_masonry_texture()

masonryテクスチャをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

256, 256

File Info

File Size

66.6 KB

Num Files

1

File Ext

.bmp

Reader

BMPReader

See also テクスチャを適用する

Data Source


Meshio Xdmf Dataset

Downloads UnstructuredGrid MultiBlock Homogeneous

download_meshio_xdmf()

meshioが作成したxdmfファイルをダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

TRIANGLE

Length

1.41e+00

File Info

File Size

12.4 KB

Num Files

2

File Ext

.h5,

.xdmf

Reader

XdmfReader

Data Source

meshio/out.xdmf meshio/out.h5

Model With Variance Dataset

Downloads UnstructuredGrid

download_model_with_variance()

分散付きモデルのデータセットをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

TETRA

N Cells

2 841 790

N Points

551 724

Length

2.36e+04

N Arrays

2

File Info

File Size

34.1 MB

Num Files

1

File Ext

.vtu

Reader

XMLUnstructuredGridReader

See also 不透明度を指定してプロット

Data Source

model_with_variance.vtu

Moonlanding Image Dataset

Downloads ImageData 2D Image

download_moonlanding_image()

月面着陸の画像をダウンロード

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

297 517

N Points

298 620

Length

7.87e+02

Dimensions

630, 474, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

216.5 KB

Num Files

1

File Ext

.png

Reader

PNGReader

See also 高速Fourier変換

Data Source


Motor Dataset

Downloads PolyData Surface Mesh

download_motor()

motorデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

POLYGON

QUAD

N Cells

1 572

N Points

1 710

Length

9.37e-01

N Arrays

0

File Info

File Size

95.3 KB

Num Files

1

File Ext

.g

Reader

BYUReader

Data Source

motor.g

Mount Damavand Dataset

Downloads PolyData Surface Mesh

download_mount_damavand()

ダマーヴァンド山のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

QUAD

N Cells

260 400

N Points

261 426

Length

3.64e+05

N Arrays

1

File Info

File Size

5.9 MB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

AOI.Damavand.32639.vtp

Mug Dataset

Downloads UnstructuredGrid MultiBlock Misc Heterogeneous

download_mug()

mugデータセットをダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

NoneType

Cell Type

QUAD

HEXAHEDRON

Length

8.08e+00

File Info

File Size

1.9 MB

Num Files

1

File Ext

.e

Reader

ExodusIIReader

Data Source

mug.e

Naca Dataset

Downloads StructuredGrid MultiBlock Homogeneous

download_naca()

NACAの翼型データセットをEnSight形式でダウンロードできます．

Dataset Info

Data Type

MultiBlock

StructuredGrid

Cell Type

QUAD

Length

1.89e+02

File Info

File Size

505.8 KB

Num Files

4

File Ext

.case,

.dens_1,

.dens_3,

.geo

Reader

EnSightReader

See also リーダーによるデータの読み込み

Data Source

EnSight/naca.bin.case EnSight/naca.gold.bin.DENS_1 EnSight/naca.gold.bin.DENS_3 EnSight/naca.gold.bin.geo

Nefertiti Dataset

Downloads PolyData Surface Mesh

download_nefertiti()

王妃Nefertitiのメッシュをダウンロード

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

2 018 232

N Points

1 009 118

Length

6.58e+02

N Arrays

0

File Info

File Size

38.3 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

nefertiti.ply.zip

Nek5000 Dataset

Downloads UnstructuredGrid

download_nek5000()

Download 2D nek5000 data example.

Dataset Info

Data Type

UnstructuredGrid

Cell Type

QUAD

N Cells

12 544

N Points

16 384

Length

8.89e+00

N Arrays

3

File Info

File Size

3.6 MB

Num Files

12

File Ext

.f00001,

.f00002,

.f00003,

...,

.f00010,

.f00011,

.nek5000

Reader

Nek5000Reader

Data Source

nek5000/eddy_uv.nek5000 nek5000/eddy_uv0.f00001 nek5000/eddy_uv0.f00002 nek5000/eddy_uv0.f00003 nek5000/eddy_uv0.f00004 nek5000/eddy_uv0.f00005 nek5000/eddy_uv0.f00006 nek5000/eddy_uv0.f00007 nek5000/eddy_uv0.f00008 nek5000/eddy_uv0.f00009 nek5000/eddy_uv0.f00010 nek5000/eddy_uv0.f00011

Notch Displacement Dataset

Downloads UnstructuredGrid

download_notch_displacement()

切り欠きのあるはりのFEA変位結果をダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

QUADRATIC_HEXAHEDRON

QUADRATIC_WEDGE

N Cells

2 192

N Points

12 717

Length

4.12e-01

N Arrays

1

File Info

File Size

697.4 KB

Num Files

1

File Ext

.vtu

Reader

XMLUnstructuredGridReader

See also Notch Stress Dataset, Aero Bracket Dataset, Fea Bracket Dataset, Fea Hertzian Contact Cylinder Dataset

Data Source

notch_disp.vtu

Notch Stress Dataset

Downloads UnstructuredGrid

download_notch_stress()

切り欠きのあるはりのFEA応力結果をダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

HEXAHEDRON

WEDGE

N Cells

2 192

N Points

12 717

Length

4.12e-01

N Arrays

3

File Info

File Size

1.5 MB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

See also Notch Displacement Dataset, Aero Bracket Dataset, Fea Bracket Dataset, Fea Hertzian Contact Cylinder Dataset

Data Source

notch_stress.vtk

Oblique Cone Dataset

Downloads PolyData Surface Mesh

download_oblique_cone()

oblique cone データセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

POLYGON

N Cells

25

N Points

25

Length

4.76e+02

N Arrays

0

File Info

File Size

3.7 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

ObliqueCone.vtp

Office Dataset

Downloads StructuredGrid

download_office()

事務所のデータセットをダウンロードします．

Dataset Info

Data Type

StructuredGrid

Cell Type

HEXAHEDRON

N Cells

7 220

N Points

8 400

Length

6.82e+00

Dimensions

21, 20, 20

N Arrays

2

File Info

File Size

235.4 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

See also 平面とボックスでクリップします

Data Source

office.binary.vtk

Openfoam Tubes Dataset

Downloads PolyData UnstructuredGrid MultiBlock Surface Mesh Heterogeneous

download_openfoam_tubes()

チューブのOpenFOAMの例をダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

PolyData

Cell Type

TRIANGLE

QUAD

TETRA

HEXAHEDRON

WEDGE

PYRAMID

Length

3.71e-01

File Info

File Size

0 B

Num Files

1

File Ext

.foam

Reader

POpenFOAMReader

See also CFDデータをプロットする

Data Source

fvm/turbo_incompressible/Turbo-Incompressible_3-Run_1-SOLUTION_FIELDS.zip

Owl Dataset

Downloads PolyData Surface Mesh

download_owl()

Ivan Nikolovが作成したフクロウ像スキャンをダウンロードすることができます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

24 407

N Points

12 442

Length

2.74e+02

N Arrays

0

File Info

File Size

377.0 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

ivan-nikolov/owl_decimated.vtp

Parched Canal 4k Dataset

Downloads Texture

download_parched_canal_4k()

パーチドカナル4kデータセットをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

4096, 2048

File Info

File Size

25.9 MB

Num Files

1

File Ext

.hdr

Reader

HDRReader

See also Dikhololo Night Dataset

Data Source

parched_canal_4k.hdr

Particles Dataset

Downloads PolyData Point Cloud

download_particles()

Download a particle dataset.

Dataset Info

Data Type

PolyData

Cell Type

POLY_VERTEX

N Cells

1

N Points

197

Length

3.63e+38

N Arrays

1

File Info

File Size

3.2 KB

Num Files

1

File Ext

.raw

Reader

ParticleReader

Data Source

Particles.raw

Particles Lethe Dataset

Downloads UnstructuredGrid

download_particles_lethe()

lethe によって生成されたパーティクルデータセットをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

VERTEX

N Cells

107 860

N Points

107 860

Length

4.25e-01

N Arrays

6

File Info

File Size

7.2 MB

Num Files

1

File Ext

.vtu

Reader

XMLUnstructuredGridReader

Data Source

lethe/result_particles.20000.0000.vtu

Pepper Dataset

Downloads PolyData Surface Mesh

download_pepper()

ピーマン（トウガラシ）のスキャンデータをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

29 956

N Points

14 980

Length

1.57e+02

N Arrays

0

File Info

File Size

1.9 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

pepper.ply

Pine Roots Dataset

Downloads PolyData Surface Mesh

download_pine_roots()

松の根のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

351 536

N Points

178 091

Length

1.48e+02

N Arrays

1

File Info

File Size

25.3 MB

Num Files

1

File Ext

.tri

Reader

BinaryMarchingCubesReader

See also 連結度

Data Source

pine_root.tri

Plastic Vase Dataset

Downloads PolyData Surface Mesh

download_plastic_vase()

Ivan Nikolovが作成したプラスチック製の花瓶スキャンをダウンロードすることができます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

35 708

N Points

18 238

Length

5.47e+02

N Arrays

0

File Info

File Size

678.9 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

ivan-nikolov/plasticVase_decimated.vtp

Poly Line Dataset

Downloads PolyData

download_poly_line()

ポリラインデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

POLY_LINE

N Cells

1

N Points

4

Length

1.92e+02

N Arrays

0

File Info

File Size

135 B

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

polyline.vtk

Prism Dataset

Downloads UnstructuredGrid

download_prism()

Download a prism model.

Dataset Info

Data Type

UnstructuredGrid

Cell Type

WEDGE

N Cells

4

N Points

10

Length

3.00e+00

N Arrays

2

File Info

File Size

1.8 KB

Num Files

1

File Ext

.neu

Reader

GambitReader

Data Source

prism.neu

Prostar Dataset

Downloads UnstructuredGrid

download_prostar()

Download a prostar dataset.

Dataset Info

Data Type

UnstructuredGrid

Cell Type

VERTEX

LINE

TRIANGLE

POLYGON

QUAD

TETRA

HEXAHEDRON

WEDGE

PYRAMID

POLYHEDRON

N Cells

10

N Points

44

Length

8.78e+00

N Arrays

1

File Info

File Size

5.0 KB

Num Files

2

File Ext

.cel,

.vrt

Reader

ProStarReader

Data Source

prostar.vrt prostar.cel

Prostate Dataset

Downloads ImageData 2D Image Medical

download_prostate()

前立腺データセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

261 121

N Points

262 144

Length

6.77e+02

Dimensions

512, 512, 1

Spacing

9.38e-01, 9.38e-01, 5.00e+00

N Arrays

1

File Info

File Size

527.3 KB

Num Files

1

File Ext

.img

Reader

DICOMReader

Data Source

prostate.img

Pump Bracket Dataset

Downloads UnstructuredGrid

download_pump_bracket()

pump bracket 例のデータセットをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

QUADRATIC_TETRA

N Cells

124 806

N Points

250 487

Length

1.08e+00

N Arrays

10

File Info

File Size

44.5 MB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

See also ポンプブラケットのモーダル解析の可視化

Data Source

fea/pump_bracket/pump_bracket.zip

Puppy Dataset

Downloads ImageData 2D Image

download_puppy()

子犬データセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

1 917 201

N Points

1 920 000

Length

2.00e+03

Dimensions

1600, 1200, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

436.6 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Puppy Texture Dataset, イメージファイルの読み込み

Data Source


Puppy Texture Dataset

Downloads Texture

download_puppy_texture()

子犬テクスチャをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

1600, 1200

File Info

File Size

436.6 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Puppy Dataset, テクスチャを適用する

Data Source


Quadratic Pyramid Dataset

Downloads UnstructuredGrid

download_quadratic_pyramid()

2次関数ピラミッドのデータセットをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

QUADRATIC_PYRAMID

N Cells

48

N Points

153

Length

3.46e+00

N Arrays

2

File Info

File Size

10.3 KB

Num Files

1

File Ext

.vtu

Reader

XMLUnstructuredGridReader

Data Source

QuadraticPyramid.vtu

Rectilinear Grid Dataset

Downloads RectilinearGrid

download_rectilinear_grid()

直線的な格子のデータセットをダウンロード．

Dataset Info

Data Type

RectilinearGrid

Cell Type

VOXEL

N Cells

524 288

N Points

545 025

Length

1.43e+01

Dimensions

129, 65, 65

N Arrays

9

File Info

File Size

1.1 MB

Num Files

1

File Ext

.vtr

Reader

XMLRectilinearGridReader

Data Source

RectilinearGrid.vtr

Reservoir Dataset

Downloads ExplicitStructuredGrid

download_reservoir()

UNISIM-II-D貯水池モデルをダウンロードします。

Dataset Info

Data Type

ExplicitStructuredGrid

Cell Type

EMPTY_CELL

HEXAHEDRON

N Cells

47 610

N Points

58 433

Length

1.11e+04

Dimensions

47, 70, 16

N Arrays

6

File Info

File Size

2.3 MB

Num Files

1

File Ext

.vtu

Reader

XMLUnstructuredGridReader

Data Source

reservoir/UNISIM-II-D.zip

Rgba Texture Dataset

Downloads Texture

download_rgba_texture()

アルファチャンネル付きのテクスチャをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

420, 300

File Info

File Size

121.5 KB

Num Files

1

File Ext

.png

Reader

PNGReader

See also テクスチャを適用する

Data Source


Room Cff Dataset

Downloads UnstructuredGrid MultiBlock Single Block

download_room_cff()

部屋モデルをCFF形式でダウンロードします。

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

QUAD

Length

5.66e+00

File Info

File Size

893.4 KB

Num Files

2

File Ext

.h5

Reader

FLUENTCFFReader

Data Source

FLUENTCFF/room.cas.h5 FLUENTCFF/room.dat.h5

Room Surface Mesh Dataset

Downloads PolyData Surface Mesh

download_room_surface_mesh()

部屋の表面のメッシュをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

103 332

N Points

80 757

Length

2.86e+01

N Arrays

1

File Info

File Size

6.3 MB

Num Files

1

File Ext

.obj

Reader

OBJReader

See also Depth Peeling

Data Source

room_surface_mesh.obj

Saddle Surface Dataset

Downloads PolyData Surface Mesh

download_saddle_surface()

鞍部サーフェスデータセットのダウンロード

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

5 131

N Points

2 669

Length

5.93e+01

N Arrays

0

File Info

File Size

1.7 MB

Num Files

1

File Ext

.stl

Reader

STLReader

See also 詳細な補間点

Data Source

InterpolatingOnSTL_final.stl

Sea Vase Dataset

Downloads PolyData Surface Mesh

download_sea_vase()

Ivan Nikolovが作成したシーベーススキャンをダウンロードすることができます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

35 483

N Points

18 063

Length

6.30e+02

N Arrays

0

File Info

File Size

697.0 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

ivan-nikolov/seaVase_decimated.vtp

Shark Dataset

Downloads PolyData Surface Mesh

download_shark()

サメのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

POLYGON

QUAD

N Cells

2 562

N Points

2 560

Length

1.67e+02

N Arrays

0

File Info

File Size

124.0 KB

Num Files

1

File Ext

.ply

Reader

PLYReader

See also Great White Shark Dataset, Grey Nurse Shark Dataset

Data Source

shark.ply

Single Sphere Animation Dataset

Downloads PolyData MultiBlock Surface Mesh Single Block

download_single_sphere_animation()

球体1個分のPVDファイルをダウンロードします．

Dataset Info

Data Type

MultiBlock

PolyData

Cell Type

TRIANGLE

Length

1.71e+00

File Info

File Size

1.5 KB

Num Files

1

File Ext

.pvd

Reader

PVDReader

See also Dual Sphere Animation Dataset

Data Source

PVD/paraview/singleSphereAnimation.zip

Sky Box Cube Map Dataset

Downloads Texture Cubemap

download_sky_box_cube_map()

スカイボックスキューブマップのテクスチャをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

1024, 1024

File Info

File Size

1.9 MB

Num Files

6

File Ext

.jpg

Reader

None

See also Cubemap Space 4k Dataset, Cubemap Space 16k Dataset, Cubemap Park Dataset, 物理ベースのレンダリング

Data Source

skybox2-posx.jpg skybox2-negx.jpg skybox2-posy.jpg skybox2-negy.jpg skybox2-posz.jpg skybox2-negz.jpg

Sky Box Nz Dataset

Downloads ImageData 2D Image

download_sky_box_nz()

skybox-nzのデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

1 046 529

N Points

1 048 576

Length

1.45e+03

Dimensions

1024, 1024, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

54.6 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Sky Box Nz Texture Dataset, Sky Box Cube Map Dataset

Data Source


Sky Box Nz Texture Dataset

Downloads Texture

download_sky_box_nz_texture()

skybox-nzのテクスチャをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

1024, 1024

File Info

File Size

54.6 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Sky Box Nz Dataset, Sky Box Cube Map Dataset

Data Source


Sparse Points Dataset

Downloads PolyData Point Cloud

download_sparse_points()

スパースポイントデータをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

POLY_VERTEX

N Cells

1

N Points

16

Length

4.33e+01

N Arrays

1

File Info

File Size

375 B

Num Files

1

File Ext

.txt

Reader

None

See also 詳細な補間点

Data Source

sparsePoints.txt

Spider Dataset

Downloads PolyData Surface Mesh

download_spider()

蜘蛛のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

9 286

N Points

4 670

Length

8.40e+00

N Arrays

0

File Info

File Size

275.8 KB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

spider.ply

St Helens Dataset

Downloads ImageData 2D Image

download_st_helens()

Saint Helensのデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

151 916

N Points

152 709

Length

1.71e+04

Dimensions

327, 467, 1

Spacing

30.0, 30.0, 1.0

N Arrays

1

File Info

File Size

995.3 KB

Num Files

1

File Ext

.dem

Reader

DEMReader

Data Source

SainteHelens.dem

Stars Cloud Hyg Dataset

Downloads PolyData Point Cloud

download_stars_cloud_hyg()

HYGデータベースで計算された星の点群データをダウンロードすることができます．

Dataset Info

Data Type

PolyData

Cell Type

VERTEX

N Cells

107 857

N Points

107 857

Length

3.37e+03

N Arrays

3

File Info

File Size

3.2 MB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

See also 点群のプロット

Data Source

point-clouds/hyg-database/stars.vtp

Structured Grid Dataset

Downloads StructuredGrid

download_structured_grid()

構造格子のデータセットをダウンロード．

Dataset Info

Data Type

StructuredGrid

Cell Type

HEXAHEDRON

N Cells

440

N Points

648

Length

1.54e+01

Dimensions

6, 12, 9

N Arrays

3

File Info

File Size

19.7 KB

Num Files

1

File Ext

.vts

Reader

XMLStructuredGridReader

See also Structured Grid Two Dataset

Data Source

StructuredGrid.vts

Structured Grid Two Dataset

Downloads StructuredGrid

download_structured_grid_two()

構造格子の2つのデータセットをダウンロード．

Dataset Info

Data Type

StructuredGrid

Cell Type

HEXAHEDRON

N Cells

21 489

N Points

24 000

Length

1.32e+00

Dimensions

20, 30, 40

N Arrays

2

File Info

File Size

1.1 MB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

See also Structured Grid Dataset

Data Source

SampleStructGrid.vtk

T3 Grid 0 Dataset

Downloads ImageData 2D Image

download_t3_grid_0()

Download a T3 grid 0 image.

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

56 865

N Points

57 344

Length

3.39e+02

Dimensions

224, 256, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

346.4 KB

Num Files

1

File Ext

.mnc

Reader

MINCImageReader

Data Source

t3_grid_0.mnc

Teapot Dataset

Downloads PolyData Surface Mesh

download_teapot()

ティーポットのデータセットをダウンロードできます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

3 751

N Points

1 976

Length

8.14e+00

N Arrays

0

File Info

File Size

133.6 KB

Num Files

1

File Ext

.g

Reader

BYUReader

Data Source

teapot.g

Tecplot Ascii Dataset

Downloads UnstructuredGrid MultiBlock Single Block

download_tecplot_ascii()

シングルブロックのASCII Tecplotデータセットをダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

HEXAHEDRON

Length

4.69e+00

File Info

File Size

13.1 KB

Num Files

1

File Ext

.dat

Reader

TecplotReader

Data Source

tecplot_ascii.dat

Tensors Dataset

Downloads UnstructuredGrid

download_tensors()

テンソルのデータセットをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

VOXEL

N Cells

1

N Points

8

Length

1.73e+00

N Arrays

3

File Info

File Size

895 B

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

tensors.vtk

Tetra Dc Mesh Dataset

Downloads UnstructuredGrid MultiBlock Homogeneous

download_tetra_dc_mesh()

電気的な逆問題を定義する2つのメッシュをダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

TETRA

Length

1.80e+00

File Info

File Size

60.8 MB

Num Files

2

File Ext

.vtu

Reader

XMLUnstructuredGridReader

Data Source

dc-inversion.zip

Tetrahedron Dataset

Downloads UnstructuredGrid

download_tetrahedron()

4面体のデータセットをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

TETRA

N Cells

96

N Points

35

Length

3.46e+00

N Arrays

2

File Info

File Size

6.4 KB

Num Files

1

File Ext

.vtu

Reader

XMLUnstructuredGridReader

Data Source

Tetrahedron.vtu

Thermal Probes Dataset

Downloads PolyData Point Cloud

download_thermal_probes()

温度プローブのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

VERTEX

N Cells

245

N Points

245

Length

2.27e+04

N Arrays

1

File Info

File Size

6.2 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

See also 詳細な補間点

Data Source

probes.vtp

Topo Global Dataset

Downloads PolyData Surface Mesh

download_topo_global()

topoデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

QUAD

N Cells

2 333 880

N Points

2 336 041

Length

3.46e+00

N Arrays

1

File Info

File Size

45.2 MB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

EarthModels/ETOPO_10min_Ice.vtp

Topo Land Dataset

Downloads PolyData Surface Mesh

download_topo_land()

topo landデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

QUAD

N Cells

767 366

N Points

788 273

Length

3.43e+00

N Arrays

1

File Info

File Size

15.2 MB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

EarthModels/ETOPO_10min_Ice_only-land.vtp

Torso Dataset

Downloads PolyData Surface Mesh

download_torso()

胴体のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

QUAD

N Cells

12 448

N Points

12 015

Length

8.62e+02

N Arrays

0

File Info

File Size

283.2 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

Torso.vtp

Tri Quadratic Hexahedron Dataset

Downloads UnstructuredGrid

download_tri_quadratic_hexahedron()

3次曲面6面体のデータセットをダウンロードできます．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

TRIQUADRATIC_HEXAHEDRON

N Cells

7

N Points

117

Length

3.65e+00

N Arrays

0

File Info

File Size

5.7 KB

Num Files

1

File Ext

.vtu

Reader

XMLUnstructuredGridReader

Data Source

TriQuadraticHexahedron.vtu

Trumpet Dataset

Downloads PolyData Surface Mesh

download_trumpet()

トランペットのデータセットをダウンロードできます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

POLYGON

QUAD

N Cells

11 362

N Points

11 908

Length

7.93e+02

N Arrays

5

File Info

File Size

678.2 KB

Num Files

1

File Ext

.obj

Reader

OBJReader

See also Guitar Dataset

Data Source

trumpet.obj

Turbine Blade Dataset

Downloads PolyData Surface Mesh

download_turbine_blade()

タービンブレードのダウンロードスキャン．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

199 034

N Points

99 519

Length

5.06e+01

N Arrays

0

File Info

File Size

3.8 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

turbineblade.ply

Unstructured Grid Dataset

Downloads UnstructuredGrid

download_unstructured_grid()

非構造格子のデータセットをダウンロード．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

VERTEX

LINE

TRIANGLE

TRIANGLE_STRIP

POLYGON

QUAD

TETRA

HEXAHEDRON

N Cells

12

N Points

27

Length

6.40e+00

N Arrays

2

File Info

File Size

1.0 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

uGridEx.vtk

Urn Dataset

Downloads PolyData Surface Mesh

download_urn()

埋葬用の骨壷のスキャンデータをダウンロードできます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

245 486

N Points

122 706

Length

7.31e+02

N Arrays

0

File Info

File Size

12.3 MB

Num Files

1

File Ext

.stl

Reader

STLReader

Data Source

urn.stl

Usa Dataset

Downloads PolyData Surface Mesh

download_usa()

usaデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

POLYGON

N Cells

51

N Points

3 652

Length

1.14e+02

N Arrays

0

File Info

File Size

80.3 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

See also Usa Texture Dataset

Data Source

usa.vtk

Usa Texture Dataset

Downloads Texture

download_usa_texture()

USAテクスチャをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

512, 222

File Info

File Size

41.4 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Usa Dataset

Data Source


Victorian Goblet Face Illusion Dataset

Downloads PolyData Surface Mesh

download_victorian_goblet_face_illusion()

ビクトリアンゴブレットフェイスイリュージョンをダウンロード

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

10 910

N Points

5 457

Length

1.55e+02

N Arrays

0

File Info

File Size

545.6 KB

Num Files

1

File Ext

.stl

Reader

STLReader

Data Source

Victorian_Goblet_face_illusion/Vase.stl

Vtk Dataset

Downloads PolyData

download_vtk()

vtkデータセットのダウンロード

Dataset Info

Data Type

PolyData

Cell Type

POLY_LINE

N Cells

3

N Points

51

Length

5.27e+00

N Arrays

0

File Info

File Size

3.2 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

See also Vtk Logo Dataset

Data Source

vtk.vtp

Vtk Logo Dataset

Downloads Texture

download_vtk_logo()

VTKロゴのテクスチャをダウンロードできます．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

256, 256

File Info

File Size

26.3 KB

Num Files

1

File Ext

.png

Reader

PNGReader

See also Vtk Dataset

Data Source


Warping Spheres Dataset

Downloads PolyData Surface Mesh

download_warping_spheres()

Download warping spheres dataset.

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

File Info

File Size

3.1 MB

Num Files

1

File Ext

.vtkhdf

Reader

HDFReader

Data Source

warping_spheres/warping_spheres.vtkhdf

Wavy Dataset

Downloads StructuredGrid MultiBlock Single Block

download_wavy()

2D波のPVDファイルをダウンロードできます．

Dataset Info

Data Type

MultiBlock

StructuredGrid

Cell Type

QUAD

Length

2.80e+01

File Info

File Size

1.4 KB

Num Files

1

File Ext

.pvd

Reader

PVDReader

See also リーダーによるデータの読み込み

Data Source

PVD/wavy.zip

Whole Body Ct Female Dataset

Downloads ImageData MultiBlock 3D Volume Homogeneous Medical

download_whole_body_ct_female()

117の解剖学的構造がセグメント化された女性被験者のCT画像をダウンロードします。

Dataset Info

Data Type

MultiBlock

ImageData

Cell Type

VOXEL

Length

1.06e+03

File Info

File Size

17.7 KB

Num Files

2

File Ext

.py,

.vtm

Reader

XMLMultiBlockDataReader

See also 解剖学的グループの可視化, Whole Body Ct Male Dataset, ラベル付き画像データを切り抜く, セグメンテーションマスク付きボリューム

Data Source

whole_body_ct/s1380_resampled.zip whole_body_ct/colors.py

Whole Body Ct Male Dataset

Downloads ImageData MultiBlock 3D Volume Homogeneous Medical

download_whole_body_ct_male()

117の解剖学的構造がセグメント化された男性被験者のCT画像をダウンロードします。

Dataset Info

Data Type

MultiBlock

ImageData

Cell Type

VOXEL

Length

1.06e+03

File Info

File Size

17.7 KB

Num Files

2

File Ext

.py,

.vtm

Reader

XMLMultiBlockDataReader

See also 解剖学的グループの可視化, Whole Body Ct Female Dataset, ラベル付き画像データを切り抜く, セグメンテーションマスク付きボリューム

Data Source

whole_body_ct/s1397_resampled.zip whole_body_ct/colors.py

Woman Dataset

Downloads PolyData Surface Mesh

download_woman()

女性のスキャンデータをダウンロードできます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

300 000

N Points

149 948

Length

1.79e+03

N Arrays

0

File Info

File Size

15.0 MB

Num Files

1

File Ext

.stl

Reader

STLReader

Data Source

woman.stl

Yinyang Dataset

Downloads ImageData 2D Image

download_yinyang()

Download yinyang dataset.

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

174 251

N Points

175 104

Length

6.14e+02

Dimensions

512, 342, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

1.9 KB

Num Files

1

File Ext

.png

Reader

PNGReader

Data Source

yinyang/Yinyang.png

Planets

Datasets from the planets module.

Section Badge:

Planets

Dataset Count:

13

Jupiter Surface Dataset

Planets ImageData 2D Image

download_jupiter_surface()

木星表面の画像をダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

2 094 081

N Points

2 097 152

Length

2.29e+03

Dimensions

2048, 1024, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

499.0 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/jupiter.jpg

Mars Surface Dataset

Planets ImageData 2D Image

download_mars_surface()

火星表面の画像をダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

1 997 001

N Points

2 000 000

Length

2.23e+03

Dimensions

2000, 1000, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

620.4 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/mars.jpg

Mercury Surface Dataset

Planets ImageData 2D Image

download_mercury_surface()

水星表面の画像をダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

2 094 081

N Points

2 097 152

Length

2.29e+03

Dimensions

2048, 1024, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

872.6 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/mercury.jpg

Milkyway Sky Background Dataset

Planets ImageData 2D Image

download_milkyway_sky_background()

天の川銀河の空のテクスチャをダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

33 542 145

N Points

33 554 432

Length

9.16e+03

Dimensions

8192, 4096, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

1.9 MB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Stars Sky Background Dataset, 3D地球と天体

Data Source

planet3d-matlab/milkyway.jpg

Moon Surface Dataset

Planets ImageData 2D Image

download_moon_surface()

地球の月表面の画像をダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

2 094 081

N Points

2 097 152

Length

2.29e+03

Dimensions

2048, 1024, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

1.1 MB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/moon.jpg

Neptune Surface Dataset

Planets ImageData 2D Image

download_neptune_surface()

惑星海王星の表面のテクスチャをダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

2 094 081

N Points

2 097 152

Length

2.29e+03

Dimensions

2048, 1024, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

241.6 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/neptune.jpg

Pluto Surface Dataset

Planets ImageData 2D Image

download_pluto_surface()

準惑星冥王星の表面のテクスチャをダウンロードすることができます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

17 549 850

N Points

17 558 738

Length

6.62e+03

Dimensions

5926, 2963, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

1.4 MB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/pluto.jpg

Saturn Rings Dataset

Planets ImageData 2D Image

download_saturn_rings()

土星の輪のテクスチャをダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

253 828

N Points

256 000

Length

2.05e+03

Dimensions

2048, 125, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

12.1 KB

Num Files

1

File Ext

.png

Reader

PNGReader

See also 3D地球と天体

Data Source

solar_textures/saturn_ring_alpha.png

Saturn Surface Dataset

Planets ImageData 2D Image

download_saturn_surface()

土星表面の画像をダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

2 094 081

N Points

2 097 152

Length

2.29e+03

Dimensions

2048, 1024, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

199.9 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/saturn.jpg

Stars Sky Background Dataset

Planets ImageData 2D Image

download_stars_sky_background()

夜空の星のテクスチャをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

33 542 145

N Points

33 554 432

Length

9.16e+03

Dimensions

8192, 4096, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

1.8 MB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Milkyway Sky Background Dataset, 3D地球と天体

Data Source

planet3d-matlab/stars.jpg

Sun Surface Dataset

Planets ImageData 2D Image

download_sun_surface()

太陽の表面をダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

2 094 081

N Points

2 097 152

Length

2.29e+03

Dimensions

2048, 1024, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

822.4 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/sun.jpg

Uranus Surface Dataset

Planets ImageData 2D Image

download_uranus_surface()

惑星天王星の表面のテクスチャをダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

2 094 081

N Points

2 097 152

Length

2.29e+03

Dimensions

2048, 1024, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

77.8 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/uranus.jpg

Venus Surface Dataset

Planets ImageData 2D Image

download_venus_surface()

金星の表面や大気をダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

2 094 081

N Points

2 097 152

Length

2.29e+03

Dimensions

2048, 1024, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

229.7 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/venus_atmosphere.jpg

タイプ別にデータセットをブラウズする

このセクションのデータセットは、インスタンスタイプ別に整理されている。

ポイントセット

明示的なジオメトリを持つデータセットをブラウズする。詳しくは ポイントセット を参照してください。

ポイントセットデータ型

PointSet

PointSet datasets.

Section Badge:

PointSet

Dataset Count:

2

Cloud Dark Matter Dataset

Downloads PointSet Point Cloud

download_cloud_dark_matter()

ダークマターハローのシミュレーションから粒子をダウンロードします．

Dataset Info

Data Type

PointSet

Cell Type

None

N Cells

0

N Points

32 314

Length

8.97e+00

N Arrays

0

File Info

File Size

387.9 KB

Num Files

1

File Ext

.npy

Reader

None

See also Cloud Dark Matter Dense Dataset, 点群のプロット

Data Source

point-clouds/findus23/halo_low_res.npy

Cloud Dark Matter Dense Dataset

Downloads PointSet Point Cloud

download_cloud_dark_matter_dense()

ダークマターハローのシミュレーションから粒子をダウンロードします．

Dataset Info

Data Type

PointSet

Cell Type

None

N Cells

0

N Points

2 062 256

Length

8.77e+00

N Arrays

0

File Info

File Size

24.7 MB

Num Files

1

File Ext

.npy

Reader

None

See also Cloud Dark Matter Dataset, 点群のプロット

Data Source

point-clouds/findus23/halo_high_res.npy

PolyData

PolyData datasets.

Section Badge:

PolyData

Dataset Count:

83

3gqp Dataset

Downloads PolyData

download_3gqp()

Download a 3GQP dataset.

Dataset Info

Data Type

PolyData

Cell Type

LINE

N Cells

4 722

N Points

4 793

Length

1.14e+02

N Arrays

11

File Info

File Size

446.6 KB

Num Files

1

File Ext

.pdb

Reader

PDBReader

Data Source

3GQP.pdb

Action Figure Dataset

Downloads PolyData Surface Mesh

download_action_figure()

アクションフィギュアのダウンロードスキャン．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

31 421

N Points

15 713

Length

1.67e+02

N Arrays

1

File Info

File Size

1.5 MB

Num Files

1

File Ext

.obj

Reader

OBJReader

Data Source

tigerfighter_decimated.obj

Airplane Dataset

Built-in PolyData Surface Mesh

load_airplane()

ply飛行機メッシュをロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

2 452

N Points

1 335

Length

2.01e+03

N Arrays

0

File Info

File Size

74.5 KB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

airplane.ply

Ant Dataset

Built-in PolyData Surface Mesh

load_ant()

ply蟻メッシュをロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

912

N Points

486

Length

5.00e+01

N Arrays

0

File Info

File Size

17.9 KB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

ant.ply

Antarctica Velocity Dataset

Downloads PolyData Surface Mesh

download_antarctica_velocity()

Antarcticaの速度シミュレーション結果をダウンロードできます．

Dataset Info

Data Type

PolyData

Cell Type

LINE

TRIANGLE

N Cells

1 106 948

N Points

557 470

Length

6.84e+06

N Arrays

2

File Info

File Size

33.4 MB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

See also メッシュ領域間でフィールドを比較

Data Source

antarctica_velocity.vtp

Armadillo Dataset

Downloads PolyData Surface Mesh

download_armadillo()

armadilloデータセットのダウンロード

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

345 944

N Points

172 974

Length

2.29e+02

N Arrays

0

File Info

File Size

6.6 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

Armadillo.ply

Bird Bath Dataset

Downloads PolyData Surface Mesh

download_bird_bath()

Ivan Nikolovが作成したバードバスのスキャンをダウンロードすることができます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

35 079

N Points

18 796

Length

4.57e+02

N Arrays

0

File Info

File Size

699.8 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

ivan-nikolov/birdBath_decimated.vtp

Black Vase Dataset

Downloads PolyData Surface Mesh

download_black_vase()

Ivan Nikolovが作成した黒い花瓶スキャンをダウンロードすることができます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

31 366

N Points

17 337

Length

5.39e+02

N Arrays

0

File Info

File Size

624.1 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

ivan-nikolov/blackVase_decimated.vtp

Bunny Dataset

Downloads PolyData Surface Mesh

download_bunny()

ウサギのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

69 451

N Points

35 947

Length

2.50e-01

N Arrays

0

File Info

File Size

3.0 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

See also Bunny Coarse Dataset

Data Source

bunny.ply

Bunny Coarse Dataset

Downloads PolyData Surface Mesh

download_bunny_coarse()

粗いウサギのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

1 000

N Points

872

Length

5.00e-01

N Arrays

1

File Info

File Size

33.4 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

See also Bunny Dataset

Data Source

Bunny.vtp

Cad Model Dataset

Downloads PolyData Surface Mesh

download_cad_model()

cadのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

11 036

N Points

5 500

Length

1.76e+01

N Arrays

0

File Info

File Size

551.9 KB

Num Files

1

File Ext

.stl

Reader

STLReader

See also ファイルからロードおよびプロットする

Data Source

42400-IDGH.stl

Cad Model Case Dataset

Downloads PolyData Surface Mesh

download_cad_model_case()

Raspberry PI 4の筐体CADモデルをダウンロードできます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

15 446

N Points

7 677

Length

1.74e+02

N Arrays

2

File Info

File Size

374.9 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

cad/4947746/Vented_Rear_Case_With_Pi_Supports.vtp

Caffeine Dataset

Downloads PolyData

download_caffeine()

Download the caffeine molecule.

Dataset Info

Data Type

PolyData

Cell Type

LINE

N Cells

25

N Points

24

Length

1.09e+01

N Arrays

11

File Info

File Size

2.0 KB

Num Files

1

File Ext

.pdb

Reader

PDBReader

Data Source

caffeine.pdb

Carburetor Dataset

Downloads PolyData Surface Mesh

download_carburetor()

キャブレターのスキャンデータをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

500 000

N Points

251 320

Length

3.27e+02

N Arrays

0

File Info

File Size

9.5 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

carburetor.ply

Cavity Dataset

Downloads PolyData UnstructuredGrid MultiBlock Surface Mesh Heterogeneous

download_cavity()

キャビティのOpenFOAMの例をダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

PolyData

Cell Type

QUAD

HEXAHEDRON

Length

1.42e-01

File Info

File Size

0 B

Num Files

1

File Ext

.foam

Reader

POpenFOAMReader

See also OpenFOAMデータのプロット

Data Source

OpenFOAM.zip

Clown Dataset

Downloads PolyData Surface Mesh

download_clown()

ピエロのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

802

N Points

631

Length

2.22e+00

N Arrays

3

File Info

File Size

29.4 KB

Num Files

1

File Ext

.facet

Reader

FacetReader

Data Source

clown.facet

Coastlines Dataset

Downloads PolyData

download_coastlines()

海岸線データセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

LINE

N Cells

11 443

N Points

11 459

Length

3.42e+00

N Arrays

0

File Info

File Size

221.1 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

EarthModels/Coastlines_Los_Alamos.vtp

Cow Dataset

Downloads PolyData Surface Mesh

download_cow()

牛のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

POLYGON

QUAD

N Cells

3 263

N Points

2 903

Length

1.27e+01

N Arrays

0

File Info

File Size

60.4 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

See also Cow Head Dataset

Data Source

cow.vtp

Cow Head Dataset

Downloads PolyData Surface Mesh

download_cow_head()

牛頭のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

QUAD

N Cells

7 994

N Points

4 074

Length

4.61e+00

N Arrays

1

File Info

File Size

281.4 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

See also Cow Dataset

Data Source

cowHead.vtp

Delaunay Example Dataset

Downloads PolyData Surface Mesh

download_delaunay_example()

Delaunayの例のためのポイントセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

374

N Points

226

Length

9.42e+02

N Arrays

0

File Info

File Size

10.8 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

250.vtk

Doorman Dataset

Downloads PolyData Surface Mesh

download_doorman()

ドアマンデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

9 783

N Points

29 349

Length

7.25e+00

N Arrays

8

File Info

File Size

2.6 MB

Num Files

9

File Ext

.mtl,

.obj,

.png

Reader

OBJReader

See also ファイルからロードおよびプロットする

Data Source

doorman/doorman.obj doorman/doorman.mtl doorman/t_doorMan_d.png doorman/t_doorMan_n.png doorman/t_doorMan_s.png doorman/t_doorMan_teeth_d.png doorman/t_doorMan_teeth_n.png doorman/t_eye_d.png doorman/t_eye_n.png

Dragon Dataset

Downloads PolyData Surface Mesh

download_dragon()

ドラゴンのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

871 414

N Points

437 645

Length

2.67e-01

N Arrays

0

File Info

File Size

33.8 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

dragon.ply

Drill Dataset

Downloads PolyData Surface Mesh

download_drill()

電動ドリルのスキャンデータをダウンロードできます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

250 000

N Points

750 000

Length

4.26e+02

N Arrays

6

File Info

File Size

23.2 MB

Num Files

1

File Ext

.obj

Reader

OBJReader

Data Source

drill.obj

Dual Sphere Animation Dataset

Downloads PolyData MultiBlock Surface Mesh Homogeneous

download_dual_sphere_animation()

球体2個分のPVDファイルをダウンロードします．

Dataset Info

Data Type

MultiBlock

PolyData

Cell Type

TRIANGLE

Length

1.96e+00

File Info

File Size

2.5 KB

Num Files

1

File Ext

.pvd

Reader

PVDReader

See also Single Sphere Animation Dataset

Data Source

PVD/paraview/dualSphereAnimation.zip

Electronics Cooling Dataset

Downloads PolyData UnstructuredGrid MultiBlock Surface Mesh Heterogeneous

download_electronics_cooling()

電子機器冷却のサンプルデータセットをダウンロードします．

Dataset Info

Data Type

MultiBlock

PolyData

UnstructuredGrid

Cell Type

TRIANGLE

QUAD

TETRA

HEXAHEDRON

WEDGE

PYRAMID

Length

2.64e-01

File Info

File Size

67.9 MB

Num Files

2

File Ext

.vtp,

.vtu

Reader

XMLPolyDataReader

XMLUnstructuredGridReader

See also 電子機器の冷却CFD

Data Source

fvm/cooling_electronics/datasets.zip

Face Dataset

Downloads PolyData Surface Mesh

download_face()

顔データセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

4 224

N Points

2 205

Length

2.23e-01

N Arrays

1

File Info

File Size

174.9 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

See also Face2 Dataset, 間引き

Data Source

fran_cut.vtk

Face2 Dataset

Downloads PolyData Surface Mesh

download_face2()

男性の顔のスキャンしたものをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

223 987

N Points

112 862

Length

9.12e+00

N Arrays

0

File Info

File Size

11.2 MB

Num Files

1

File Ext

.stl

Reader

STLReader

See also Face Dataset

Data Source

man_face.stl

Faults Dataset

Downloads PolyData

download_faults()

faultsデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

POLY_LINE

N Cells

78

N Points

1 933

Length

1.64e+04

N Arrays

0

File Info

File Size

31.9 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

faults.vtk

Filled Contours Dataset

Downloads PolyData Surface Mesh

download_filled_contours()

塗りつぶした輪郭のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

QUAD

N Cells

24

N Points

39

Length

1.22e+01

N Arrays

1

File Info

File Size

3.1 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

filledContours.vtp

Foot Bones Dataset

Downloads PolyData Surface Mesh Medical

download_foot_bones()

足の骨のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

4 204

N Points

2 154

Length

1.26e+01

N Arrays

0

File Info

File Size

135.9 KB

Num Files

1

File Ext

.ply

Reader

PLYReader

See also サーフェスメッシュをボクセル化する, Compare threshold filters

Data Source

fsu/footbones.ply

Gears Dataset

Downloads PolyData Surface Mesh

download_gears()

歯車データセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

19 426

N Points

9 723

Length

7.46e+01

N Arrays

0

File Info

File Size

3.7 MB

Num Files

1

File Ext

.stl

Reader

STLReader

Data Source

gears.stl

Globe Dataset

Built-in PolyData Surface Mesh

load_globe()

地球儀のソースを読み込みます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

980

N Points

540

Length

2.20e+10

N Arrays

1

File Info

File Size

37.4 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

globe.vtk

Gpr Path Dataset

Downloads PolyData Point Cloud

download_gpr_path()

GPRのサンプルパスをダウンロードできます．

Dataset Info

Data Type

PolyData

Cell Type

VERTEX

N Cells

1 835

N Points

1 835

Length

3.07e+03

N Arrays

0

File Info

File Size

137.6 KB

Num Files

1

File Ext

.txt

Reader

None

See also Gpr Data Array Dataset, 線分から2 Dサーフェスをまとう

Data Source

gpr-example/path.txt

Great White Shark Dataset

Downloads PolyData Surface Mesh

download_great_white_shark()

Download great white shark dataset.

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

6 264

N Points

3 155

Length

2.76e+01

N Arrays

0

File Info

File Size

313.3 KB

Num Files

1

File Ext

.stl

Reader

STLReader

See also Shark Dataset, Grey Nurse Shark Dataset

Data Source

great_white_shark/greatWhite.stl

Grey Nurse Shark Dataset

Downloads PolyData Surface Mesh

download_grey_nurse_shark()

Download grey nurse shark dataset.

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

49 702

N Points

25 057

Length

2.69e+02

N Arrays

0

File Info

File Size

2.5 MB

Num Files

1

File Ext

.stl

Reader

STLReader

See also Shark Dataset, Great White Shark Dataset

Data Source

grey_nurse_shark/Grey_Nurse_Shark.stl

Guitar Dataset

Downloads PolyData Surface Mesh

download_guitar()

ギターのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

8 660

N Points

4 500

Length

5.25e+02

N Arrays

0

File Info

File Size

282.1 KB

Num Files

1

File Ext

.ply

Reader

PLYReader

See also Trumpet Dataset

Data Source

fsu/stratocaster.ply

Honolulu Dataset

Downloads PolyData Surface Mesh

download_honolulu()

Honoluluデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

403 680

N Points

202 740

Length

1.91e+04

N Arrays

0

File Info

File Size

16.1 MB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

honolulu.vtk

Horse Dataset

Downloads PolyData Surface Mesh

download_horse()

馬のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

67 868

N Points

33 936

Length

2.52e-01

N Arrays

0

File Info

File Size

736.6 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

See also Horse Points Dataset, メッシュライティングの無効化

Data Source

horse.vtp

Horse Points Dataset

Downloads PolyData Point Cloud

download_horse_points()

馬のポイントデータセットのダウンロード．

Dataset Info

Data Type

PolyData

Cell Type

VERTEX

N Cells

128 449

N Points

128 449

Length

2.53e-01

N Arrays

2

File Info

File Size

4.6 MB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

See also Horse Dataset

Data Source

horsePoints.vtp

Human Dataset

Downloads PolyData Surface Mesh

download_human()

人間のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

34 660

N Points

17 665

Length

2.03e+02

N Arrays

1

File Info

File Size

1.7 MB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

Human.vtp

Ivan Angel Dataset

Downloads PolyData Surface Mesh

download_ivan_angel()

Ivan Nikolovが作成した天使像スキャンをダウンロードすることができます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

35 804

N Points

18 412

Length

4.12e+02

N Arrays

0

File Info

File Size

546.6 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

ivan-nikolov/Angel_decimated.vtp

Letter K Dataset

Downloads PolyData Surface Mesh

download_letter_k()

文字kのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

QUAD

N Cells

245

N Points

166

Length

3.83e+01

N Arrays

0

File Info

File Size

8.3 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

See also Letter A Dataset

Data Source

k.vtk

Lidar Dataset

Downloads PolyData Point Cloud

download_lidar()

ライダーのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

VERTEX

N Cells

3 392 091

N Points

3 392 091

Length

2.64e+02

N Arrays

1

File Info

File Size

37.8 MB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

kafadar-lidar-interp.vtp

Lobster Dataset

Downloads PolyData Surface Mesh

download_lobster()

ロブスターのスキャンデータをダウンロードできます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

249 569

N Points

125 156

Length

4.35e+02

N Arrays

0

File Info

File Size

10.4 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

lobster.ply

Louis Louvre Dataset

Downloads PolyData Surface Mesh

download_louis_louvre()

パリのLouvre美術館のLouis XIV de France像をダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

421 965

N Points

210 873

Length

1.61e+01

N Arrays

1

File Info

File Size

9.7 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

See also 物理ベースのレンダリング

Data Source

louis.ply

Lucy Dataset

Downloads PolyData Surface Mesh

download_lucy()

lucy angelのメッシュをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

99 970

N Points

49 987

Length

1.92e+03

N Arrays

0

File Info

File Size

1.9 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

See also Jupyterノートブックプロット

Data Source

lucy.ply

Motor Dataset

Downloads PolyData Surface Mesh

download_motor()

motorデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

POLYGON

QUAD

N Cells

1 572

N Points

1 710

Length

9.37e-01

N Arrays

0

File Info

File Size

95.3 KB

Num Files

1

File Ext

.g

Reader

BYUReader

Data Source

motor.g

Mount Damavand Dataset

Downloads PolyData Surface Mesh

download_mount_damavand()

ダマーヴァンド山のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

QUAD

N Cells

260 400

N Points

261 426

Length

3.64e+05

N Arrays

1

File Info

File Size

5.9 MB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

AOI.Damavand.32639.vtp

Nefertiti Dataset

Downloads PolyData Surface Mesh

download_nefertiti()

王妃Nefertitiのメッシュをダウンロード

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

2 018 232

N Points

1 009 118

Length

6.58e+02

N Arrays

0

File Info

File Size

38.3 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

nefertiti.ply.zip

Nut Dataset

Built-in PolyData Surface Mesh

load_nut()

サンプルのナットメッシュをロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

1 046

N Points

523

Length

7.12e+01

N Arrays

0

File Info

File Size

20.1 KB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

nut.ply

Oblique Cone Dataset

Downloads PolyData Surface Mesh

download_oblique_cone()

oblique cone データセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

POLYGON

N Cells

25

N Points

25

Length

4.76e+02

N Arrays

0

File Info

File Size

3.7 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

ObliqueCone.vtp

Openfoam Tubes Dataset

Downloads PolyData UnstructuredGrid MultiBlock Surface Mesh Heterogeneous

download_openfoam_tubes()

チューブのOpenFOAMの例をダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

PolyData

Cell Type

TRIANGLE

QUAD

TETRA

HEXAHEDRON

WEDGE

PYRAMID

Length

3.71e-01

File Info

File Size

0 B

Num Files

1

File Ext

.foam

Reader

POpenFOAMReader

See also CFDデータをプロットする

Data Source

fvm/turbo_incompressible/Turbo-Incompressible_3-Run_1-SOLUTION_FIELDS.zip

Owl Dataset

Downloads PolyData Surface Mesh

download_owl()

Ivan Nikolovが作成したフクロウ像スキャンをダウンロードすることができます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

24 407

N Points

12 442

Length

2.74e+02

N Arrays

0

File Info

File Size

377.0 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

ivan-nikolov/owl_decimated.vtp

Particles Dataset

Downloads PolyData Point Cloud

download_particles()

Download a particle dataset.

Dataset Info

Data Type

PolyData

Cell Type

POLY_VERTEX

N Cells

1

N Points

197

Length

3.63e+38

N Arrays

1

File Info

File Size

3.2 KB

Num Files

1

File Ext

.raw

Reader

ParticleReader

Data Source

Particles.raw

Pepper Dataset

Downloads PolyData Surface Mesh

download_pepper()

ピーマン（トウガラシ）のスキャンデータをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

29 956

N Points

14 980

Length

1.57e+02

N Arrays

0

File Info

File Size

1.9 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

pepper.ply

Pine Roots Dataset

Downloads PolyData Surface Mesh

download_pine_roots()

松の根のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

351 536

N Points

178 091

Length

1.48e+02

N Arrays

1

File Info

File Size

25.3 MB

Num Files

1

File Ext

.tri

Reader

BinaryMarchingCubesReader

See also 連結度

Data Source

pine_root.tri

Plastic Vase Dataset

Downloads PolyData Surface Mesh

download_plastic_vase()

Ivan Nikolovが作成したプラスチック製の花瓶スキャンをダウンロードすることができます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

35 708

N Points

18 238

Length

5.47e+02

N Arrays

0

File Info

File Size

678.9 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

ivan-nikolov/plasticVase_decimated.vtp

Poly Line Dataset

Downloads PolyData

download_poly_line()

ポリラインデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

POLY_LINE

N Cells

1

N Points

4

Length

1.92e+02

N Arrays

0

File Info

File Size

135 B

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

polyline.vtk

Random Hills Dataset

Built-in PolyData Surface Mesh

load_random_hills()

ランダムな丘のおもちゃの例を作成します．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

19 602

N Points

10 000

Length

2.92e+01

N Arrays

2

File Info

Reader

None

Room Surface Mesh Dataset

Downloads PolyData Surface Mesh

download_room_surface_mesh()

部屋の表面のメッシュをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

103 332

N Points

80 757

Length

2.86e+01

N Arrays

1

File Info

File Size

6.3 MB

Num Files

1

File Ext

.obj

Reader

OBJReader

See also Depth Peeling

Data Source

room_surface_mesh.obj

Saddle Surface Dataset

Downloads PolyData Surface Mesh

download_saddle_surface()

鞍部サーフェスデータセットのダウンロード

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

5 131

N Points

2 669

Length

5.93e+01

N Arrays

0

File Info

File Size

1.7 MB

Num Files

1

File Ext

.stl

Reader

STLReader

See also 詳細な補間点

Data Source

InterpolatingOnSTL_final.stl

Sea Vase Dataset

Downloads PolyData Surface Mesh

download_sea_vase()

Ivan Nikolovが作成したシーベーススキャンをダウンロードすることができます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

35 483

N Points

18 063

Length

6.30e+02

N Arrays

0

File Info

File Size

697.0 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

ivan-nikolov/seaVase_decimated.vtp

Shark Dataset

Downloads PolyData Surface Mesh

download_shark()

サメのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

POLYGON

QUAD

N Cells

2 562

N Points

2 560

Length

1.67e+02

N Arrays

0

File Info

File Size

124.0 KB

Num Files

1

File Ext

.ply

Reader

PLYReader

See also Great White Shark Dataset, Grey Nurse Shark Dataset

Data Source

shark.ply

Single Sphere Animation Dataset

Downloads PolyData MultiBlock Surface Mesh Single Block

download_single_sphere_animation()

球体1個分のPVDファイルをダウンロードします．

Dataset Info

Data Type

MultiBlock

PolyData

Cell Type

TRIANGLE

Length

1.71e+00

File Info

File Size

1.5 KB

Num Files

1

File Ext

.pvd

Reader

PVDReader

See also Dual Sphere Animation Dataset

Data Source

PVD/paraview/singleSphereAnimation.zip

Sparse Points Dataset

Downloads PolyData Point Cloud

download_sparse_points()

スパースポイントデータをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

POLY_VERTEX

N Cells

1

N Points

16

Length

4.33e+01

N Arrays

1

File Info

File Size

375 B

Num Files

1

File Ext

.txt

Reader

None

See also 詳細な補間点

Data Source

sparsePoints.txt

Sphere Dataset

Built-in PolyData Surface Mesh

load_sphere()

球plyメッシュをロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

840

N Points

422

Length

4.38e+02

N Arrays

0

File Info

File Size

16.2 KB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

sphere.ply

Sphere Vectors Dataset

Built-in PolyData Surface Mesh

load_sphere_vectors()

ノードに定義された渦巻き状のベクトルフィールドを持つ球体の例を作成します．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

1 680

N Points

842

Length

1.09e+01

N Arrays

2

File Info

Reader

None

Spider Dataset

Downloads PolyData Surface Mesh

download_spider()

蜘蛛のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

9 286

N Points

4 670

Length

8.40e+00

N Arrays

0

File Info

File Size

275.8 KB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

spider.ply

Spline Dataset

Built-in PolyData

load_spline()

スプラインメッシュの例を読み込みます．

Dataset Info

Data Type

PolyData

Cell Type

POLY_LINE

N Cells

1

N Points

1 000

Length

1.23e+01

N Arrays

1

File Info

Reader

None

Stars Cloud Hyg Dataset

Downloads PolyData Point Cloud

download_stars_cloud_hyg()

HYGデータベースで計算された星の点群データをダウンロードすることができます．

Dataset Info

Data Type

PolyData

Cell Type

VERTEX

N Cells

107 857

N Points

107 857

Length

3.37e+03

N Arrays

3

File Info

File Size

3.2 MB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

See also 点群のプロット

Data Source

point-clouds/hyg-database/stars.vtp

Teapot Dataset

Downloads PolyData Surface Mesh

download_teapot()

ティーポットのデータセットをダウンロードできます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

3 751

N Points

1 976

Length

8.14e+00

N Arrays

0

File Info

File Size

133.6 KB

Num Files

1

File Ext

.g

Reader

BYUReader

Data Source

teapot.g

Thermal Probes Dataset

Downloads PolyData Point Cloud

download_thermal_probes()

温度プローブのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

VERTEX

N Cells

245

N Points

245

Length

2.27e+04

N Arrays

1

File Info

File Size

6.2 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

See also 詳細な補間点

Data Source

probes.vtp

Topo Global Dataset

Downloads PolyData Surface Mesh

download_topo_global()

topoデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

QUAD

N Cells

2 333 880

N Points

2 336 041

Length

3.46e+00

N Arrays

1

File Info

File Size

45.2 MB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

EarthModels/ETOPO_10min_Ice.vtp

Topo Land Dataset

Downloads PolyData Surface Mesh

download_topo_land()

topo landデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

QUAD

N Cells

767 366

N Points

788 273

Length

3.43e+00

N Arrays

1

File Info

File Size

15.2 MB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

EarthModels/ETOPO_10min_Ice_only-land.vtp

Torso Dataset

Downloads PolyData Surface Mesh

download_torso()

胴体のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

QUAD

N Cells

12 448

N Points

12 015

Length

8.62e+02

N Arrays

0

File Info

File Size

283.2 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

Torso.vtp

Trumpet Dataset

Downloads PolyData Surface Mesh

download_trumpet()

トランペットのデータセットをダウンロードできます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

POLYGON

QUAD

N Cells

11 362

N Points

11 908

Length

7.93e+02

N Arrays

5

File Info

File Size

678.2 KB

Num Files

1

File Ext

.obj

Reader

OBJReader

See also Guitar Dataset

Data Source

trumpet.obj

Turbine Blade Dataset

Downloads PolyData Surface Mesh

download_turbine_blade()

タービンブレードのダウンロードスキャン．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

199 034

N Points

99 519

Length

5.06e+01

N Arrays

0

File Info

File Size

3.8 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

turbineblade.ply

Urn Dataset

Downloads PolyData Surface Mesh

download_urn()

埋葬用の骨壷のスキャンデータをダウンロードできます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

245 486

N Points

122 706

Length

7.31e+02

N Arrays

0

File Info

File Size

12.3 MB

Num Files

1

File Ext

.stl

Reader

STLReader

Data Source

urn.stl

Usa Dataset

Downloads PolyData Surface Mesh

download_usa()

usaデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

POLYGON

N Cells

51

N Points

3 652

Length

1.14e+02

N Arrays

0

File Info

File Size

80.3 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

See also Usa Texture Dataset

Data Source

usa.vtk

Victorian Goblet Face Illusion Dataset

Downloads PolyData Surface Mesh

download_victorian_goblet_face_illusion()

ビクトリアンゴブレットフェイスイリュージョンをダウンロード

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

10 910

N Points

5 457

Length

1.55e+02

N Arrays

0

File Info

File Size

545.6 KB

Num Files

1

File Ext

.stl

Reader

STLReader

Data Source

Victorian_Goblet_face_illusion/Vase.stl

Vtk Dataset

Downloads PolyData

download_vtk()

vtkデータセットのダウンロード

Dataset Info

Data Type

PolyData

Cell Type

POLY_LINE

N Cells

3

N Points

51

Length

5.27e+00

N Arrays

0

File Info

File Size

3.2 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

See also Vtk Logo Dataset

Data Source

vtk.vtp

Warping Spheres Dataset

Downloads PolyData Surface Mesh

download_warping_spheres()

Download warping spheres dataset.

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

File Info

File Size

3.1 MB

Num Files

1

File Ext

.vtkhdf

Reader

HDFReader

Data Source

warping_spheres/warping_spheres.vtkhdf

Woman Dataset

Downloads PolyData Surface Mesh

download_woman()

女性のスキャンデータをダウンロードできます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

300 000

N Points

149 948

Length

1.79e+03

N Arrays

0

File Info

File Size

15.0 MB

Num Files

1

File Ext

.stl

Reader

STLReader

Data Source

woman.stl

UnstructuredGrid

UnstructuredGrid datasets.

Section Badge:

UnstructuredGrid

Dataset Count:

40

Aero Bracket Dataset

Downloads UnstructuredGrid

download_aero_bracket()

エアロブラケットの有限要素法解をダウンロードできます．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

QUADRATIC_TETRA

N Cells

117 292

N Points

187 037

Length

1.46e-01

N Arrays

3

File Info

File Size

14.7 MB

Num Files

1

File Ext

.vtu

Reader

XMLUnstructuredGridReader

See also Notch Stress Dataset, Notch Displacement Dataset, Fea Bracket Dataset, Fea Hertzian Contact Cylinder Dataset

Data Source

fea/aero_bracket/aero_bracket.vtu

Angular Sector Dataset

Downloads UnstructuredGrid

download_angular_sector()

角度セクターのデータセットをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

HEXAHEDRON

PYRAMID

N Cells

7 776

N Points

10 141

Length

2.56e-01

N Arrays

2

File Info

File Size

728.6 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

AngularSector.vtk

Backward Facing Step Dataset

Downloads UnstructuredGrid MultiBlock Homogeneous

download_backward_facing_step()

流体シミュレーションのアンサイトゴールドケースをダウンロードできます．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

QUAD

HEXAHEDRON

Length

1.01e+02

File Info

File Size

998 B

Num Files

1

File Ext

.case

Reader

EnSightReader

Data Source

EnSight.zip

Biplane Dataset

Downloads UnstructuredGrid MultiBlock Homogeneous

download_biplane()

Download biplane dataset.

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

LINE

TRIANGLE

QUAD

TETRA

HEXAHEDRON

QUADRATIC_TRIANGLE

QUADRATIC_QUAD

QUADRATIC_TETRA

QUADRATIC_HEXAHEDRON

Length

1.18e+01

File Info

File Size

348.8 KB

Num Files

1

File Ext

.exo

Reader

ExodusIIReader

Data Source

biplane_rms_pressure_bs.exo

Blood Vessels Dataset

Downloads UnstructuredGrid

download_blood_vessels()

血管の分岐を表すデータをダウンロードできます．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

VOXEL

N Cells

39 353

N Points

48 823

Length

1.44e+02

N Arrays

5

File Info

File Size

786 B

Num Files

1

File Ext

.pvtu

Reader

XMLPUnstructuredGridReader

Data Source

pvtu_blood_vessels/blood_vessels.zip

Blow Dataset

Downloads UnstructuredGrid

download_blow()

blowデータセットをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

TRIANGLE

QUAD

N Cells

1 057

N Points

687

Length

5.41e+01

N Arrays

20

File Info

File Size

307.2 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

blow.vtk

Can Crushed Hdf Dataset

Downloads UnstructuredGrid

download_can_crushed_hdf()

粉砕缶のデータセットをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

HEXAHEDRON

N Cells

4 800

N Points

6 724

Length

2.09e+01

N Arrays

16

File Info

File Size

1.1 MB

Num Files

1

File Ext

.hdf

Reader

HDFReader

See also Can Crushed Vtu Dataset

Data Source

hdf/can-vtu.hdf

Can Crushed Vtu Dataset

Downloads UnstructuredGrid

download_can_crushed_vtu()

粉砕缶のデータセットをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

HEXAHEDRON

N Cells

4 800

N Points

6 724

Length

2.09e+01

N Arrays

16

File Info

File Size

1.1 MB

Num Files

1

File Ext

.vtu

Reader

XMLUnstructuredGridReader

See also Can Crushed Hdf Dataset

Data Source

can.vtu

Cavity Dataset

Downloads PolyData UnstructuredGrid MultiBlock Surface Mesh Heterogeneous

download_cavity()

キャビティのOpenFOAMの例をダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

PolyData

Cell Type

QUAD

HEXAHEDRON

Length

1.42e-01

File Info

File Size

0 B

Num Files

1

File Ext

.foam

Reader

POpenFOAMReader

See also OpenFOAMデータのプロット

Data Source

OpenFOAM.zip

Cells Nd Dataset

Downloads UnstructuredGrid

download_cells_nd()

AVS UCDのデータセットの例をダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

TRIANGLE

QUAD

N Cells

12

N Points

13

Length

5.66e+00

N Arrays

4

File Info

File Size

1.2 KB

Num Files

1

File Ext

.inp

Reader

AVSucdReader

Data Source

cellsnd.ascii.inp

Cylinder Crossflow Dataset

Downloads UnstructuredGrid MultiBlock Homogeneous

download_cylinder_crossflow()

Re=35のクロスフローにおけるシリンダーのCFD結果をダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

LINE

TRIANGLE

QUAD

Length

1.68e+01

File Info

File Size

734.6 KB

Num Files

5

File Ext

.case,

.geo,

.scl1,

.scl2,

.vel

Reader

EnSightReader

See also 2D流線

Data Source

EnSight/CylinderCrossflow/cylinder_Re35.case EnSight/CylinderCrossflow/cylinder_Re35.geo EnSight/CylinderCrossflow/cylinder_Re35.scl1 EnSight/CylinderCrossflow/cylinder_Re35.scl2 EnSight/CylinderCrossflow/cylinder_Re35.vel

Disc Quads Dataset

Downloads UnstructuredGrid

download_disc_quads()

disc quadsのデータセットをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

BIQUADRATIC_QUAD

N Cells

376

N Points

1 569

Length

1.41e-01

N Arrays

3

File Info

File Size

60.2 KB

Num Files

1

File Ext

.vtu

Reader

XMLUnstructuredGridReader

Data Source

Disc_BiQuadraticQuads_0_0.vtu

Dolfin Dataset

Downloads UnstructuredGrid

download_dolfin()

ドルフィンメッシュをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

TRIANGLE

N Cells

5 400

N Points

2 868

Length

1.41e+00

N Arrays

0

File Info

File Size

478.3 KB

Num Files

1

File Ext

.xml

Reader

None

See also FEniCS/Dolfinメッシュを確認．

Data Source

dolfin_fine.xml

Electronics Cooling Dataset

Downloads PolyData UnstructuredGrid MultiBlock Surface Mesh Heterogeneous

download_electronics_cooling()

電子機器冷却のサンプルデータセットをダウンロードします．

Dataset Info

Data Type

MultiBlock

PolyData

UnstructuredGrid

Cell Type

TRIANGLE

QUAD

TETRA

HEXAHEDRON

WEDGE

PYRAMID

Length

2.64e-01

File Info

File Size

67.9 MB

Num Files

2

File Ext

.vtp,

.vtu

Reader

XMLPolyDataReader

XMLUnstructuredGridReader

See also 電子機器の冷却CFD

Data Source

fvm/cooling_electronics/datasets.zip

Exodus Dataset

Downloads UnstructuredGrid MultiBlock Homogeneous

download_exodus()

ExodusIIのデータファイルの例です．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

TRIANGLE

QUAD

WEDGE

Length

1.45e+01

File Info

File Size

69.7 KB

Num Files

1

File Ext

.exo

Reader

ExodusIIReader

Data Source

mesh_fs8.exo

Fea Bracket Dataset

Downloads UnstructuredGrid

download_fea_bracket()

ブラケットの有限要素法による解をダウンロードできます．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

QUADRATIC_TETRA

N Cells

56 786

N Points

102 578

Length

6.52e+00

N Arrays

1

File Info

File Size

3.0 MB

Num Files

1

File Ext

.vtu

Reader

XMLUnstructuredGridReader

See also Fea Hertzian Contact Cylinder Dataset, Aero Bracket Dataset, Notch Stress Dataset, Notch Displacement Dataset

Data Source

fea/kiefer/dataset.vtu

Fea Hertzian Contact Cylinder Dataset

Downloads UnstructuredGrid

download_fea_hertzian_contact_cylinder()

Hertzの接触有限要素法の解をダウンロードする．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

TETRA

N Cells

132 258

N Points

34 185

Length

3.61e-01

N Arrays

16

File Info

File Size

2.5 KB

Num Files

1

File Ext

.pvtu

Reader

XMLPUnstructuredGridReader

See also Hertの接触応力を可視化する, Fea Bracket Dataset, Aero Bracket Dataset, Notch Stress Dataset, Notch Displacement Dataset

Data Source

fea/hertzian_contact_cylinder/Hertzian_cylinder_on_plate.zip

Hexbeam Dataset

Built-in UnstructuredGrid

load_hexbeam()

サンプルのUnstructuredGridを読み込みます．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

HEXAHEDRON

N Cells

40

N Points

99

Length

5.20e+00

N Arrays

3

File Info

File Size

3.1 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

hexbeam.vtk

Letter A Dataset

Downloads UnstructuredGrid

download_letter_a()

文字aのデータセットをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

TETRA

N Cells

4 802

N Points

1 317

Length

1.15e+00

N Arrays

0

File Info

File Size

147.0 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

See also Letter K Dataset, セルの中心を抽出

Data Source

a_grid.vtk

Lshape Dataset

Downloads UnstructuredGrid MultiBlock Homogeneous

download_lshape()

LShapeデータセットをEnSightフォーマットでダウンロードできます．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

VERTEX

HEXAHEDRON

Length

2.86e+00

File Info

File Size

10.8 KB

Num Files

3

File Ext

.case,

.geo,

.var

Reader

EnSightReader

Data Source

EnSight/LShape.case EnSight/LShape_geometry.geo EnSight/LShape_displacement.var

Meshio Xdmf Dataset

Downloads UnstructuredGrid MultiBlock Homogeneous

download_meshio_xdmf()

meshioが作成したxdmfファイルをダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

TRIANGLE

Length

1.41e+00

File Info

File Size

12.4 KB

Num Files

2

File Ext

.h5,

.xdmf

Reader

XdmfReader

Data Source

meshio/out.xdmf meshio/out.h5

Model With Variance Dataset

Downloads UnstructuredGrid

download_model_with_variance()

分散付きモデルのデータセットをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

TETRA

N Cells

2 841 790

N Points

551 724

Length

2.36e+04

N Arrays

2

File Info

File Size

34.1 MB

Num Files

1

File Ext

.vtu

Reader

XMLUnstructuredGridReader

See also 不透明度を指定してプロット

Data Source

model_with_variance.vtu

Mug Dataset

Downloads UnstructuredGrid MultiBlock Misc Heterogeneous

download_mug()

mugデータセットをダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

NoneType

Cell Type

QUAD

HEXAHEDRON

Length

8.08e+00

File Info

File Size

1.9 MB

Num Files

1

File Ext

.e

Reader

ExodusIIReader

Data Source

mug.e

Nek5000 Dataset

Downloads UnstructuredGrid

download_nek5000()

Download 2D nek5000 data example.

Dataset Info

Data Type

UnstructuredGrid

Cell Type

QUAD

N Cells

12 544

N Points

16 384

Length

8.89e+00

N Arrays

3

File Info

File Size

3.6 MB

Num Files

12

File Ext

.f00001,

.f00002,

.f00003,

...,

.f00010,

.f00011,

.nek5000

Reader

Nek5000Reader

Data Source

nek5000/eddy_uv.nek5000 nek5000/eddy_uv0.f00001 nek5000/eddy_uv0.f00002 nek5000/eddy_uv0.f00003 nek5000/eddy_uv0.f00004 nek5000/eddy_uv0.f00005 nek5000/eddy_uv0.f00006 nek5000/eddy_uv0.f00007 nek5000/eddy_uv0.f00008 nek5000/eddy_uv0.f00009 nek5000/eddy_uv0.f00010 nek5000/eddy_uv0.f00011

Notch Displacement Dataset

Downloads UnstructuredGrid

download_notch_displacement()

切り欠きのあるはりのFEA変位結果をダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

QUADRATIC_HEXAHEDRON

QUADRATIC_WEDGE

N Cells

2 192

N Points

12 717

Length

4.12e-01

N Arrays

1

File Info

File Size

697.4 KB

Num Files

1

File Ext

.vtu

Reader

XMLUnstructuredGridReader

See also Notch Stress Dataset, Aero Bracket Dataset, Fea Bracket Dataset, Fea Hertzian Contact Cylinder Dataset

Data Source

notch_disp.vtu

Notch Stress Dataset

Downloads UnstructuredGrid

download_notch_stress()

切り欠きのあるはりのFEA応力結果をダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

HEXAHEDRON

WEDGE

N Cells

2 192

N Points

12 717

Length

4.12e-01

N Arrays

3

File Info

File Size

1.5 MB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

See also Notch Displacement Dataset, Aero Bracket Dataset, Fea Bracket Dataset, Fea Hertzian Contact Cylinder Dataset

Data Source

notch_stress.vtk

Openfoam Tubes Dataset

Downloads PolyData UnstructuredGrid MultiBlock Surface Mesh Heterogeneous

download_openfoam_tubes()

チューブのOpenFOAMの例をダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

PolyData

Cell Type

TRIANGLE

QUAD

TETRA

HEXAHEDRON

WEDGE

PYRAMID

Length

3.71e-01

File Info

File Size

0 B

Num Files

1

File Ext

.foam

Reader

POpenFOAMReader

See also CFDデータをプロットする

Data Source

fvm/turbo_incompressible/Turbo-Incompressible_3-Run_1-SOLUTION_FIELDS.zip

Particles Lethe Dataset

Downloads UnstructuredGrid

download_particles_lethe()

lethe によって生成されたパーティクルデータセットをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

VERTEX

N Cells

107 860

N Points

107 860

Length

4.25e-01

N Arrays

6

File Info

File Size

7.2 MB

Num Files

1

File Ext

.vtu

Reader

XMLUnstructuredGridReader

Data Source

lethe/result_particles.20000.0000.vtu

Prism Dataset

Downloads UnstructuredGrid

download_prism()

Download a prism model.

Dataset Info

Data Type

UnstructuredGrid

Cell Type

WEDGE

N Cells

4

N Points

10

Length

3.00e+00

N Arrays

2

File Info

File Size

1.8 KB

Num Files

1

File Ext

.neu

Reader

GambitReader

Data Source

prism.neu

Prostar Dataset

Downloads UnstructuredGrid

download_prostar()

Download a prostar dataset.

Dataset Info

Data Type

UnstructuredGrid

Cell Type

VERTEX

LINE

TRIANGLE

POLYGON

QUAD

TETRA

HEXAHEDRON

WEDGE

PYRAMID

POLYHEDRON

N Cells

10

N Points

44

Length

8.78e+00

N Arrays

1

File Info

File Size

5.0 KB

Num Files

2

File Ext

.cel,

.vrt

Reader

ProStarReader

Data Source

prostar.vrt prostar.cel

Pump Bracket Dataset

Downloads UnstructuredGrid

download_pump_bracket()

pump bracket 例のデータセットをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

QUADRATIC_TETRA

N Cells

124 806

N Points

250 487

Length

1.08e+00

N Arrays

10

File Info

File Size

44.5 MB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

See also ポンプブラケットのモーダル解析の可視化

Data Source

fea/pump_bracket/pump_bracket.zip

Quadratic Pyramid Dataset

Downloads UnstructuredGrid

download_quadratic_pyramid()

2次関数ピラミッドのデータセットをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

QUADRATIC_PYRAMID

N Cells

48

N Points

153

Length

3.46e+00

N Arrays

2

File Info

File Size

10.3 KB

Num Files

1

File Ext

.vtu

Reader

XMLUnstructuredGridReader

Data Source

QuadraticPyramid.vtu

Room Cff Dataset

Downloads UnstructuredGrid MultiBlock Single Block

download_room_cff()

部屋モデルをCFF形式でダウンロードします。

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

QUAD

Length

5.66e+00

File Info

File Size

893.4 KB

Num Files

2

File Ext

.h5

Reader

FLUENTCFFReader

Data Source

FLUENTCFF/room.cas.h5 FLUENTCFF/room.dat.h5

Tecplot Ascii Dataset

Downloads UnstructuredGrid MultiBlock Single Block

download_tecplot_ascii()

シングルブロックのASCII Tecplotデータセットをダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

HEXAHEDRON

Length

4.69e+00

File Info

File Size

13.1 KB

Num Files

1

File Ext

.dat

Reader

TecplotReader

Data Source

tecplot_ascii.dat

Tensors Dataset

Downloads UnstructuredGrid

download_tensors()

テンソルのデータセットをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

VOXEL

N Cells

1

N Points

8

Length

1.73e+00

N Arrays

3

File Info

File Size

895 B

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

tensors.vtk

Tetbeam Dataset

Built-in UnstructuredGrid

load_tetbeam()

4面体セルのみを含みますサンプルUnstructuredGridをロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

TETRA

N Cells

200

N Points

99

Length

5.20e+00

N Arrays

1

File Info

Reader

None

Tetra Dc Mesh Dataset

Downloads UnstructuredGrid MultiBlock Homogeneous

download_tetra_dc_mesh()

電気的な逆問題を定義する2つのメッシュをダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

TETRA

Length

1.80e+00

File Info

File Size

60.8 MB

Num Files

2

File Ext

.vtu

Reader

XMLUnstructuredGridReader

Data Source

dc-inversion.zip

Tetrahedron Dataset

Downloads UnstructuredGrid

download_tetrahedron()

4面体のデータセットをダウンロードします．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

TETRA

N Cells

96

N Points

35

Length

3.46e+00

N Arrays

2

File Info

File Size

6.4 KB

Num Files

1

File Ext

.vtu

Reader

XMLUnstructuredGridReader

Data Source

Tetrahedron.vtu

Tri Quadratic Hexahedron Dataset

Downloads UnstructuredGrid

download_tri_quadratic_hexahedron()

3次曲面6面体のデータセットをダウンロードできます．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

TRIQUADRATIC_HEXAHEDRON

N Cells

7

N Points

117

Length

3.65e+00

N Arrays

0

File Info

File Size

5.7 KB

Num Files

1

File Ext

.vtu

Reader

XMLUnstructuredGridReader

Data Source

TriQuadraticHexahedron.vtu

Unstructured Grid Dataset

Downloads UnstructuredGrid

download_unstructured_grid()

非構造格子のデータセットをダウンロード．

Dataset Info

Data Type

UnstructuredGrid

Cell Type

VERTEX

LINE

TRIANGLE

TRIANGLE_STRIP

POLYGON

QUAD

TETRA

HEXAHEDRON

N Cells

12

N Points

27

Length

6.40e+00

N Arrays

2

File Info

File Size

1.0 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

uGridEx.vtk

StructuredGrid

StructuredGrid datasets.

Section Badge:

StructuredGrid

Dataset Count:

9

Cgns Multi Dataset

Downloads StructuredGrid MultiBlock Homogeneous

download_cgns_multi()

セルセンター解法によるマルチエレメントエアフォイルをダウンロードできます．

Dataset Info

Data Type

MultiBlock

StructuredGrid

Cell Type

HEXAHEDRON

Length

2.83e+01

File Info

File Size

4.1 MB

Num Files

1

File Ext

.cgns

Reader

CGNSReader

See also Cgns Structured Dataset

Data Source

cgns/multi.cgns

Cgns Structured Dataset

Downloads StructuredGrid MultiBlock Homogeneous

download_cgns_structured()

構造CGNSのデータセットメッシュをダウンロード．

Dataset Info

Data Type

MultiBlock

StructuredGrid

Cell Type

QUAD

HEXAHEDRON

Length

2.62e+00

File Info

File Size

1.0 MB

Num Files

1

File Ext

.cgns

Reader

CGNSReader

See also Cgns Multi Dataset

Data Source

cgns/sqnz_s.adf.cgns

Kitchen Dataset

Downloads StructuredGrid

download_kitchen()

速度場を持つキッチンの構造格子をダウンロードします．

Dataset Info

Data Type

StructuredGrid

Cell Type

HEXAHEDRON

N Cells

9 936

N Points

11 424

Length

8.94e+00

Dimensions

28, 24, 17

N Arrays

20

File Info

File Size

3.0 MB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

kitchen.vtk

Naca Dataset

Downloads StructuredGrid MultiBlock Homogeneous

download_naca()

NACAの翼型データセットをEnSight形式でダウンロードできます．

Dataset Info

Data Type

MultiBlock

StructuredGrid

Cell Type

QUAD

Length

1.89e+02

File Info

File Size

505.8 KB

Num Files

4

File Ext

.case,

.dens_1,

.dens_3,

.geo

Reader

EnSightReader

See also リーダーによるデータの読み込み

Data Source

EnSight/naca.bin.case EnSight/naca.gold.bin.DENS_1 EnSight/naca.gold.bin.DENS_3 EnSight/naca.gold.bin.geo

Office Dataset

Downloads StructuredGrid

download_office()

事務所のデータセットをダウンロードします．

Dataset Info

Data Type

StructuredGrid

Cell Type

HEXAHEDRON

N Cells

7 220

N Points

8 400

Length

6.82e+00

Dimensions

21, 20, 20

N Arrays

2

File Info

File Size

235.4 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

See also 平面とボックスでクリップします

Data Source

office.binary.vtk

Structured Dataset

Built-in StructuredGrid

load_structured()

シンプルなStructuredGridを読み込みます．

Dataset Info

Data Type

StructuredGrid

Cell Type

QUAD

N Cells

6 241

N Points

6 400

Length

2.80e+01

Dimensions

80, 80, 1

N Arrays

0

File Info

Reader

None

Structured Grid Dataset

Downloads StructuredGrid

download_structured_grid()

構造格子のデータセットをダウンロード．

Dataset Info

Data Type

StructuredGrid

Cell Type

HEXAHEDRON

N Cells

440

N Points

648

Length

1.54e+01

Dimensions

6, 12, 9

N Arrays

3

File Info

File Size

19.7 KB

Num Files

1

File Ext

.vts

Reader

XMLStructuredGridReader

See also Structured Grid Two Dataset

Data Source

StructuredGrid.vts

Structured Grid Two Dataset

Downloads StructuredGrid

download_structured_grid_two()

構造格子の2つのデータセットをダウンロード．

Dataset Info

Data Type

StructuredGrid

Cell Type

HEXAHEDRON

N Cells

21 489

N Points

24 000

Length

1.32e+00

Dimensions

20, 30, 40

N Arrays

2

File Info

File Size

1.1 MB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

See also Structured Grid Dataset

Data Source

SampleStructGrid.vtk

Wavy Dataset

Downloads StructuredGrid MultiBlock Single Block

download_wavy()

2D波のPVDファイルをダウンロードできます．

Dataset Info

Data Type

MultiBlock

StructuredGrid

Cell Type

QUAD

Length

2.80e+01

File Info

File Size

1.4 KB

Num Files

1

File Ext

.pvd

Reader

PVDReader

See also リーダーによるデータの読み込み

Data Source

PVD/wavy.zip

ExplicitStructuredGrid

ExplicitStructuredGrid datasets.

Section Badge:

ExplicitStructuredGrid

Dataset Count:

2

Explicit Structured Dataset

Built-in ExplicitStructuredGrid

load_explicit_structured()

単純な明示的構造のグリッドを読み込みます．

Dataset Info

Data Type

ExplicitStructuredGrid

Cell Type

HEXAHEDRON

N Cells

120

N Points

210

Length

9.45e+01

Dimensions

5, 6, 7

N Arrays

0

File Info

Reader

None

Reservoir Dataset

Downloads ExplicitStructuredGrid

download_reservoir()

UNISIM-II-D貯水池モデルをダウンロードします。

Dataset Info

Data Type

ExplicitStructuredGrid

Cell Type

EMPTY_CELL

HEXAHEDRON

N Cells

47 610

N Points

58 433

Length

1.11e+04

Dimensions

47, 70, 16

N Arrays

6

File Info

File Size

2.3 MB

Num Files

1

File Ext

.vtu

Reader

XMLUnstructuredGridReader

Data Source

reservoir/UNISIM-II-D.zip

特定の種類の表現を持つ点セットをブラウズする。

点群とサーフェスメッシュ

点群

Datasets represented as points in space. May be PointSet or PolyData with VERTEX cells.

Section Badge:

Point Cloud

Dataset Count:

9

Cloud Dark Matter Dataset

Downloads PointSet Point Cloud

download_cloud_dark_matter()

ダークマターハローのシミュレーションから粒子をダウンロードします．

Dataset Info

Data Type

PointSet

Cell Type

None

N Cells

0

N Points

32 314

Length

8.97e+00

N Arrays

0

File Info

File Size

387.9 KB

Num Files

1

File Ext

.npy

Reader

None

See also Cloud Dark Matter Dense Dataset, 点群のプロット

Data Source

point-clouds/findus23/halo_low_res.npy

Cloud Dark Matter Dense Dataset

Downloads PointSet Point Cloud

download_cloud_dark_matter_dense()

ダークマターハローのシミュレーションから粒子をダウンロードします．

Dataset Info

Data Type

PointSet

Cell Type

None

N Cells

0

N Points

2 062 256

Length

8.77e+00

N Arrays

0

File Info

File Size

24.7 MB

Num Files

1

File Ext

.npy

Reader

None

See also Cloud Dark Matter Dataset, 点群のプロット

Data Source

point-clouds/findus23/halo_high_res.npy

Gpr Path Dataset

Downloads PolyData Point Cloud

download_gpr_path()

GPRのサンプルパスをダウンロードできます．

Dataset Info

Data Type

PolyData

Cell Type

VERTEX

N Cells

1 835

N Points

1 835

Length

3.07e+03

N Arrays

0

File Info

File Size

137.6 KB

Num Files

1

File Ext

.txt

Reader

None

See also Gpr Data Array Dataset, 線分から2 Dサーフェスをまとう

Data Source

gpr-example/path.txt

Horse Points Dataset

Downloads PolyData Point Cloud

download_horse_points()

馬のポイントデータセットのダウンロード．

Dataset Info

Data Type

PolyData

Cell Type

VERTEX

N Cells

128 449

N Points

128 449

Length

2.53e-01

N Arrays

2

File Info

File Size

4.6 MB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

See also Horse Dataset

Data Source

horsePoints.vtp

Lidar Dataset

Downloads PolyData Point Cloud

download_lidar()

ライダーのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

VERTEX

N Cells

3 392 091

N Points

3 392 091

Length

2.64e+02

N Arrays

1

File Info

File Size

37.8 MB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

kafadar-lidar-interp.vtp

Particles Dataset

Downloads PolyData Point Cloud

download_particles()

Download a particle dataset.

Dataset Info

Data Type

PolyData

Cell Type

POLY_VERTEX

N Cells

1

N Points

197

Length

3.63e+38

N Arrays

1

File Info

File Size

3.2 KB

Num Files

1

File Ext

.raw

Reader

ParticleReader

Data Source

Particles.raw

Sparse Points Dataset

Downloads PolyData Point Cloud

download_sparse_points()

スパースポイントデータをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

POLY_VERTEX

N Cells

1

N Points

16

Length

4.33e+01

N Arrays

1

File Info

File Size

375 B

Num Files

1

File Ext

.txt

Reader

None

See also 詳細な補間点

Data Source

sparsePoints.txt

Stars Cloud Hyg Dataset

Downloads PolyData Point Cloud

download_stars_cloud_hyg()

HYGデータベースで計算された星の点群データをダウンロードすることができます．

Dataset Info

Data Type

PolyData

Cell Type

VERTEX

N Cells

107 857

N Points

107 857

Length

3.37e+03

N Arrays

3

File Info

File Size

3.2 MB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

See also 点群のプロット

Data Source

point-clouds/hyg-database/stars.vtp

Thermal Probes Dataset

Downloads PolyData Point Cloud

download_thermal_probes()

温度プローブのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

VERTEX

N Cells

245

N Points

245

Length

2.27e+04

N Arrays

1

File Info

File Size

6.2 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

See also 詳細な補間点

Data Source

probes.vtp

サーフェスメッシュ

PolyData surface meshes.

Section Badge:

Surface Mesh

Dataset Count:

69

Action Figure Dataset

Downloads PolyData Surface Mesh

download_action_figure()

アクションフィギュアのダウンロードスキャン．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

31 421

N Points

15 713

Length

1.67e+02

N Arrays

1

File Info

File Size

1.5 MB

Num Files

1

File Ext

.obj

Reader

OBJReader

Data Source

tigerfighter_decimated.obj

Airplane Dataset

Built-in PolyData Surface Mesh

load_airplane()

ply飛行機メッシュをロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

2 452

N Points

1 335

Length

2.01e+03

N Arrays

0

File Info

File Size

74.5 KB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

airplane.ply

Ant Dataset

Built-in PolyData Surface Mesh

load_ant()

ply蟻メッシュをロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

912

N Points

486

Length

5.00e+01

N Arrays

0

File Info

File Size

17.9 KB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

ant.ply

Antarctica Velocity Dataset

Downloads PolyData Surface Mesh

download_antarctica_velocity()

Antarcticaの速度シミュレーション結果をダウンロードできます．

Dataset Info

Data Type

PolyData

Cell Type

LINE

TRIANGLE

N Cells

1 106 948

N Points

557 470

Length

6.84e+06

N Arrays

2

File Info

File Size

33.4 MB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

See also メッシュ領域間でフィールドを比較

Data Source

antarctica_velocity.vtp

Armadillo Dataset

Downloads PolyData Surface Mesh

download_armadillo()

armadilloデータセットのダウンロード

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

345 944

N Points

172 974

Length

2.29e+02

N Arrays

0

File Info

File Size

6.6 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

Armadillo.ply

Bird Bath Dataset

Downloads PolyData Surface Mesh

download_bird_bath()

Ivan Nikolovが作成したバードバスのスキャンをダウンロードすることができます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

35 079

N Points

18 796

Length

4.57e+02

N Arrays

0

File Info

File Size

699.8 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

ivan-nikolov/birdBath_decimated.vtp

Black Vase Dataset

Downloads PolyData Surface Mesh

download_black_vase()

Ivan Nikolovが作成した黒い花瓶スキャンをダウンロードすることができます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

31 366

N Points

17 337

Length

5.39e+02

N Arrays

0

File Info

File Size

624.1 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

ivan-nikolov/blackVase_decimated.vtp

Bunny Dataset

Downloads PolyData Surface Mesh

download_bunny()

ウサギのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

69 451

N Points

35 947

Length

2.50e-01

N Arrays

0

File Info

File Size

3.0 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

See also Bunny Coarse Dataset

Data Source

bunny.ply

Bunny Coarse Dataset

Downloads PolyData Surface Mesh

download_bunny_coarse()

粗いウサギのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

1 000

N Points

872

Length

5.00e-01

N Arrays

1

File Info

File Size

33.4 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

See also Bunny Dataset

Data Source

Bunny.vtp

Cad Model Dataset

Downloads PolyData Surface Mesh

download_cad_model()

cadのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

11 036

N Points

5 500

Length

1.76e+01

N Arrays

0

File Info

File Size

551.9 KB

Num Files

1

File Ext

.stl

Reader

STLReader

See also ファイルからロードおよびプロットする

Data Source

42400-IDGH.stl

Cad Model Case Dataset

Downloads PolyData Surface Mesh

download_cad_model_case()

Raspberry PI 4の筐体CADモデルをダウンロードできます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

15 446

N Points

7 677

Length

1.74e+02

N Arrays

2

File Info

File Size

374.9 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

cad/4947746/Vented_Rear_Case_With_Pi_Supports.vtp

Carburetor Dataset

Downloads PolyData Surface Mesh

download_carburetor()

キャブレターのスキャンデータをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

500 000

N Points

251 320

Length

3.27e+02

N Arrays

0

File Info

File Size

9.5 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

carburetor.ply

Cavity Dataset

Downloads PolyData UnstructuredGrid MultiBlock Surface Mesh Heterogeneous

download_cavity()

キャビティのOpenFOAMの例をダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

PolyData

Cell Type

QUAD

HEXAHEDRON

Length

1.42e-01

File Info

File Size

0 B

Num Files

1

File Ext

.foam

Reader

POpenFOAMReader

See also OpenFOAMデータのプロット

Data Source

OpenFOAM.zip

Clown Dataset

Downloads PolyData Surface Mesh

download_clown()

ピエロのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

802

N Points

631

Length

2.22e+00

N Arrays

3

File Info

File Size

29.4 KB

Num Files

1

File Ext

.facet

Reader

FacetReader

Data Source

clown.facet

Cow Dataset

Downloads PolyData Surface Mesh

download_cow()

牛のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

POLYGON

QUAD

N Cells

3 263

N Points

2 903

Length

1.27e+01

N Arrays

0

File Info

File Size

60.4 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

See also Cow Head Dataset

Data Source

cow.vtp

Cow Head Dataset

Downloads PolyData Surface Mesh

download_cow_head()

牛頭のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

QUAD

N Cells

7 994

N Points

4 074

Length

4.61e+00

N Arrays

1

File Info

File Size

281.4 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

See also Cow Dataset

Data Source

cowHead.vtp

Delaunay Example Dataset

Downloads PolyData Surface Mesh

download_delaunay_example()

Delaunayの例のためのポイントセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

374

N Points

226

Length

9.42e+02

N Arrays

0

File Info

File Size

10.8 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

250.vtk

Doorman Dataset

Downloads PolyData Surface Mesh

download_doorman()

ドアマンデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

9 783

N Points

29 349

Length

7.25e+00

N Arrays

8

File Info

File Size

2.6 MB

Num Files

9

File Ext

.mtl,

.obj,

.png

Reader

OBJReader

See also ファイルからロードおよびプロットする

Data Source

doorman/doorman.obj doorman/doorman.mtl doorman/t_doorMan_d.png doorman/t_doorMan_n.png doorman/t_doorMan_s.png doorman/t_doorMan_teeth_d.png doorman/t_doorMan_teeth_n.png doorman/t_eye_d.png doorman/t_eye_n.png

Dragon Dataset

Downloads PolyData Surface Mesh

download_dragon()

ドラゴンのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

871 414

N Points

437 645

Length

2.67e-01

N Arrays

0

File Info

File Size

33.8 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

dragon.ply

Drill Dataset

Downloads PolyData Surface Mesh

download_drill()

電動ドリルのスキャンデータをダウンロードできます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

250 000

N Points

750 000

Length

4.26e+02

N Arrays

6

File Info

File Size

23.2 MB

Num Files

1

File Ext

.obj

Reader

OBJReader

Data Source

drill.obj

Dual Sphere Animation Dataset

Downloads PolyData MultiBlock Surface Mesh Homogeneous

download_dual_sphere_animation()

球体2個分のPVDファイルをダウンロードします．

Dataset Info

Data Type

MultiBlock

PolyData

Cell Type

TRIANGLE

Length

1.96e+00

File Info

File Size

2.5 KB

Num Files

1

File Ext

.pvd

Reader

PVDReader

See also Single Sphere Animation Dataset

Data Source

PVD/paraview/dualSphereAnimation.zip

Electronics Cooling Dataset

Downloads PolyData UnstructuredGrid MultiBlock Surface Mesh Heterogeneous

download_electronics_cooling()

電子機器冷却のサンプルデータセットをダウンロードします．

Dataset Info

Data Type

MultiBlock

PolyData

UnstructuredGrid

Cell Type

TRIANGLE

QUAD

TETRA

HEXAHEDRON

WEDGE

PYRAMID

Length

2.64e-01

File Info

File Size

67.9 MB

Num Files

2

File Ext

.vtp,

.vtu

Reader

XMLPolyDataReader

XMLUnstructuredGridReader

See also 電子機器の冷却CFD

Data Source

fvm/cooling_electronics/datasets.zip

Face Dataset

Downloads PolyData Surface Mesh

download_face()

顔データセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

4 224

N Points

2 205

Length

2.23e-01

N Arrays

1

File Info

File Size

174.9 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

See also Face2 Dataset, 間引き

Data Source

fran_cut.vtk

Face2 Dataset

Downloads PolyData Surface Mesh

download_face2()

男性の顔のスキャンしたものをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

223 987

N Points

112 862

Length

9.12e+00

N Arrays

0

File Info

File Size

11.2 MB

Num Files

1

File Ext

.stl

Reader

STLReader

See also Face Dataset

Data Source

man_face.stl

Filled Contours Dataset

Downloads PolyData Surface Mesh

download_filled_contours()

塗りつぶした輪郭のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

QUAD

N Cells

24

N Points

39

Length

1.22e+01

N Arrays

1

File Info

File Size

3.1 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

filledContours.vtp

Foot Bones Dataset

Downloads PolyData Surface Mesh Medical

download_foot_bones()

足の骨のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

4 204

N Points

2 154

Length

1.26e+01

N Arrays

0

File Info

File Size

135.9 KB

Num Files

1

File Ext

.ply

Reader

PLYReader

See also サーフェスメッシュをボクセル化する, Compare threshold filters

Data Source

fsu/footbones.ply

Gears Dataset

Downloads PolyData Surface Mesh

download_gears()

歯車データセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

19 426

N Points

9 723

Length

7.46e+01

N Arrays

0

File Info

File Size

3.7 MB

Num Files

1

File Ext

.stl

Reader

STLReader

Data Source

gears.stl

Globe Dataset

Built-in PolyData Surface Mesh

load_globe()

地球儀のソースを読み込みます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

980

N Points

540

Length

2.20e+10

N Arrays

1

File Info

File Size

37.4 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

globe.vtk

Great White Shark Dataset

Downloads PolyData Surface Mesh

download_great_white_shark()

Download great white shark dataset.

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

6 264

N Points

3 155

Length

2.76e+01

N Arrays

0

File Info

File Size

313.3 KB

Num Files

1

File Ext

.stl

Reader

STLReader

See also Shark Dataset, Grey Nurse Shark Dataset

Data Source

great_white_shark/greatWhite.stl

Grey Nurse Shark Dataset

Downloads PolyData Surface Mesh

download_grey_nurse_shark()

Download grey nurse shark dataset.

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

49 702

N Points

25 057

Length

2.69e+02

N Arrays

0

File Info

File Size

2.5 MB

Num Files

1

File Ext

.stl

Reader

STLReader

See also Shark Dataset, Great White Shark Dataset

Data Source

grey_nurse_shark/Grey_Nurse_Shark.stl

Guitar Dataset

Downloads PolyData Surface Mesh

download_guitar()

ギターのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

8 660

N Points

4 500

Length

5.25e+02

N Arrays

0

File Info

File Size

282.1 KB

Num Files

1

File Ext

.ply

Reader

PLYReader

See also Trumpet Dataset

Data Source

fsu/stratocaster.ply

Honolulu Dataset

Downloads PolyData Surface Mesh

download_honolulu()

Honoluluデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

403 680

N Points

202 740

Length

1.91e+04

N Arrays

0

File Info

File Size

16.1 MB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

honolulu.vtk

Horse Dataset

Downloads PolyData Surface Mesh

download_horse()

馬のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

67 868

N Points

33 936

Length

2.52e-01

N Arrays

0

File Info

File Size

736.6 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

See also Horse Points Dataset, メッシュライティングの無効化

Data Source

horse.vtp

Human Dataset

Downloads PolyData Surface Mesh

download_human()

人間のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

34 660

N Points

17 665

Length

2.03e+02

N Arrays

1

File Info

File Size

1.7 MB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

Human.vtp

Ivan Angel Dataset

Downloads PolyData Surface Mesh

download_ivan_angel()

Ivan Nikolovが作成した天使像スキャンをダウンロードすることができます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

35 804

N Points

18 412

Length

4.12e+02

N Arrays

0

File Info

File Size

546.6 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

ivan-nikolov/Angel_decimated.vtp

Letter K Dataset

Downloads PolyData Surface Mesh

download_letter_k()

文字kのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

QUAD

N Cells

245

N Points

166

Length

3.83e+01

N Arrays

0

File Info

File Size

8.3 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

See also Letter A Dataset

Data Source

k.vtk

Lobster Dataset

Downloads PolyData Surface Mesh

download_lobster()

ロブスターのスキャンデータをダウンロードできます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

249 569

N Points

125 156

Length

4.35e+02

N Arrays

0

File Info

File Size

10.4 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

lobster.ply

Louis Louvre Dataset

Downloads PolyData Surface Mesh

download_louis_louvre()

パリのLouvre美術館のLouis XIV de France像をダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

421 965

N Points

210 873

Length

1.61e+01

N Arrays

1

File Info

File Size

9.7 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

See also 物理ベースのレンダリング

Data Source

louis.ply

Lucy Dataset

Downloads PolyData Surface Mesh

download_lucy()

lucy angelのメッシュをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

99 970

N Points

49 987

Length

1.92e+03

N Arrays

0

File Info

File Size

1.9 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

See also Jupyterノートブックプロット

Data Source

lucy.ply

Motor Dataset

Downloads PolyData Surface Mesh

download_motor()

motorデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

POLYGON

QUAD

N Cells

1 572

N Points

1 710

Length

9.37e-01

N Arrays

0

File Info

File Size

95.3 KB

Num Files

1

File Ext

.g

Reader

BYUReader

Data Source

motor.g

Mount Damavand Dataset

Downloads PolyData Surface Mesh

download_mount_damavand()

ダマーヴァンド山のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

QUAD

N Cells

260 400

N Points

261 426

Length

3.64e+05

N Arrays

1

File Info

File Size

5.9 MB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

AOI.Damavand.32639.vtp

Nefertiti Dataset

Downloads PolyData Surface Mesh

download_nefertiti()

王妃Nefertitiのメッシュをダウンロード

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

2 018 232

N Points

1 009 118

Length

6.58e+02

N Arrays

0

File Info

File Size

38.3 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

nefertiti.ply.zip

Nut Dataset

Built-in PolyData Surface Mesh

load_nut()

サンプルのナットメッシュをロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

1 046

N Points

523

Length

7.12e+01

N Arrays

0

File Info

File Size

20.1 KB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

nut.ply

Oblique Cone Dataset

Downloads PolyData Surface Mesh

download_oblique_cone()

oblique cone データセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

POLYGON

N Cells

25

N Points

25

Length

4.76e+02

N Arrays

0

File Info

File Size

3.7 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

ObliqueCone.vtp

Openfoam Tubes Dataset

Downloads PolyData UnstructuredGrid MultiBlock Surface Mesh Heterogeneous

download_openfoam_tubes()

チューブのOpenFOAMの例をダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

PolyData

Cell Type

TRIANGLE

QUAD

TETRA

HEXAHEDRON

WEDGE

PYRAMID

Length

3.71e-01

File Info

File Size

0 B

Num Files

1

File Ext

.foam

Reader

POpenFOAMReader

See also CFDデータをプロットする

Data Source

fvm/turbo_incompressible/Turbo-Incompressible_3-Run_1-SOLUTION_FIELDS.zip

Owl Dataset

Downloads PolyData Surface Mesh

download_owl()

Ivan Nikolovが作成したフクロウ像スキャンをダウンロードすることができます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

24 407

N Points

12 442

Length

2.74e+02

N Arrays

0

File Info

File Size

377.0 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

ivan-nikolov/owl_decimated.vtp

Pepper Dataset

Downloads PolyData Surface Mesh

download_pepper()

ピーマン（トウガラシ）のスキャンデータをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

29 956

N Points

14 980

Length

1.57e+02

N Arrays

0

File Info

File Size

1.9 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

pepper.ply

Pine Roots Dataset

Downloads PolyData Surface Mesh

download_pine_roots()

松の根のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

351 536

N Points

178 091

Length

1.48e+02

N Arrays

1

File Info

File Size

25.3 MB

Num Files

1

File Ext

.tri

Reader

BinaryMarchingCubesReader

See also 連結度

Data Source

pine_root.tri

Plastic Vase Dataset

Downloads PolyData Surface Mesh

download_plastic_vase()

Ivan Nikolovが作成したプラスチック製の花瓶スキャンをダウンロードすることができます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

35 708

N Points

18 238

Length

5.47e+02

N Arrays

0

File Info

File Size

678.9 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

ivan-nikolov/plasticVase_decimated.vtp

Random Hills Dataset

Built-in PolyData Surface Mesh

load_random_hills()

ランダムな丘のおもちゃの例を作成します．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

19 602

N Points

10 000

Length

2.92e+01

N Arrays

2

File Info

Reader

None

Room Surface Mesh Dataset

Downloads PolyData Surface Mesh

download_room_surface_mesh()

部屋の表面のメッシュをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

103 332

N Points

80 757

Length

2.86e+01

N Arrays

1

File Info

File Size

6.3 MB

Num Files

1

File Ext

.obj

Reader

OBJReader

See also Depth Peeling

Data Source

room_surface_mesh.obj

Saddle Surface Dataset

Downloads PolyData Surface Mesh

download_saddle_surface()

鞍部サーフェスデータセットのダウンロード

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

5 131

N Points

2 669

Length

5.93e+01

N Arrays

0

File Info

File Size

1.7 MB

Num Files

1

File Ext

.stl

Reader

STLReader

See also 詳細な補間点

Data Source

InterpolatingOnSTL_final.stl

Sea Vase Dataset

Downloads PolyData Surface Mesh

download_sea_vase()

Ivan Nikolovが作成したシーベーススキャンをダウンロードすることができます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

35 483

N Points

18 063

Length

6.30e+02

N Arrays

0

File Info

File Size

697.0 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

ivan-nikolov/seaVase_decimated.vtp

Shark Dataset

Downloads PolyData Surface Mesh

download_shark()

サメのデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

POLYGON

QUAD

N Cells

2 562

N Points

2 560

Length

1.67e+02

N Arrays

0

File Info

File Size

124.0 KB

Num Files

1

File Ext

.ply

Reader

PLYReader

See also Great White Shark Dataset, Grey Nurse Shark Dataset

Data Source

shark.ply

Single Sphere Animation Dataset

Downloads PolyData MultiBlock Surface Mesh Single Block

download_single_sphere_animation()

球体1個分のPVDファイルをダウンロードします．

Dataset Info

Data Type

MultiBlock

PolyData

Cell Type

TRIANGLE

Length

1.71e+00

File Info

File Size

1.5 KB

Num Files

1

File Ext

.pvd

Reader

PVDReader

See also Dual Sphere Animation Dataset

Data Source

PVD/paraview/singleSphereAnimation.zip

Sphere Dataset

Built-in PolyData Surface Mesh

load_sphere()

球plyメッシュをロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

840

N Points

422

Length

4.38e+02

N Arrays

0

File Info

File Size

16.2 KB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

sphere.ply

Sphere Vectors Dataset

Built-in PolyData Surface Mesh

load_sphere_vectors()

ノードに定義された渦巻き状のベクトルフィールドを持つ球体の例を作成します．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

1 680

N Points

842

Length

1.09e+01

N Arrays

2

File Info

Reader

None

Spider Dataset

Downloads PolyData Surface Mesh

download_spider()

蜘蛛のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

9 286

N Points

4 670

Length

8.40e+00

N Arrays

0

File Info

File Size

275.8 KB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

spider.ply

Teapot Dataset

Downloads PolyData Surface Mesh

download_teapot()

ティーポットのデータセットをダウンロードできます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

3 751

N Points

1 976

Length

8.14e+00

N Arrays

0

File Info

File Size

133.6 KB

Num Files

1

File Ext

.g

Reader

BYUReader

Data Source

teapot.g

Topo Global Dataset

Downloads PolyData Surface Mesh

download_topo_global()

topoデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

QUAD

N Cells

2 333 880

N Points

2 336 041

Length

3.46e+00

N Arrays

1

File Info

File Size

45.2 MB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

EarthModels/ETOPO_10min_Ice.vtp

Topo Land Dataset

Downloads PolyData Surface Mesh

download_topo_land()

topo landデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

QUAD

N Cells

767 366

N Points

788 273

Length

3.43e+00

N Arrays

1

File Info

File Size

15.2 MB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

EarthModels/ETOPO_10min_Ice_only-land.vtp

Torso Dataset

Downloads PolyData Surface Mesh

download_torso()

胴体のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

QUAD

N Cells

12 448

N Points

12 015

Length

8.62e+02

N Arrays

0

File Info

File Size

283.2 KB

Num Files

1

File Ext

.vtp

Reader

XMLPolyDataReader

Data Source

Torso.vtp

Trumpet Dataset

Downloads PolyData Surface Mesh

download_trumpet()

トランペットのデータセットをダウンロードできます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

POLYGON

QUAD

N Cells

11 362

N Points

11 908

Length

7.93e+02

N Arrays

5

File Info

File Size

678.2 KB

Num Files

1

File Ext

.obj

Reader

OBJReader

See also Guitar Dataset

Data Source

trumpet.obj

Turbine Blade Dataset

Downloads PolyData Surface Mesh

download_turbine_blade()

タービンブレードのダウンロードスキャン．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

199 034

N Points

99 519

Length

5.06e+01

N Arrays

0

File Info

File Size

3.8 MB

Num Files

1

File Ext

.ply

Reader

PLYReader

Data Source

turbineblade.ply

Urn Dataset

Downloads PolyData Surface Mesh

download_urn()

埋葬用の骨壷のスキャンデータをダウンロードできます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

245 486

N Points

122 706

Length

7.31e+02

N Arrays

0

File Info

File Size

12.3 MB

Num Files

1

File Ext

.stl

Reader

STLReader

Data Source

urn.stl

Usa Dataset

Downloads PolyData Surface Mesh

download_usa()

usaデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

POLYGON

N Cells

51

N Points

3 652

Length

1.14e+02

N Arrays

0

File Info

File Size

80.3 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

See also Usa Texture Dataset

Data Source

usa.vtk

Victorian Goblet Face Illusion Dataset

Downloads PolyData Surface Mesh

download_victorian_goblet_face_illusion()

ビクトリアンゴブレットフェイスイリュージョンをダウンロード

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

10 910

N Points

5 457

Length

1.55e+02

N Arrays

0

File Info

File Size

545.6 KB

Num Files

1

File Ext

.stl

Reader

STLReader

Data Source

Victorian_Goblet_face_illusion/Vase.stl

Warping Spheres Dataset

Downloads PolyData Surface Mesh

download_warping_spheres()

Download warping spheres dataset.

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

File Info

File Size

3.1 MB

Num Files

1

File Ext

.vtkhdf

Reader

HDFReader

Data Source

warping_spheres/warping_spheres.vtkhdf

Woman Dataset

Downloads PolyData Surface Mesh

download_woman()

女性のスキャンデータをダウンロードできます．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

300 000

N Points

149 948

Length

1.79e+03

N Arrays

0

File Info

File Size

15.0 MB

Num Files

1

File Ext

.stl

Reader

STLReader

Data Source

woman.stl

グリッドデータ

トポロジー的に規則的な点間隔と暗黙的なジオメトリを持つデータセット。詳細は グリッドデータ を参照してください。

グリッドデータ型

RectilinearGrid

RectilinearGrid datasets.

Section Badge:

RectilinearGrid

Dataset Count:

2

Rectilinear Dataset

Built-in RectilinearGrid

load_rectilinear()

サンプルのユニフォームグリッドを読み込みます．

Dataset Info

Data Type

RectilinearGrid

Cell Type

VOXEL

N Cells

16 146

N Points

18 144

Length

2.58e+03

Dimensions

27, 28, 24

N Arrays

1

File Info

File Size

228.5 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

rectilinear.vtk

Rectilinear Grid Dataset

Downloads RectilinearGrid

download_rectilinear_grid()

直線的な格子のデータセットをダウンロード．

Dataset Info

Data Type

RectilinearGrid

Cell Type

VOXEL

N Cells

524 288

N Points

545 025

Length

1.43e+01

Dimensions

129, 65, 65

N Arrays

9

File Info

File Size

1.1 MB

Num Files

1

File Ext

.vtr

Reader

XMLRectilinearGridReader

Data Source

RectilinearGrid.vtr

ImageData

ImageData datasets.

Section Badge:

ImageData

Dataset Count:

54

Beach Dataset

Downloads ImageData 2D Image

download_beach()

ビーチのNRRD画像をダウンロード

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

9 801

N Points

10 000

Length

1.40e+02

Dimensions

100, 100, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

30.2 KB

Num Files

1

File Ext

.nrrd

Reader

NRRDReader

Data Source

beach.nrrd

Bird Dataset

Downloads ImageData 2D Image

download_bird()

鳥のデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

155 837

N Points

156 636

Length

5.70e+02

Dimensions

458, 342, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

31.9 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Bird Texture Dataset

Data Source


Bolt Nut Dataset

Downloads ImageData MultiBlock 3D Volume Homogeneous

download_bolt_nut()

ボルトナットのデータセットをダウンロードします．

Dataset Info

Data Type

MultiBlock

ImageData

Cell Type

VOXEL

Length

1.54e+02

File Info

File Size

132.8 KB

Num Files

2

File Ext

.slc

Reader

SLCReader

See also ボリュームレンダリング

Data Source

bolt.slc nut.slc

Brain Dataset

Downloads ImageData 3D Volume Medical

download_brain()

脳のデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

6 998 400

N Points

7 109 137

Length

3.34e+02

Dimensions

181, 217, 181

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

7.1 MB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

See also Brain Atlas With Sides Dataset

Data Source

brain.vtk

Brain Atlas With Sides Dataset

Downloads ImageData 3D Volume Medical

download_brain_atlas_with_sides()

右左のラベルが付いた平均化された脳の画像をダウンロードすることができます．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

874 800

N Points

902 629

Length

3.34e+02

Dimensions

91, 109, 91

Spacing

2.0, 2.0, 2.0

N Arrays

1

File Info

File Size

531.1 KB

Num Files

1

File Ext

.nii.gz

Reader

NIFTIReader

See also Brain Dataset

Data Source

avg152T1_RL_nifti.nii.gz

Cake Easy Dataset

Downloads ImageData 2D Image

download_cake_easy()

ケーキのデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

9 801

N Points

10 000

Length

1.40e+02

Dimensions

100, 100, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

9.1 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Cake Easy Texture Dataset

Data Source


Carotid Dataset

Downloads ImageData 3D Volume Medical

download_carotid()

頚動脈のデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

158 400

N Points

167 580

Length

9.93e+01

Dimensions

76, 49, 45

Spacing

1.0, 1.0, 1.0

N Arrays

2

File Info

File Size

2.7 MB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

carotid.vtk

Channels Dataset

Built-in ImageData 3D Volume

load_channels()

地下に一様な格子状の河道を読み込みます．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

6 250 000

N Points

6 363 101

Length

3.67e+02

Dimensions

251, 251, 101

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

522.3 KB

Num Files

1

File Ext

.vti

Reader

XMLImageDataReader

Data Source

channels.vti

Chest Dataset

Downloads ImageData 3D Volume Medical

download_chest()

胸部のデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

4 700 178

N Points

4 980 736

Length

3.39e+02

Dimensions

512, 512, 19

Spacing

4.69e-01, 4.69e-01, 5.00e-01

N Arrays

1

File Info

File Size

6.1 MB

Num Files

1

File Ext

.mha

Reader

MetaImageReader

See also ボリュームレンダリング

Data Source

MetaIO/ChestCT-SHORT.mha

Coil Magnetic Field Dataset

Downloads ImageData 3D Volume

download_coil_magnetic_field()

コイルの磁界をダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

512 000

N Points

531 441

Length

1.39e+02

Dimensions

81, 81, 81

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

9.0 MB

Num Files

1

File Ext

.vti

Reader

XMLImageDataReader

See also 磁場をプロットする

Data Source

magpylib/coil_field.vti

Crater Topo Dataset

Downloads ImageData 2D Image

download_crater_topo()

クレーターのデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

1 677 401

N Points

1 680 000

Length

2.76e+04

Dimensions

1400, 1200, 1

Spacing

15.0, 15.0, 0.0

N Arrays

1

File Info

File Size

13.4 MB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

Ruapehu_mag_dem_15m_NZTM.vtk

Damavand Volcano Dataset

Downloads ImageData 3D Volume

download_damavand_volcano()

Damavand火山のモデルをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

11 003 760

N Points

11 156 040

Length

3.68e+05

Dimensions

280, 233, 171

Spacing

1.00e+03, 1.00e+03, 3.54e+02

N Arrays

1

File Info

File Size

44.6 MB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

See also ボリュームレンダリング

Data Source

damavand-volcano.vtk

Dicom Stack Dataset

Downloads ImageData 3D Volume Medical

download_dicom_stack()

TCIADICOMスタックボリュームをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

522 242

N Points

786 432

Length

7.06e+02

Dimensions

512, 512, 3

Spacing

9.77e-01, 9.77e-01, 1.20e+01

N Arrays

1

File Info

File Size

1.6 MB

Num Files

3

File Ext

.dcm

Reader

DICOMReader

Data Source

DICOM_Stack/data.zip

E07733s002i009 Dataset

Downloads ImageData 2D Image

download_e07733s002i009()

Download a e07733s002i009 image.

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

65 025

N Points

65 536

Length

3.38e+02

Dimensions

256, 256, 1

Spacing

9.38e-01, 9.38e-01, 3.50e+00

N Arrays

1

File Info

File Size

83.2 KB

Num Files

1

File Ext

.mr

Reader

GESignaReader

Data Source

E07733S002I009.MR

Embryo Dataset

Downloads ImageData 3D Volume Medical

download_embryo()

胎児のボリュームをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

16 581 375

N Points

16 777 216

Length

4.42e+02

Dimensions

256, 256, 256

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

3.9 MB

Num Files

1

File Ext

.slc

Reader

SLCReader

Data Source

embryo.slc

Emoji Dataset

Downloads ImageData 2D Image

download_emoji()

絵文字のデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

14 605

N Points

14 848

Length

1.71e+02

Dimensions

128, 116, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

9.5 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Emoji Texture Dataset

Data Source


Frog Dataset

Downloads ImageData 3D Volume Medical

download_frog()

カエルのデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

31 594 185

N Points

31 960 000

Length

7.14e+02

Dimensions

500, 470, 136

Spacing

1.0, 1.0, 1.5

N Arrays

1

File Info

File Size

5.2 MB

Num Files

2

File Ext

.mhd,

.zraw

Reader

MetaImageReader

See also Frog Tissues Dataset, ボリュームレンダリング

Data Source

froggy/frog.mhd froggy/frog.zraw

Frog Tissues Dataset

Built-in ImageData 3D Volume Medical

load_frog_tissues()

Load frog tissues dataset.

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

31 594 185

N Points

31 960 000

Length

7.14e+02

Dimensions

500, 470, 136

Spacing

1.0, 1.0, 1.5

N Arrays

1

File Info

File Size

380.4 KB

Num Files

1

File Ext

.vti

Reader

XMLImageDataReader

See also Frog Dataset

Data Source

frog_tissues.vti

Full Head Dataset

Downloads ImageData 3D Volume

download_full_head()

Download the full head image.

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

6 047 325

N Points

6 160 384

Length

3.66e+02

Dimensions

256, 256, 94

Spacing

9.38e-01, 9.38e-01, 1.50e+00

N Arrays

1

File Info

File Size

6.6 MB

Num Files

2

File Ext

.mhd,

.raw.gz

Reader

MetaImageReader

Data Source

FullHead.mhd FullHead.raw.gz

Gif Simple Dataset

Downloads ImageData 2D Image

download_gif_simple()

シンプルな3フレームGIFをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

59 501

N Points

60 000

Length

3.59e+02

Dimensions

300, 200, 1

Spacing

1.0, 1.0, 1.0

N Arrays

3

File Info

File Size

8.6 KB

Num Files

1

File Ext

.gif

Reader

GIFReader

Data Source

gifs/sample.gif

Gourds Dataset

Downloads ImageData 2D Image

download_gourds()

gourdsデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

306 081

N Points

307 200

Length

7.99e+02

Dimensions

640, 480, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

525.5 KB

Num Files

1

File Ext

.png

Reader

PNGReader

See also Gourds Pnm Dataset, Gourds Texture Dataset, Gaussianスムージング

Data Source


Gourds Pnm Dataset

Downloads ImageData 2D Image

download_gourds_pnm()

pnmファイルからgourdsデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

306 081

N Points

307 200

Length

7.99e+02

Dimensions

640, 480, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

921.6 KB

Num Files

1

File Ext

.pnm

Reader

PNMReader

See also Gourds Dataset, Gourds Texture Dataset

Data Source

Gourds.pnm

Head Dataset

Downloads ImageData 3D Volume Medical

download_head()

頭のデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

117 547

N Points

124 992

Length

3.49e+02

Dimensions

48, 62, 42

Spacing

4.0, 4.0, 4.0

N Arrays

1

File Info

File Size

125.2 KB

Num Files

2

File Ext

.mhd,

.raw

Reader

MetaImageReader

See also Head 2 Dataset, ボリュームレンダリング

Data Source

HeadMRVolume.mhd HeadMRVolume.raw

Head 2 Dataset

Downloads ImageData 3D Volume Medical

download_head_2()

頭のデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

6 047 325

N Points

6 160 384

Length

4.06e+02

Dimensions

256, 256, 94

Spacing

1.0, 1.0, 2.0

N Arrays

1

File Info

File Size

8.8 MB

Num Files

1

File Ext

.vti

Reader

XMLImageDataReader

See also Head Dataset

Data Source

head.vti

Headsq Dataset

Downloads ImageData 3D Volume

download_headsq()

Download the headsq dataset.

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

365 148

N Points

380 928

Length

3.17e+02

Dimensions

64, 64, 93

Spacing

3.2, 3.2, 1.5

N Arrays

1

File Info

File Size

762.0 KB

Num Files

94

File Ext

.1,

.10,

.11,

...,

.92,

.93,

.nhdr

Reader

NRRDReader

Data Source

headsq/quarter.nhdr headsq/quarter.1 headsq/quarter.2 headsq/quarter.3 headsq/quarter.4 headsq/quarter.5 headsq/quarter.6 headsq/quarter.7 headsq/quarter.8 headsq/quarter.9 headsq/quarter.10 headsq/quarter.11 headsq/quarter.12 headsq/quarter.13 headsq/quarter.14 headsq/quarter.15 headsq/quarter.16 headsq/quarter.17 headsq/quarter.18 headsq/quarter.19 headsq/quarter.20 headsq/quarter.21 headsq/quarter.22 headsq/quarter.23 headsq/quarter.24 headsq/quarter.25 headsq/quarter.26 headsq/quarter.27 headsq/quarter.28 headsq/quarter.29 headsq/quarter.30 headsq/quarter.31 headsq/quarter.32 headsq/quarter.33 headsq/quarter.34 headsq/quarter.35 headsq/quarter.36 headsq/quarter.37 headsq/quarter.38 headsq/quarter.39 headsq/quarter.40 headsq/quarter.41 headsq/quarter.42 headsq/quarter.43 headsq/quarter.44 headsq/quarter.45 headsq/quarter.46 headsq/quarter.47 headsq/quarter.48 headsq/quarter.49 headsq/quarter.50 headsq/quarter.51 headsq/quarter.52 headsq/quarter.53 headsq/quarter.54 headsq/quarter.55 headsq/quarter.56 headsq/quarter.57 headsq/quarter.58 headsq/quarter.59 headsq/quarter.60 headsq/quarter.61 headsq/quarter.62 headsq/quarter.63 headsq/quarter.64 headsq/quarter.65 headsq/quarter.66 headsq/quarter.67 headsq/quarter.68 headsq/quarter.69 headsq/quarter.70 headsq/quarter.71 headsq/quarter.72 headsq/quarter.73 headsq/quarter.74 headsq/quarter.75 headsq/quarter.76 headsq/quarter.77 headsq/quarter.78 headsq/quarter.79 headsq/quarter.80 headsq/quarter.81 headsq/quarter.82 headsq/quarter.83 headsq/quarter.84 headsq/quarter.85 headsq/quarter.86 headsq/quarter.87 headsq/quarter.88 headsq/quarter.89 headsq/quarter.90 headsq/quarter.91 headsq/quarter.92 headsq/quarter.93

Hydrogen Orbital Dataset

Built-in ImageData 3D Volume

load_hydrogen_orbital()

水素の波動関数を pyvista.ImageData にロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

970 299

N Points

1 000 000

Length

8.66e+00

Dimensions

100, 100, 100

Spacing

5.05e-02, 5.05e-02, 5.05e-02

N Arrays

2

File Info

Reader

None

Iron Protein Dataset

Downloads ImageData 3D Volume

download_iron_protein()

鉄タンパク質のデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

300 763

N Points

314 432

Length

1.16e+02

Dimensions

68, 68, 68

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

314.6 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

ironProt.vtk

Jupiter Surface Dataset

Planets ImageData 2D Image

download_jupiter_surface()

木星表面の画像をダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

2 094 081

N Points

2 097 152

Length

2.29e+03

Dimensions

2048, 1024, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

499.0 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/jupiter.jpg

Knee Dataset

Downloads ImageData 2D Image Medical

download_knee()

kneeのデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

261 121

N Points

262 144

Length

3.11e+02

Dimensions

512, 512, 1

Spacing

4.30e-01, 4.30e-01, 8.00e-01

N Arrays

1

File Info

File Size

526.7 KB

Num Files

1

File Ext

.dcm

Reader

DICOMReader

See also Knee Full Dataset

Data Source

DICOM_KNEE.dcm

Knee Full Dataset

Downloads ImageData 3D Volume Medical

download_knee_full()

膝データセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

10 225 800

N Points

10 368 384

Length

3.07e+02

Dimensions

208, 248, 201

Spacing

7.23e-01, 7.23e-01, 1.00e+00

N Arrays

1

File Info

File Size

9.0 MB

Num Files

1

File Ext

.slc

Reader

SLCReader

See also Knee Dataset

Data Source

vw_knee.slc

Logo Dataset

Built-in ImageData 2D Image

load_logo()

PyVistaのロゴを pyvista.ImageData として読み込みます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

820 308

N Points

822 288

Length

1.51e+03

Dimensions

1389, 592, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

257.1 KB

Num Files

1

File Ext

.png

Reader

PNGReader

Data Source


M4 Total Density Dataset

Downloads ImageData 3D Volume

download_m4_total_density()

Download a total density dataset of the chemistry.

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

15 120

N Points

17 050

Length

4.38e+01

Dimensions

25, 22, 31

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

225.7 KB

Num Files

1

File Ext

.cube

Reader

GaussianCubeReader

Data Source

m4_TotalDensity.cube

Mars Surface Dataset

Planets ImageData 2D Image

download_mars_surface()

火星表面の画像をダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

1 997 001

N Points

2 000 000

Length

2.23e+03

Dimensions

2000, 1000, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

620.4 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/mars.jpg

Mercury Surface Dataset

Planets ImageData 2D Image

download_mercury_surface()

水星表面の画像をダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

2 094 081

N Points

2 097 152

Length

2.29e+03

Dimensions

2048, 1024, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

872.6 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/mercury.jpg

Milkyway Sky Background Dataset

Planets ImageData 2D Image

download_milkyway_sky_background()

天の川銀河の空のテクスチャをダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

33 542 145

N Points

33 554 432

Length

9.16e+03

Dimensions

8192, 4096, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

1.9 MB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Stars Sky Background Dataset, 3D地球と天体

Data Source

planet3d-matlab/milkyway.jpg

Moon Surface Dataset

Planets ImageData 2D Image

download_moon_surface()

地球の月表面の画像をダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

2 094 081

N Points

2 097 152

Length

2.29e+03

Dimensions

2048, 1024, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

1.1 MB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/moon.jpg

Moonlanding Image Dataset

Downloads ImageData 2D Image

download_moonlanding_image()

月面着陸の画像をダウンロード

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

297 517

N Points

298 620

Length

7.87e+02

Dimensions

630, 474, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

216.5 KB

Num Files

1

File Ext

.png

Reader

PNGReader

See also 高速Fourier変換

Data Source


Neptune Surface Dataset

Planets ImageData 2D Image

download_neptune_surface()

惑星海王星の表面のテクスチャをダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

2 094 081

N Points

2 097 152

Length

2.29e+03

Dimensions

2048, 1024, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

241.6 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/neptune.jpg

Pluto Surface Dataset

Planets ImageData 2D Image

download_pluto_surface()

準惑星冥王星の表面のテクスチャをダウンロードすることができます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

17 549 850

N Points

17 558 738

Length

6.62e+03

Dimensions

5926, 2963, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

1.4 MB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/pluto.jpg

Prostate Dataset

Downloads ImageData 2D Image Medical

download_prostate()

前立腺データセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

261 121

N Points

262 144

Length

6.77e+02

Dimensions

512, 512, 1

Spacing

9.38e-01, 9.38e-01, 5.00e+00

N Arrays

1

File Info

File Size

527.3 KB

Num Files

1

File Ext

.img

Reader

DICOMReader

Data Source

prostate.img

Puppy Dataset

Downloads ImageData 2D Image

download_puppy()

子犬データセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

1 917 201

N Points

1 920 000

Length

2.00e+03

Dimensions

1600, 1200, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

436.6 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Puppy Texture Dataset, イメージファイルの読み込み

Data Source


Saturn Rings Dataset

Planets ImageData 2D Image

download_saturn_rings()

土星の輪のテクスチャをダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

253 828

N Points

256 000

Length

2.05e+03

Dimensions

2048, 125, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

12.1 KB

Num Files

1

File Ext

.png

Reader

PNGReader

See also 3D地球と天体

Data Source

solar_textures/saturn_ring_alpha.png

Saturn Surface Dataset

Planets ImageData 2D Image

download_saturn_surface()

土星表面の画像をダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

2 094 081

N Points

2 097 152

Length

2.29e+03

Dimensions

2048, 1024, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

199.9 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/saturn.jpg

Sky Box Nz Dataset

Downloads ImageData 2D Image

download_sky_box_nz()

skybox-nzのデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

1 046 529

N Points

1 048 576

Length

1.45e+03

Dimensions

1024, 1024, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

54.6 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Sky Box Nz Texture Dataset, Sky Box Cube Map Dataset

Data Source


St Helens Dataset

Downloads ImageData 2D Image

download_st_helens()

Saint Helensのデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

151 916

N Points

152 709

Length

1.71e+04

Dimensions

327, 467, 1

Spacing

30.0, 30.0, 1.0

N Arrays

1

File Info

File Size

995.3 KB

Num Files

1

File Ext

.dem

Reader

DEMReader

Data Source

SainteHelens.dem

Stars Sky Background Dataset

Planets ImageData 2D Image

download_stars_sky_background()

夜空の星のテクスチャをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

33 542 145

N Points

33 554 432

Length

9.16e+03

Dimensions

8192, 4096, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

1.8 MB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Milkyway Sky Background Dataset, 3D地球と天体

Data Source

planet3d-matlab/stars.jpg

Sun Surface Dataset

Planets ImageData 2D Image

download_sun_surface()

太陽の表面をダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

2 094 081

N Points

2 097 152

Length

2.29e+03

Dimensions

2048, 1024, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

822.4 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/sun.jpg

T3 Grid 0 Dataset

Downloads ImageData 2D Image

download_t3_grid_0()

Download a T3 grid 0 image.

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

56 865

N Points

57 344

Length

3.39e+02

Dimensions

224, 256, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

346.4 KB

Num Files

1

File Ext

.mnc

Reader

MINCImageReader

Data Source

t3_grid_0.mnc

Uniform Dataset

Built-in ImageData 3D Volume

load_uniform()

サンプルのユニフォームグリッドを読み込みます．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

729

N Points

1 000

Length

1.56e+01

Dimensions

10, 10, 10

Spacing

1.0, 1.0, 1.0

N Arrays

2

File Info

File Size

14.1 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

uniform.vtk

Uranus Surface Dataset

Planets ImageData 2D Image

download_uranus_surface()

惑星天王星の表面のテクスチャをダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

2 094 081

N Points

2 097 152

Length

2.29e+03

Dimensions

2048, 1024, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

77.8 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/uranus.jpg

Venus Surface Dataset

Planets ImageData 2D Image

download_venus_surface()

金星の表面や大気をダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

2 094 081

N Points

2 097 152

Length

2.29e+03

Dimensions

2048, 1024, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

229.7 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/venus_atmosphere.jpg

Whole Body Ct Female Dataset

Downloads ImageData MultiBlock 3D Volume Homogeneous Medical

download_whole_body_ct_female()

117の解剖学的構造がセグメント化された女性被験者のCT画像をダウンロードします。

Dataset Info

Data Type

MultiBlock

ImageData

Cell Type

VOXEL

Length

1.06e+03

File Info

File Size

17.7 KB

Num Files

2

File Ext

.py,

.vtm

Reader

XMLMultiBlockDataReader

See also 解剖学的グループの可視化, Whole Body Ct Male Dataset, ラベル付き画像データを切り抜く, セグメンテーションマスク付きボリューム

Data Source

whole_body_ct/s1380_resampled.zip whole_body_ct/colors.py

Whole Body Ct Male Dataset

Downloads ImageData MultiBlock 3D Volume Homogeneous Medical

download_whole_body_ct_male()

117の解剖学的構造がセグメント化された男性被験者のCT画像をダウンロードします。

Dataset Info

Data Type

MultiBlock

ImageData

Cell Type

VOXEL

Length

1.06e+03

File Info

File Size

17.7 KB

Num Files

2

File Ext

.py,

.vtm

Reader

XMLMultiBlockDataReader

See also 解剖学的グループの可視化, Whole Body Ct Female Dataset, ラベル付き画像データを切り抜く, セグメンテーションマスク付きボリューム

Data Source

whole_body_ct/s1397_resampled.zip whole_body_ct/colors.py

Yinyang Dataset

Downloads ImageData 2D Image

download_yinyang()

Download yinyang dataset.

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

174 251

N Points

175 104

Length

6.14e+02

Dimensions

512, 342, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

1.9 KB

Num Files

1

File Ext

.png

Reader

PNGReader

Data Source

yinyang/Yinyang.png

特定の種類の表現を持つグリッドデータをブラウズする。

ボリューム、イメージ、テクスチャ

3Dボリューム

Three-dimensional volumetric ImageData datasets.

Section Badge:

3D Volume

Dataset Count:

23

Bolt Nut Dataset

Downloads ImageData MultiBlock 3D Volume Homogeneous

download_bolt_nut()

ボルトナットのデータセットをダウンロードします．

Dataset Info

Data Type

MultiBlock

ImageData

Cell Type

VOXEL

Length

1.54e+02

File Info

File Size

132.8 KB

Num Files

2

File Ext

.slc

Reader

SLCReader

See also ボリュームレンダリング

Data Source

bolt.slc nut.slc

Brain Dataset

Downloads ImageData 3D Volume Medical

download_brain()

脳のデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

6 998 400

N Points

7 109 137

Length

3.34e+02

Dimensions

181, 217, 181

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

7.1 MB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

See also Brain Atlas With Sides Dataset

Data Source

brain.vtk

Brain Atlas With Sides Dataset

Downloads ImageData 3D Volume Medical

download_brain_atlas_with_sides()

右左のラベルが付いた平均化された脳の画像をダウンロードすることができます．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

874 800

N Points

902 629

Length

3.34e+02

Dimensions

91, 109, 91

Spacing

2.0, 2.0, 2.0

N Arrays

1

File Info

File Size

531.1 KB

Num Files

1

File Ext

.nii.gz

Reader

NIFTIReader

See also Brain Dataset

Data Source

avg152T1_RL_nifti.nii.gz

Carotid Dataset

Downloads ImageData 3D Volume Medical

download_carotid()

頚動脈のデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

158 400

N Points

167 580

Length

9.93e+01

Dimensions

76, 49, 45

Spacing

1.0, 1.0, 1.0

N Arrays

2

File Info

File Size

2.7 MB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

carotid.vtk

Channels Dataset

Built-in ImageData 3D Volume

load_channels()

地下に一様な格子状の河道を読み込みます．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

6 250 000

N Points

6 363 101

Length

3.67e+02

Dimensions

251, 251, 101

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

522.3 KB

Num Files

1

File Ext

.vti

Reader

XMLImageDataReader

Data Source

channels.vti

Chest Dataset

Downloads ImageData 3D Volume Medical

download_chest()

胸部のデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

4 700 178

N Points

4 980 736

Length

3.39e+02

Dimensions

512, 512, 19

Spacing

4.69e-01, 4.69e-01, 5.00e-01

N Arrays

1

File Info

File Size

6.1 MB

Num Files

1

File Ext

.mha

Reader

MetaImageReader

See also ボリュームレンダリング

Data Source

MetaIO/ChestCT-SHORT.mha

Coil Magnetic Field Dataset

Downloads ImageData 3D Volume

download_coil_magnetic_field()

コイルの磁界をダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

512 000

N Points

531 441

Length

1.39e+02

Dimensions

81, 81, 81

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

9.0 MB

Num Files

1

File Ext

.vti

Reader

XMLImageDataReader

See also 磁場をプロットする

Data Source

magpylib/coil_field.vti

Damavand Volcano Dataset

Downloads ImageData 3D Volume

download_damavand_volcano()

Damavand火山のモデルをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

11 003 760

N Points

11 156 040

Length

3.68e+05

Dimensions

280, 233, 171

Spacing

1.00e+03, 1.00e+03, 3.54e+02

N Arrays

1

File Info

File Size

44.6 MB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

See also ボリュームレンダリング

Data Source

damavand-volcano.vtk

Dicom Stack Dataset

Downloads ImageData 3D Volume Medical

download_dicom_stack()

TCIADICOMスタックボリュームをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

522 242

N Points

786 432

Length

7.06e+02

Dimensions

512, 512, 3

Spacing

9.77e-01, 9.77e-01, 1.20e+01

N Arrays

1

File Info

File Size

1.6 MB

Num Files

3

File Ext

.dcm

Reader

DICOMReader

Data Source

DICOM_Stack/data.zip

Embryo Dataset

Downloads ImageData 3D Volume Medical

download_embryo()

胎児のボリュームをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

16 581 375

N Points

16 777 216

Length

4.42e+02

Dimensions

256, 256, 256

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

3.9 MB

Num Files

1

File Ext

.slc

Reader

SLCReader

Data Source

embryo.slc

Frog Dataset

Downloads ImageData 3D Volume Medical

download_frog()

カエルのデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

31 594 185

N Points

31 960 000

Length

7.14e+02

Dimensions

500, 470, 136

Spacing

1.0, 1.0, 1.5

N Arrays

1

File Info

File Size

5.2 MB

Num Files

2

File Ext

.mhd,

.zraw

Reader

MetaImageReader

See also Frog Tissues Dataset, ボリュームレンダリング

Data Source

froggy/frog.mhd froggy/frog.zraw

Frog Tissues Dataset

Built-in ImageData 3D Volume Medical

load_frog_tissues()

Load frog tissues dataset.

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

31 594 185

N Points

31 960 000

Length

7.14e+02

Dimensions

500, 470, 136

Spacing

1.0, 1.0, 1.5

N Arrays

1

File Info

File Size

380.4 KB

Num Files

1

File Ext

.vti

Reader

XMLImageDataReader

See also Frog Dataset

Data Source

frog_tissues.vti

Full Head Dataset

Downloads ImageData 3D Volume

download_full_head()

Download the full head image.

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

6 047 325

N Points

6 160 384

Length

3.66e+02

Dimensions

256, 256, 94

Spacing

9.38e-01, 9.38e-01, 1.50e+00

N Arrays

1

File Info

File Size

6.6 MB

Num Files

2

File Ext

.mhd,

.raw.gz

Reader

MetaImageReader

Data Source

FullHead.mhd FullHead.raw.gz

Head Dataset

Downloads ImageData 3D Volume Medical

download_head()

頭のデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

117 547

N Points

124 992

Length

3.49e+02

Dimensions

48, 62, 42

Spacing

4.0, 4.0, 4.0

N Arrays

1

File Info

File Size

125.2 KB

Num Files

2

File Ext

.mhd,

.raw

Reader

MetaImageReader

See also Head 2 Dataset, ボリュームレンダリング

Data Source

HeadMRVolume.mhd HeadMRVolume.raw

Head 2 Dataset

Downloads ImageData 3D Volume Medical

download_head_2()

頭のデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

6 047 325

N Points

6 160 384

Length

4.06e+02

Dimensions

256, 256, 94

Spacing

1.0, 1.0, 2.0

N Arrays

1

File Info

File Size

8.8 MB

Num Files

1

File Ext

.vti

Reader

XMLImageDataReader

See also Head Dataset

Data Source

head.vti

Headsq Dataset

Downloads ImageData 3D Volume

download_headsq()

Download the headsq dataset.

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

365 148

N Points

380 928

Length

3.17e+02

Dimensions

64, 64, 93

Spacing

3.2, 3.2, 1.5

N Arrays

1

File Info

File Size

762.0 KB

Num Files

94

File Ext

.1,

.10,

.11,

...,

.92,

.93,

.nhdr

Reader

NRRDReader

Data Source

headsq/quarter.nhdr headsq/quarter.1 headsq/quarter.2 headsq/quarter.3 headsq/quarter.4 headsq/quarter.5 headsq/quarter.6 headsq/quarter.7 headsq/quarter.8 headsq/quarter.9 headsq/quarter.10 headsq/quarter.11 headsq/quarter.12 headsq/quarter.13 headsq/quarter.14 headsq/quarter.15 headsq/quarter.16 headsq/quarter.17 headsq/quarter.18 headsq/quarter.19 headsq/quarter.20 headsq/quarter.21 headsq/quarter.22 headsq/quarter.23 headsq/quarter.24 headsq/quarter.25 headsq/quarter.26 headsq/quarter.27 headsq/quarter.28 headsq/quarter.29 headsq/quarter.30 headsq/quarter.31 headsq/quarter.32 headsq/quarter.33 headsq/quarter.34 headsq/quarter.35 headsq/quarter.36 headsq/quarter.37 headsq/quarter.38 headsq/quarter.39 headsq/quarter.40 headsq/quarter.41 headsq/quarter.42 headsq/quarter.43 headsq/quarter.44 headsq/quarter.45 headsq/quarter.46 headsq/quarter.47 headsq/quarter.48 headsq/quarter.49 headsq/quarter.50 headsq/quarter.51 headsq/quarter.52 headsq/quarter.53 headsq/quarter.54 headsq/quarter.55 headsq/quarter.56 headsq/quarter.57 headsq/quarter.58 headsq/quarter.59 headsq/quarter.60 headsq/quarter.61 headsq/quarter.62 headsq/quarter.63 headsq/quarter.64 headsq/quarter.65 headsq/quarter.66 headsq/quarter.67 headsq/quarter.68 headsq/quarter.69 headsq/quarter.70 headsq/quarter.71 headsq/quarter.72 headsq/quarter.73 headsq/quarter.74 headsq/quarter.75 headsq/quarter.76 headsq/quarter.77 headsq/quarter.78 headsq/quarter.79 headsq/quarter.80 headsq/quarter.81 headsq/quarter.82 headsq/quarter.83 headsq/quarter.84 headsq/quarter.85 headsq/quarter.86 headsq/quarter.87 headsq/quarter.88 headsq/quarter.89 headsq/quarter.90 headsq/quarter.91 headsq/quarter.92 headsq/quarter.93

Hydrogen Orbital Dataset

Built-in ImageData 3D Volume

load_hydrogen_orbital()

水素の波動関数を pyvista.ImageData にロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

970 299

N Points

1 000 000

Length

8.66e+00

Dimensions

100, 100, 100

Spacing

5.05e-02, 5.05e-02, 5.05e-02

N Arrays

2

File Info

Reader

None

Iron Protein Dataset

Downloads ImageData 3D Volume

download_iron_protein()

鉄タンパク質のデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

300 763

N Points

314 432

Length

1.16e+02

Dimensions

68, 68, 68

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

314.6 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

ironProt.vtk

Knee Full Dataset

Downloads ImageData 3D Volume Medical

download_knee_full()

膝データセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

10 225 800

N Points

10 368 384

Length

3.07e+02

Dimensions

208, 248, 201

Spacing

7.23e-01, 7.23e-01, 1.00e+00

N Arrays

1

File Info

File Size

9.0 MB

Num Files

1

File Ext

.slc

Reader

SLCReader

See also Knee Dataset

Data Source

vw_knee.slc

M4 Total Density Dataset

Downloads ImageData 3D Volume

download_m4_total_density()

Download a total density dataset of the chemistry.

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

15 120

N Points

17 050

Length

4.38e+01

Dimensions

25, 22, 31

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

225.7 KB

Num Files

1

File Ext

.cube

Reader

GaussianCubeReader

Data Source

m4_TotalDensity.cube

Uniform Dataset

Built-in ImageData 3D Volume

load_uniform()

サンプルのユニフォームグリッドを読み込みます．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

729

N Points

1 000

Length

1.56e+01

Dimensions

10, 10, 10

Spacing

1.0, 1.0, 1.0

N Arrays

2

File Info

File Size

14.1 KB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

uniform.vtk

Whole Body Ct Female Dataset

Downloads ImageData MultiBlock 3D Volume Homogeneous Medical

download_whole_body_ct_female()

117の解剖学的構造がセグメント化された女性被験者のCT画像をダウンロードします。

Dataset Info

Data Type

MultiBlock

ImageData

Cell Type

VOXEL

Length

1.06e+03

File Info

File Size

17.7 KB

Num Files

2

File Ext

.py,

.vtm

Reader

XMLMultiBlockDataReader

See also 解剖学的グループの可視化, Whole Body Ct Male Dataset, ラベル付き画像データを切り抜く, セグメンテーションマスク付きボリューム

Data Source

whole_body_ct/s1380_resampled.zip whole_body_ct/colors.py

Whole Body Ct Male Dataset

Downloads ImageData MultiBlock 3D Volume Homogeneous Medical

download_whole_body_ct_male()

117の解剖学的構造がセグメント化された男性被験者のCT画像をダウンロードします。

Dataset Info

Data Type

MultiBlock

ImageData

Cell Type

VOXEL

Length

1.06e+03

File Info

File Size

17.7 KB

Num Files

2

File Ext

.py,

.vtm

Reader

XMLMultiBlockDataReader

See also 解剖学的グループの可視化, Whole Body Ct Female Dataset, ラベル付き画像データを切り抜く, セグメンテーションマスク付きボリューム

Data Source

whole_body_ct/s1397_resampled.zip whole_body_ct/colors.py

2D画像

Two-dimensional ImageData datasets.

Section Badge:

2D Image

Dataset Count:

31

Beach Dataset

Downloads ImageData 2D Image

download_beach()

ビーチのNRRD画像をダウンロード

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

9 801

N Points

10 000

Length

1.40e+02

Dimensions

100, 100, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

30.2 KB

Num Files

1

File Ext

.nrrd

Reader

NRRDReader

Data Source

beach.nrrd

Bird Dataset

Downloads ImageData 2D Image

download_bird()

鳥のデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

155 837

N Points

156 636

Length

5.70e+02

Dimensions

458, 342, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

31.9 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Bird Texture Dataset

Data Source


Cake Easy Dataset

Downloads ImageData 2D Image

download_cake_easy()

ケーキのデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

9 801

N Points

10 000

Length

1.40e+02

Dimensions

100, 100, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

9.1 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Cake Easy Texture Dataset

Data Source


Crater Topo Dataset

Downloads ImageData 2D Image

download_crater_topo()

クレーターのデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

1 677 401

N Points

1 680 000

Length

2.76e+04

Dimensions

1400, 1200, 1

Spacing

15.0, 15.0, 0.0

N Arrays

1

File Info

File Size

13.4 MB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

Ruapehu_mag_dem_15m_NZTM.vtk

E07733s002i009 Dataset

Downloads ImageData 2D Image

download_e07733s002i009()

Download a e07733s002i009 image.

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

65 025

N Points

65 536

Length

3.38e+02

Dimensions

256, 256, 1

Spacing

9.38e-01, 9.38e-01, 3.50e+00

N Arrays

1

File Info

File Size

83.2 KB

Num Files

1

File Ext

.mr

Reader

GESignaReader

Data Source

E07733S002I009.MR

Emoji Dataset

Downloads ImageData 2D Image

download_emoji()

絵文字のデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

14 605

N Points

14 848

Length

1.71e+02

Dimensions

128, 116, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

9.5 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Emoji Texture Dataset

Data Source


Gif Simple Dataset

Downloads ImageData 2D Image

download_gif_simple()

シンプルな3フレームGIFをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

59 501

N Points

60 000

Length

3.59e+02

Dimensions

300, 200, 1

Spacing

1.0, 1.0, 1.0

N Arrays

3

File Info

File Size

8.6 KB

Num Files

1

File Ext

.gif

Reader

GIFReader

Data Source

gifs/sample.gif

Gourds Dataset

Downloads ImageData 2D Image

download_gourds()

gourdsデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

306 081

N Points

307 200

Length

7.99e+02

Dimensions

640, 480, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

525.5 KB

Num Files

1

File Ext

.png

Reader

PNGReader

See also Gourds Pnm Dataset, Gourds Texture Dataset, Gaussianスムージング

Data Source


Gourds Pnm Dataset

Downloads ImageData 2D Image

download_gourds_pnm()

pnmファイルからgourdsデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

306 081

N Points

307 200

Length

7.99e+02

Dimensions

640, 480, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

921.6 KB

Num Files

1

File Ext

.pnm

Reader

PNMReader

See also Gourds Dataset, Gourds Texture Dataset

Data Source

Gourds.pnm

Jupiter Surface Dataset

Planets ImageData 2D Image

download_jupiter_surface()

木星表面の画像をダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

2 094 081

N Points

2 097 152

Length

2.29e+03

Dimensions

2048, 1024, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

499.0 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/jupiter.jpg

Knee Dataset

Downloads ImageData 2D Image Medical

download_knee()

kneeのデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

261 121

N Points

262 144

Length

3.11e+02

Dimensions

512, 512, 1

Spacing

4.30e-01, 4.30e-01, 8.00e-01

N Arrays

1

File Info

File Size

526.7 KB

Num Files

1

File Ext

.dcm

Reader

DICOMReader

See also Knee Full Dataset

Data Source

DICOM_KNEE.dcm

Logo Dataset

Built-in ImageData 2D Image

load_logo()

PyVistaのロゴを pyvista.ImageData として読み込みます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

820 308

N Points

822 288

Length

1.51e+03

Dimensions

1389, 592, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

257.1 KB

Num Files

1

File Ext

.png

Reader

PNGReader

Data Source


Mars Surface Dataset

Planets ImageData 2D Image

download_mars_surface()

火星表面の画像をダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

1 997 001

N Points

2 000 000

Length

2.23e+03

Dimensions

2000, 1000, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

620.4 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/mars.jpg

Mercury Surface Dataset

Planets ImageData 2D Image

download_mercury_surface()

水星表面の画像をダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

2 094 081

N Points

2 097 152

Length

2.29e+03

Dimensions

2048, 1024, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

872.6 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/mercury.jpg

Milkyway Sky Background Dataset

Planets ImageData 2D Image

download_milkyway_sky_background()

天の川銀河の空のテクスチャをダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

33 542 145

N Points

33 554 432

Length

9.16e+03

Dimensions

8192, 4096, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

1.9 MB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Stars Sky Background Dataset, 3D地球と天体

Data Source

planet3d-matlab/milkyway.jpg

Moon Surface Dataset

Planets ImageData 2D Image

download_moon_surface()

地球の月表面の画像をダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

2 094 081

N Points

2 097 152

Length

2.29e+03

Dimensions

2048, 1024, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

1.1 MB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/moon.jpg

Moonlanding Image Dataset

Downloads ImageData 2D Image

download_moonlanding_image()

月面着陸の画像をダウンロード

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

297 517

N Points

298 620

Length

7.87e+02

Dimensions

630, 474, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

216.5 KB

Num Files

1

File Ext

.png

Reader

PNGReader

See also 高速Fourier変換

Data Source


Neptune Surface Dataset

Planets ImageData 2D Image

download_neptune_surface()

惑星海王星の表面のテクスチャをダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

2 094 081

N Points

2 097 152

Length

2.29e+03

Dimensions

2048, 1024, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

241.6 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/neptune.jpg

Pluto Surface Dataset

Planets ImageData 2D Image

download_pluto_surface()

準惑星冥王星の表面のテクスチャをダウンロードすることができます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

17 549 850

N Points

17 558 738

Length

6.62e+03

Dimensions

5926, 2963, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

1.4 MB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/pluto.jpg

Prostate Dataset

Downloads ImageData 2D Image Medical

download_prostate()

前立腺データセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

261 121

N Points

262 144

Length

6.77e+02

Dimensions

512, 512, 1

Spacing

9.38e-01, 9.38e-01, 5.00e+00

N Arrays

1

File Info

File Size

527.3 KB

Num Files

1

File Ext

.img

Reader

DICOMReader

Data Source

prostate.img

Puppy Dataset

Downloads ImageData 2D Image

download_puppy()

子犬データセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

1 917 201

N Points

1 920 000

Length

2.00e+03

Dimensions

1600, 1200, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

436.6 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Puppy Texture Dataset, イメージファイルの読み込み

Data Source


Saturn Rings Dataset

Planets ImageData 2D Image

download_saturn_rings()

土星の輪のテクスチャをダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

253 828

N Points

256 000

Length

2.05e+03

Dimensions

2048, 125, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

12.1 KB

Num Files

1

File Ext

.png

Reader

PNGReader

See also 3D地球と天体

Data Source

solar_textures/saturn_ring_alpha.png

Saturn Surface Dataset

Planets ImageData 2D Image

download_saturn_surface()

土星表面の画像をダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

2 094 081

N Points

2 097 152

Length

2.29e+03

Dimensions

2048, 1024, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

199.9 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/saturn.jpg

Sky Box Nz Dataset

Downloads ImageData 2D Image

download_sky_box_nz()

skybox-nzのデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

1 046 529

N Points

1 048 576

Length

1.45e+03

Dimensions

1024, 1024, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

54.6 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Sky Box Nz Texture Dataset, Sky Box Cube Map Dataset

Data Source


St Helens Dataset

Downloads ImageData 2D Image

download_st_helens()

Saint Helensのデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

151 916

N Points

152 709

Length

1.71e+04

Dimensions

327, 467, 1

Spacing

30.0, 30.0, 1.0

N Arrays

1

File Info

File Size

995.3 KB

Num Files

1

File Ext

.dem

Reader

DEMReader

Data Source

SainteHelens.dem

Stars Sky Background Dataset

Planets ImageData 2D Image

download_stars_sky_background()

夜空の星のテクスチャをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

33 542 145

N Points

33 554 432

Length

9.16e+03

Dimensions

8192, 4096, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

1.8 MB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Milkyway Sky Background Dataset, 3D地球と天体

Data Source

planet3d-matlab/stars.jpg

Sun Surface Dataset

Planets ImageData 2D Image

download_sun_surface()

太陽の表面をダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

2 094 081

N Points

2 097 152

Length

2.29e+03

Dimensions

2048, 1024, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

822.4 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/sun.jpg

T3 Grid 0 Dataset

Downloads ImageData 2D Image

download_t3_grid_0()

Download a T3 grid 0 image.

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

56 865

N Points

57 344

Length

3.39e+02

Dimensions

224, 256, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

346.4 KB

Num Files

1

File Ext

.mnc

Reader

MINCImageReader

Data Source

t3_grid_0.mnc

Uranus Surface Dataset

Planets ImageData 2D Image

download_uranus_surface()

惑星天王星の表面のテクスチャをダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

2 094 081

N Points

2 097 152

Length

2.29e+03

Dimensions

2048, 1024, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

77.8 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/uranus.jpg

Venus Surface Dataset

Planets ImageData 2D Image

download_venus_surface()

金星の表面や大気をダウンロードできます．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

2 094 081

N Points

2 097 152

Length

2.29e+03

Dimensions

2048, 1024, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

229.7 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also 3D地球と天体

Data Source

solar_textures/venus_atmosphere.jpg

Yinyang Dataset

Downloads ImageData 2D Image

download_yinyang()

Download yinyang dataset.

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

174 251

N Points

175 104

Length

6.14e+02

Dimensions

512, 342, 1

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

1.9 KB

Num Files

1

File Ext

.png

Reader

PNGReader

Data Source

yinyang/Yinyang.png

質感

Texture datasets.

Section Badge:

Texture

Dataset Count:

18

Bird Texture Dataset

Downloads Texture

download_bird_texture()

鳥のテクスチャをダウンロード

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

458, 342

File Info

File Size

31.9 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Bird Dataset

Data Source


Cake Easy Texture Dataset

Downloads Texture

download_cake_easy_texture()

ケーキテクスチャをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

100, 100

File Info

File Size

9.1 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Cake Easy Dataset

Data Source


Crater Imagery Dataset

Downloads Texture

download_crater_imagery()

クレーターテクスチャをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

1535, 1772

File Info

File Size

8.2 MB

Num Files

1

File Ext

.tif

Reader

TIFFReader

See also 地形図

Data Source

BJ34_GeoTifv1-04_crater_clip.tif

Cubemap Park Dataset

Downloads Texture Cubemap

download_cubemap_park()

公園のキューブマップをダウンロードできます．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

512, 512

File Info

File Size

606.1 KB

Num Files

6

File Ext

.jpg

Reader

None

See also Cubemap Space 4k Dataset, Cubemap Space 16k Dataset, Sky Box Cube Map Dataset

Data Source

cubemap_park/cubemap_park.zip

Cubemap Space 16k Dataset

Downloads Texture Cubemap

download_cubemap_space_16k()

16k宇宙キューブマップをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

4096, 4096

File Info

File Size

39.5 MB

Num Files

6

File Ext

.jpg

Reader

None

See also Cubemap Space 4k Dataset, Cubemap Park Dataset, Sky Box Cube Map Dataset

Data Source

cubemap_space/16k.zip

Cubemap Space 4k Dataset

Downloads Texture Cubemap

download_cubemap_space_4k()

4k宇宙キューブマップをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

1024, 1024

File Info

File Size

1.5 MB

Num Files

6

File Ext

.jpg

Reader

None

See also Cubemap Space 16k Dataset, Cubemap Park Dataset, Sky Box Cube Map Dataset

Data Source

cubemap_space/4k.zip

Dikhololo Night Dataset

Downloads Texture

download_dikhololo_night()

dikholo night hdr texture example をダウンロードして読み込みます．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

4096, 2048

File Info

File Size

28.4 MB

Num Files

1

File Ext

.hdr

Reader

HDRReader

See also Parched Canal 4k Dataset, glTFファイルの取り扱いについて

Data Source

dikhololo_night_4k.hdr

Emoji Texture Dataset

Downloads Texture

download_emoji_texture()

emojiテクスチャをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

128, 116

File Info

File Size

9.5 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Emoji Dataset

Data Source


Globe Texture Dataset

Built-in Texture

load_globe_texture()

地球儀ソースに適用可能なpyvista.Textureを読み込みます．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

2048, 1024

File Info

File Size

463.1 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

Data Source


Gourds Texture Dataset

Downloads Texture

download_gourds_texture()

ゴードのテクスチャをダウンロード

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

640, 480

File Info

File Size

525.5 KB

Num Files

1

File Ext

.png

Reader

PNGReader

See also Gourds Dataset, Gourds Pnm Dataset

Data Source


Masonry Texture Dataset

Downloads Texture

download_masonry_texture()

masonryテクスチャをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

256, 256

File Info

File Size

66.6 KB

Num Files

1

File Ext

.bmp

Reader

BMPReader

See also テクスチャを適用する

Data Source


Parched Canal 4k Dataset

Downloads Texture

download_parched_canal_4k()

パーチドカナル4kデータセットをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

4096, 2048

File Info

File Size

25.9 MB

Num Files

1

File Ext

.hdr

Reader

HDRReader

See also Dikhololo Night Dataset

Data Source

parched_canal_4k.hdr

Puppy Texture Dataset

Downloads Texture

download_puppy_texture()

子犬テクスチャをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

1600, 1200

File Info

File Size

436.6 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Puppy Dataset, テクスチャを適用する

Data Source


Rgba Texture Dataset

Downloads Texture

download_rgba_texture()

アルファチャンネル付きのテクスチャをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

420, 300

File Info

File Size

121.5 KB

Num Files

1

File Ext

.png

Reader

PNGReader

See also テクスチャを適用する

Data Source


Sky Box Cube Map Dataset

Downloads Texture Cubemap

download_sky_box_cube_map()

スカイボックスキューブマップのテクスチャをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

1024, 1024

File Info

File Size

1.9 MB

Num Files

6

File Ext

.jpg

Reader

None

See also Cubemap Space 4k Dataset, Cubemap Space 16k Dataset, Cubemap Park Dataset, 物理ベースのレンダリング

Data Source

skybox2-posx.jpg skybox2-negx.jpg skybox2-posy.jpg skybox2-negy.jpg skybox2-posz.jpg skybox2-negz.jpg

Sky Box Nz Texture Dataset

Downloads Texture

download_sky_box_nz_texture()

skybox-nzのテクスチャをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

1024, 1024

File Info

File Size

54.6 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Sky Box Nz Dataset, Sky Box Cube Map Dataset

Data Source


Usa Texture Dataset

Downloads Texture

download_usa_texture()

USAテクスチャをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

512, 222

File Info

File Size

41.4 KB

Num Files

1

File Ext

.jpg

Reader

JPEGReader

See also Usa Dataset

Data Source


Vtk Logo Dataset

Downloads Texture

download_vtk_logo()

VTKロゴのテクスチャをダウンロードできます．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

256, 256

File Info

File Size

26.3 KB

Num Files

1

File Ext

.png

Reader

PNGReader

See also Vtk Dataset

Data Source


Cubemaps

Texture datasets with six images: one for each side of the cube.

Section Badge:

Cubemap

Dataset Count:

4

Cubemap Park Dataset

Downloads Texture Cubemap

download_cubemap_park()

公園のキューブマップをダウンロードできます．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

512, 512

File Info

File Size

606.1 KB

Num Files

6

File Ext

.jpg

Reader

None

See also Cubemap Space 4k Dataset, Cubemap Space 16k Dataset, Sky Box Cube Map Dataset

Data Source

cubemap_park/cubemap_park.zip

Cubemap Space 16k Dataset

Downloads Texture Cubemap

download_cubemap_space_16k()

16k宇宙キューブマップをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

4096, 4096

File Info

File Size

39.5 MB

Num Files

6

File Ext

.jpg

Reader

None

See also Cubemap Space 4k Dataset, Cubemap Park Dataset, Sky Box Cube Map Dataset

Data Source

cubemap_space/16k.zip

Cubemap Space 4k Dataset

Downloads Texture Cubemap

download_cubemap_space_4k()

4k宇宙キューブマップをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

1024, 1024

File Info

File Size

1.5 MB

Num Files

6

File Ext

.jpg

Reader

None

See also Cubemap Space 16k Dataset, Cubemap Park Dataset, Sky Box Cube Map Dataset

Data Source

cubemap_space/4k.zip

Sky Box Cube Map Dataset

Downloads Texture Cubemap

download_sky_box_cube_map()

スカイボックスキューブマップのテクスチャをダウンロードします．

Dataset Info

Data Type

Texture

Cell Type

PIXEL

Dimensions

1024, 1024

File Info

File Size

1.9 MB

Num Files

6

File Ext

.jpg

Reader

None

See also Cubemap Space 4k Dataset, Cubemap Space 16k Dataset, Cubemap Park Dataset, 物理ベースのレンダリング

Data Source

skybox2-posx.jpg skybox2-negx.jpg skybox2-posy.jpg skybox2-negy.jpg skybox2-posz.jpg skybox2-negz.jpg

複合データセット

多くのデータセットを保持する複合クラス。詳細は 複合データセット を参照してください。

複合データセット

マルチブロック

MultiBlock datasets.

Section Badge:

MultiBlock

Dataset Count:

22

Backward Facing Step Dataset

Downloads UnstructuredGrid MultiBlock Homogeneous

download_backward_facing_step()

流体シミュレーションのアンサイトゴールドケースをダウンロードできます．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

QUAD

HEXAHEDRON

Length

1.01e+02

File Info

File Size

998 B

Num Files

1

File Ext

.case

Reader

EnSightReader

Data Source

EnSight.zip

Biplane Dataset

Downloads UnstructuredGrid MultiBlock Homogeneous

download_biplane()

Download biplane dataset.

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

LINE

TRIANGLE

QUAD

TETRA

HEXAHEDRON

QUADRATIC_TRIANGLE

QUADRATIC_QUAD

QUADRATIC_TETRA

QUADRATIC_HEXAHEDRON

Length

1.18e+01

File Info

File Size

348.8 KB

Num Files

1

File Ext

.exo

Reader

ExodusIIReader

Data Source

biplane_rms_pressure_bs.exo

Bolt Nut Dataset

Downloads ImageData MultiBlock 3D Volume Homogeneous

download_bolt_nut()

ボルトナットのデータセットをダウンロードします．

Dataset Info

Data Type

MultiBlock

ImageData

Cell Type

VOXEL

Length

1.54e+02

File Info

File Size

132.8 KB

Num Files

2

File Ext

.slc

Reader

SLCReader

See also ボリュームレンダリング

Data Source

bolt.slc nut.slc

Cavity Dataset

Downloads PolyData UnstructuredGrid MultiBlock Surface Mesh Heterogeneous

download_cavity()

キャビティのOpenFOAMの例をダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

PolyData

Cell Type

QUAD

HEXAHEDRON

Length

1.42e-01

File Info

File Size

0 B

Num Files

1

File Ext

.foam

Reader

POpenFOAMReader

See also OpenFOAMデータのプロット

Data Source

OpenFOAM.zip

Cgns Multi Dataset

Downloads StructuredGrid MultiBlock Homogeneous

download_cgns_multi()

セルセンター解法によるマルチエレメントエアフォイルをダウンロードできます．

Dataset Info

Data Type

MultiBlock

StructuredGrid

Cell Type

HEXAHEDRON

Length

2.83e+01

File Info

File Size

4.1 MB

Num Files

1

File Ext

.cgns

Reader

CGNSReader

See also Cgns Structured Dataset

Data Source

cgns/multi.cgns

Cgns Structured Dataset

Downloads StructuredGrid MultiBlock Homogeneous

download_cgns_structured()

構造CGNSのデータセットメッシュをダウンロード．

Dataset Info

Data Type

MultiBlock

StructuredGrid

Cell Type

QUAD

HEXAHEDRON

Length

2.62e+00

File Info

File Size

1.0 MB

Num Files

1

File Ext

.cgns

Reader

CGNSReader

See also Cgns Multi Dataset

Data Source

cgns/sqnz_s.adf.cgns

Cylinder Crossflow Dataset

Downloads UnstructuredGrid MultiBlock Homogeneous

download_cylinder_crossflow()

Re=35のクロスフローにおけるシリンダーのCFD結果をダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

LINE

TRIANGLE

QUAD

Length

1.68e+01

File Info

File Size

734.6 KB

Num Files

5

File Ext

.case,

.geo,

.scl1,

.scl2,

.vel

Reader

EnSightReader

See also 2D流線

Data Source

EnSight/CylinderCrossflow/cylinder_Re35.case EnSight/CylinderCrossflow/cylinder_Re35.geo EnSight/CylinderCrossflow/cylinder_Re35.scl1 EnSight/CylinderCrossflow/cylinder_Re35.scl2 EnSight/CylinderCrossflow/cylinder_Re35.vel

Dual Sphere Animation Dataset

Downloads PolyData MultiBlock Surface Mesh Homogeneous

download_dual_sphere_animation()

球体2個分のPVDファイルをダウンロードします．

Dataset Info

Data Type

MultiBlock

PolyData

Cell Type

TRIANGLE

Length

1.96e+00

File Info

File Size

2.5 KB

Num Files

1

File Ext

.pvd

Reader

PVDReader

See also Single Sphere Animation Dataset

Data Source

PVD/paraview/dualSphereAnimation.zip

Electronics Cooling Dataset

Downloads PolyData UnstructuredGrid MultiBlock Surface Mesh Heterogeneous

download_electronics_cooling()

電子機器冷却のサンプルデータセットをダウンロードします．

Dataset Info

Data Type

MultiBlock

PolyData

UnstructuredGrid

Cell Type

TRIANGLE

QUAD

TETRA

HEXAHEDRON

WEDGE

PYRAMID

Length

2.64e-01

File Info

File Size

67.9 MB

Num Files

2

File Ext

.vtp,

.vtu

Reader

XMLPolyDataReader

XMLUnstructuredGridReader

See also 電子機器の冷却CFD

Data Source

fvm/cooling_electronics/datasets.zip

Exodus Dataset

Downloads UnstructuredGrid MultiBlock Homogeneous

download_exodus()

ExodusIIのデータファイルの例です．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

TRIANGLE

QUAD

WEDGE

Length

1.45e+01

File Info

File Size

69.7 KB

Num Files

1

File Ext

.exo

Reader

ExodusIIReader

Data Source

mesh_fs8.exo

Lshape Dataset

Downloads UnstructuredGrid MultiBlock Homogeneous

download_lshape()

LShapeデータセットをEnSightフォーマットでダウンロードできます．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

VERTEX

HEXAHEDRON

Length

2.86e+00

File Info

File Size

10.8 KB

Num Files

3

File Ext

.case,

.geo,

.var

Reader

EnSightReader

Data Source

EnSight/LShape.case EnSight/LShape_geometry.geo EnSight/LShape_displacement.var

Meshio Xdmf Dataset

Downloads UnstructuredGrid MultiBlock Homogeneous

download_meshio_xdmf()

meshioが作成したxdmfファイルをダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

TRIANGLE

Length

1.41e+00

File Info

File Size

12.4 KB

Num Files

2

File Ext

.h5,

.xdmf

Reader

XdmfReader

Data Source

meshio/out.xdmf meshio/out.h5

Mug Dataset

Downloads UnstructuredGrid MultiBlock Misc Heterogeneous

download_mug()

mugデータセットをダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

NoneType

Cell Type

QUAD

HEXAHEDRON

Length

8.08e+00

File Info

File Size

1.9 MB

Num Files

1

File Ext

.e

Reader

ExodusIIReader

Data Source

mug.e

Naca Dataset

Downloads StructuredGrid MultiBlock Homogeneous

download_naca()

NACAの翼型データセットをEnSight形式でダウンロードできます．

Dataset Info

Data Type

MultiBlock

StructuredGrid

Cell Type

QUAD

Length

1.89e+02

File Info

File Size

505.8 KB

Num Files

4

File Ext

.case,

.dens_1,

.dens_3,

.geo

Reader

EnSightReader

See also リーダーによるデータの読み込み

Data Source

EnSight/naca.bin.case EnSight/naca.gold.bin.DENS_1 EnSight/naca.gold.bin.DENS_3 EnSight/naca.gold.bin.geo

Openfoam Tubes Dataset

Downloads PolyData UnstructuredGrid MultiBlock Surface Mesh Heterogeneous

download_openfoam_tubes()

チューブのOpenFOAMの例をダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

PolyData

Cell Type

TRIANGLE

QUAD

TETRA

HEXAHEDRON

WEDGE

PYRAMID

Length

3.71e-01

File Info

File Size

0 B

Num Files

1

File Ext

.foam

Reader

POpenFOAMReader

See also CFDデータをプロットする

Data Source

fvm/turbo_incompressible/Turbo-Incompressible_3-Run_1-SOLUTION_FIELDS.zip

Room Cff Dataset

Downloads UnstructuredGrid MultiBlock Single Block

download_room_cff()

部屋モデルをCFF形式でダウンロードします。

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

QUAD

Length

5.66e+00

File Info

File Size

893.4 KB

Num Files

2

File Ext

.h5

Reader

FLUENTCFFReader

Data Source

FLUENTCFF/room.cas.h5 FLUENTCFF/room.dat.h5

Single Sphere Animation Dataset

Downloads PolyData MultiBlock Surface Mesh Single Block

download_single_sphere_animation()

球体1個分のPVDファイルをダウンロードします．

Dataset Info

Data Type

MultiBlock

PolyData

Cell Type

TRIANGLE

Length

1.71e+00

File Info

File Size

1.5 KB

Num Files

1

File Ext

.pvd

Reader

PVDReader

See also Dual Sphere Animation Dataset

Data Source

PVD/paraview/singleSphereAnimation.zip

Tecplot Ascii Dataset

Downloads UnstructuredGrid MultiBlock Single Block

download_tecplot_ascii()

シングルブロックのASCII Tecplotデータセットをダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

HEXAHEDRON

Length

4.69e+00

File Info

File Size

13.1 KB

Num Files

1

File Ext

.dat

Reader

TecplotReader

Data Source

tecplot_ascii.dat

Tetra Dc Mesh Dataset

Downloads UnstructuredGrid MultiBlock Homogeneous

download_tetra_dc_mesh()

電気的な逆問題を定義する2つのメッシュをダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

TETRA

Length

1.80e+00

File Info

File Size

60.8 MB

Num Files

2

File Ext

.vtu

Reader

XMLUnstructuredGridReader

Data Source

dc-inversion.zip

Wavy Dataset

Downloads StructuredGrid MultiBlock Single Block

download_wavy()

2D波のPVDファイルをダウンロードできます．

Dataset Info

Data Type

MultiBlock

StructuredGrid

Cell Type

QUAD

Length

2.80e+01

File Info

File Size

1.4 KB

Num Files

1

File Ext

.pvd

Reader

PVDReader

See also リーダーによるデータの読み込み

Data Source

PVD/wavy.zip

Whole Body Ct Female Dataset

Downloads ImageData MultiBlock 3D Volume Homogeneous Medical

download_whole_body_ct_female()

117の解剖学的構造がセグメント化された女性被験者のCT画像をダウンロードします。

Dataset Info

Data Type

MultiBlock

ImageData

Cell Type

VOXEL

Length

1.06e+03

File Info

File Size

17.7 KB

Num Files

2

File Ext

.py,

.vtm

Reader

XMLMultiBlockDataReader

See also 解剖学的グループの可視化, Whole Body Ct Male Dataset, ラベル付き画像データを切り抜く, セグメンテーションマスク付きボリューム

Data Source

whole_body_ct/s1380_resampled.zip whole_body_ct/colors.py

Whole Body Ct Male Dataset

Downloads ImageData MultiBlock 3D Volume Homogeneous Medical

download_whole_body_ct_male()

117の解剖学的構造がセグメント化された男性被験者のCT画像をダウンロードします。

Dataset Info

Data Type

MultiBlock

ImageData

Cell Type

VOXEL

Length

1.06e+03

File Info

File Size

17.7 KB

Num Files

2

File Ext

.py,

.vtm

Reader

XMLMultiBlockDataReader

See also 解剖学的グループの可視化, Whole Body Ct Female Dataset, ラベル付き画像データを切り抜く, セグメンテーションマスク付きボリューム

Data Source

whole_body_ct/s1397_resampled.zip whole_body_ct/colors.py

ホモジニアス

MultiBlock datasets with multiple blocks of the same mesh type.

Section Badge:

Homogeneous

Dataset Count:

14

Backward Facing Step Dataset

Downloads UnstructuredGrid MultiBlock Homogeneous

download_backward_facing_step()

流体シミュレーションのアンサイトゴールドケースをダウンロードできます．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

QUAD

HEXAHEDRON

Length

1.01e+02

File Info

File Size

998 B

Num Files

1

File Ext

.case

Reader

EnSightReader

Data Source

EnSight.zip

Biplane Dataset

Downloads UnstructuredGrid MultiBlock Homogeneous

download_biplane()

Download biplane dataset.

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

LINE

TRIANGLE

QUAD

TETRA

HEXAHEDRON

QUADRATIC_TRIANGLE

QUADRATIC_QUAD

QUADRATIC_TETRA

QUADRATIC_HEXAHEDRON

Length

1.18e+01

File Info

File Size

348.8 KB

Num Files

1

File Ext

.exo

Reader

ExodusIIReader

Data Source

biplane_rms_pressure_bs.exo

Bolt Nut Dataset

Downloads ImageData MultiBlock 3D Volume Homogeneous

download_bolt_nut()

ボルトナットのデータセットをダウンロードします．

Dataset Info

Data Type

MultiBlock

ImageData

Cell Type

VOXEL

Length

1.54e+02

File Info

File Size

132.8 KB

Num Files

2

File Ext

.slc

Reader

SLCReader

See also ボリュームレンダリング

Data Source

bolt.slc nut.slc

Cgns Multi Dataset

Downloads StructuredGrid MultiBlock Homogeneous

download_cgns_multi()

セルセンター解法によるマルチエレメントエアフォイルをダウンロードできます．

Dataset Info

Data Type

MultiBlock

StructuredGrid

Cell Type

HEXAHEDRON

Length

2.83e+01

File Info

File Size

4.1 MB

Num Files

1

File Ext

.cgns

Reader

CGNSReader

See also Cgns Structured Dataset

Data Source

cgns/multi.cgns

Cgns Structured Dataset

Downloads StructuredGrid MultiBlock Homogeneous

download_cgns_structured()

構造CGNSのデータセットメッシュをダウンロード．

Dataset Info

Data Type

MultiBlock

StructuredGrid

Cell Type

QUAD

HEXAHEDRON

Length

2.62e+00

File Info

File Size

1.0 MB

Num Files

1

File Ext

.cgns

Reader

CGNSReader

See also Cgns Multi Dataset

Data Source

cgns/sqnz_s.adf.cgns

Cylinder Crossflow Dataset

Downloads UnstructuredGrid MultiBlock Homogeneous

download_cylinder_crossflow()

Re=35のクロスフローにおけるシリンダーのCFD結果をダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

LINE

TRIANGLE

QUAD

Length

1.68e+01

File Info

File Size

734.6 KB

Num Files

5

File Ext

.case,

.geo,

.scl1,

.scl2,

.vel

Reader

EnSightReader

See also 2D流線

Data Source

EnSight/CylinderCrossflow/cylinder_Re35.case EnSight/CylinderCrossflow/cylinder_Re35.geo EnSight/CylinderCrossflow/cylinder_Re35.scl1 EnSight/CylinderCrossflow/cylinder_Re35.scl2 EnSight/CylinderCrossflow/cylinder_Re35.vel

Dual Sphere Animation Dataset

Downloads PolyData MultiBlock Surface Mesh Homogeneous

download_dual_sphere_animation()

球体2個分のPVDファイルをダウンロードします．

Dataset Info

Data Type

MultiBlock

PolyData

Cell Type

TRIANGLE

Length

1.96e+00

File Info

File Size

2.5 KB

Num Files

1

File Ext

.pvd

Reader

PVDReader

See also Single Sphere Animation Dataset

Data Source

PVD/paraview/dualSphereAnimation.zip

Exodus Dataset

Downloads UnstructuredGrid MultiBlock Homogeneous

download_exodus()

ExodusIIのデータファイルの例です．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

TRIANGLE

QUAD

WEDGE

Length

1.45e+01

File Info

File Size

69.7 KB

Num Files

1

File Ext

.exo

Reader

ExodusIIReader

Data Source

mesh_fs8.exo

Lshape Dataset

Downloads UnstructuredGrid MultiBlock Homogeneous

download_lshape()

LShapeデータセットをEnSightフォーマットでダウンロードできます．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

VERTEX

HEXAHEDRON

Length

2.86e+00

File Info

File Size

10.8 KB

Num Files

3

File Ext

.case,

.geo,

.var

Reader

EnSightReader

Data Source

EnSight/LShape.case EnSight/LShape_geometry.geo EnSight/LShape_displacement.var

Meshio Xdmf Dataset

Downloads UnstructuredGrid MultiBlock Homogeneous

download_meshio_xdmf()

meshioが作成したxdmfファイルをダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

TRIANGLE

Length

1.41e+00

File Info

File Size

12.4 KB

Num Files

2

File Ext

.h5,

.xdmf

Reader

XdmfReader

Data Source

meshio/out.xdmf meshio/out.h5

Naca Dataset

Downloads StructuredGrid MultiBlock Homogeneous

download_naca()

NACAの翼型データセットをEnSight形式でダウンロードできます．

Dataset Info

Data Type

MultiBlock

StructuredGrid

Cell Type

QUAD

Length

1.89e+02

File Info

File Size

505.8 KB

Num Files

4

File Ext

.case,

.dens_1,

.dens_3,

.geo

Reader

EnSightReader

See also リーダーによるデータの読み込み

Data Source

EnSight/naca.bin.case EnSight/naca.gold.bin.DENS_1 EnSight/naca.gold.bin.DENS_3 EnSight/naca.gold.bin.geo

Tetra Dc Mesh Dataset

Downloads UnstructuredGrid MultiBlock Homogeneous

download_tetra_dc_mesh()

電気的な逆問題を定義する2つのメッシュをダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

TETRA

Length

1.80e+00

File Info

File Size

60.8 MB

Num Files

2

File Ext

.vtu

Reader

XMLUnstructuredGridReader

Data Source

dc-inversion.zip

Whole Body Ct Female Dataset

Downloads ImageData MultiBlock 3D Volume Homogeneous Medical

download_whole_body_ct_female()

117の解剖学的構造がセグメント化された女性被験者のCT画像をダウンロードします。

Dataset Info

Data Type

MultiBlock

ImageData

Cell Type

VOXEL

Length

1.06e+03

File Info

File Size

17.7 KB

Num Files

2

File Ext

.py,

.vtm

Reader

XMLMultiBlockDataReader

See also 解剖学的グループの可視化, Whole Body Ct Male Dataset, ラベル付き画像データを切り抜く, セグメンテーションマスク付きボリューム

Data Source

whole_body_ct/s1380_resampled.zip whole_body_ct/colors.py

Whole Body Ct Male Dataset

Downloads ImageData MultiBlock 3D Volume Homogeneous Medical

download_whole_body_ct_male()

117の解剖学的構造がセグメント化された男性被験者のCT画像をダウンロードします。

Dataset Info

Data Type

MultiBlock

ImageData

Cell Type

VOXEL

Length

1.06e+03

File Info

File Size

17.7 KB

Num Files

2

File Ext

.py,

.vtm

Reader

XMLMultiBlockDataReader

See also 解剖学的グループの可視化, Whole Body Ct Female Dataset, ラベル付き画像データを切り抜く, セグメンテーションマスク付きボリューム

Data Source

whole_body_ct/s1397_resampled.zip whole_body_ct/colors.py

ヘテロジニアス

MultiBlock datasets with multiple blocks of different mesh types.

Section Badge:

Heterogeneous

Dataset Count:

4

Cavity Dataset

Downloads PolyData UnstructuredGrid MultiBlock Surface Mesh Heterogeneous

download_cavity()

キャビティのOpenFOAMの例をダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

PolyData

Cell Type

QUAD

HEXAHEDRON

Length

1.42e-01

File Info

File Size

0 B

Num Files

1

File Ext

.foam

Reader

POpenFOAMReader

See also OpenFOAMデータのプロット

Data Source

OpenFOAM.zip

Electronics Cooling Dataset

Downloads PolyData UnstructuredGrid MultiBlock Surface Mesh Heterogeneous

download_electronics_cooling()

電子機器冷却のサンプルデータセットをダウンロードします．

Dataset Info

Data Type

MultiBlock

PolyData

UnstructuredGrid

Cell Type

TRIANGLE

QUAD

TETRA

HEXAHEDRON

WEDGE

PYRAMID

Length

2.64e-01

File Info

File Size

67.9 MB

Num Files

2

File Ext

.vtp,

.vtu

Reader

XMLPolyDataReader

XMLUnstructuredGridReader

See also 電子機器の冷却CFD

Data Source

fvm/cooling_electronics/datasets.zip

Mug Dataset

Downloads UnstructuredGrid MultiBlock Misc Heterogeneous

download_mug()

mugデータセットをダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

NoneType

Cell Type

QUAD

HEXAHEDRON

Length

8.08e+00

File Info

File Size

1.9 MB

Num Files

1

File Ext

.e

Reader

ExodusIIReader

Data Source

mug.e

Openfoam Tubes Dataset

Downloads PolyData UnstructuredGrid MultiBlock Surface Mesh Heterogeneous

download_openfoam_tubes()

チューブのOpenFOAMの例をダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

PolyData

Cell Type

TRIANGLE

QUAD

TETRA

HEXAHEDRON

WEDGE

PYRAMID

Length

3.71e-01

File Info

File Size

0 B

Num Files

1

File Ext

.foam

Reader

POpenFOAMReader

See also CFDデータをプロットする

Data Source

fvm/turbo_incompressible/Turbo-Incompressible_3-Run_1-SOLUTION_FIELDS.zip

シングルメッシュ

MultiBlock datasets which contain a single mesh.

Section Badge:

Single Block

Dataset Count:

4

Room Cff Dataset

Downloads UnstructuredGrid MultiBlock Single Block

download_room_cff()

部屋モデルをCFF形式でダウンロードします。

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

QUAD

Length

5.66e+00

File Info

File Size

893.4 KB

Num Files

2

File Ext

.h5

Reader

FLUENTCFFReader

Data Source

FLUENTCFF/room.cas.h5 FLUENTCFF/room.dat.h5

Single Sphere Animation Dataset

Downloads PolyData MultiBlock Surface Mesh Single Block

download_single_sphere_animation()

球体1個分のPVDファイルをダウンロードします．

Dataset Info

Data Type

MultiBlock

PolyData

Cell Type

TRIANGLE

Length

1.71e+00

File Info

File Size

1.5 KB

Num Files

1

File Ext

.pvd

Reader

PVDReader

See also Dual Sphere Animation Dataset

Data Source

PVD/paraview/singleSphereAnimation.zip

Tecplot Ascii Dataset

Downloads UnstructuredGrid MultiBlock Single Block

download_tecplot_ascii()

シングルブロックのASCII Tecplotデータセットをダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

Cell Type

HEXAHEDRON

Length

4.69e+00

File Info

File Size

13.1 KB

Num Files

1

File Ext

.dat

Reader

TecplotReader

Data Source

tecplot_ascii.dat

Wavy Dataset

Downloads StructuredGrid MultiBlock Single Block

download_wavy()

2D波のPVDファイルをダウンロードできます．

Dataset Info

Data Type

MultiBlock

StructuredGrid

Cell Type

QUAD

Length

2.80e+01

File Info

File Size

1.4 KB

Num Files

1

File Ext

.pvd

Reader

PVDReader

See also リーダーによるデータの読み込み

Data Source

PVD/wavy.zip

雑多なデータセット

雑多なデータセット

すべて

Datasets which have a non-standard representation.

Section Badge:

Misc

Dataset Count:

2

Gpr Data Array Dataset

Downloads Misc

download_gpr_data_array()

GPRのサンプルデータ配列をダウンロードできます．

Dataset Info

Data Type

ndarray

Cell Type

None

File Info

File Size

34.4 MB

Num Files

1

File Ext

.npy

Reader

None

See also Gpr Path Dataset, 線分から2 Dサーフェスをまとう

Data Source

gpr-example/data.npy

Mug Dataset

Downloads UnstructuredGrid MultiBlock Misc Heterogeneous

download_mug()

mugデータセットをダウンロードします．

Dataset Info

Data Type

MultiBlock

UnstructuredGrid

NoneType

Cell Type

QUAD

HEXAHEDRON

Length

8.08e+00

File Info

File Size

1.9 MB

Num Files

1

File Ext

.e

Reader

ExodusIIReader

Data Source

mug.e

カテゴリ別にデータセットをブラウズする

医学のデータセット

すべて

Medical datasets.

Section Badge:

Medical

Dataset Count:

16

Brain Dataset

Downloads ImageData 3D Volume Medical

download_brain()

脳のデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

6 998 400

N Points

7 109 137

Length

3.34e+02

Dimensions

181, 217, 181

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

7.1 MB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

See also Brain Atlas With Sides Dataset

Data Source

brain.vtk

Brain Atlas With Sides Dataset

Downloads ImageData 3D Volume Medical

download_brain_atlas_with_sides()

右左のラベルが付いた平均化された脳の画像をダウンロードすることができます．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

874 800

N Points

902 629

Length

3.34e+02

Dimensions

91, 109, 91

Spacing

2.0, 2.0, 2.0

N Arrays

1

File Info

File Size

531.1 KB

Num Files

1

File Ext

.nii.gz

Reader

NIFTIReader

See also Brain Dataset

Data Source

avg152T1_RL_nifti.nii.gz

Carotid Dataset

Downloads ImageData 3D Volume Medical

download_carotid()

頚動脈のデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

158 400

N Points

167 580

Length

9.93e+01

Dimensions

76, 49, 45

Spacing

1.0, 1.0, 1.0

N Arrays

2

File Info

File Size

2.7 MB

Num Files

1

File Ext

.vtk

Reader

VTKDataSetReader

Data Source

carotid.vtk

Chest Dataset

Downloads ImageData 3D Volume Medical

download_chest()

胸部のデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

4 700 178

N Points

4 980 736

Length

3.39e+02

Dimensions

512, 512, 19

Spacing

4.69e-01, 4.69e-01, 5.00e-01

N Arrays

1

File Info

File Size

6.1 MB

Num Files

1

File Ext

.mha

Reader

MetaImageReader

See also ボリュームレンダリング

Data Source

MetaIO/ChestCT-SHORT.mha

Dicom Stack Dataset

Downloads ImageData 3D Volume Medical

download_dicom_stack()

TCIADICOMスタックボリュームをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

522 242

N Points

786 432

Length

7.06e+02

Dimensions

512, 512, 3

Spacing

9.77e-01, 9.77e-01, 1.20e+01

N Arrays

1

File Info

File Size

1.6 MB

Num Files

3

File Ext

.dcm

Reader

DICOMReader

Data Source

DICOM_Stack/data.zip

Embryo Dataset

Downloads ImageData 3D Volume Medical

download_embryo()

胎児のボリュームをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

16 581 375

N Points

16 777 216

Length

4.42e+02

Dimensions

256, 256, 256

Spacing

1.0, 1.0, 1.0

N Arrays

1

File Info

File Size

3.9 MB

Num Files

1

File Ext

.slc

Reader

SLCReader

Data Source

embryo.slc

Foot Bones Dataset

Downloads PolyData Surface Mesh Medical

download_foot_bones()

足の骨のデータセットをダウンロードします．

Dataset Info

Data Type

PolyData

Cell Type

TRIANGLE

N Cells

4 204

N Points

2 154

Length

1.26e+01

N Arrays

0

File Info

File Size

135.9 KB

Num Files

1

File Ext

.ply

Reader

PLYReader

See also サーフェスメッシュをボクセル化する, Compare threshold filters

Data Source

fsu/footbones.ply

Frog Dataset

Downloads ImageData 3D Volume Medical

download_frog()

カエルのデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

31 594 185

N Points

31 960 000

Length

7.14e+02

Dimensions

500, 470, 136

Spacing

1.0, 1.0, 1.5

N Arrays

1

File Info

File Size

5.2 MB

Num Files

2

File Ext

.mhd,

.zraw

Reader

MetaImageReader

See also Frog Tissues Dataset, ボリュームレンダリング

Data Source

froggy/frog.mhd froggy/frog.zraw

Frog Tissues Dataset

Built-in ImageData 3D Volume Medical

load_frog_tissues()

Load frog tissues dataset.

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

31 594 185

N Points

31 960 000

Length

7.14e+02

Dimensions

500, 470, 136

Spacing

1.0, 1.0, 1.5

N Arrays

1

File Info

File Size

380.4 KB

Num Files

1

File Ext

.vti

Reader

XMLImageDataReader

See also Frog Dataset

Data Source

frog_tissues.vti

Head Dataset

Downloads ImageData 3D Volume Medical

download_head()

頭のデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

117 547

N Points

124 992

Length

3.49e+02

Dimensions

48, 62, 42

Spacing

4.0, 4.0, 4.0

N Arrays

1

File Info

File Size

125.2 KB

Num Files

2

File Ext

.mhd,

.raw

Reader

MetaImageReader

See also Head 2 Dataset, ボリュームレンダリング

Data Source

HeadMRVolume.mhd HeadMRVolume.raw

Head 2 Dataset

Downloads ImageData 3D Volume Medical

download_head_2()

頭のデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

6 047 325

N Points

6 160 384

Length

4.06e+02

Dimensions

256, 256, 94

Spacing

1.0, 1.0, 2.0

N Arrays

1

File Info

File Size

8.8 MB

Num Files

1

File Ext

.vti

Reader

XMLImageDataReader

See also Head Dataset

Data Source

head.vti

Knee Dataset

Downloads ImageData 2D Image Medical

download_knee()

kneeのデータセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

261 121

N Points

262 144

Length

3.11e+02

Dimensions

512, 512, 1

Spacing

4.30e-01, 4.30e-01, 8.00e-01

N Arrays

1

File Info

File Size

526.7 KB

Num Files

1

File Ext

.dcm

Reader

DICOMReader

See also Knee Full Dataset

Data Source

DICOM_KNEE.dcm

Knee Full Dataset

Downloads ImageData 3D Volume Medical

download_knee_full()

膝データセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

VOXEL

N Cells

10 225 800

N Points

10 368 384

Length

3.07e+02

Dimensions

208, 248, 201

Spacing

7.23e-01, 7.23e-01, 1.00e+00

N Arrays

1

File Info

File Size

9.0 MB

Num Files

1

File Ext

.slc

Reader

SLCReader

See also Knee Dataset

Data Source

vw_knee.slc

Prostate Dataset

Downloads ImageData 2D Image Medical

download_prostate()

前立腺データセットをダウンロードします．

Dataset Info

Data Type

ImageData

Cell Type

PIXEL

N Cells

261 121

N Points

262 144

Length

6.77e+02

Dimensions

512, 512, 1

Spacing

9.38e-01, 9.38e-01, 5.00e+00

N Arrays

1

File Info

File Size

527.3 KB

Num Files

1

File Ext

.img

Reader

DICOMReader

Data Source

prostate.img

Whole Body Ct Female Dataset

Downloads ImageData MultiBlock 3D Volume Homogeneous Medical

download_whole_body_ct_female()

117の解剖学的構造がセグメント化された女性被験者のCT画像をダウンロードします。

Dataset Info

Data Type

MultiBlock

ImageData

Cell Type

VOXEL

Length

1.06e+03

File Info

File Size

17.7 KB

Num Files

2

File Ext

.py,

.vtm

Reader

XMLMultiBlockDataReader

See also 解剖学的グループの可視化, Whole Body Ct Male Dataset, ラベル付き画像データを切り抜く, セグメンテーションマスク付きボリューム

Data Source

whole_body_ct/s1380_resampled.zip whole_body_ct/colors.py

Whole Body Ct Male Dataset

Downloads ImageData MultiBlock 3D Volume Homogeneous Medical

download_whole_body_ct_male()

117の解剖学的構造がセグメント化された男性被験者のCT画像をダウンロードします。

Dataset Info

Data Type

MultiBlock

ImageData

Cell Type

VOXEL

Length

1.06e+03

File Info

File Size

17.7 KB

Num Files

2

File Ext

.py,

.vtm

Reader

XMLMultiBlockDataReader

See also 解剖学的グループの可視化, Whole Body Ct Female Dataset, ラベル付き画像データを切り抜く, セグメンテーションマスク付きボリューム

Data Source

whole_body_ct/s1397_resampled.zip whole_body_ct/colors.py
