pyvista.fit_plane_to_points

fit_plane_to_points(

points: MatrixLike[float],

return_meta: bool = False,

resolution: int = 10,

init_normal: VectorLike[float] | None = None,

) → PolyData | tuple[PolyData, float, NumpyArray[float]]

Fit a plane to points using its principal_axes().

平面は，ポイントの範囲に合うように自動的にサイズと向きが調整されます．

バージョン 0.42.0 で変更: これで、生成された平面の大きさと向きが点に合うようになりました。

バージョン 0.42.0 で変更: The center of the plane (returned if return_meta=True) is now computed as the center of the generated plane mesh. In previous versions, the center of the input points was returned.

バージョン 0.45.0 で変更: The internal method used for fitting the plane has changed. Previously, singular value decomposition (SVD) was used, but eigenvectors are now used instead. See warning below.

警告

The sign of the plane's normal vector prior to version 0.45 may differ from the latest version. This may impact methods which rely on the plane's direction. Use init_normal to control the sign explicitly.

パラメータ:

pointsarray_like[float]

平面を通過させるための [N x 3] 個の点の列の大きさ．

return_metabool, default: False

もし True ならば，生成された平面の中心と法線も返します．

resolutionint, default: 10

Number of points on the plane mesh along its edges. Specify two numbers to set the resolution along the plane's long and short edge (respectively) or a single number to set both edges to have the same resolution.

Added in version 0.45.0.

init_normalVectorLike[float] | str, optional

平面の法線がこのベクトルに最も合うように反転させます。 軸を名前で指定するベクトルまたは文字列です (例: 'x' または '-x', など)。

Added in version 0.45.0.

戻り値:

pyvista.PolyData

平面メッシュです．

pyvista.pyvista_ndarray

return_meta=True の場合は平面の中心．

pyvista.pyvista_ndarray

return_meta=True の場合は平面の法線．

参考

fit_line_to_points

点の第一主軸を使って直線をフィッティングします。

principal_axes

点の集合に最も適合する軸ベクトルを計算します。

例

ランダムな点群に平面を当てはめます．

>>> import pyvista as pv
>>> import numpy as np
>>> from pyvista import examples
>>>
>>> rng = np.random.default_rng(seed=0)
>>> cloud = rng.random((10, 3))
>>> cloud[:, 2] *= 0.1
>>>
>>> plane = pv.fit_plane_to_points(cloud)

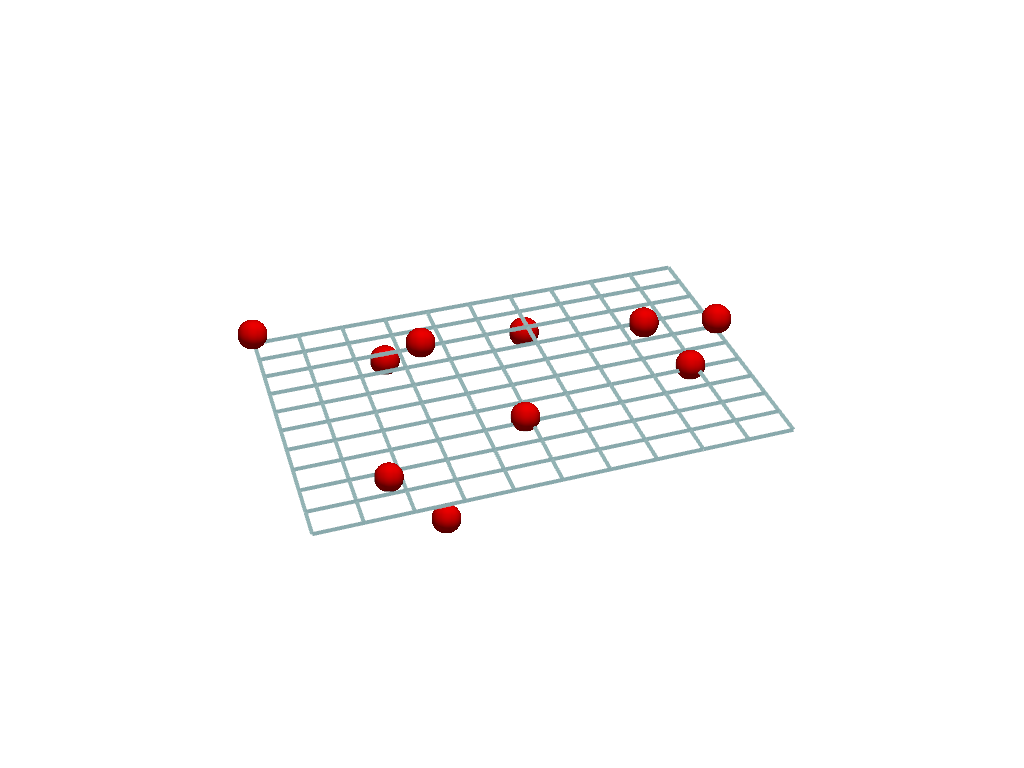

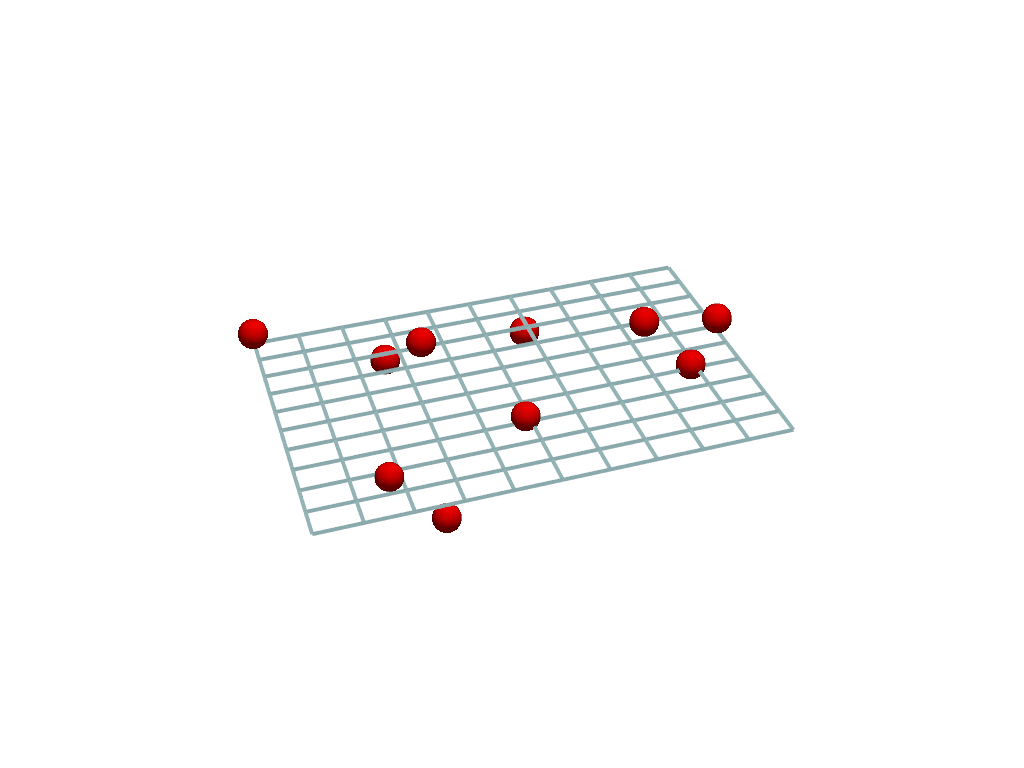

Plot the point cloud and fitted plane.

>>> pl = pv.Plotter()
>>> _ = pl.add_mesh(plane, style='wireframe', line_width=4)
>>> _ = pl.add_points(
...     cloud,
...     render_points_as_spheres=True,
...     color='r',
...     point_size=30,
... )
>>> pl.show()

スタティックシーン

インタラクティブなシーン

Fit a plane to a mesh and return its metadata. Set the plane resolution to 1 so that the plane has no internal points or edges.

>>> mesh = examples.download_shark()
>>> plane, center, normal = pv.fit_plane_to_points(
...     mesh.points, return_meta=True, resolution=1
... )

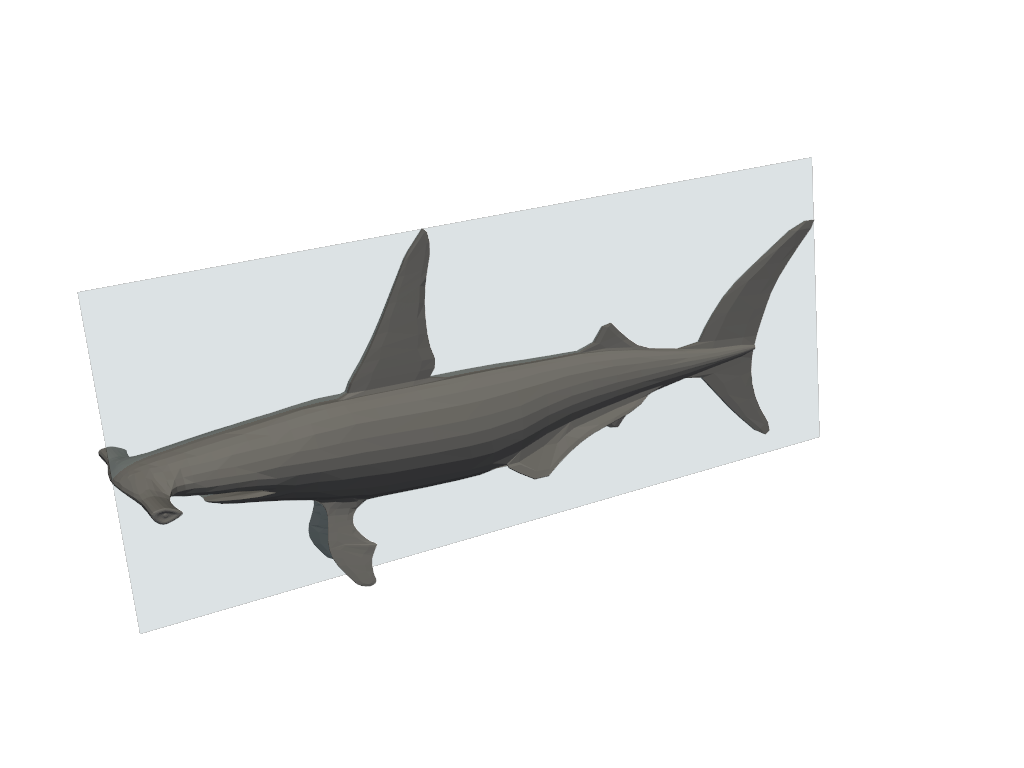

Plot the mesh and fitted plane.

>>> pl = pv.Plotter()
>>> _ = pl.add_mesh(plane, show_edges=True, opacity=0.25)
>>> _ = pl.add_mesh(mesh, color='gray')
>>> pl.camera_position = [
...     (-117, 76, 235),
...     (1.69, -1.38, 0),
...     (0.189, 0.957, -0.22),
... ]
>>> pl.show()

スタティックシーン

インタラクティブなシーン

Use the metadata with pyvista.DataObjectFilters.clip() to split the mesh into two.

>>> first_half, second_half = mesh.clip(
...     origin=center, normal=normal, return_clipped=True
... )

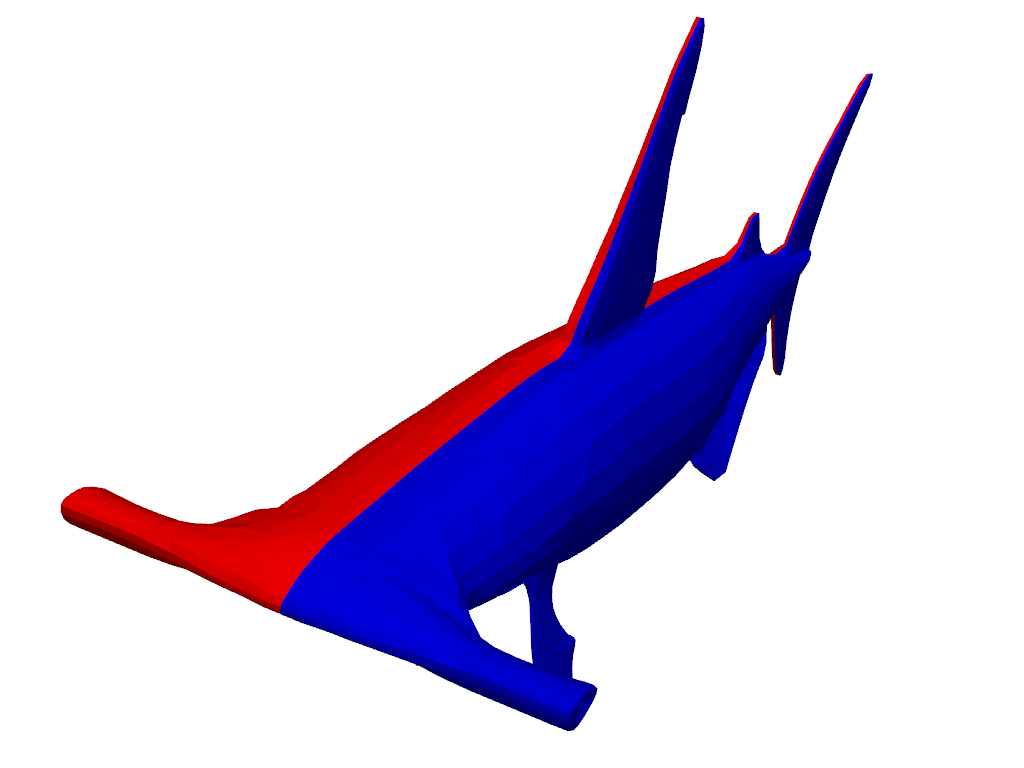

Plot the two halves of the clipped mesh.

>>> pl = pv.Plotter()
>>> _ = pl.add_mesh(first_half, color='red')
>>> _ = pl.add_mesh(second_half, color='blue')
>>> pl.camera_position = [
...     (-143, 43, 40),
...     (-8.7, -11, -14),
...     (0.25, 0.92, -0.29),
... ]
>>> pl.show()

スタティックシーン

インタラクティブなシーン

Note that it is pointing in the positive z-direction.

>>> normal
pyvista_ndarray([5.2734075e-09, 6.7008443e-08, 1.0000000e+00],
                dtype=float32)

Use init_normal to flip the sign and make it negative instead.

>>> _, _, normal = pv.fit_plane_to_points(
...     mesh.points, return_meta=True, init_normal='-z'
... )
>>> normal
pyvista_ndarray([-5.2734155e-09, -6.7008422e-08, -1.0000000e+00],
                dtype=float32)
