pyvista.Plotter.add_mesh_clip_box

Plotter.add_mesh_clip_box(

mesh,

invert: bool = False,

rotation_enabled: bool = True,

widget_color=None,

outline_translation: bool = True,

merge_points: bool = True,

crinkle: bool = False,

interaction_event: pyvista.InteractionEventType = 'end',

**kwargs,

)

Clip a mesh using a box widget.

Add a mesh to the scene with a box widget that is used to clip the mesh interactively.

The clipped mesh is saved to the .box_clipped_meshes attribute on the plotter.

Parameters:

meshDataSet | vtkAlgorithm

The input dataset to add to the scene and clip or algorithm that produces said mesh.

invertbool, optional

Flag on whether to flip/invert the clip.

rotation_enabledbool, optional

If False, the box widget cannot be rotated and is strictly orthogonal to the cartesian axes.

widget_colorColorLike, optional

Color of the widget. Either a string, RGB sequence, or hex color string. For example:

• color='white'

• color='w'

• color=[1.0, 1.0, 1.0]

• color='#FFFFFF'

outline_translationbool, optional

If False, the plane widget cannot be translated and is strictly placed at the given bounds.

merge_pointsbool, optional

If True (default), coinciding points of independently defined mesh elements will be merged.

crinklebool, optional

Crinkle the clip by extracting the entire cells along the clip.

interaction_eventInteractionEventType, optional

The VTK interaction event to use for triggering the callback. Accepts either the strings 'start', 'end', 'always' or a vtkCommand.EventIds.

Changed in version 0.38.0: Changed from event_type to interaction_event and now accepts either strings and vtkCommand.EventIds.

**kwargsdict, optional

All additional keyword arguments are passed to pyvista.Plotter.add_mesh() to control how the mesh is displayed.

Returns:

vtkActor

VTK actor of the mesh.

Examples

Shows an interactive clip box.

>>> import pyvista as pv
>>> mesh = pv.ParametricConicSpiral()
>>> pl = pv.Plotter()
>>> _ = pl.add_mesh_clip_box(mesh, color='white')
>>> pl.show()

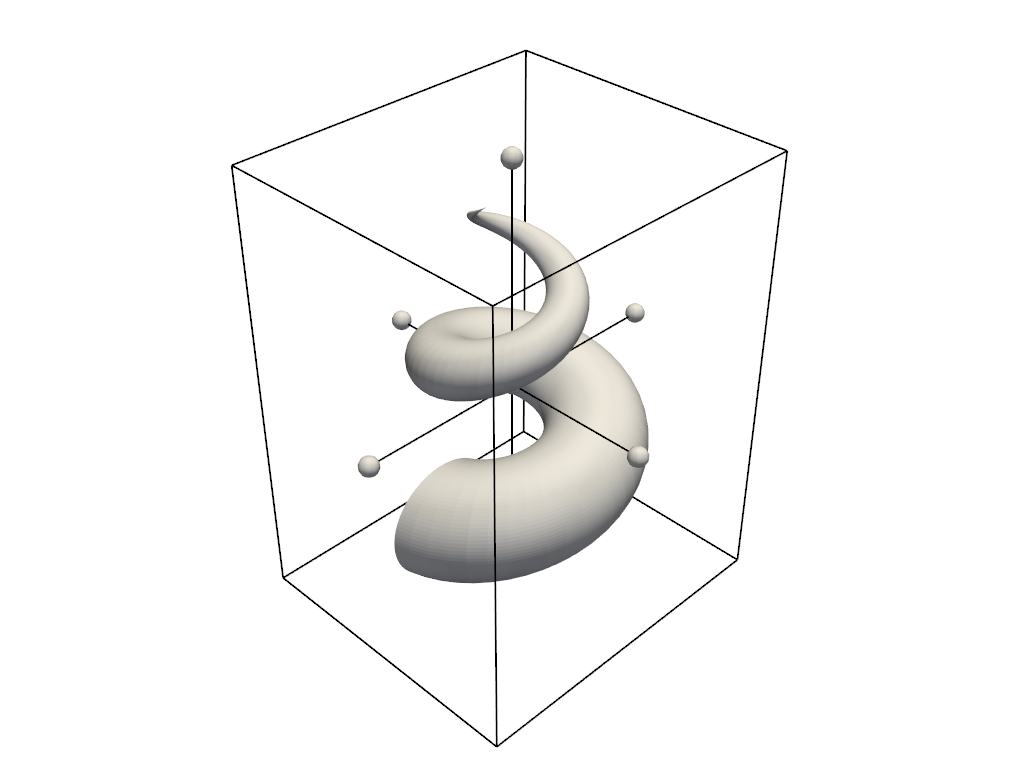

Static Scene

Interactive Scene

For a full example see Box Widget.
