pyvista.plotting.widgets.WidgetHelper.add_checkbox_button_widget#

WidgetHelper.add_checkbox_button_widget( callback, value=False, position=(10.0, 10.0), size=50, border_size=5, color_on='blue', color_off='grey', background_color='white', )[source]#

Add a checkbox button widget to the scene.

This is useless without a callback function. You can pass a callable function that takes a single argument, the state of this button widget and performs a task with that value.

Parameters:

callbackcallable(): The method called every time the button is clicked. This should take a single parameter: the bool value of the button.
valuebool, default: False: The default state of the button.
positionsequence[float], default: (10.0, 10.0): The absolute coordinates of the bottom left point of the button.
sizeint, default: 50: The size of the button in number of pixels.
border_sizeint, default: 5: The size of the borders of the button in pixels.
color_onColorLike, optional: The color used when the button is checked. Default is 'blue'.
color_offColorLike, optional: The color used when the button is not checked. Default is 'grey'.
background_colorColorLike, optional: The background color of the button. Default is 'white'.

Returns:

vtk.vtkButtonWidget: The VTK button widget configured as a checkbox button.

Examples

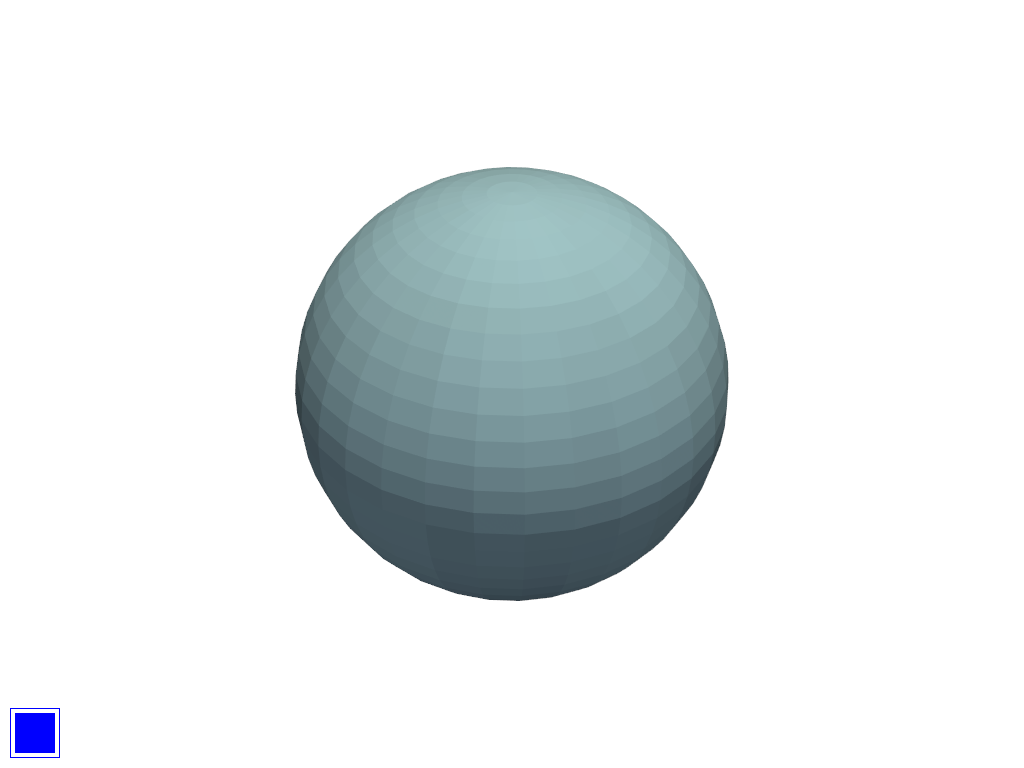

The following example generates a static image of the widget.

>>> import pyvista as pv
>>> mesh = pv.Sphere()
>>> p = pv.Plotter()
>>> actor = p.add_mesh(mesh)
>>> def toggle_vis(flag):
...     actor.SetVisibility(flag)
...
>>> _ = p.add_checkbox_button_widget(toggle_vis, value=True)
>>> p.show()

Static Scene

Interactive Scene

Download the interactive example at Checkbox Widget.
