CubeFacesSource

class CubeFacesSource(*args, **kwargs)

Generate the faces of a cube.

This source generates a MultiBlock with the six PolyData comprising the faces of a cube.

The faces may be shrunk or exploded to create equal-sized gaps or intersections between the faces. Additionally, the faces may be converted to frames with a constant-width border.

Added in version 0.45.0.

Parameters:

centerVectorLike[float], default: (0.0, 0.0, 0.0)

Center in [x, y, z].

x_lengthfloat, default: 1.0

Length of the cube in the x-direction.

y_lengthfloat, default: 1.0

Length of the cube in the y-direction.

z_lengthfloat, default: 1.0

Length of the cube in the z-direction.

boundssequence[float], optional

Specify the bounding box of the cube. If given, all other size arguments are ignored. (x_min, x_max, y_min, y_max, z_min, z_max).

frame_widthfloat, optional

Convert the faces into frames with the specified width. If set, the center portion of each face is removed and the output faces will each have four quad cells (one for each side of the frame) instead of a single quad cell. Values must be between 0.0 (minimal frame) and 1.0 (large frame). The frame is scaled to ensure it has a constant width.

shrink_factorfloat, optional

Shrink or grow the cube’s faces. If set, this is the factor by which to shrink or grow each face. The amount of shrinking or growth is relative to the smallest edge length of the cube, and all sides of the faces are shrunk by the same (constant) value.

Note

• A value of 1.0 has no effect.

• Values between 0.0 and 1.0 will shrink the faces.

• Values greater than 1.0 will grow the faces.

This has a similar effect to using shrink().

explode_factorfloat, optional

Push the faces away from (or pull them toward) the cube’s center. If set, this is the factor by which to move each face. The magnitude of the move is relative to the smallest edge length of the cube, and all faces are moved by the same (constant) amount.

Note

• A value of 0.0 has no effect.

• Increasing positive values will push the faces farther away (explode).

• Decreasing negative values will pull the faces closer together (implode).

This has a similar effect to using explode().

namessequence[str], default: (‘+X’,’-X’,’+Y’,’-Y’,’+Z’,’-Z’)

Name of each face in the generated MultiBlock.

points_dtypestr, optional

Set the desired output point types. It must be either ‘float32’ or ‘float64’. Ignored unless pyvista.core.config.Config.points_dtype is None, its default, or 'preserve'.

Added in version 0.49.

point_dtypestr, optional

Set the desired output point types.

Deprecated since version 0.49: Renamed to points_dtype, matching pyvista.core.config.Config.points_dtype.

Examples

Download Python source code | Download Jupyter notebook

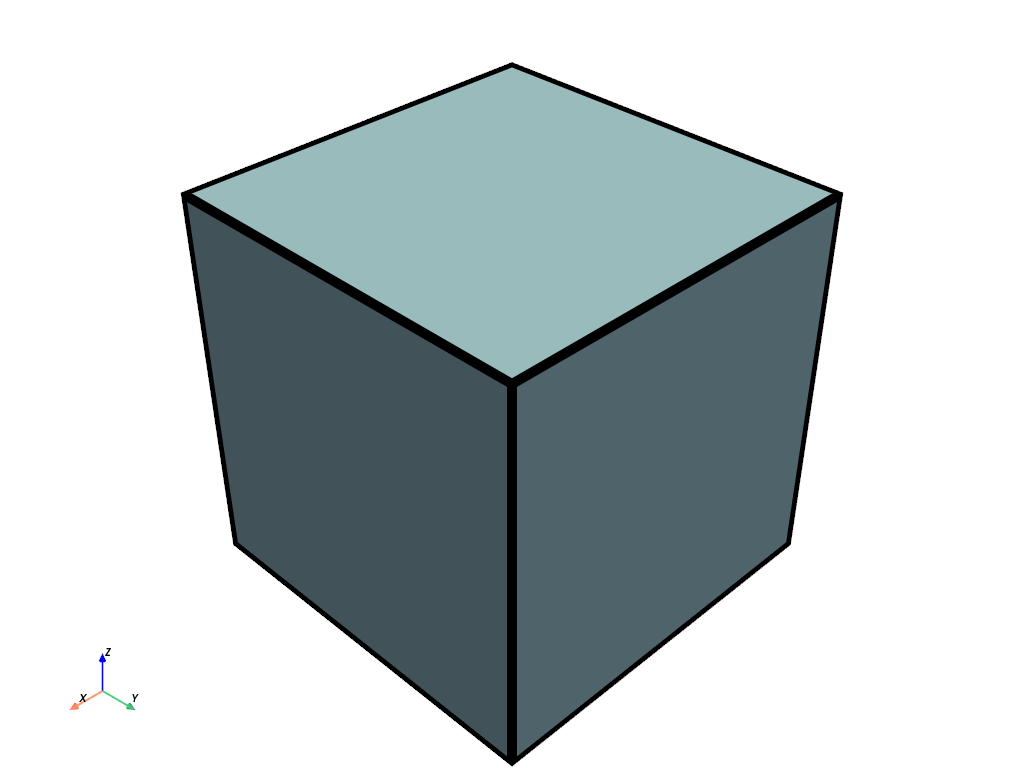

Generate the default faces of a cube.

>>> import pyvista as pv
>>> from pyvista import examples
>>> cube_faces_source = pv.CubeFacesSource()
>>> output = cube_faces_source.output
>>> output.plot(show_edges=True, line_width=10)

Static Scene

Interactive Scene

The output is similar to that of CubeSource except it’s a MultiBlock.

>>> output
MultiBlock (...)
  N Blocks:   6
  X Bounds:   -5.000e-01, 5.000e-01
  Y Bounds:   -5.000e-01, 5.000e-01
  Z Bounds:   -5.000e-01, 5.000e-01

>>> cube_source = pv.CubeSource()
>>> cube_source.output
PolyData (...)
  N Cells:    6
  N Points:   24
  N Strips:   0
  X Bounds:   -5.000e-01, 5.000e-01
  Y Bounds:   -5.000e-01, 5.000e-01
  Z Bounds:   -5.000e-01, 5.000e-01
  N Arrays:   2

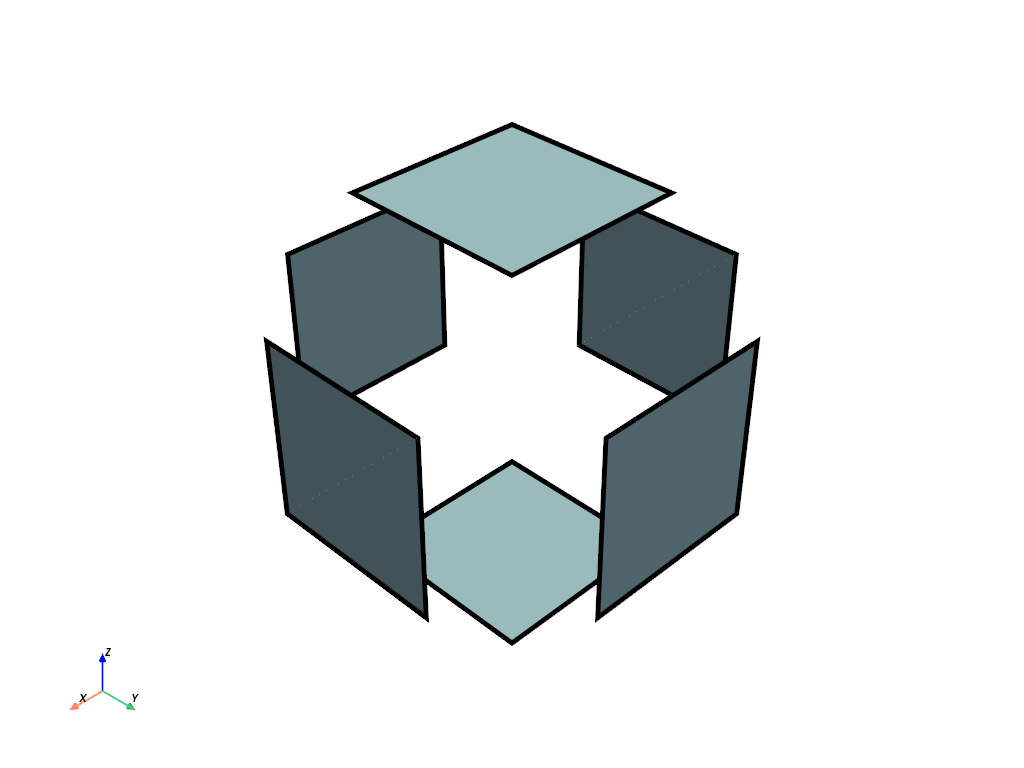

Use explode_factor to explode the faces.

>>> cube_faces_source.explode_factor = 0.5
>>> cube_faces_source.update()
>>> output.plot(show_edges=True, line_width=10)

Static Scene

Interactive Scene

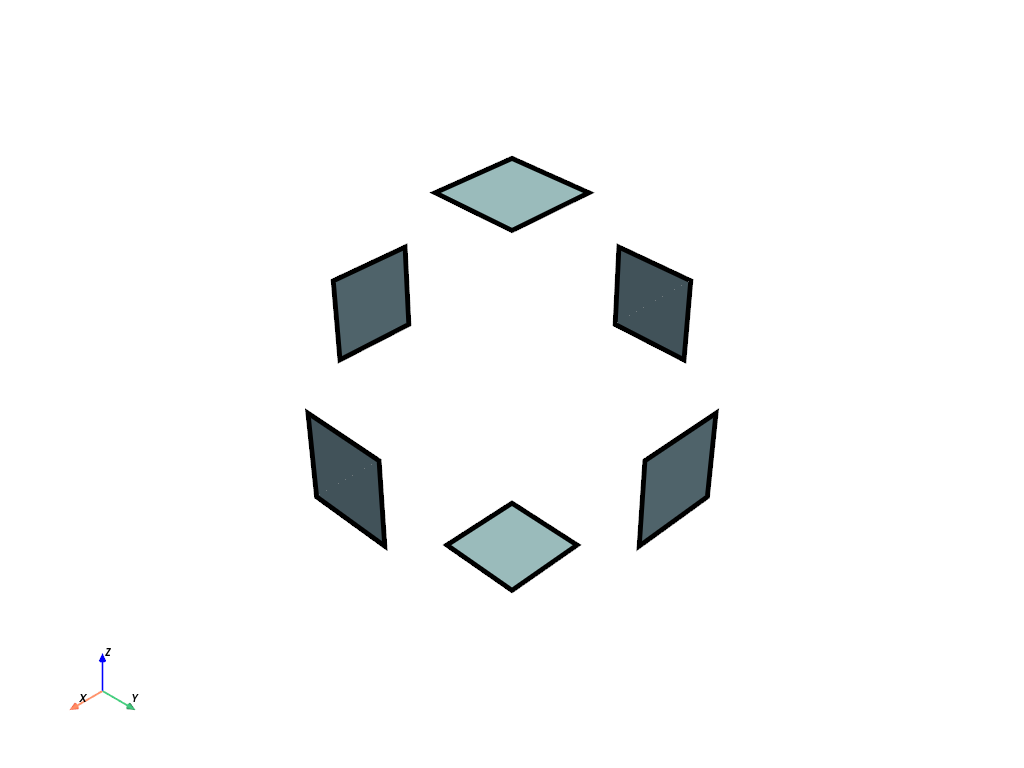

Use shrink_factor to also shrink the faces.

>>> cube_faces_source.shrink_factor = 0.5
>>> cube_faces_source.update()
>>> output.plot(show_edges=True, line_width=10)

Static Scene

Interactive Scene

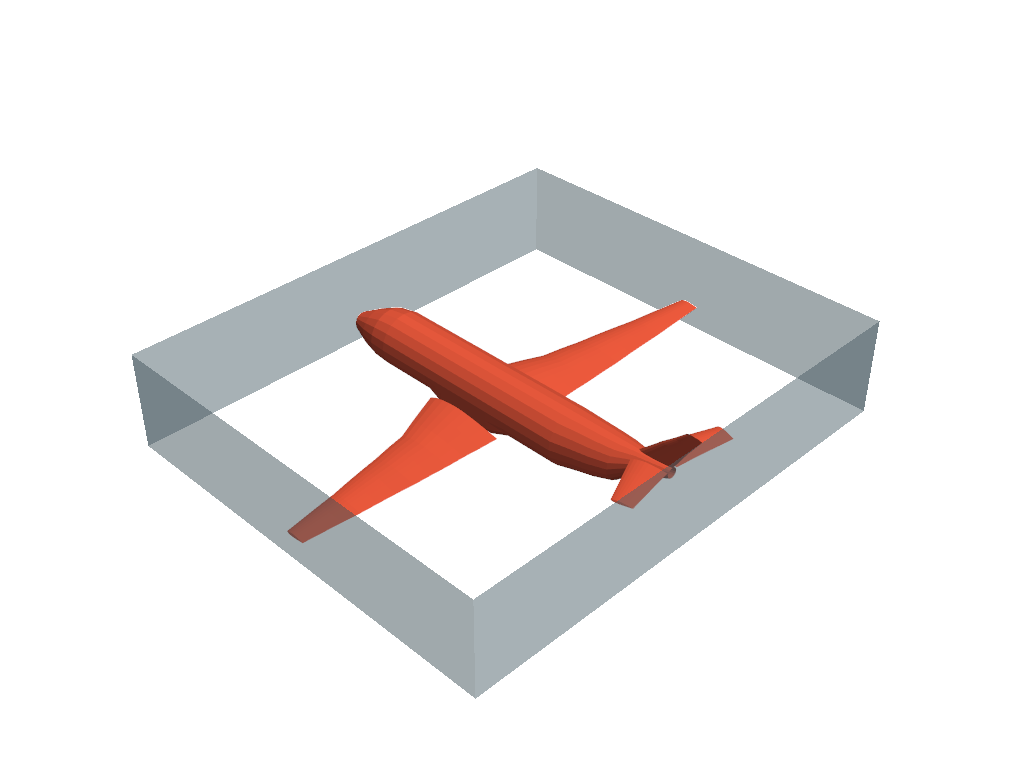

Fit cube faces to a dataset and only plot four of them.

>>> mesh = examples.load_airplane()
>>> cube_faces_source = pv.CubeFacesSource(bounds=mesh.bounds)
>>> output = cube_faces_source.output

>>> pl = pv.Plotter()
>>> _ = pl.add_mesh(mesh, color='tomato')
>>> _ = pl.add_mesh(output['+X'], opacity=0.5)
>>> _ = pl.add_mesh(output['-X'], opacity=0.5)
>>> _ = pl.add_mesh(output['+Y'], opacity=0.5)
>>> _ = pl.add_mesh(output['-Y'], opacity=0.5)
>>> pl.show()

Static Scene

Interactive Scene

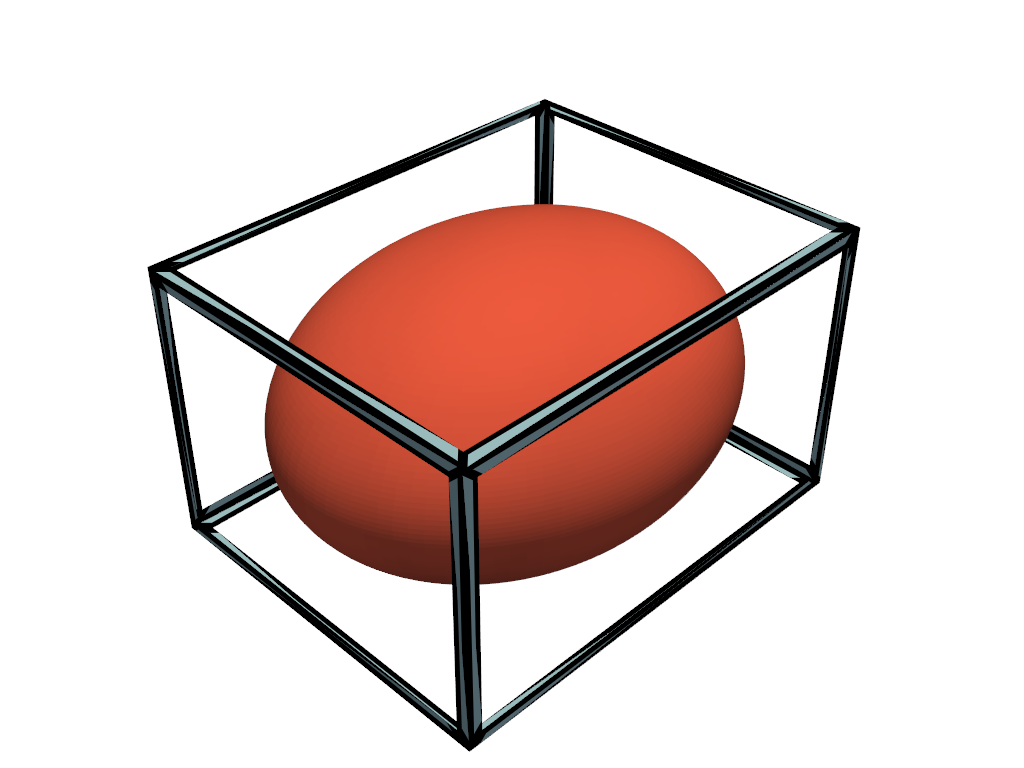

Generate a frame instead of full faces.

>>> mesh = pv.ParametricEllipsoid(5, 4, 3)
>>> cube_faces_source = pv.CubeFacesSource(bounds=mesh.bounds, frame_width=0.1)
>>> output = cube_faces_source.output

>>> pl = pv.Plotter()
>>> _ = pl.add_mesh(mesh, color='tomato')
>>> _ = pl.add_mesh(output, show_edges=True, line_width=10)
>>> pl.show()

Static Scene

Interactive Scene

Used In

Docstring Examples

• CubeFacesSource.explode_factor (1 use)
• CubeFacesSource.frame_width (1 use)
• CubeFacesSource.names (1 use)
• CubeFacesSource.shrink_factor (1 use)

Inheritance

Inherited members are documented on CubeSource.

See them all under Inherited Attributes.

Wraps vtkCubeSource.

Attributes

CubeFacesSource.explode_factor	Push the faces away from (or pull them toward) the cube's center.
CubeFacesSource.frame_width	Convert the faces into frames with the specified border width.
CubeFacesSource.names	Return or set the names of the faces.
CubeFacesSource.output	Get the output of the source.
CubeFacesSource.shrink_factor	Shrink or grow the cube's faces.

Inherited Attributes

CubeSource.bounds	Return or set the bounding box of the cube.
CubeSource.center	Get the center in [x, y, z].
CubeSource.point_dtype	Return or set the dtype of the points this source generates.
CubeSource.points_dtype	Return or set the dtype of the points this source generates.
CubeSource.x_length	Get the x length along the cube in its specified direction.
CubeSource.y_length	Get the y length along the cube in its specified direction.
CubeSource.z_length	Get the z length along the cube in its specified direction.

Methods

CubeFacesSource.update()

Update the output of the source.
