pyvista.Plotter.view_yx

Plotter.view_yx(negative=False, render=True, bounds=None) → None

View the YX plane.

Parameters:

negativebool, default: False

View from the opposite direction.

renderbool, default: True

If the render window is being shown, trigger a render after setting the camera position.

boundsiterable(int), optional

Automatically set up the camera based on a specified bounding box (x_min, x_max, y_min, y_max, z_min, z_max).

Examples

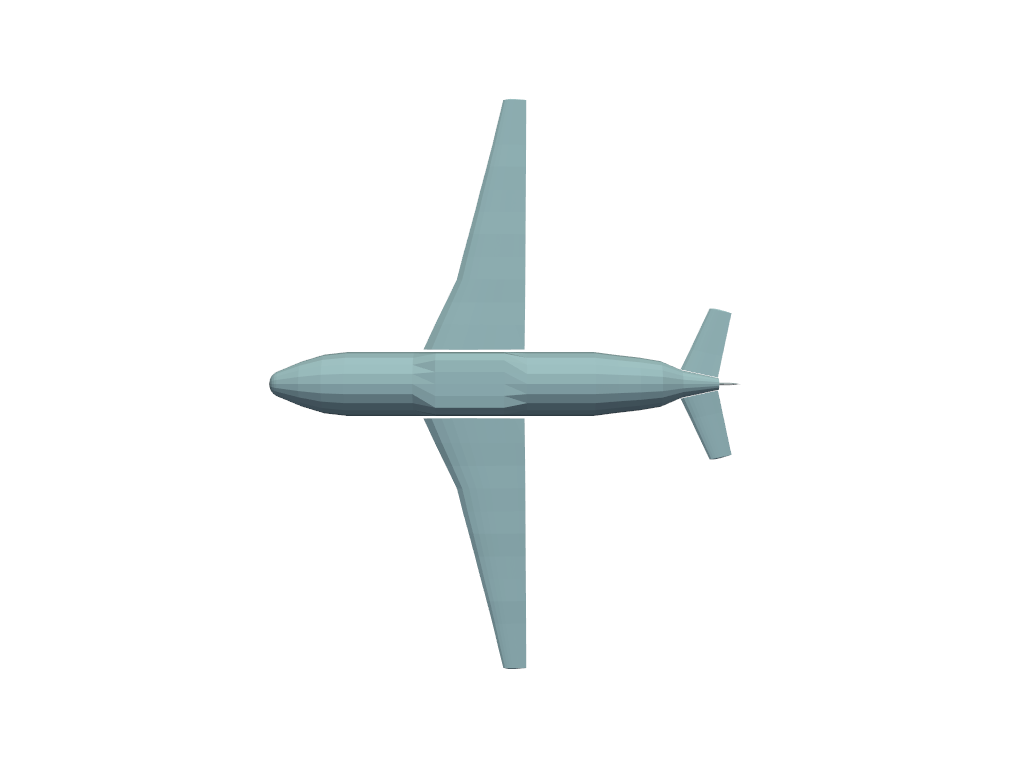

View the YX plane of a built-in mesh example.

>>> from pyvista import examples
>>> import pyvista as pv
>>> airplane = examples.load_airplane()
>>> pl = pv.Plotter()
>>> _ = pl.add_mesh(airplane)
>>> pl.view_yx()
>>> pl.show()

Static Scene

Interactive Scene
