pyvista.Renderer.view_zy

Renderer.view_zy(negative=False, render=True, bounds=None)

View the ZY plane.

Parameters:

negativebool, default: False

View from the opposite direction.

renderbool, default: True

If the render window is being shown, trigger a render after setting the camera position.

boundsiterable(int), optional

Automatically set up the camera based on a specified bounding box (xmin, xmax, ymin, ymax, zmin, zmax).

Examples

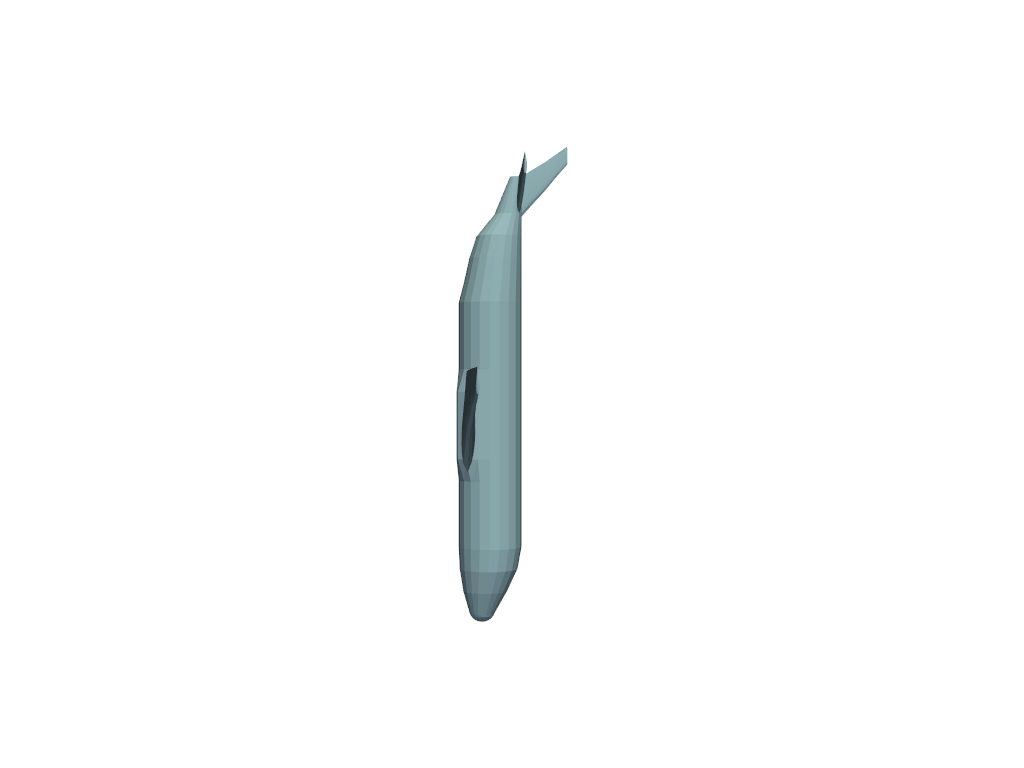

View the ZY plane of a built-in mesh example.

>>> from pyvista import examples
>>> import pyvista as pv
>>> airplane = examples.load_airplane()
>>> pl = pv.Plotter()
>>> _ = pl.add_mesh(airplane)
>>> pl.view_zy()
>>> pl.show()

Static Scene

Interactive Scene
