pyvista.Renderer.add_ruler#

Renderer.add_ruler( pointa, pointb, flip_range=False, number_labels=None, show_labels=True, font_size_factor=0.6, label_size_factor=1.0, label_format=None, title='Distance', number_minor_ticks=0, tick_length=5, minor_tick_length=3, show_ticks=True, tick_label_offset=2, label_color=None, tick_color=None, scale=1.0, )[source]#

Add ruler.

The ruler is a 2D object that is not occluded by 3D objects. To avoid issues with perspective, it is recommended to use parallel projection, i.e. Plotter.enable_parallel_projection(), and place the ruler orthogonal to the viewing direction.

The title and labels are placed to the right of ruler moving from pointa to pointb. Use flip_range to flip the 0 location, if needed.

Since the ruler is placed in an overlay on the viewing scene, the camera does not automatically reset to include the ruler in the view.

Parameters:

pointasequence[float]: Starting point for ruler.
pointbsequence[float]: Ending point for ruler.
flip_rangebool, default: False: If True, the distance range goes from pointb to pointa.
number_labelsint, optional: Number of labels to place on ruler. If not supplied, the number will be adjusted for “nice” values.
show_labelsbool, default: True: Whether to show labels.
font_size_factorfloat, default: 0.6: Factor to scale font size overall.
label_size_factorfloat, default: 1.0: Factor to scale label size relative to title size.
label_formatstr, optional: A printf style format for labels, e.g. ‘%E’.
titlestr, default: “Distance”: The title to display.
number_minor_ticksint, default: 0: Number of minor ticks between major ticks.
tick_lengthint, default: 5: Length of ticks in pixels.
minor_tick_lengthint, default: 3: Length of minor ticks in pixels.
show_ticksbool, default: True: Whether to show the ticks.
tick_label_offsetint, default: 2: Offset between tick and label in pixels.
label_colorColorLike, optional: Either a string, rgb list, or hex color string for label and title colors.

Warning

This is either white or black.
tick_colorColorLike, optional: Either a string, rgb list, or hex color string for tick line colors.
scalefloat, default: 1.0: Scale factor for the ruler.

Added in version 0.44.0.

Returns:

vtk.vtkActor: VTK actor of the ruler.

Examples

>>> import pyvista as pv
>>> cone = pv.Cone(height=2.0, radius=0.5)
>>> plotter = pv.Plotter()
>>> _ = plotter.add_mesh(cone)

Measure x direction of cone and place ruler slightly below.

>>> _ = plotter.add_ruler(
...     pointa=[cone.bounds[0], cone.bounds[2] - 0.1, 0.0],
...     pointb=[cone.bounds[1], cone.bounds[2] - 0.1, 0.0],
...     title="X Distance",
... )

Measure y direction of cone and place ruler slightly to left. The title and labels are placed to the right of the ruler when traveling from pointa to pointb.

>>> _ = plotter.add_ruler(
...     pointa=[cone.bounds[0] - 0.1, cone.bounds[3], 0.0],
...     pointb=[cone.bounds[0] - 0.1, cone.bounds[2], 0.0],
...     flip_range=True,
...     title="Y Distance",
... )
>>> plotter.enable_parallel_projection()
>>> plotter.view_xy()
>>> plotter.show()

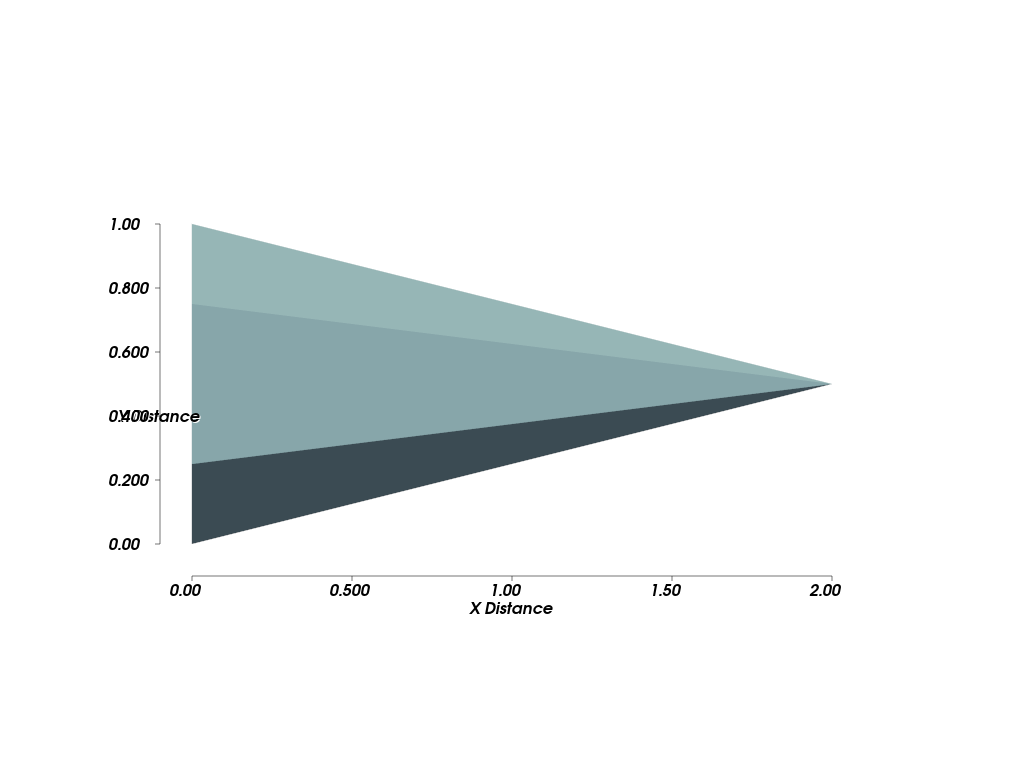

Static Scene
