pyvista.Renderer.add_axes#

Renderer.add_axes(
interactive=None,
line_width=2,
color=None,
x_color=None,
y_color=None,
z_color=None,
xlabel='X',
ylabel='Y',
zlabel='Z',
labels_off=False,
box=None,
box_args=None,
viewport=(0, 0, 0.2, 0.2),
**kwargs,
)[source]#

Add an interactive axes widget in the bottom left corner.

Parameters:
interactivebool, optional

Enable this orientation widget to be moved by the user.

line_widthint, default: 2

The width of the marker lines.

colorColorLike, optional

Color of the labels.

x_colorColorLike, optional

Color used for the x-axis arrow. Defaults to theme axes parameters.

y_colorColorLike, optional

Color used for the y-axis arrow. Defaults to theme axes parameters.

z_colorColorLike, optional

Color used for the z-axis arrow. Defaults to theme axes parameters.

xlabelstr, default: “X”

Text used for the x-axis.

ylabelstr, default: “Y”

Text used for the y-axis.

zlabelstr, default: “Z”

Text used for the z-axis.

labels_offbool, default: false

Enable or disable the text labels for the axes.

boxbool, optional

Show a box orientation marker. Use box_args to adjust. See pyvista.create_axes_orientation_box() for details.

Deprecated since version 0.43.0: The is deprecated. Use add_box_axes method instead.

box_argsdict, optional

Parameters for the orientation box widget when box=True. See the parameters of pyvista.create_axes_orientation_box().

viewportsequence[float], default: (0, 0, 0.2, 0.2)

Viewport (xstart, ystart, xend, yend) of the widget.

**kwargsdict, optional

Used for passing parameters for the orientation marker widget. See the parameters of pyvista.create_axes_marker().

Returns:
AxesActor

Axes actor of the added widget.

See also

show_axes

Similar method which calls add_axes() without any parameters.

add_axes_at_origin

Add an pyvista.AxesActor to the origin of a scene.

Examples

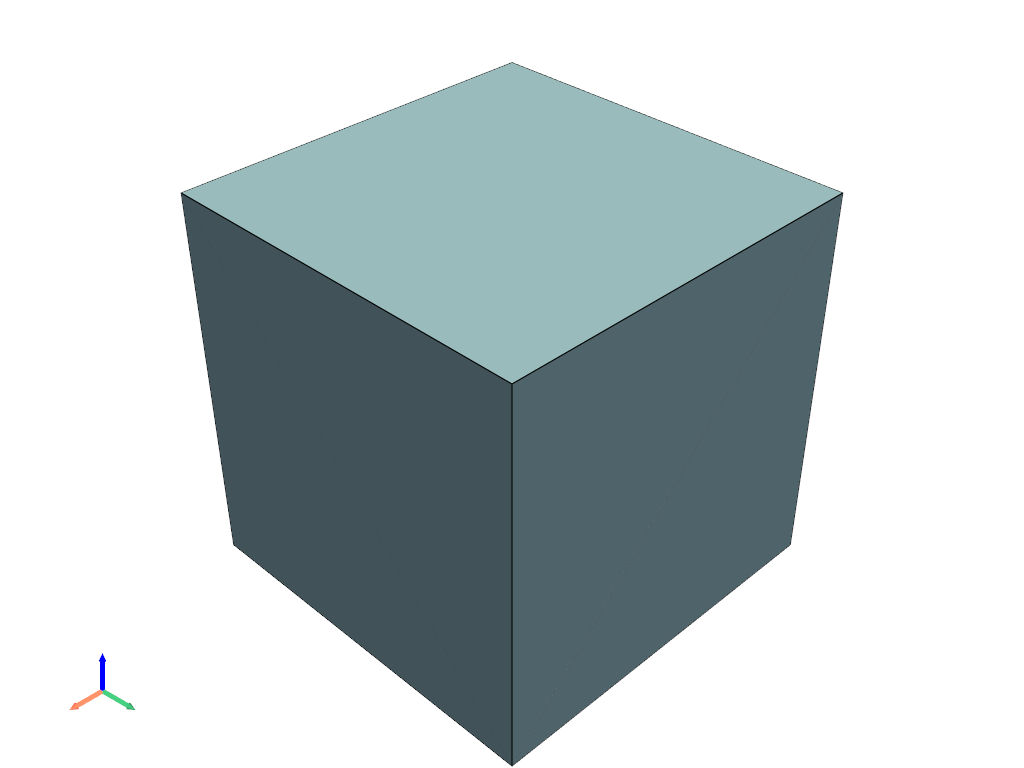

Show axes without labels and with thick lines.

>>> import pyvista as pv
>>> pl = pv.Plotter()
>>> actor = pl.add_mesh(pv.Box(), show_edges=True)
>>> _ = pl.add_axes(line_width=5, labels_off=True)
>>> pl.show()
../../../_images/pyvista-Renderer-add_axes-1_00_00.png

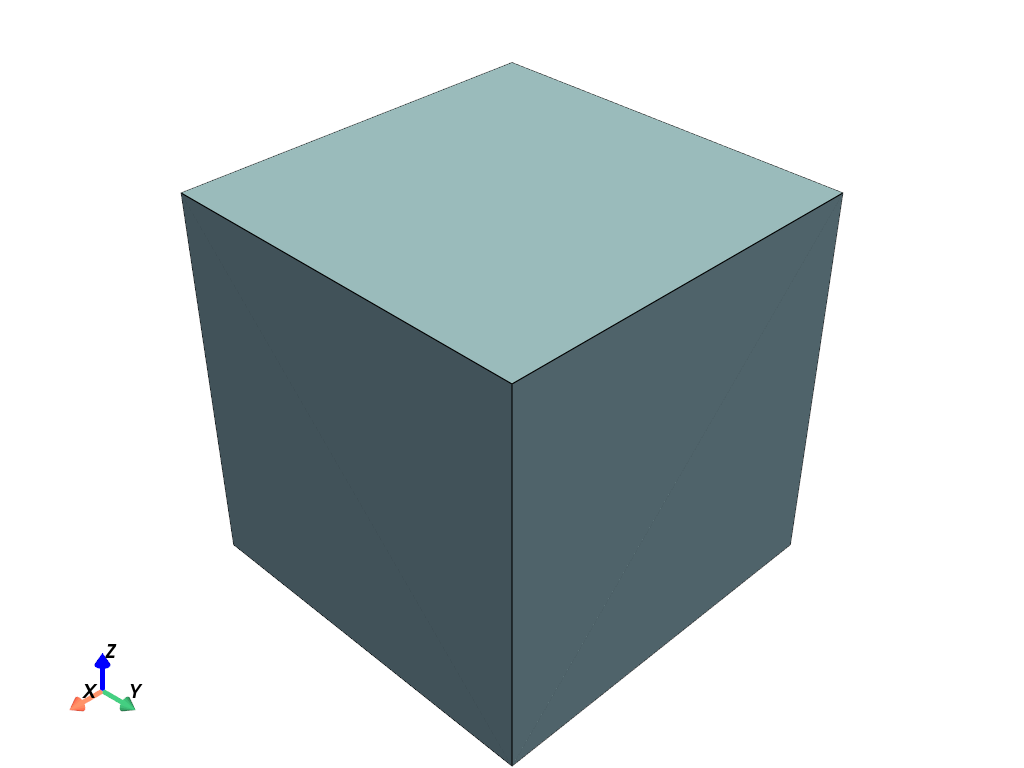

Specify more parameters for the axes marker.

>>> import pyvista as pv
>>> pl = pv.Plotter()
>>> actor = pl.add_mesh(pv.Box(), show_edges=True)
>>> _ = pl.add_axes(
...     line_width=5,
...     cone_radius=0.6,
...     shaft_length=0.7,
...     tip_length=0.3,
...     ambient=0.5,
...     label_size=(0.4, 0.16),
... )
>>> pl.show()
../../../_images/pyvista-Renderer-add_axes-1_01_00.png
