pyvista.Plotter.add_mesh_clip_plane#

Plotter.add_mesh_clip_plane(

mesh,

normal='x',

invert=False,

widget_color=None,

value=0.0,

assign_to_axis=None,

tubing=False,

origin_translation=True,

outline_translation=False,

implicit=True,

normal_rotation=True,

crinkle=False,

interaction_event='end',

origin=None,

outline_opacity=None,

**kwargs,

)[source]#

Clip a mesh using a plane widget.

Add a mesh to the scene with a plane widget that is used to clip the mesh interactively.

The clipped mesh is saved to the .plane_clipped_meshes attribute on the plotter.

Parameters:

meshpyvista.DataSet or vtk.vtkAlgorithm: The input dataset to add to the scene and clip or algorithm that produces said mesh.
normalstr or tuple(float), optional: The starting normal vector of the plane.
invertbool, optional: Flag on whether to flip/invert the clip.
widget_colorColorLike, optional: Either a string, RGB list, or hex color string.
valuefloat, optional: Set the clipping value along the normal direction. The default value is 0.0.
assign_to_axisstr or int, optional: Assign the normal of the plane to be parallel with a given axis. Options are (0, 'x'), (1, 'y'), or (2, 'z').
tubingbool, optional: When using an implicit plane wiget, this controls whether or not tubing is shown around the plane’s boundaries.
origin_translationbool, optional: If False, the plane widget cannot be translated by its origin and is strictly placed at the given origin. Only valid when using an implicit plane.
outline_translationbool, optional: If False, the box widget cannot be translated and is strictly placed at the given bounds.
implicitbool, optional: When True, a vtkImplicitPlaneWidget is used and when False, a vtkPlaneWidget is used.
normal_rotationbool, optional: Set the opacity of the normal vector arrow to 0 such that it is effectively disabled. This prevents the user from rotating the normal. This is forced to False when assign_to_axis is set.
crinklebool, optional: Crinkle the clip by extracting the entire cells along the clip.
interaction_eventvtk.vtkCommand.EventIds, str, optional: The VTK interaction event to use for triggering the callback. Accepts either the strings 'start', 'end', 'always' or a vtk.vtkCommand.EventIds.

Changed in version 0.38.0: Now accepts either strings or vtk.vtkCommand.EventIds.
origintuple(float), optional: The starting coordinate of the center of the plane.
outline_opacitybool or float, optional: Set the visible of outline. Only valid when using an implicit plane. Either a bool or float.

Added in version 0.44.0.
**kwargsdict, optional: All additional keyword arguments are passed to Plotter.add_mesh() to control how the mesh is displayed.

Returns:

vtk.vtkActor: VTK actor of the mesh.

Examples

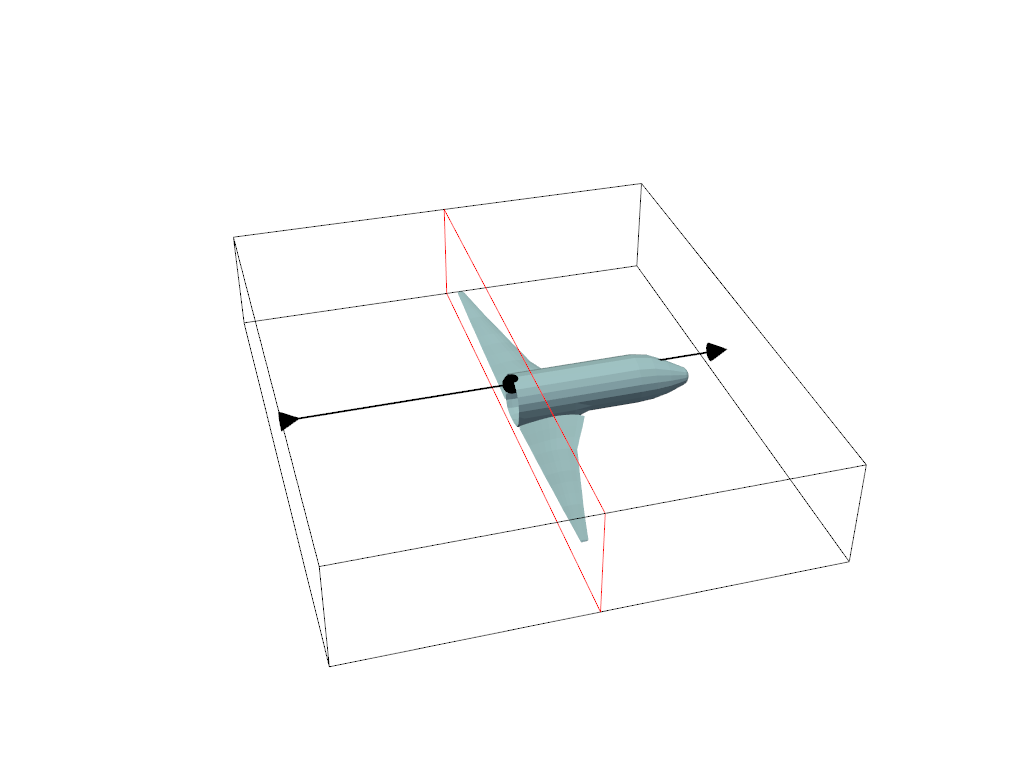

Shows an interactive plane used to clip the mesh and store it.

>>> import pyvista as pv
>>> from pyvista import examples
>>> vol = examples.load_airplane()
>>> pl = pv.Plotter()
>>> _ = pl.add_mesh_clip_plane(vol, normal=[0, -1, 0])
>>> pl.show(cpos=[-2.1, 0.6, 1.5])

Static Scene

../../../_images/pyvista-Plotter-add_mesh_clip_plane-1_00_00.png

Interactive Scene

>>> pl.plane_clipped_meshes

For a full example see Plane Widget.
