pyvista.plotting.charts.Axis.behavior

property Axis.behavior

Set the axis’ scaling behavior.

Allowed behaviors are 'auto' to automatically rescale the axis to fit all visible datapoints in the plot, or 'fixed' to use the user defined range.

Examples

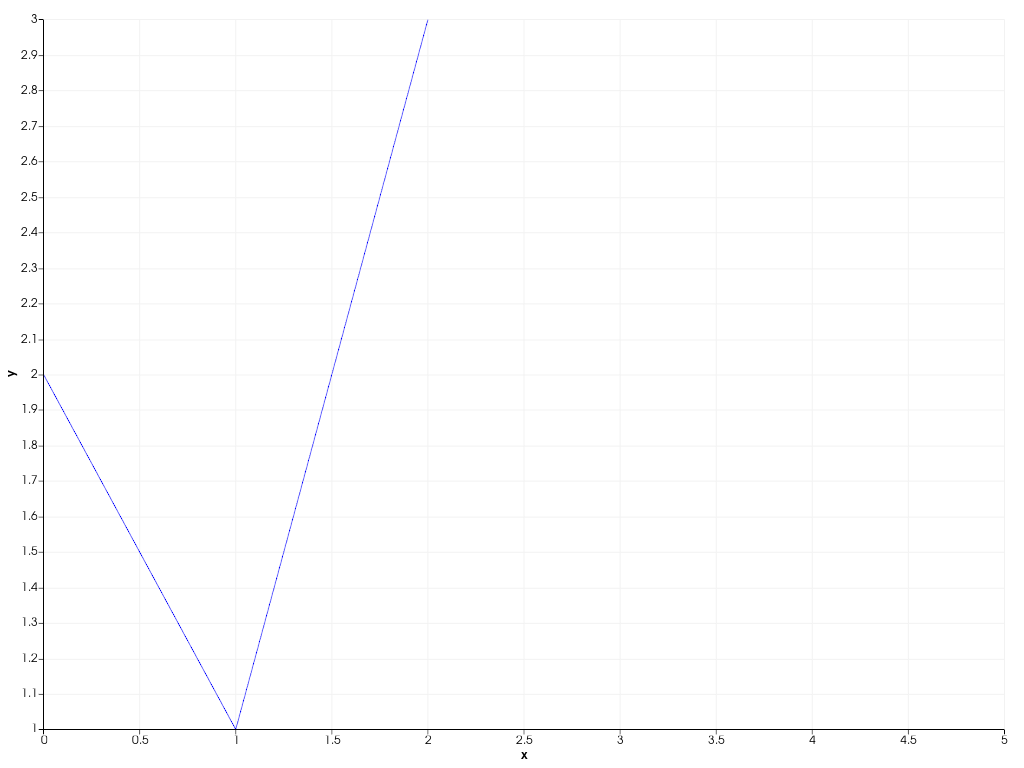

Manually specify the x-axis range of a 2D chart.

>>> import pyvista as pv
>>> chart = pv.Chart2D()
>>> _ = chart.line([0, 1, 2], [2, 1, 3])
>>> chart.x_axis.range = [0, 5]
>>> chart.show()

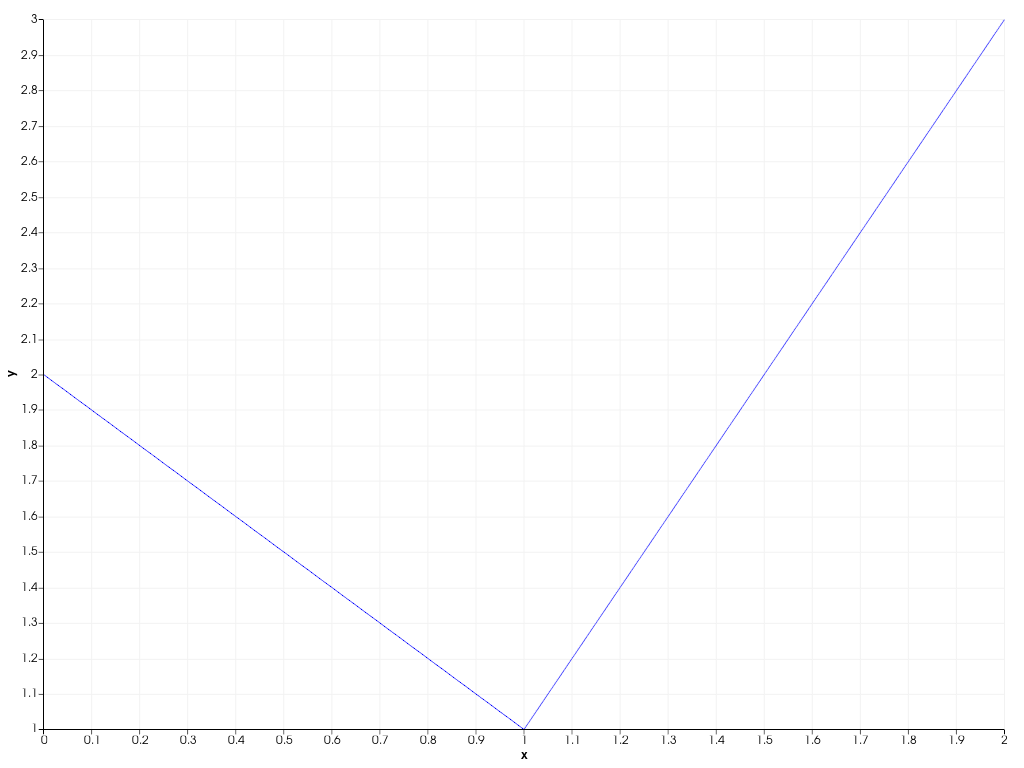

Revert to automatic axis scaling.

>>> chart.x_axis.behavior = "auto"
>>> chart.show()

>>> chart.x_axis.range
[0.0, 2.0]
