Register a Surface with ICP#

Recover the rigid transform between two surfaces with the iterative closest point implementation behind pyvista.DataSetFilters.align().

import numpy as np
import pyvista as pv
from pyvista import examples

Load a reference surface#

The download_action_figure() scan is an asymmetric reference mesh.

target = examples.download_action_figure()
target

PolyData (0x711967bae560)
  N Cells:    31421
  N Points:   15713
  N Strips:   0
  X Bounds:   -5.202e+01, 4.267e+01
  Y Bounds:   -5.098e+01, 5.580e+01
  Z Bounds:   -8.107e+00, 7.892e+01
  N Arrays:   1


A camera position that frames the figure clearly.

cpos = pv.CameraPosition(
    position=(150, -250, 150),
    focal_point=(0, 0, 35),
    viewup=(0, 0, 1),
)

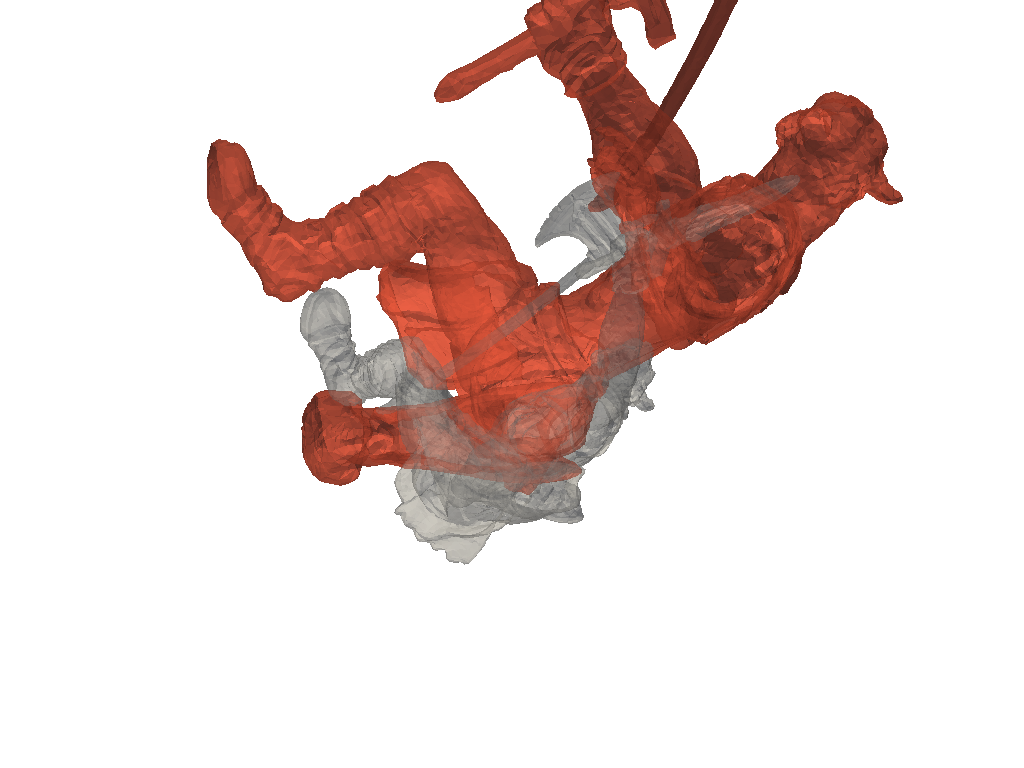

Transform a copy away from the reference#

The transformed copy stands in for an incoming scan that needs to be registered back onto the reference.

offset = np.array(target.length) * 0.4
transform = pv.Transform().rotate_x(25).rotate_z(-35).translate((offset, -offset, offset))
source = target.transform(transform, inplace=False)

pl = pv.Plotter()
pl.add_mesh(target, color='lightgray', opacity=0.6)
pl.add_mesh(source, color='tomato', opacity=0.8)
pl.camera_position = cpos
pl.show()
icp registration

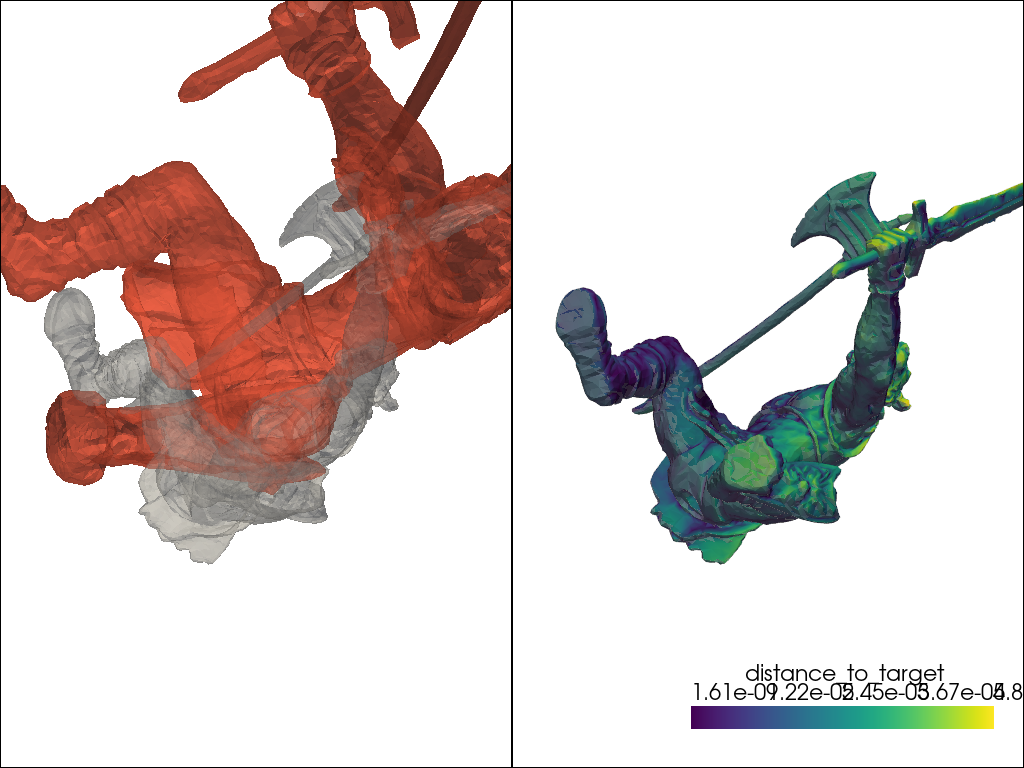

Recover the rigid transform#

pyvista.DataSetFilters.align() runs ICP and returns both the aligned mesh and the recovered transform matrix.

aligned, matrix = source.align(target, return_matrix=True)

_, closest_points = target.find_closest_cell(aligned.points, return_closest_point=True)
aligned['distance_to_target'] = np.linalg.norm(aligned.points - closest_points, axis=1)

pl = pv.Plotter(shape=(1, 2))
pl.subplot(0, 0)
pl.add_mesh(target, color='lightgray', opacity=0.6)
pl.add_mesh(source, color='tomato', opacity=0.8)
pl.camera_position = cpos
pl.subplot(0, 1)
pl.add_mesh(target, color='lightgray', opacity=0.4)
pl.add_mesh(aligned, scalars='distance_to_target', cmap='viridis')
pl.camera_position = cpos
pl.link_views()
pl.show()
icp registration

Inspect the recovered transform#

The returned matrix maps the transformed copy back onto the reference.

np.round(matrix, 3)

array([[  0.819,  -0.574,  -0.   , -93.122],
       [  0.52 ,   0.742,   0.423, -13.376],
       [ -0.242,  -0.346,   0.906, -67.538],
       [  0.   ,   0.   ,   0.   ,   1.   ]])

Measure the residual distances#

A successful registration leaves a small point-to-surface residual.

aligned['distance_to_target'].mean(), aligned['distance_to_target'].max()

(np.float64(1.5467277336856347e-05), np.float64(4.892452988130443e-05))

Tags: filter

Total running time of the script: (0 minutes 1.663 seconds)
