pyvista.UnstructuredGrid.cast_to_explicit_structured_grid

UnstructuredGrid.cast_to_explicit_structured_grid()

Cast to an explicit structured grid.

Returns:

pyvista.ExplicitStructuredGrid

An explicit structured grid.

Raises:

TypeError

If the unstructured grid doesn’t have the 'BLOCK_I', 'BLOCK_J' and 'BLOCK_K' cells arrays.

See also

pyvista.ExplicitStructuredGrid.cast_to_unstructured_grid

Examples

>>> from pyvista import examples
>>> grid = examples.load_explicit_structured()

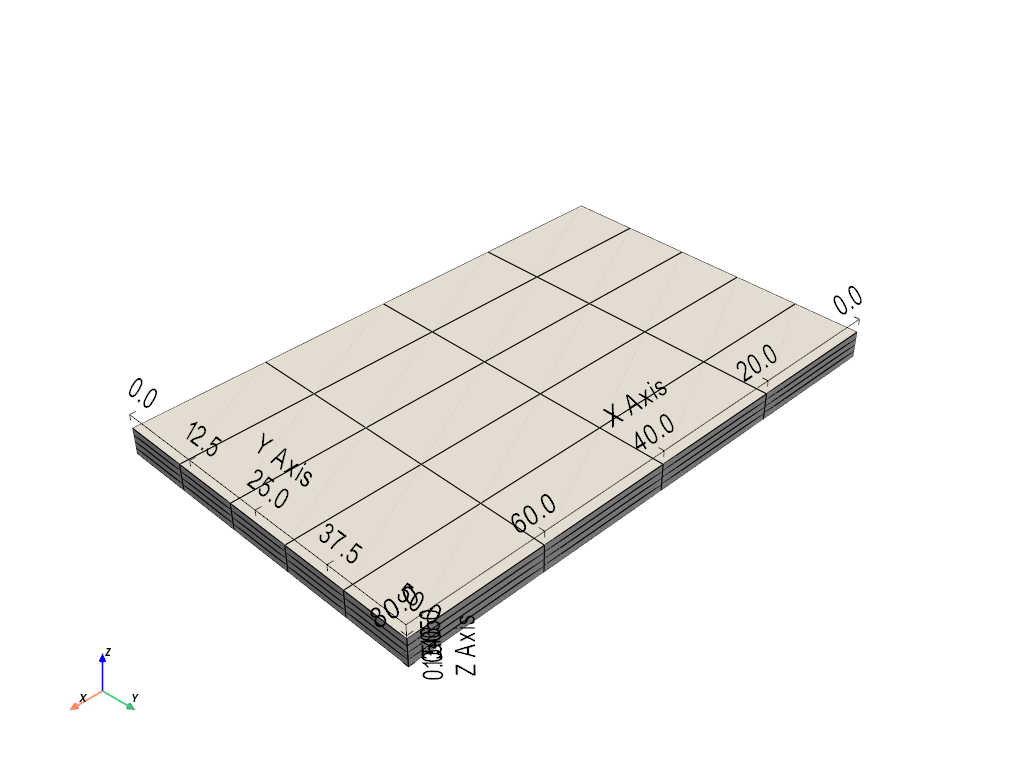

>>> grid.plot(color='w', show_edges=True, show_bounds=True)

Static Scene

Interactive Scene

>>> grid = grid.hide_cells(range(80, 120))
>>> grid.plot(color='w', show_edges=True, show_bounds=True)

Static Scene

Interactive Scene

>>> grid = grid.cast_to_unstructured_grid()
>>> grid.plot(color='w', show_edges=True, show_bounds=True)

Static Scene

Interactive Scene

>>> grid = grid.cast_to_explicit_structured_grid()
>>> grid.plot(color='w', show_edges=True, show_bounds=True)

Static Scene

Interactive Scene
